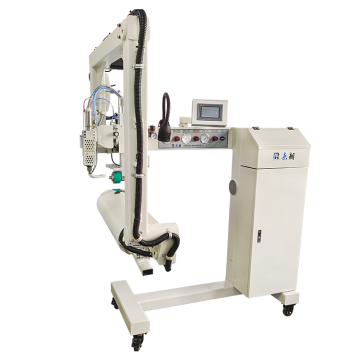

CR-G16 Dual Arm Hot Air Welding Machine for Inflatable Products
Description
Product description
Feature of Dual arm hot air hot wedge plastic welding machine
1. This machine adopts advanced technology and has functions of hot air and hot block. Hot air and hot block functions can be switched, easy to replace. It can meet various welding requirements of TPU, PVC, PE, PVC mesh cloth, etc.
2. It adopts editable PLC control system, high-definition touch screen display, Chinese and English system, can be programmed according to user requirements, and the microcomputer automatically controls the whole machine, with simple operation, stable action performance and low failure rate.
3. Automatic temperature control, with upper limit temperature warning device.
4. Automatic compensation and reverse, reducing welding blank.
5. Dual pedal control
6. It can work continuously for up to 24 hours
7. The unique heating structure can reach up to 750℃, the temperature is automatically tracked and controlled by a computer, and the accuracy can reach ±1℃.
8. Super strong torsional dynamic design
9. Blowing-in hot air is filtrated without any water and oil
10. The hot wedge function is noiseless, energy-saving, environmentally friendly and smoke-free, with strong welding fastness, no wrinkles, and no bright edges.
11. The equipment can set different parameters according to different welding materials, and automatically store them for easy recall and effectively improve work efficiency.
12. The double-arm design meets the welding requirements of products of different shapes.
| Product name | Dual arm hot air hot wedge plastic welding machine |
| Model | CR-G16 |
| Voltage | AC 220V 50-60HZ |
| Power | 3500W |
| Working speed | 1-25m/min |
| Air pressure | 0.35-0.5Mpa |
| Hot air temperature | Up to 750℃ |
| Hot wedge temperature | Up to 500℃ |
| Roller width | 20/30/40/50mm |
| Nozzle width | 20/30/40mm |
| Hot wedge width | 25mm |
| Dimension | 1500*750*1600mm |
| Gross weight | 350kg |

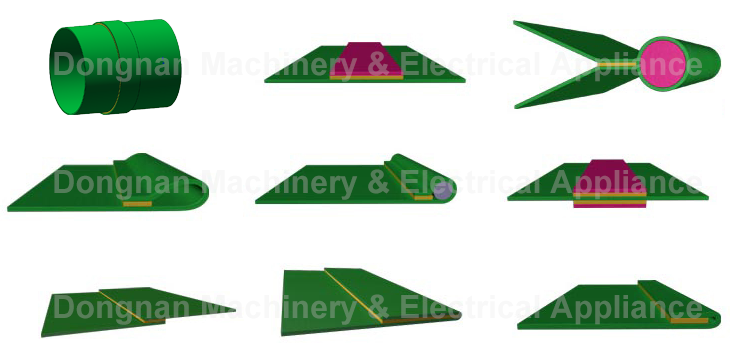

Welding type of Dual arm hot air hot wedge plastic welding machine

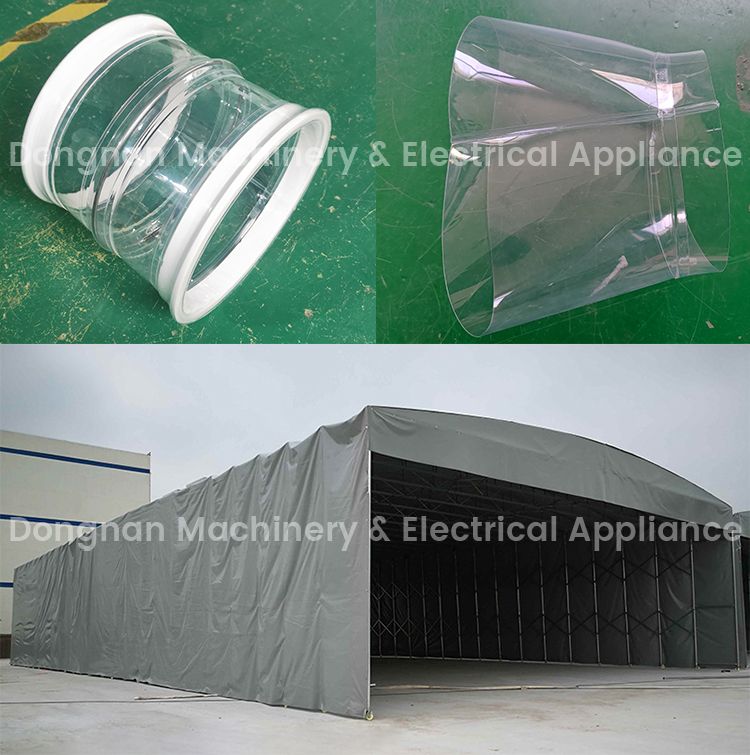

Application products of Dual arm hot air hot wedge plastic welding machine
This machine is mainly used for welding cylindrical shape products, and can also produce tents, tarpaulins, car covers, inflatable boats, rubber boats, inflatable swimming pools, inflatable bouncy trampoline, advertising banners, etc.
