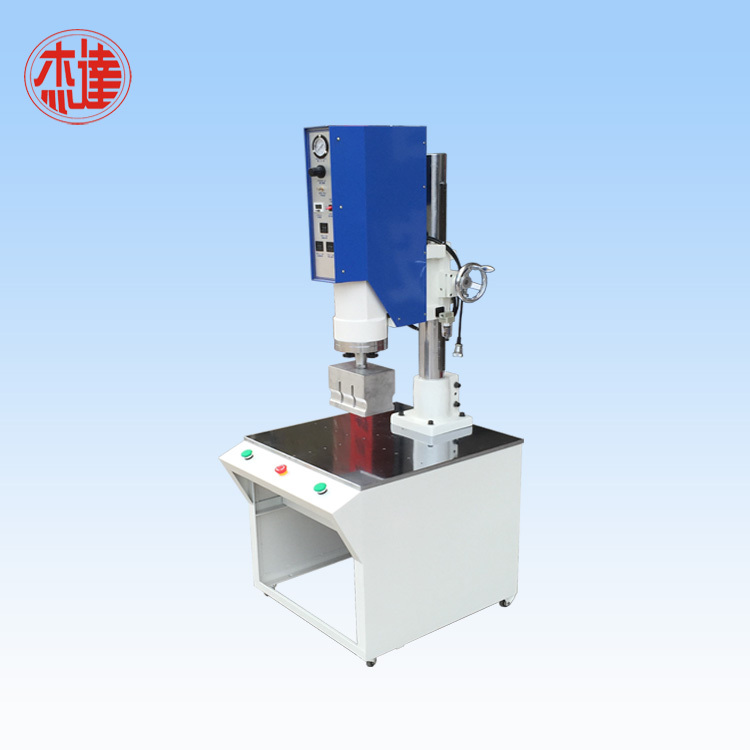

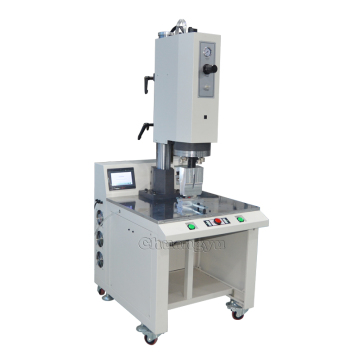

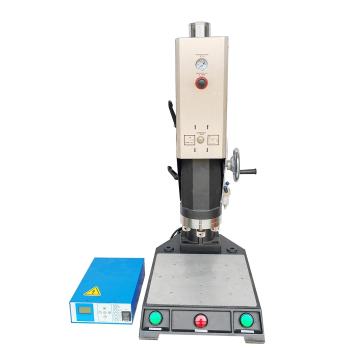

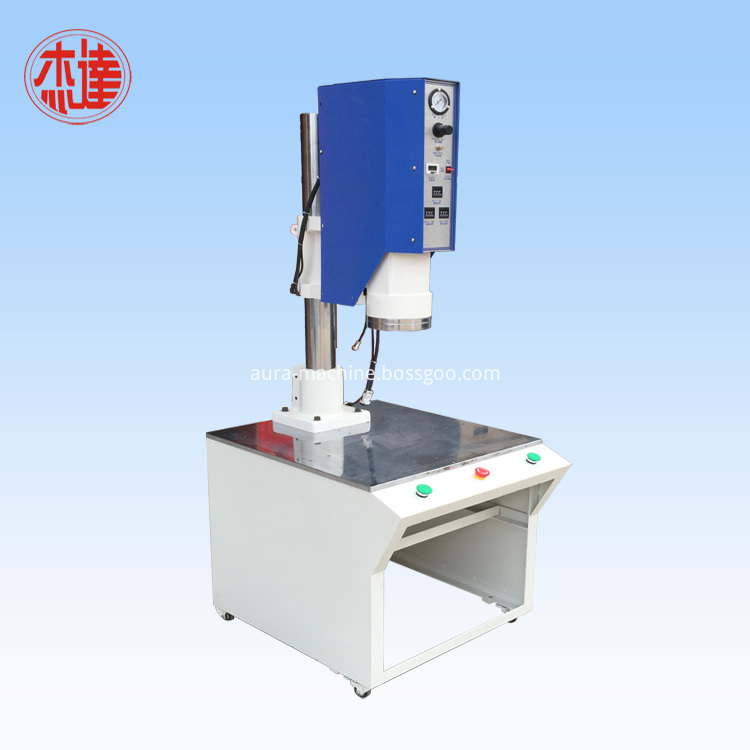

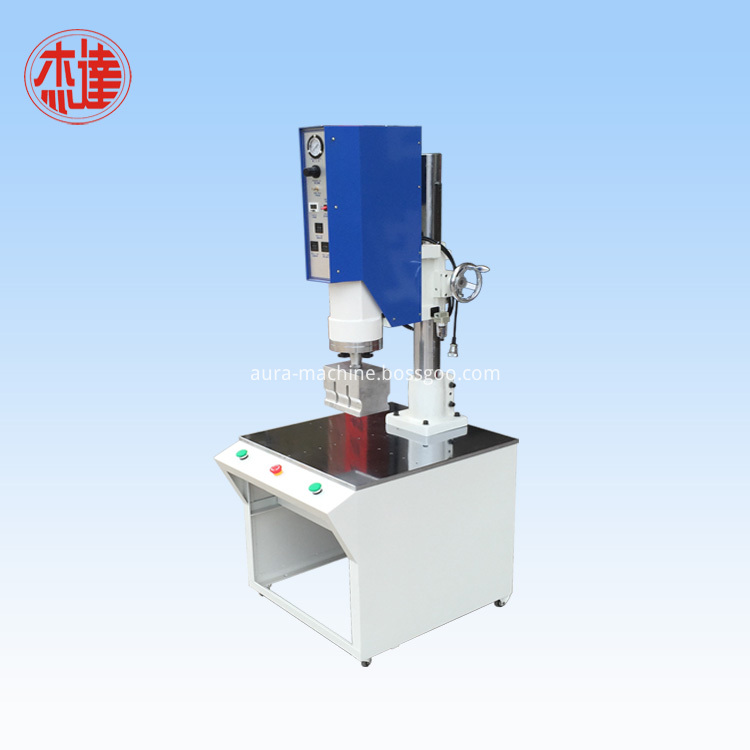

Ultrasonic Plastic Welding Machine for Plastic Toy
Description
Product description
Ultrasonic Plastic Welding Machine for Plastic Toy:
The high quality ultrasonic welding equipment makes an essential development in stability and capicity, so it is more suitable for welding precision plastic products, such as medical industry, auto parts, precision electronic plastic welding, etc. Ultrasonic plastic welding machine using for plastic toy insustrial can meet the customers' need well, because it wothout any flash on the material surface, keep product appearance intact.
Features of ultrasonic plastic welding machine:
1. Strong and stable output power, as piezoelectric ceramics are imported from Japan.
2. Automatic compensation for feedback control circuit can be prolonged to welding machines' service life.
3. Foot switch can be used without preheating, convenient to high capacity.
4. Time control using three-digit dial code switch, adjustable 1/100 seconds precision.
5. Be compatible with automated machine or a bag machine.
6. It can be customized according to customers' needs. For suitable materials: PP PVC PE ABS etc

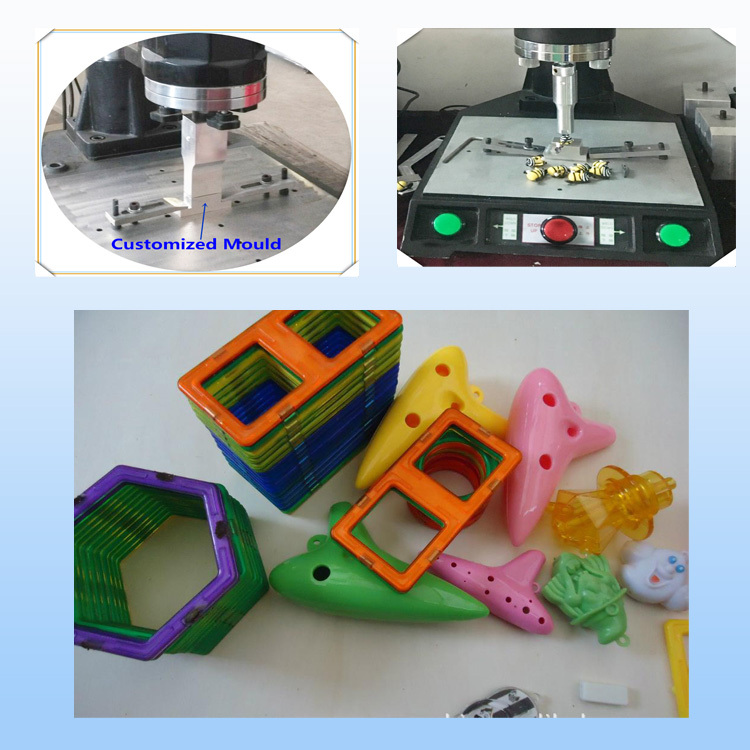

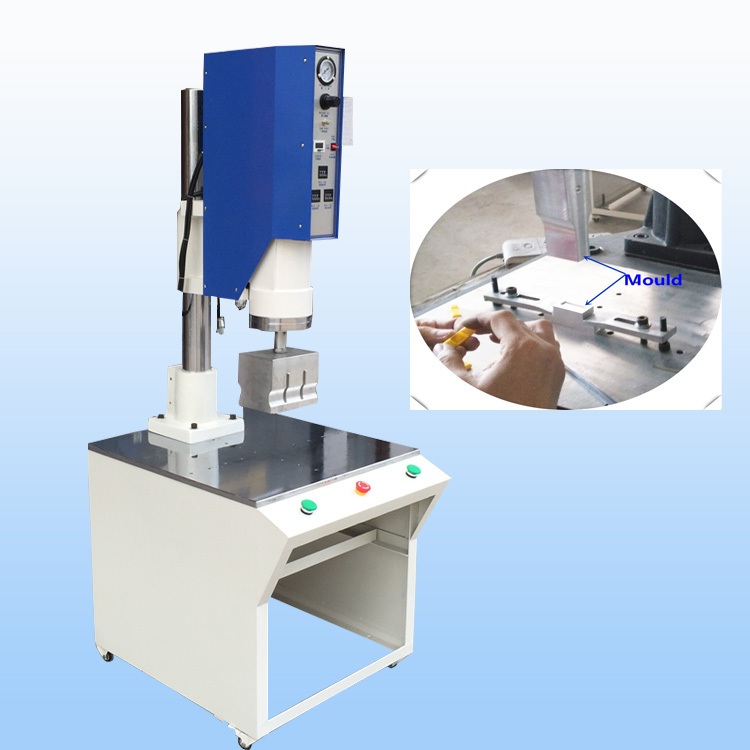

The welding mould can be customized:
Technical parameter of ultrasonic plastic welding machine:
|
output power (W) |
1500 |
2000 |
2200 |
2600 |
|
frequency |
20KHz |
15KHz |
||
|
input voltage |
AC220V |
|||
|
welding head stroke |
80mm |
|||
|
oscillating system |
Self-excited oscillation circuit |
|||
|
output time |
0.01-9.99S |
|||
|
current directions |
output amplitude of the table instructions |
|||
|
pressure |
pressure range of 1-7bar |
|||
|
power output range |
1-6 stall continuously adjustable |
|||
|
vibration head cooling system |
air-cooled |
|||
|
welding area (mm) |
150 |
190 |
210 |
220 |
|
Dimension |
600 × 680 × 1780 |
|||
|
net |
145kg |
150kg |
156kg |
168kg |
