Poly Pipe Saddle Welding Equipment for Reducing Tee
Contact Now
Description
Product description
Poly Pipe Saddle Welding Equipment for Reducing Tee

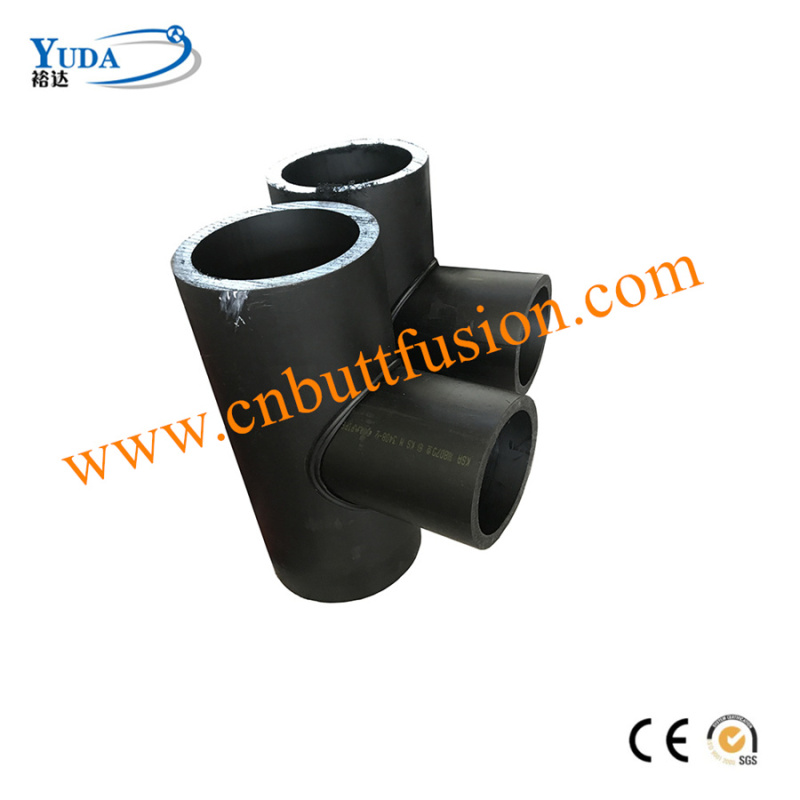

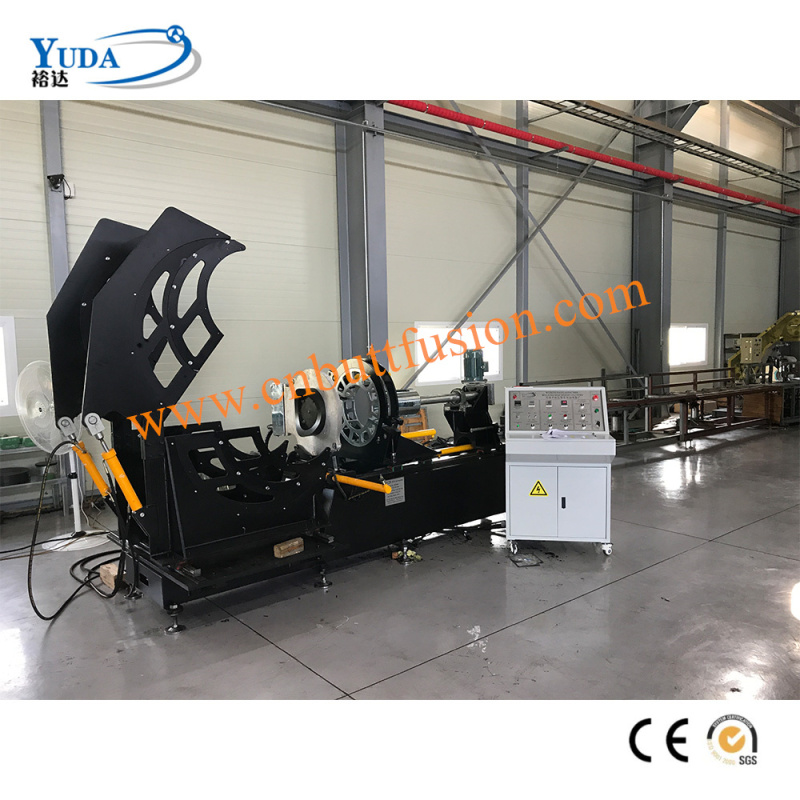

Hydraulic Poly Pipe Saddle Fusion Machine is for the production of 90-degree reducing tees from standard HDPE pipe sections. Capacity Main pipe 630 to 1200mm ,branch pipe 315-630mm. This fittings is called reducing tee. HDPE Reducing Tee is usually used to supply water or gas to an area from a main pipeline, as they have a smaller off-take (and therefore less flow) than the original pipeline. The Polyethylene Pipe Saddle Welding Machine is constructed to allow operation by one person, incorporating main pipe clamp, branch pipe clamps, hydraulically removed the heating plate with curved elements and integrated hole saw for final removal of pipe coupon. The welding is by the way of butt fusion, and welding process can refere to DVS2207 welding parameters.
1.Suitable for fabricating PE reducing tee in a workshop. Integrated function of welding and taping enables it can complete the whole fabricating process
2.Removable PTFE coated heating mould
3.Control panel accompaines with CNC system to eliminate any risk of error due to the operator
4. Full-Automatic welding procedures with PLC and Touch screen
5. Welding statistics recording and printing function.
6. Linear guide ways are equipped with main pipe clamps, branch pipe clamps, knife tool and heat mould
Optional Parts:

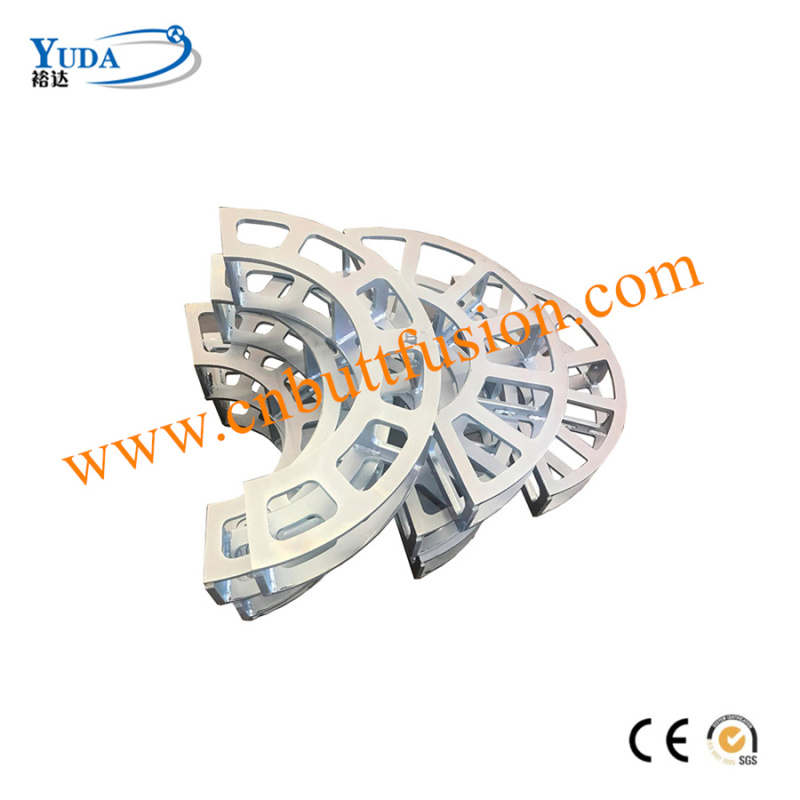

* Heat Moulds

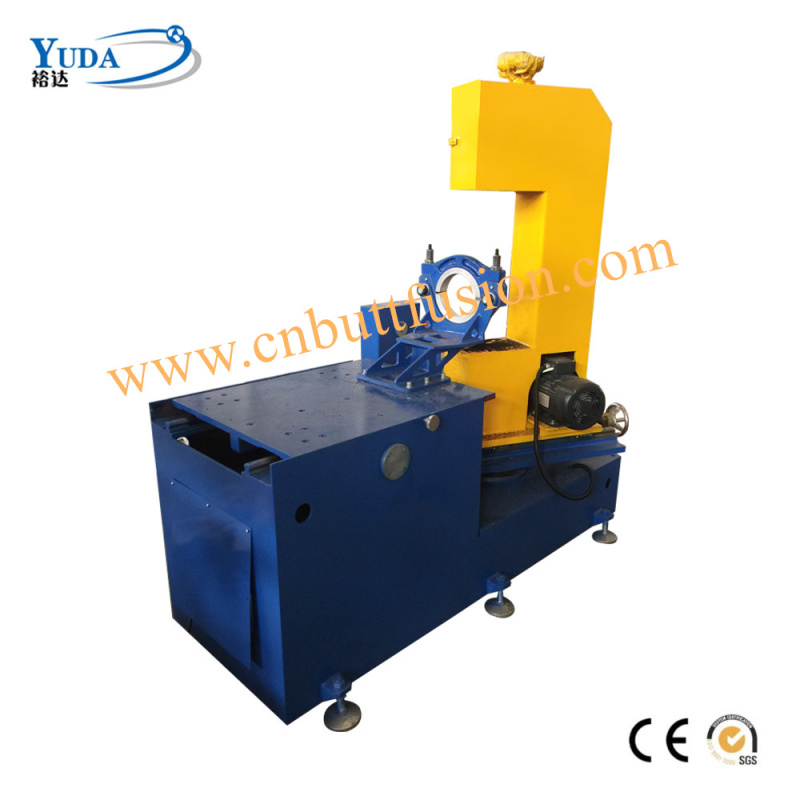

* Drilling Tool
