Hot Wedge Geomembrane Welder
Description
Product description

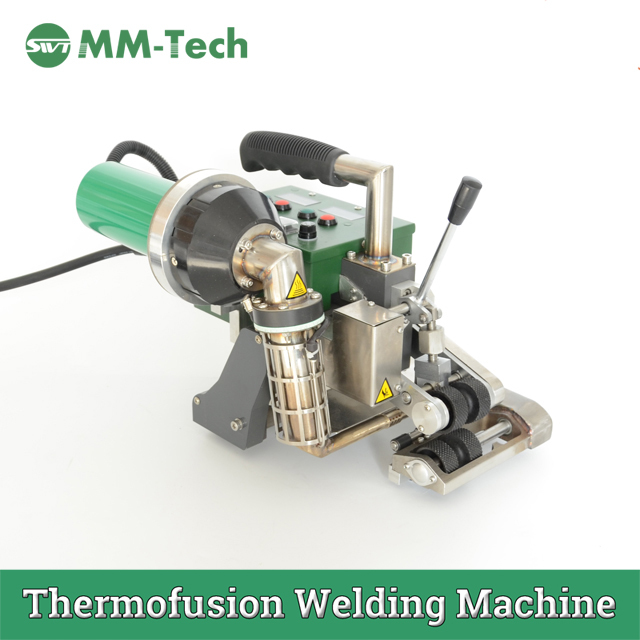

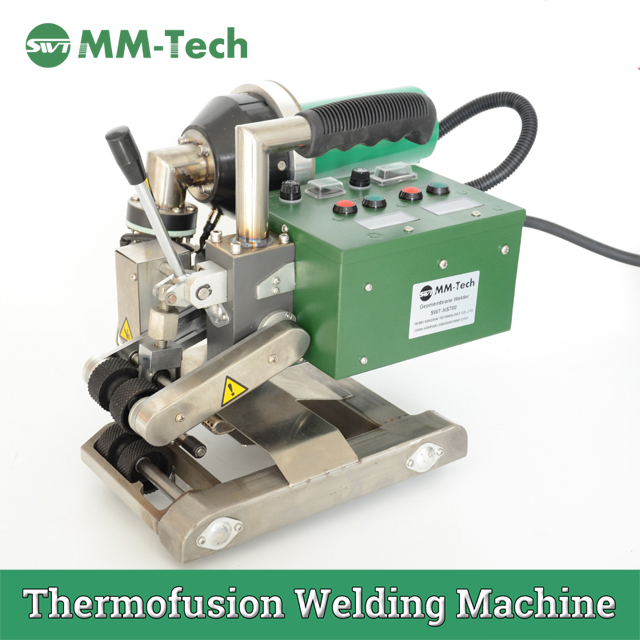

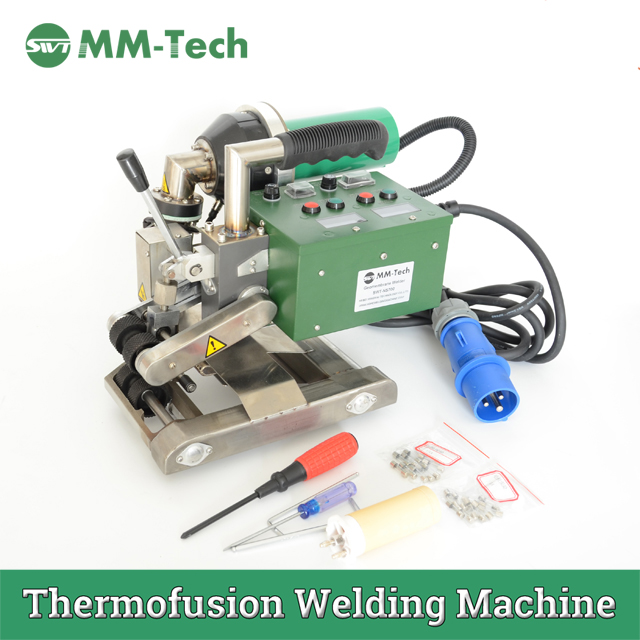

Hot Wedge Geomembrane Welder ,Geo membrane Welding Machine
SWT-NS700 Ldpe Geomembrane Welding Machine welds 0.5mm-2.0mm thickness membrane. which is adopts advanced hot wedge strcuture.Pp Geomembrane Welding Machine With its high power,high speed and pressure.This Plastic Geomembrane Welder & Automatic Geomembrane Welding Machine Pvc Geomembrane Welding Machine is specially desgined for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof constructions and other waterproofing projects.
SWT-NS700 PVC sheet Geomembrane Wedge Welding with stepless adjustable temperature and drive.
| Voltage | 220 V ± 5% |
| Frequency | 50/60Hz |
| Power | 1200W |
| Welding temp | 0-450 ℃ |
| Welding Speed | 0.5-8 m/min |
| Thickness of material | 0.5-2.0 mm |
| Welding width | 15 mm *2, interior cavity 20 mm |
| Overlap width | 120 mm |
| Seam Strength | ≥85% base material ( tensile resistant in shear direction) |
| Weight | 7.5 Kg |
| Size | 350(L) X 267mm(W) X 267mm(H) |
Hot Wedge PVC Geomembrane Welder is an Hot Wedge Welding Machine for overlap welding and manufacturing of films and geomembrane liners in tunnels as well as earthwork and civil engineering. The heat is transmitted by using the best combination of contact and hot air. Especially well-suited for overhead welding in install geomebrane, civil engineering, tunnel engineering.
