Automatic Geomembrane Welding Machines for HDPE Membranes in Thailand
Contact Now
Description
Product description
Products Description
Plastic Automatic Geomembrane Welding Machine Hdpe Geomembrane Welding Machine In Thailand
|
Model
|
BT-810
|
|
Rated voltage
|
230V/customized
|
|
Rated power
|
800W/1100W
|
|
Frequency
|
50/60HZ
|
|
Heating temperature
|
50-500℃
|
|
Welding speed
|
1-5.5m/min
|
|
Welding material thickness
|
Single layer film thickness
Rubber wheel 0.3-1.5mm
Steel wheel 1.0-2.0mm
|
|
Welding seam width
|
three seams: 16mm*3, cavity 12mm; two seams: 17mm*2, cavity 12mm
|
|
Weld strength
|
≥90% base metal (tensile strength in shear direction)
|
|
Overlap width
|
10cm
|
|
Insulation level
|
Class II
|
|
Body weight
|
5kg
|
Send us your inquiries
Advantage：
-Standardized production
-State-of-the-art control system
-Excellent pressure regulation
-State-of-the-art control system
-Excellent pressure regulation
-Exceptional roller mechanism
-Superior heating system
-Waterproof
-Superior heating system
-Waterproof
Applications:
-Anti-seepage applications
-Aquaculture
-Roofing construction
-Sewage treatment
-Tunnels
-Subways
-Aquaculture
-Roofing construction
-Sewage treatment
-Tunnels
-Subways
Details Images

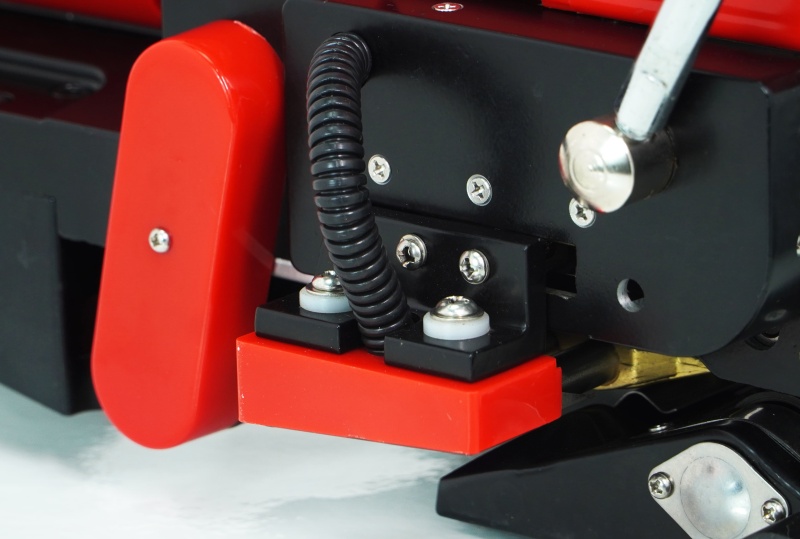

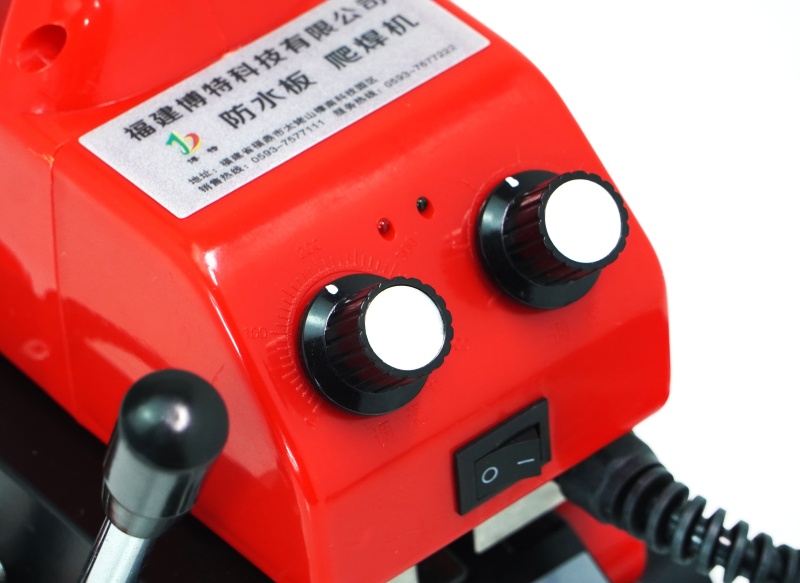

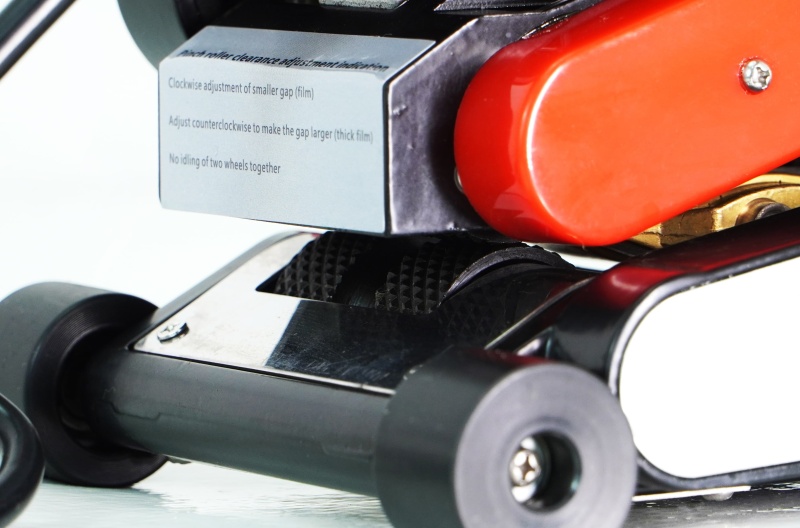

-The BT810 Geomembrane welding machine model features small size and exceptional thermal wedge design.
-It is also lightweight for convenient usage.
