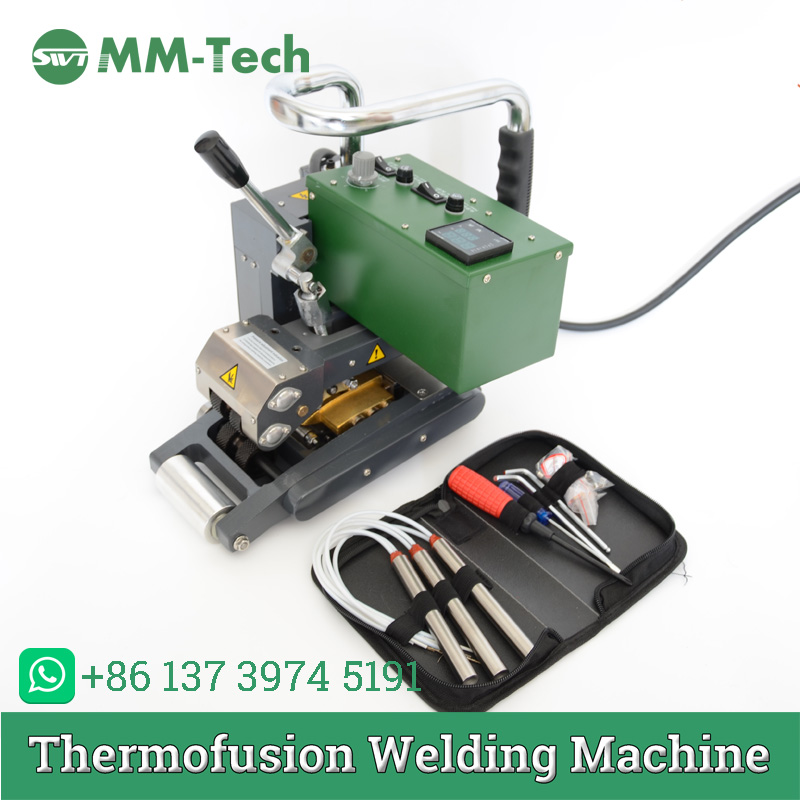

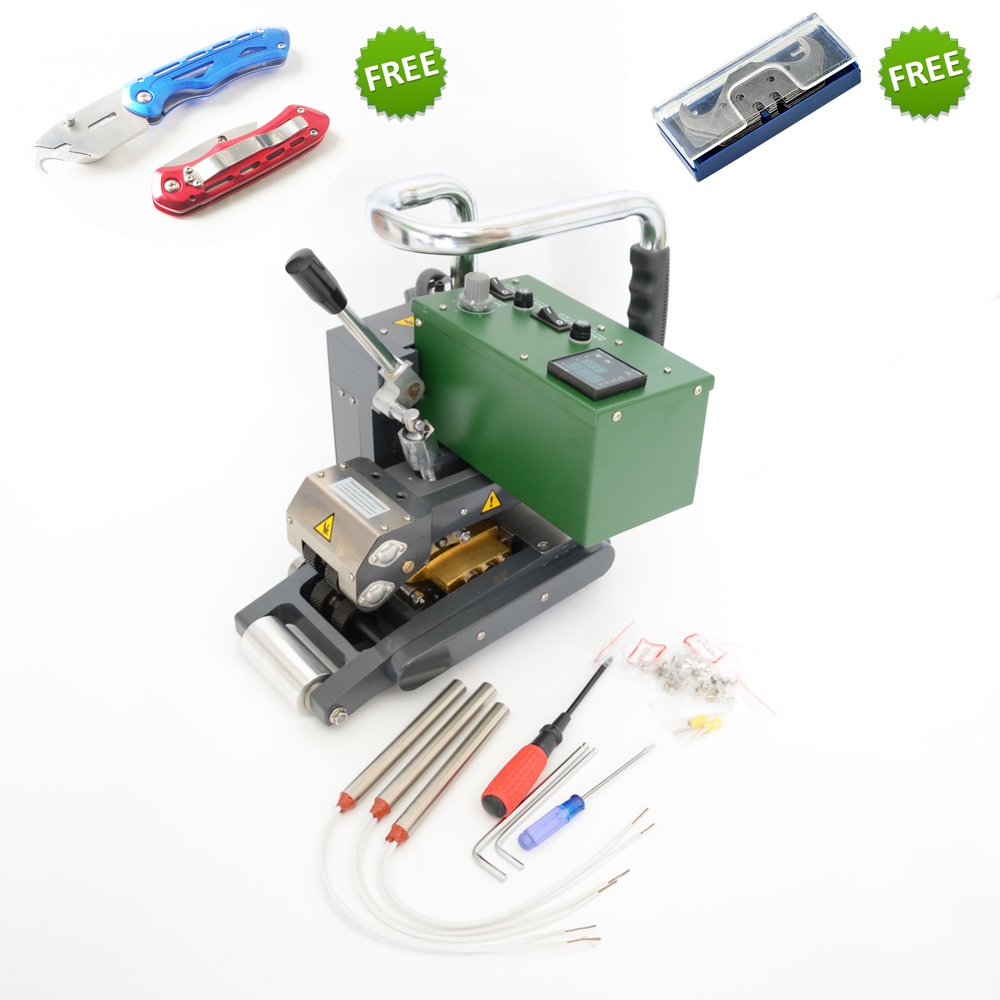

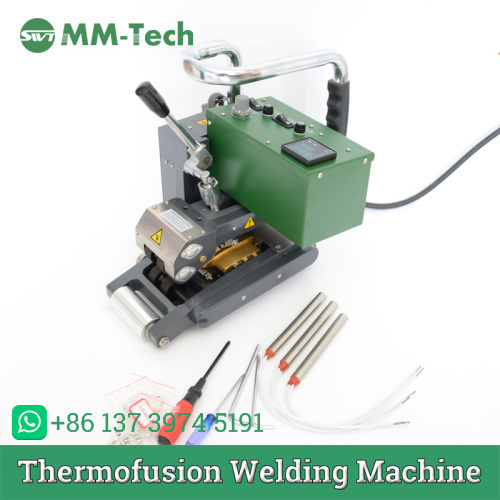

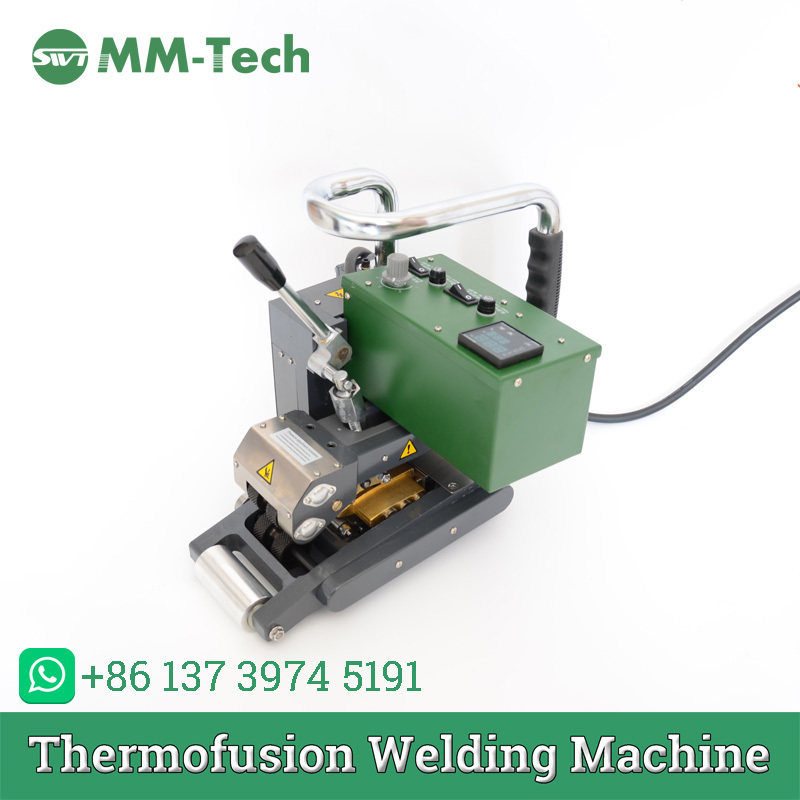

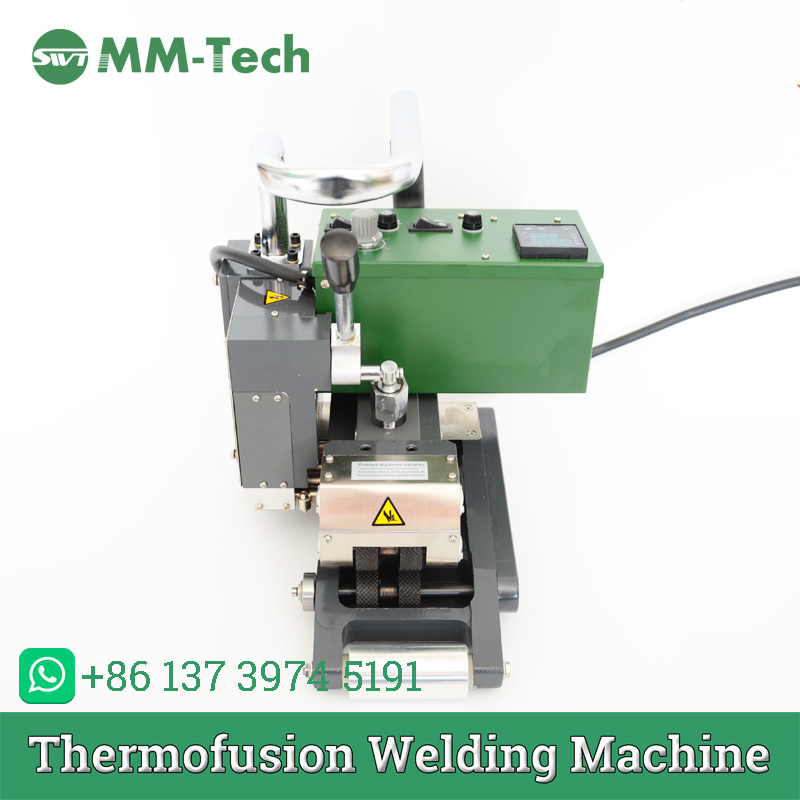

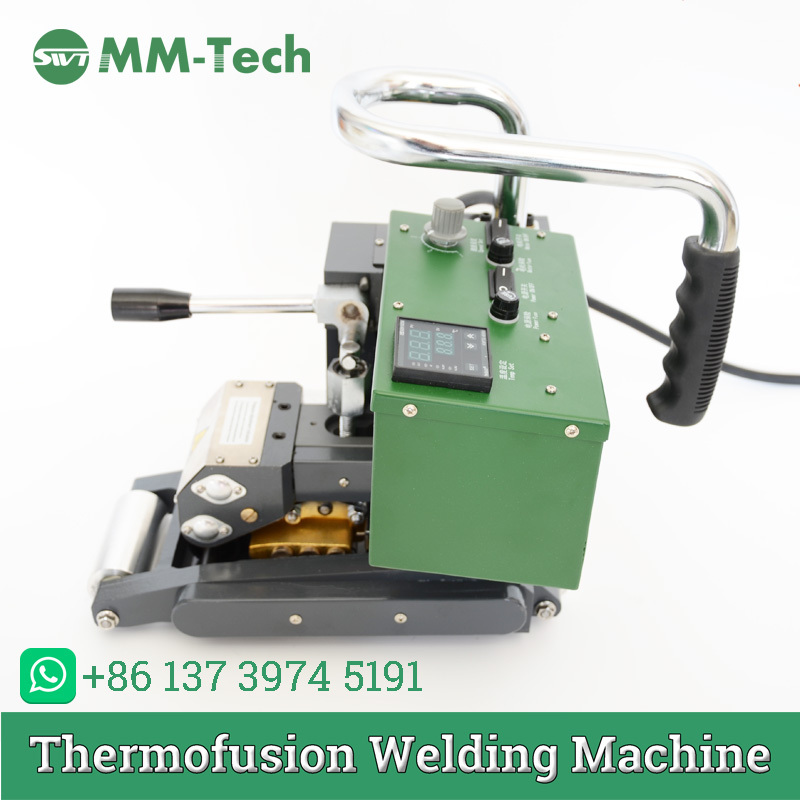

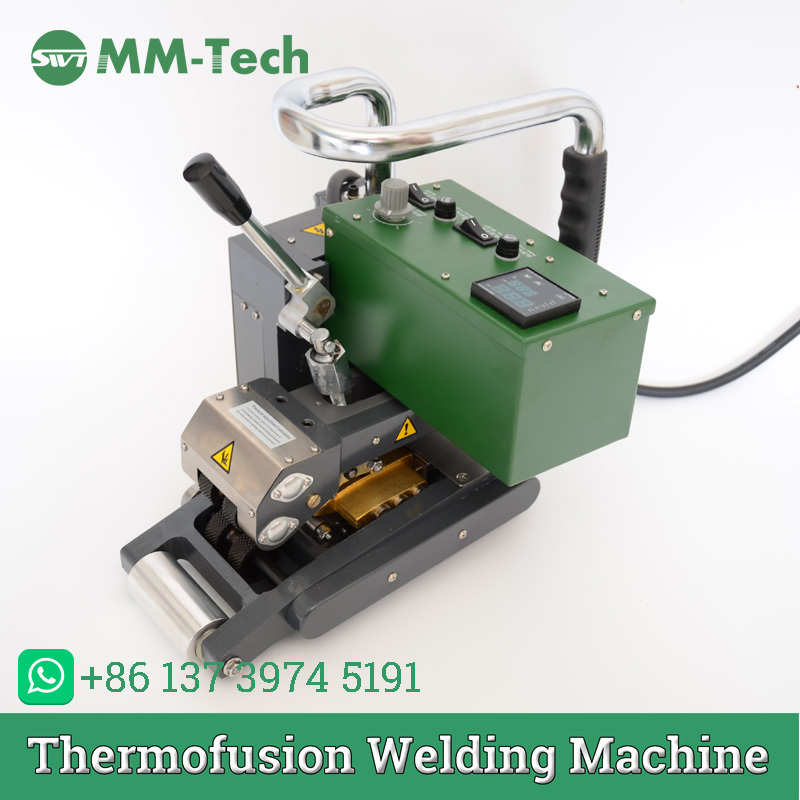

HDPE Geomembrane Welding Equipment SWT-NS900
Geomembrane welder is a new welding machine which is developed by MM-Tech.
Geomembrane Welder is our new developed products, which can weld geomembrane of various thickness and are applicable for welding of thermoplastic ,such as LDPE, PVC, HDPE, EVA, PP and PVC, HDPE,EVA,PP.
Feature of our HDPE Geomembrane Welding Machine:1.Adopts PID automatic thermostatic control with high control accuracy and low temperature fluctuation;
2.speed control adopts PWM automatic voltage and speed regulation circuit, driven by DC servo motor, with great output torque and the operating is stable.
3.It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load.
Also this series of Hot Wedge Welder is stable in performance despite of external temperature and voltage variation.
SWT-NS Series Membrane Welding Machine is excellent in performance and easy for operating, with high welding speed and good work quality.
It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.
|
Technical Parameters For PVC Geomembrane Hot Wedge Welder
|
|||
|
Voltage:
|
220V/110V
|
||
|
Frequency:
|
50/60Hz
|
||
|
Power:
|
1800W
|
||
|
Welding speed:
|
0.5-5m/min
|
||
|
Heating temperature:
|
0-450°C
|
||
|
Thickness of material:
|
1.0mm-3.0mm
|
||
|
Overlap width:
|
12cm
|
||
|
Welding width:
|
15mm×2, interior cavity 15mm
|
||
|
Seam strength:
|
≥85% base material (tensile resistant in shear direction)
|
||
|
N.W/G.W:
|
13/19kgs
|
||
|
Insulation class:
|
class II
|
||
We have three types of HDPE Geomembrane Liner Welder,
SWT-NS800/800D HDPE Liner Welding Machine for geomembrane thickness 0.2-1.5mm,
SWT-NS900/900D Hot Wedge Welder for thickness 1.0-3.0 mm ,
