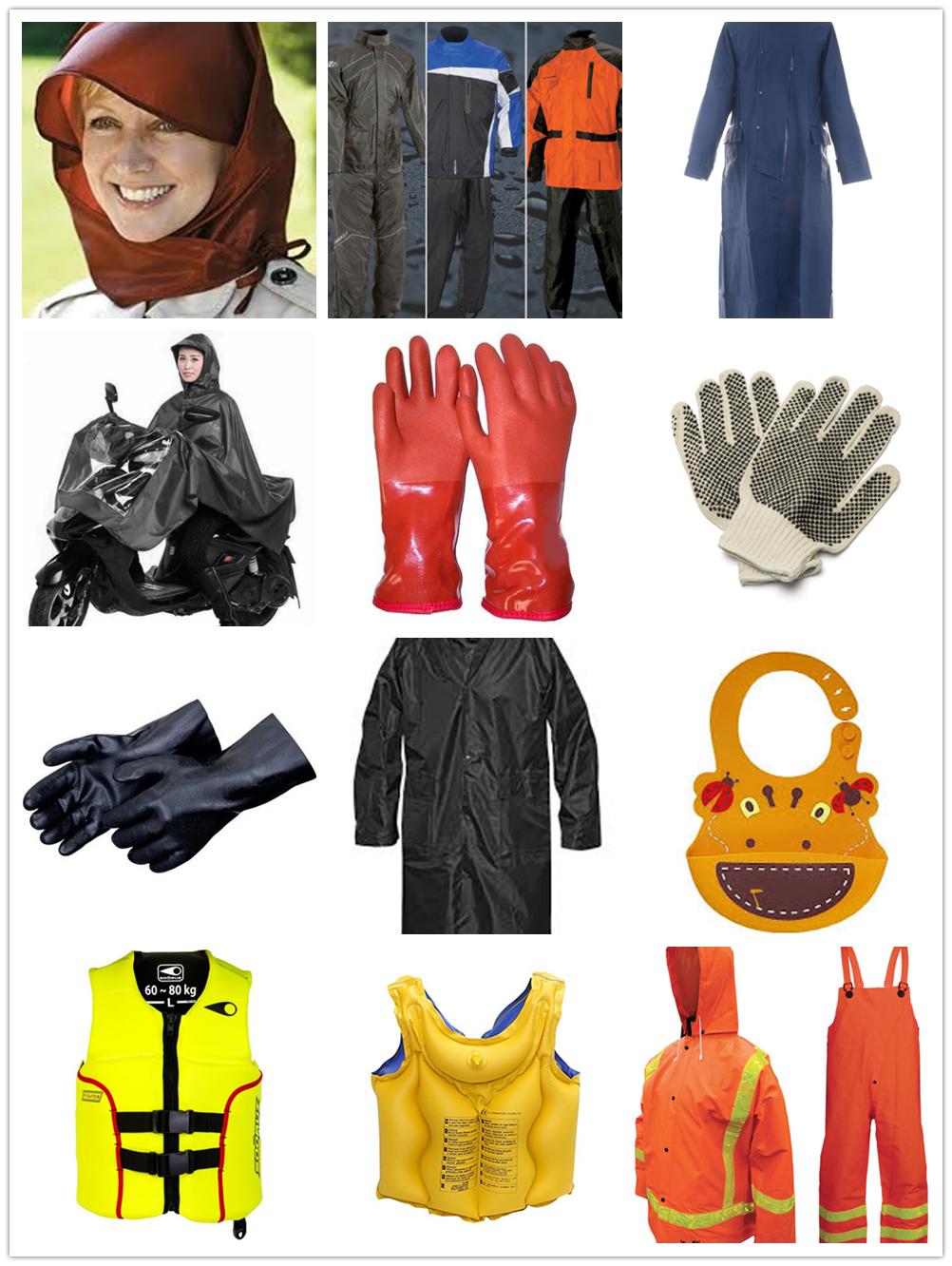

PVC Rain Coat and Poncho Manufacturing Machines
Description
Product description

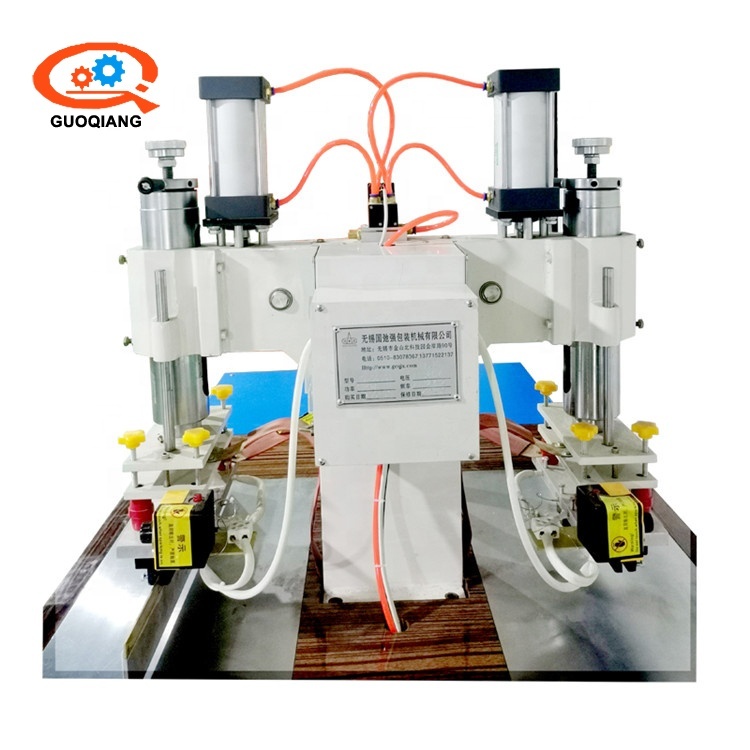

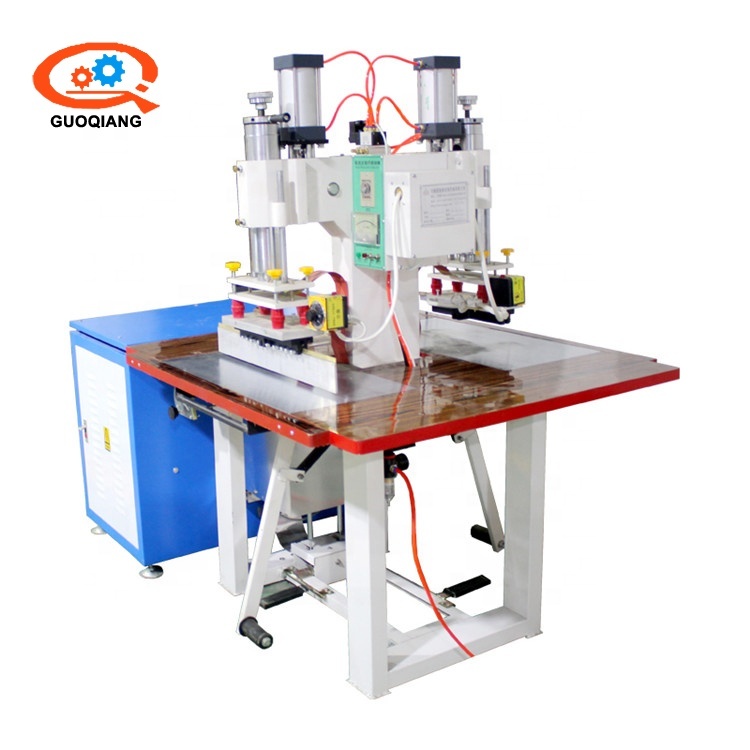

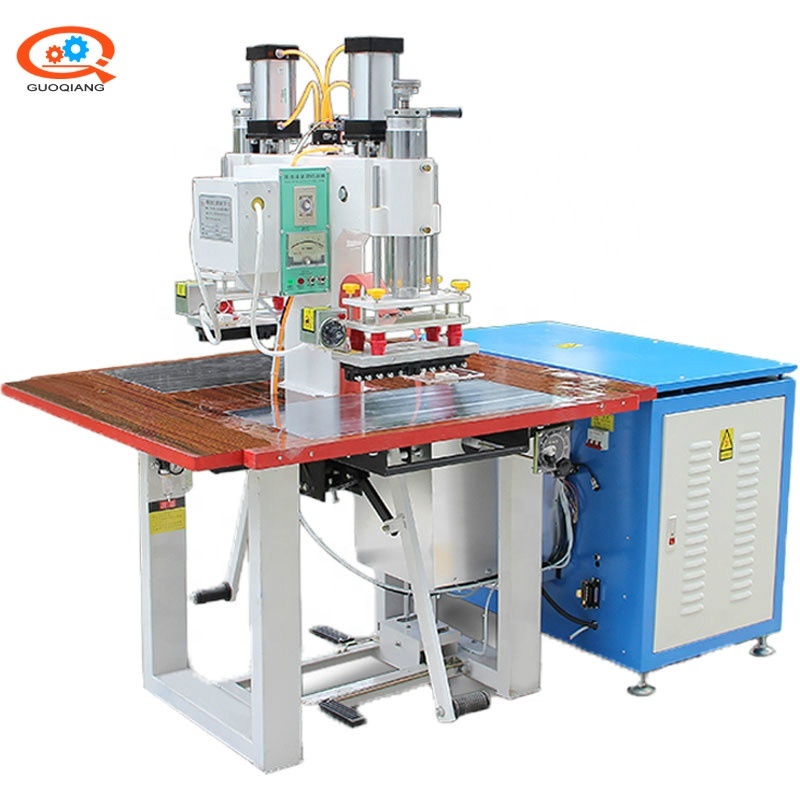

The machine has double head of HF welders with 5, 10KW stable controlled HF power outputs are designed for various industrial HF welding and heat sealing applications requiring precision flat surface for product positioning and complex shape welds. HF welder can be easily converted to a standard Heat Sealer for applications where HF welding is not necessary or impossible (eg: PP or PE materials). Machine is equipped with quick change 4 point electrode holder. Custom built tooling and electrodes are available upon request.
- Specially installed with large pressure output device, Easy for workers.
- With auxiliary heating device, producing in a short time.
- Work two side without interference, can be done two different products
- Equipped with spark suppressor flow, to avoid burning of molds and materials
- Machine will be done all the technical setup before dispatch.
|
Model No |
GCQ-W5KW |
GCQ-W8KW |
GCQ-W10KW |
|
Voltage |
AC220/380/400/415/440V 50/60HZ(Customized) |
||
|
Output Power |
5KW |
8KW |
10KW |
|
Input Power |
8KVA |
10KVA |
12KVA |
|
HF Frequency |
27.12MHZ ±0.6% |
||
|
Oscillation Tube |
8T85RB |
8T85RB |
8T85RB |
|
Anti-spark Tube |
NL-5557 |
NL-5557 |
NL-5557 |
|
Gap of Electrode |
200mm |
200mm |
200mm |
|
Size of upper electrode |
200×400mm |
300×500mm |
400×600mm |
|
Machine Size |
1080*1750*1600 |
1080*1750*1600 |
1080*1750*1600 |
|
Machine Weight |
400KG |
420KG |
450KG |
