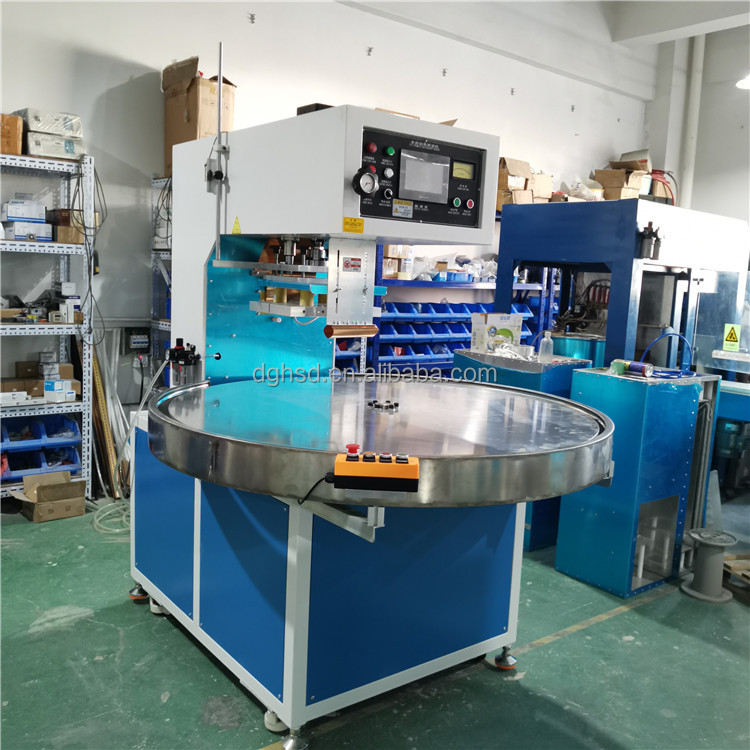

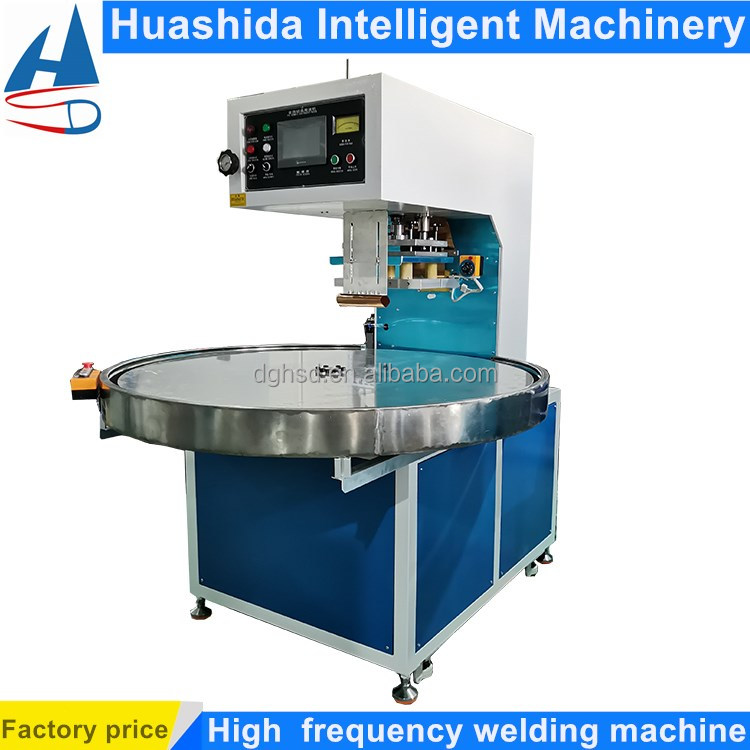

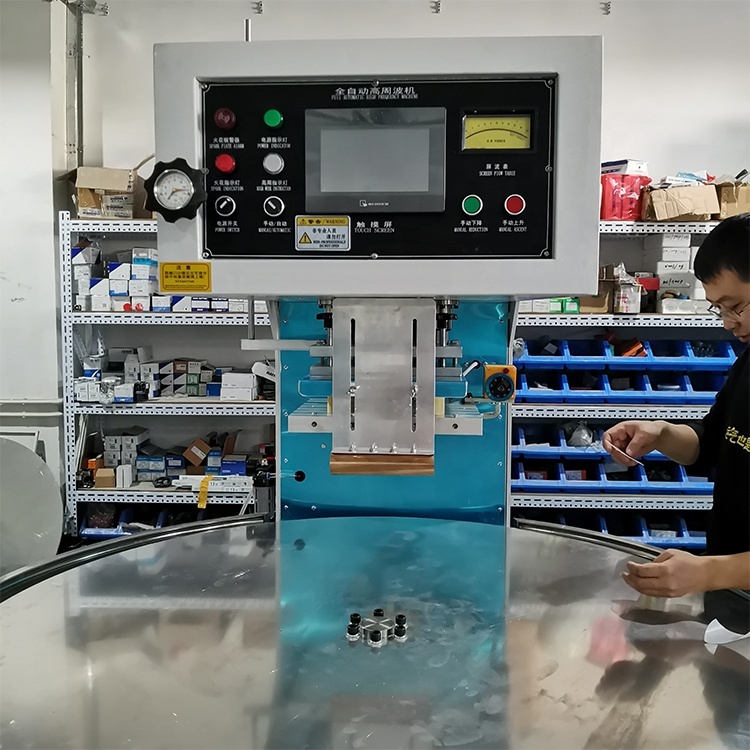

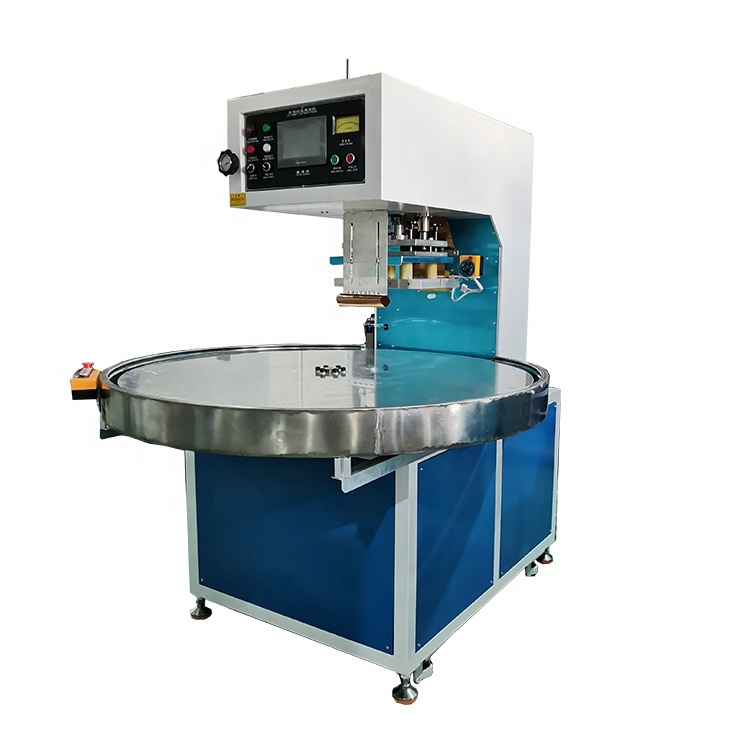

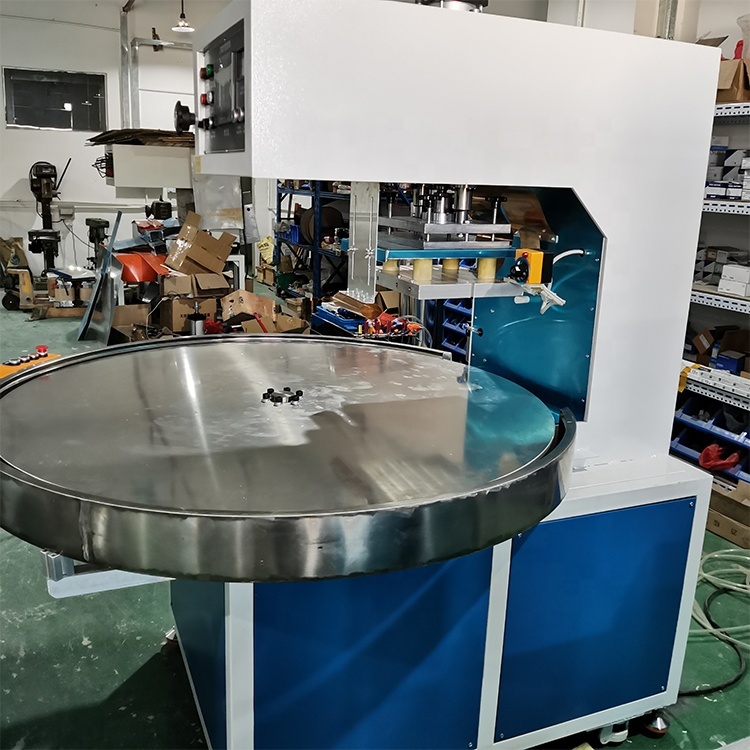

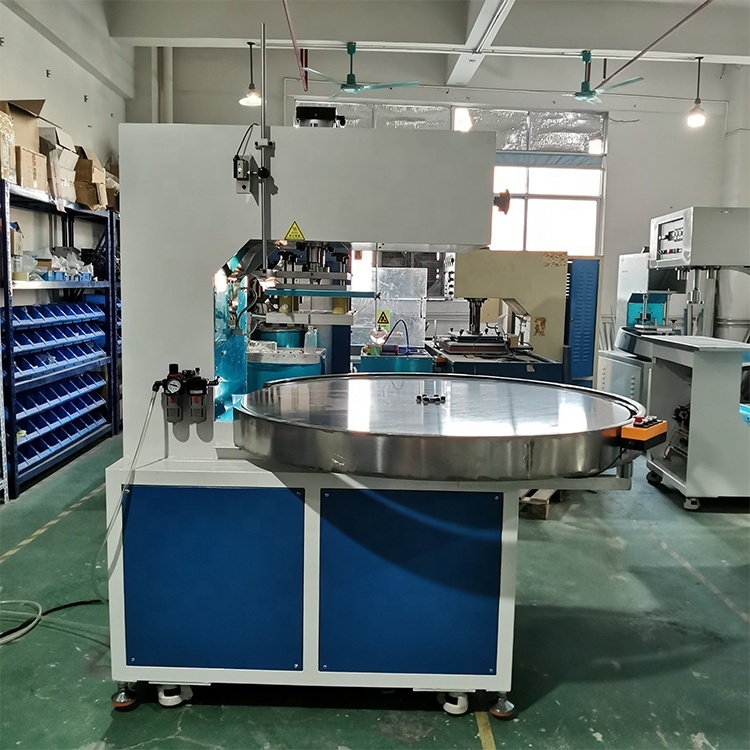

Best Price Automatic Rotary High Frequency Welding Machine for PVC PET Plastic Blister Packaging (5KW-15KW)
Contact Now
Description
Product description
Products Description
Machine General Features:
1. Automatic Rotate table Machine, can set 3 stations, 4 stations , 6 stations. 2. European-model square high frequency vibration box, more reliable and stable in output 3. Welding and Cutting mold can be applied on this mold 4. Anti spark system will protect mold and generator 5. CE rated machine; factory verified by SGS and BV; 6. Customer's site installation, training & maintenance available Application: It is especially designed for production of blister packages, But it is multipurpose machine, for it can be used for industry like PU leather cover for pad, automotive parts and car interior elements, safety vests, reflective signs, inflatable toys, cosmetics,folding packing box,.etc. It is designed for applications requiring precision large flat surface for product positioning and complex shape welds. Custom designed tooling and welding upper platen are available on request.
Welded Products: Multipurpose Shuttle High Frequency Welder 1. To seal blister of PVC, PET, PET-G, A-PET... 2. Clear blister packaging 3. Plastic clam-shell packaging 4. Plastic Blister with plastic blister packages 5. Plastic blister with cardboard packages 6. Positive/negative blister forming and packaging
|
Model No.
|
HSD-ZPRJ-5KW
|
HSD-ZPRJ-8KW
|
HSD-ZPRJ-10KW
|
HSD-ZPRJ-15KW
|
|||
|
HF Power
|
5KW
|
8KW
|
10KW
|
15KW
|
|||
|
Power supply
|
380V 50/60HZ
|
|
|
|
|||
|
Input power
|
8KVA
|
15KVA
|
20KVA
|
25KVA
|
|||
|
Commutator
|
SILICON DIODE
|
|
|
|
|||
|
Oscillation Tube
|
7T69RB
|
E3069
|
E3130
|
8T85RB
|
|||
|
Max. Pressure
|
400kg
|
500kg
|
1000KG
|
1000KG
|
|||
|
Gap of electrodes
|
200MM
|
|
|
|
|||
|
Size of active horn
|
175MM
|
|
|
|
|||
|
Upper Electrode
|
300*400mm
|
300*400mm
|
350*450mm
|
400*500mm
|
|||
|
Lower Platen
|
350*450mm
|
350*450mm
|
400*500mm
|
400*500mm
|
|||
|
Welding time
|
0-10S adjustable
|
|
|
|
|||
|
Production capacity
|
0~4000/8H
|
|
|
|
|||
