Continuous Carbonization Furnace for Coconut Shell and Charcoal Production
Contact Now
Description
Product description
machine
Continuous carbonization furnace is an energy-saving, environmental-protection and high efficient equipment.
Product Introduction

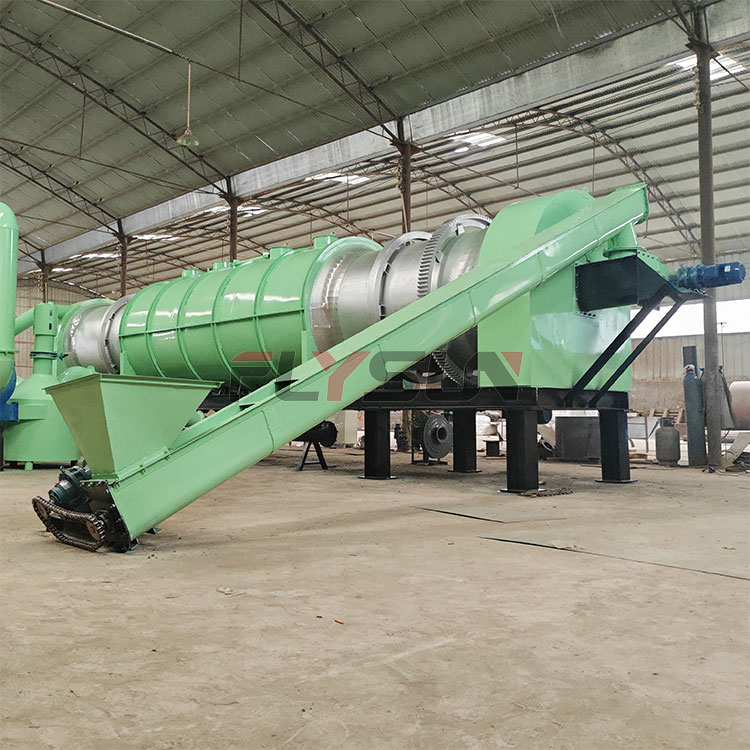

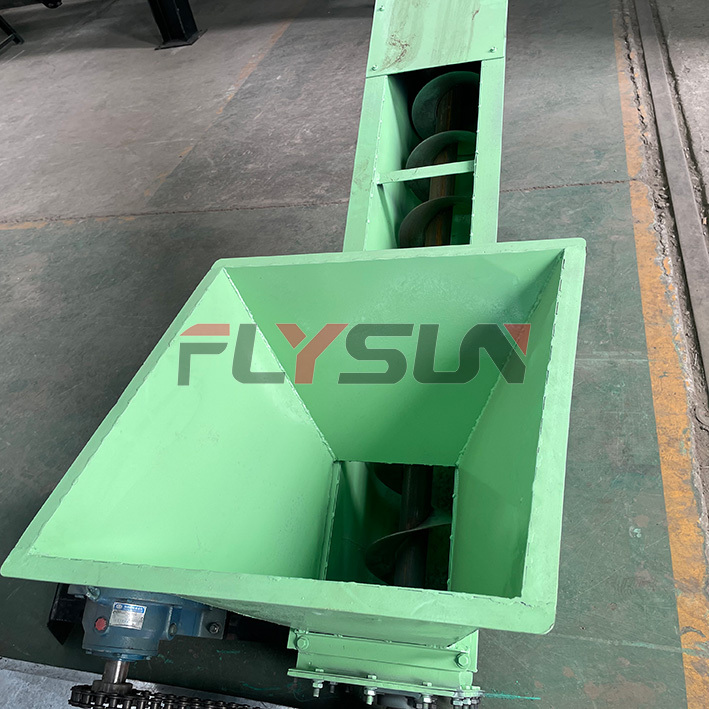

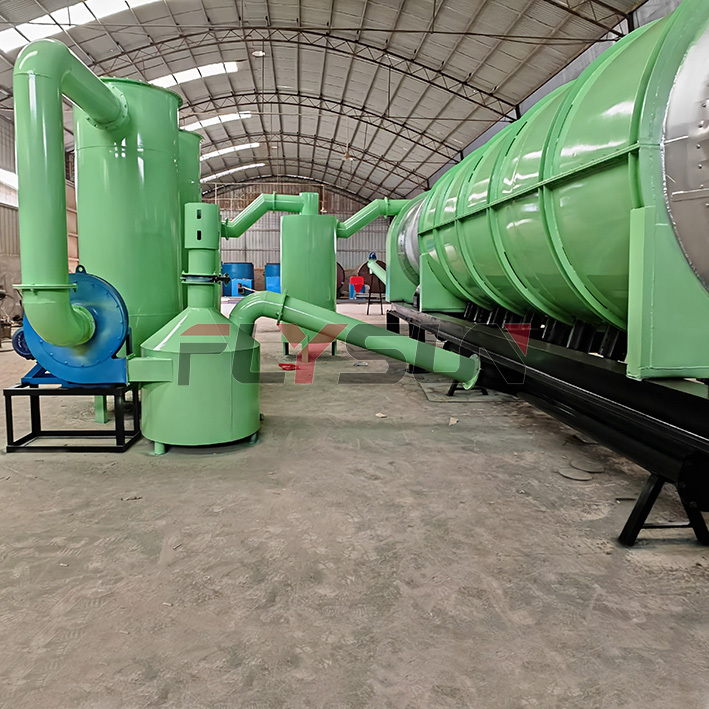

Continuous Rotary Charcoal Furnace used to transfer material into charcoal. Allow the material to uundergo high-temperature pyrolysis under low oxygen conditions, remove impurities, and obtain the final carbon portion. And this type suitable for small size material less than 20mm. Like sawdust, plam shell, rice husk, peanut shell, biomass, bamboo powder etc.Materials go into the carbonizing drum by a screw conveyor, and move to the other side with hot temperature, and become carbonized, then get out of the furnace by a cooling conveyor with water circulation system. Equipment also match purification system, during carbonization, generate combustible gas will be cleaned up and return furnace to heat itself. This machine is fully automatic, it has a PLC control cabinet, no need worker when its working.
|
Type
|
Capacity(kg/h)
|
Power
|
Dimension
|
Gross weight
|
|
800
|
250-300
|
15kw
|
Diameter 80*Length 800 cm
|
7500kg
|
|
1000
|
500-600
|
22kw
|
Diameter 100*Length 1000 cm
|
11000kg
|
|
1200
|
800-1000
|
30kw
|
Diameter 150*Length 1200 cm
|
16000kg
|
Heat Preservation
There are 100 mm thickness insulating cotton between insulation shell and carbonizing drum, greatly increase the heating performance and guarantee the quality of charcoal.
Burner

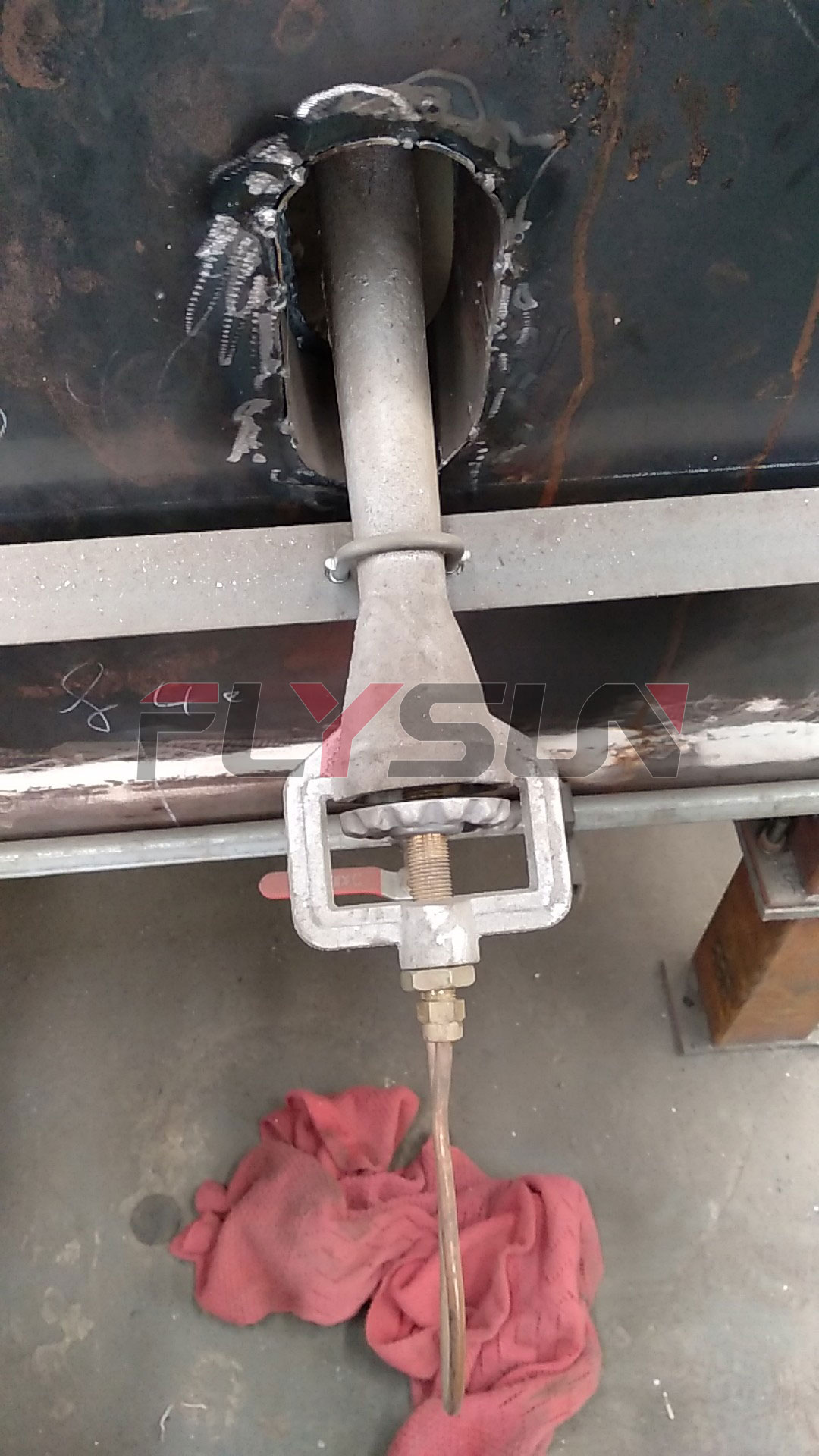

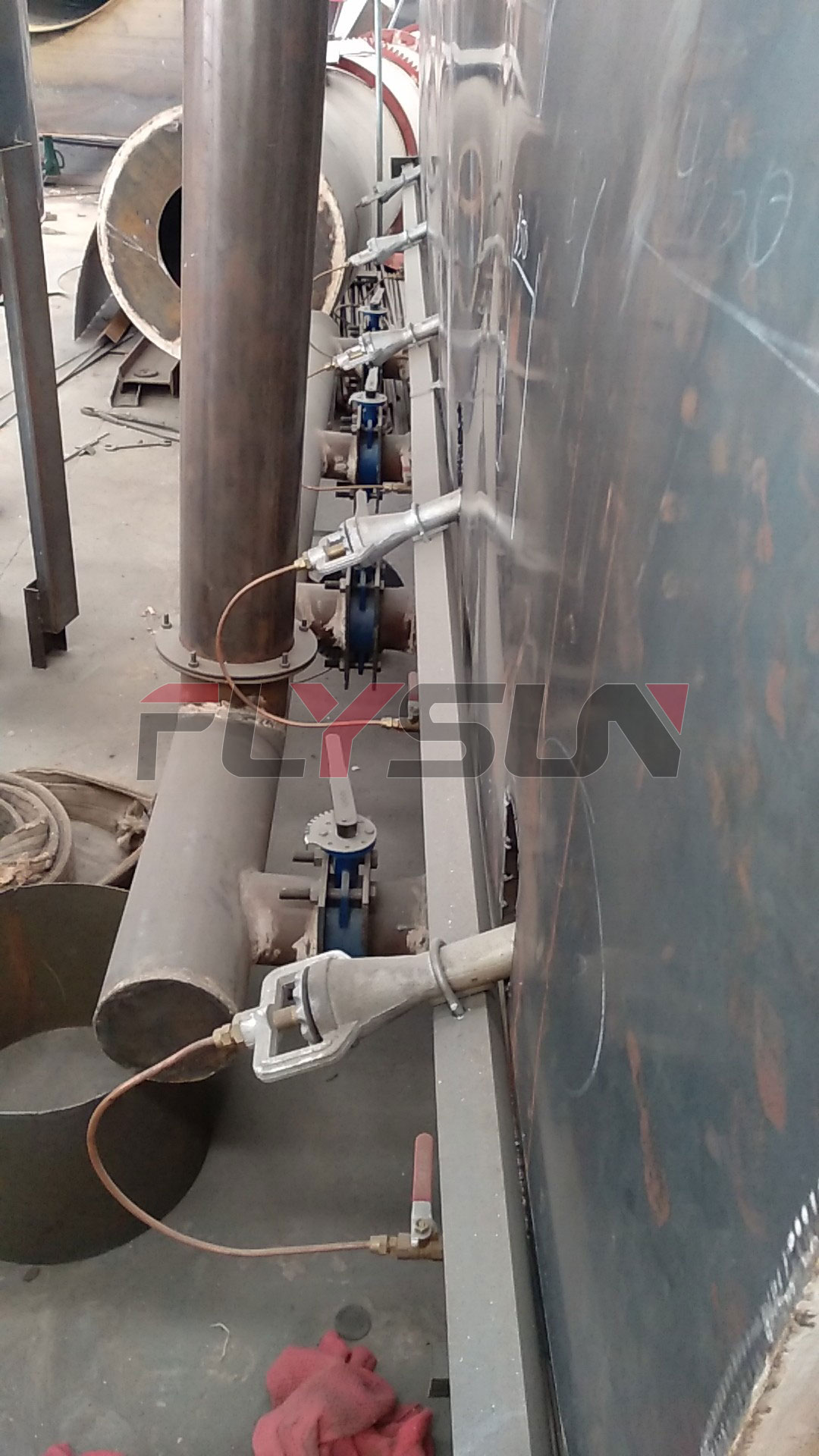

There are totally 16 gas burner on the furnace, so that the carbonizing drum can be evenly heated.
