Stringer Pallet Nailing Machine Production
Description
Product description
Stringer Pallet Nailing Machine Making Pallet
Introduction of china wood pallet nailing machine
Wood pallet nailing machine mainly used to nail the wood bars and block feet together,worker just wood bars on the support frame,then it can nail it automatic,then it can lift the finished wood pallet to stack machine,stack machine can stack the wood pallet layer by layer,of course you can choose wood pallet nailing machine with stack,you can aslo buy the wood pallet nailing machine.
Product produced by china wood pallet nailing machine
Technical of china wood pallet nailing machine
|
Product name |
stringer pallet nailing machine |
|
Working mode |
Automatic feeding ,automatic nail stacking |
|
Operation mode |
Touch screen control |
|
Operational mode |
Pneumatic operation |
|
Voltage and power |
380V three-phase 1.5kw Servo motor |
|
Air pressure |
0.8MPA |
|
Tank size |
0.2 cubic |
|
Nail gun speed |
7 times /second. |
|
Production effciency |
3 tray /min |
|
Apply a nail |
Less than 80mm |
|
Weight |
2000kg |
|
Size |
Host machine 2000*2800*2600mm Stacking 2600*1900*1600 |

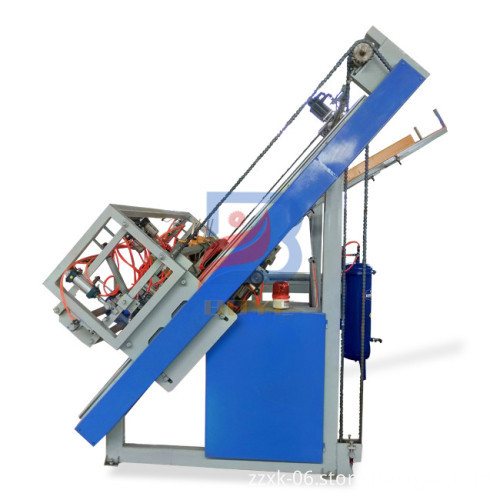

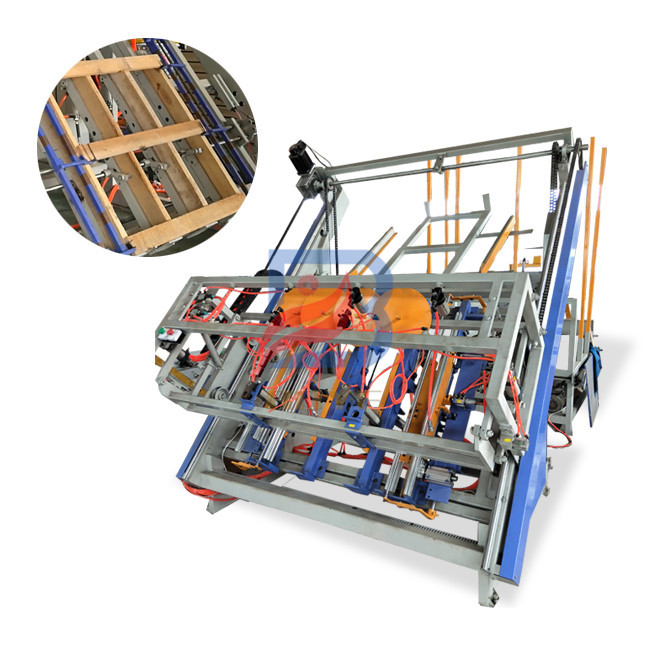

Photos of china wood pallet nailing machine

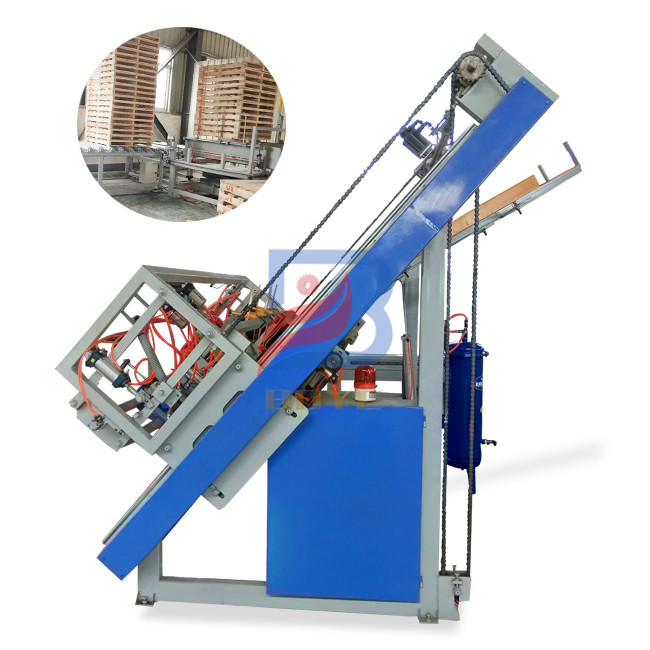

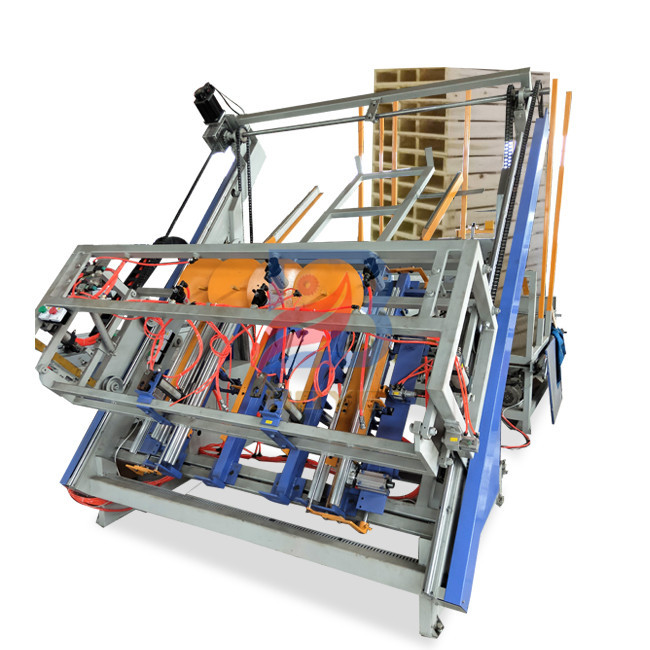

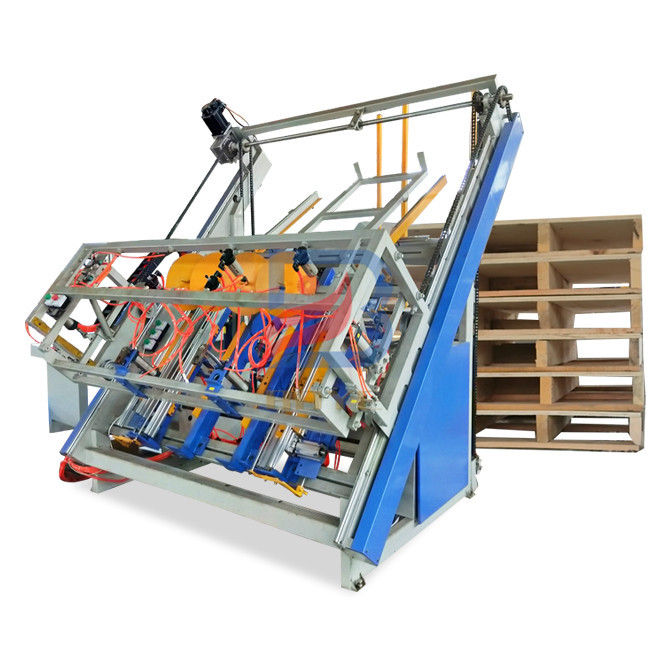

Stringer pallet nailing machine and wood pallet stack machine
