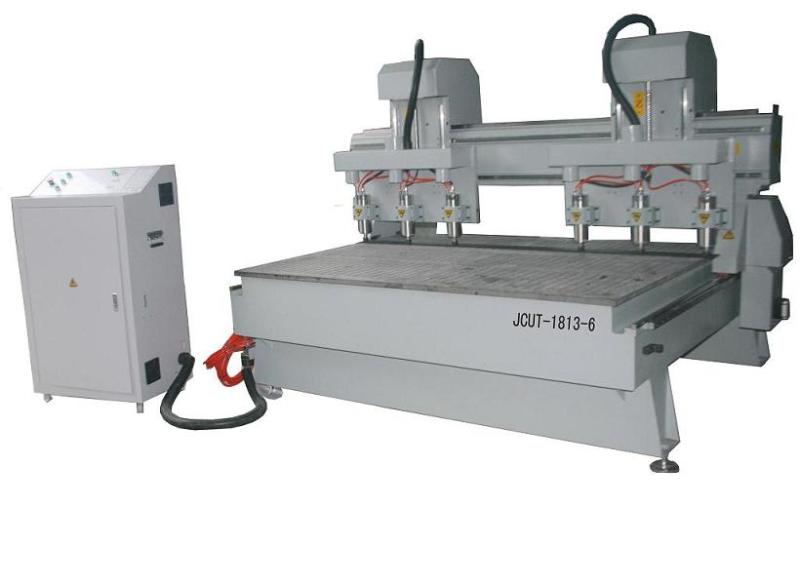

Wood cnc router with six head JCUT-1813-6
Contact Now
Description
Product description
WOODMAKING CNC ROUTER JCUT-1813-6
Applications:
advertisement engraving, advertisement cutting, stone processing cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment, mold processing cutting, sign and mark manufacturing cutting, acryl board processing cutting, stamp cutting.
1) Machine body: whole cast iron
2) Guideway: XYZ-axis use linear guideway
3) Driving mode: Rack
4) Work dimensions: 1300mm x 1800mm (300mm*6) x 80mm
5) Body dimensions: 1700mm x 2500mm x 1650mm (with bracket)
6) Z-axis working area: 80mm (or 150mm)
7) Max. Feeding height: 120mm or bigger
8) Cut thickness of material: ≤40mm
9) Max. Speed: 25000mm/min
10) Working speed: 0 - 8000mm/min
11) Mechanical precision: 0.01mm
12) Software: type 3 software, Artcut software, Artcam software
13) Max. Power consumption: 3kW
14) Power source: AC220/50Hz (or 110v/60HZ)
15) Driver type: stepper motor (XZ-85BYG, Y-axis use two 85BYG motors)
16) Memory: without or (DSP)
17) Spindle: 2.2kW (100mm) variable speed, water cooled motor (3kW or bigger)
18) Spindle speed: 0 - 24,000rpm
19 ) Blade diameter:3.175mm, 4mm, 6mm (or 8mm, 10mm, 12mm, 12.7mm)
20) Control system: (NCSTUDIO) or DSP (USB interface)
21) Command: G code, u00, mmg, plt
22) Running circumstance temperature: 0 - 45°C
23) Relative humidity: 30% - 75%
24) Pack dimensions: 1750 x 3000 x 1750mm
25) Net weight: 1000kg (with bracket)
26) Gross weight: 1200kg
