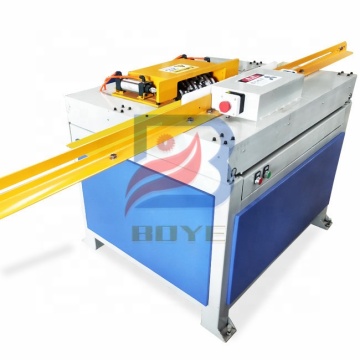

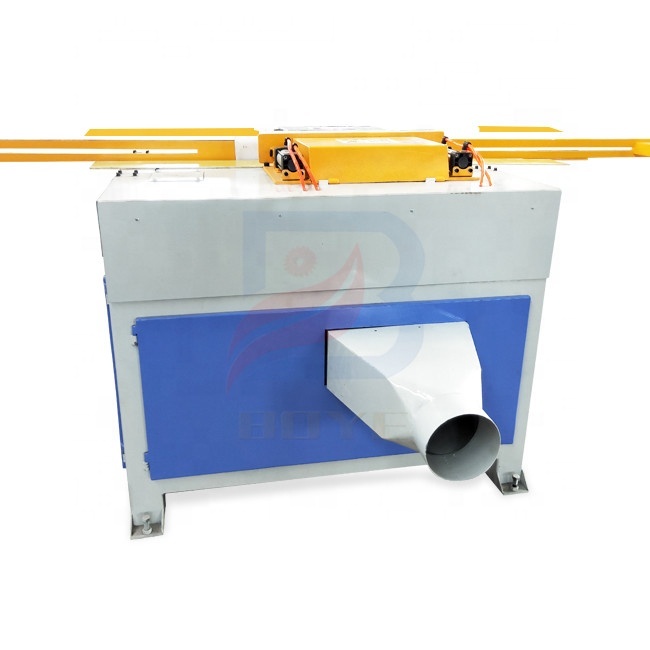

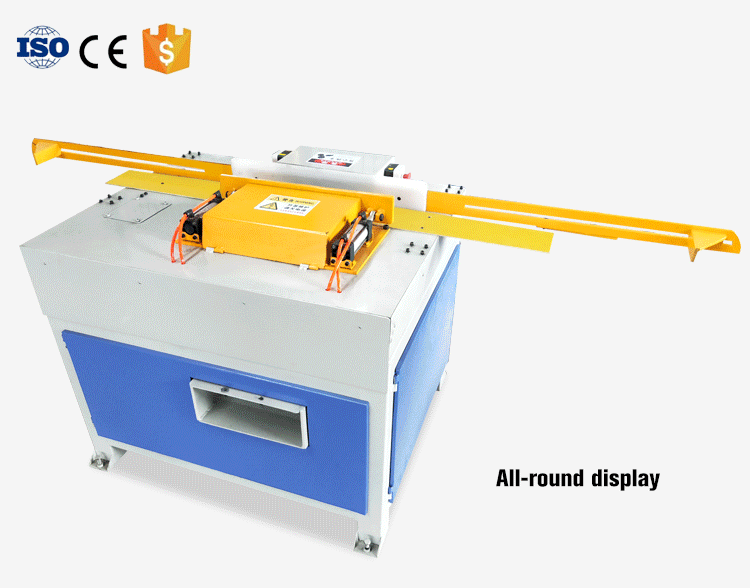

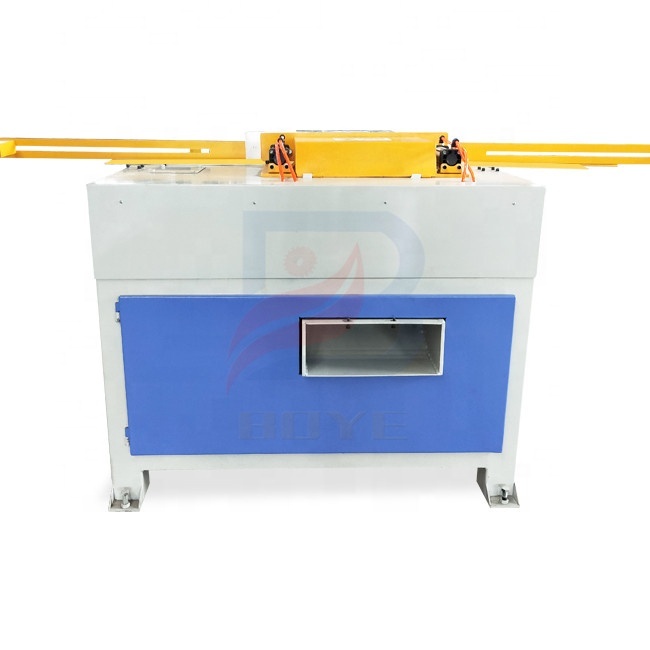

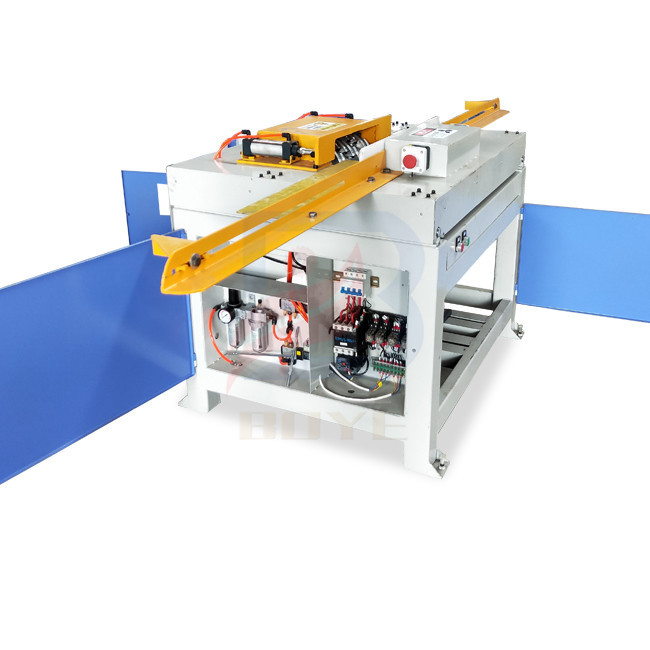

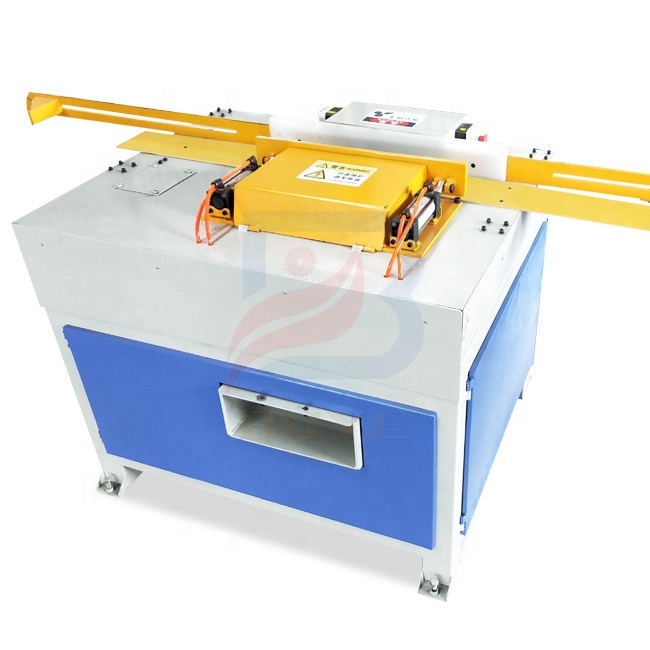

Low Price Wood Pallet Keyway Slotting Machine / Notching Machine / Wood Pallet Notcher
Description
Product description
low price Wood pallet keyway slotting machine / notching machine / wood pallet notcher
Brief Introduction of Wood pallet keyway slotting machine
- Automatic pallet trenching machine is mainly used for trenching hole tray floor.
- Used to make the stringer of the wood pallet in American Standard,which can use fork from four directions by forklift,becomes popular pallet type in the world.
- The groove radian can be customized as your request.
- It could be continuously feeding and discharging.

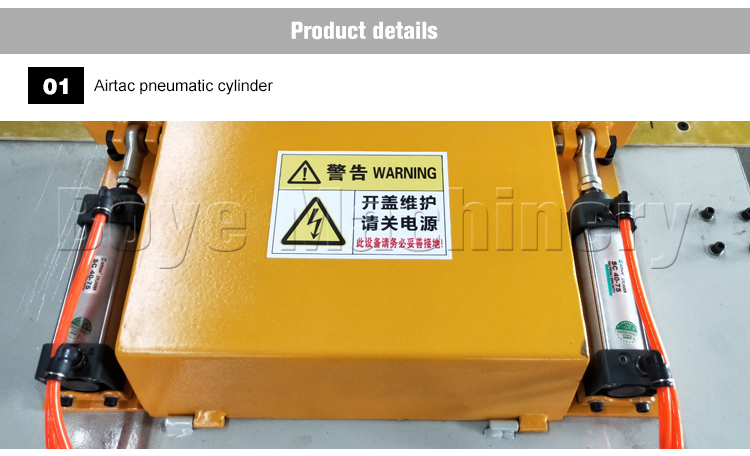

- It need work with the air compressor and 3kw small air compressor will be enough
Specification of Wood pallet keyway slotting machine
Model
FX-1C
FX-2C
Capacity
600-800pcs/h
1800pcs/h
Power
15kw 380v
30kw 380v
Wood Board size
Max length:1800mm Height: 40-60mm
Groove size
Groove depth: less than 45mm Groove width: 200-230mm
Dimension
1200*1000*1200mm
2300*1300*1300mm
Weight
400kg
600kg
Note: The groove size(width and depth) can be adjusted and also could be customized
Features of Wood pallet keyway slotting machine

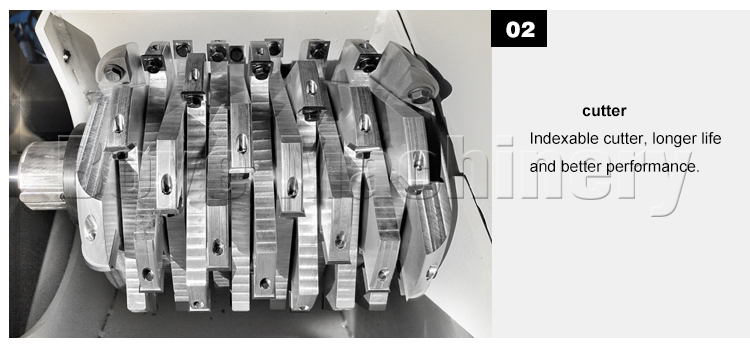

- The knife adopts hard alloy material with high hardness,wear resistance,good strength and toughness,heat resistance,coorosion resistance and a series of excellent performance.so as to ensure the long term use of the machine performance.
- Continuous feeding and automatic discharging platform,it can double slot opened at the same time,the excavated area smooth without coarse,standard size,high precision,the
depth and width of the groove sizes can be adjusted.
