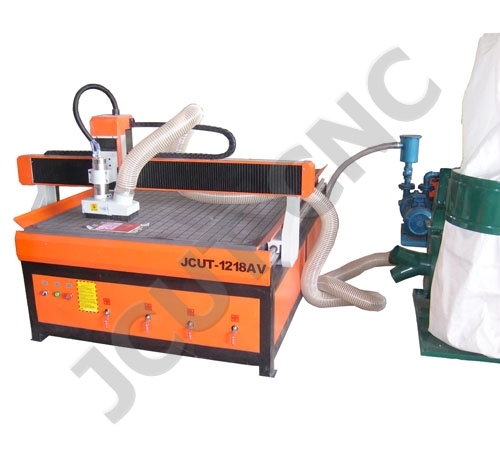

JCUT-1218AV Woodworking CNC Router
The machine is low-cost models for users with low investment.
Specifications:
This machine is widely used in woodworking, carving, cutting, engraving, work materials are wood, MDF, aluminum panels, ABS,acrylic, PVC, a variety of decorative materials.
This is a vacuum table and dust collectorcnc machine.
1,Solid gantry, well structure of lathe bed ,stable lathe table, fast speed and high accuracy .
2, High-speed water cooling spindle and high performance subdivision driver ensure to work stably for a long time.
3, Adopt advanced CNC system (NCstudio or DSP control system), This system have break point memory mode and special saving made of different points so that can make sure continuous working after electronic drop or other postpone situation. This function can guarantee the processing precision of long time operation.configured with practical and easily –learned software , can conveniently check the moving path of tool, and adjust the processing depth of Z axis and the speed of motor.
Parameters:
The machine is low-cost models for users with low investment.
Specifications:
This machine is widely used in woodworking, carving, cutting, engraving, work materials are wood, MDF, aluminum panels, ABS,acrylic, PVC, a variety of decorative materials.
This is a vacuum table and dust collectorcnc machine.
1,Solid gantry, well structure of lathe bed ,stable lathe table, fast speed and high accuracy .
2, High-speed water cooling spindle and high performance subdivision driver ensure to work stably for a long time.
3, Adopt advanced CNC system (NCstudio or DSP control system), This system have break point memory mode and special saving made of different points so that can make sure continuous working after electronic drop or other postpone situation. This function can guarantee the processing precision of long time operation.configured with practical and easily –learned software , can conveniently check the moving path of tool, and adjust the processing depth of Z axis and the speed of motor.
Parameters:
JCUT MODEL:JCUT-1218AV CNC Router
Working Area (X*Y*Z):1200X1800X100mm(47.2X70.8X3.9 inch)
Processing accuracy:0.01mm
Repositioning accuracy:0.05mm
Spindle:2.2KW variable speed , water-cooled
Spindle rotating speed:0-24000rpm/min
Max Moving Speed:6000mm/min
Working speed:0-5000mm/min
Driving mode:Ball screw
Voltage:AC220V/50Hz and AC380v
Max. Power consumption:3.0KW
Feeding Height:150mm
Drive motor:Stepper
Command:G.code , mmg , plt , uoo,HPGL
Compatible Software:Type3, Artcut, ArtCAM, masterCAM software
Certificate:CE,FDA
Pack dimensions:1700mm X 2300mm X 1750mm wooden trunk
Net weight:600KG
Option: Rotary axis, vacuum table.dust collector,or bigger spindle .
Different working size:
600X800mm/600X1500mm/900X1500mm/1200x1200mm/1200x1500mm/
1200x1800mm/1200x2400mm or other sizes according to customers’
Different working size:
600X800mm/600X1500mm/900X1500mm/1200x1200mm/1200x1500mm/
1200x1800mm/1200x2400mm or other sizes according to customers’
