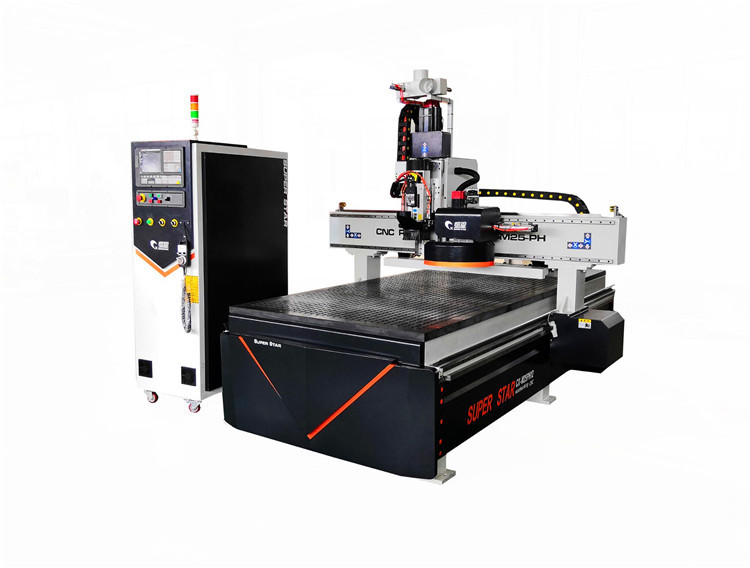

M25 Auto Tool Changer Woodworking Machine Superstar
Description
Product description
1. This machine bracket is made of steel structure with seamless welding and tempering aging treatment.
It has strong rigidity and is not easy to be deformed.
2. It adopts Japan Yaskawa servo drive system with high speed and high precision.3. The tool magazine has 12 capacities, saving tool change time and improving production efficiency.
4.Taiwan TBI 25 square rail, double row four row ball slider, large bearing capacity, stable operation, high precision, long life.
Double nut ball screw with high precision and precise undercut.
5.file preprocessing function, to help users correct errors in the processing file in a timely manner,
and is well compatible with the processing code generated by Type3/Artcam/Mastercam/Caxa.
3D curve prediction algorithm, stable line, ensure curve running speed and accuracy.
6. Using six-zone vacuum adsorption to design soft materials such as MDF,
it is also possible to place plates of different sizes to maintain the flatness of the plate surface, so that the effect diagrams are consistent,
and the loading and unloading time of the plates is improved.
7. Using the new generation of Taiwan's new generation control system,
Equipped with large independent cabinets, split keyboard operation, simple and convenient, easy to learn.
This allows users to quickly and flexibly grasp the use of the device, and the independence is stronger.
8. The oil filling system can effectively lubricate the transmission part of the engraving machine and improve the service life of the machine.
Product parameters
| Model | M25 |
| Working area | 1300mm*2500mm |
| Maximum work rate | 25m/mi |
| Working power supply | 380V/50Hz |
| Spindle | HQD 9KW air cooled spindle |
| Control system | SYNTEC or KND |
| Repeat positioning | 0.05mm |
| Tool magazine | Single knife library 12 knives |
| Rail | TBI 25 |
| Driver | YASKAWA or KND |
Applicable industry
This machine is suitable for panel furniture, cabinet wardrobes, office furniture, custom furniture industry.
It is used for the auxiliary processing of flat panel, milling, chamfering, punching and engraving of various panel furniture such as wardrobe cabinet,
cabinet cabinet, computer desk, panel furniture, office furniture, wooden speaker, wooden kitchen utensils.
