Automatic Wood Cut Off Saw Machine in Poland
Description
Product description

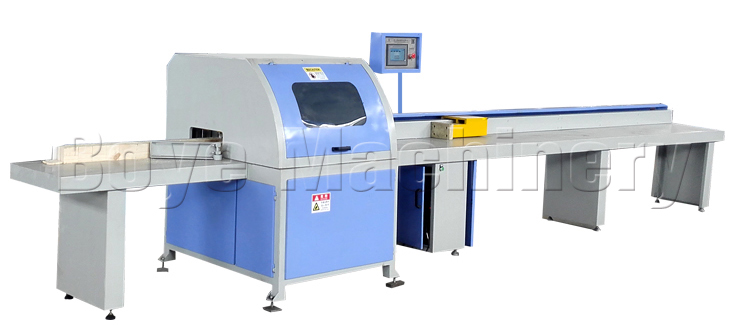

Factory supply Automatic Wood Cut Off Saw Machine in Poland

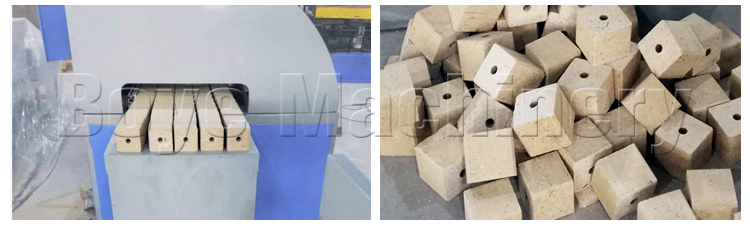

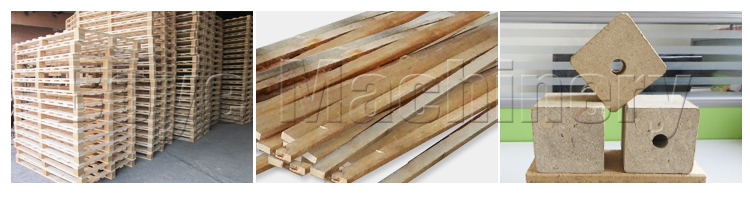

This machine used for cutting the wood board ,plank,wood pallet blocks into the right size you want.
Advantage of wood pallet cutter petrol chain saw wood cutting machine
1.High precision, cutting the long wood to blocks or pallet feet, the product completely vertical cross-section, smooth.
2.High capacity:cutting speed is 35-40pcs/min, an hour can cut 2400 pcs (max).
3.Easy to operate, Just need one worke to enter the size to be cut, then feeding the material, the machine will cutting the wood log or long wood block automatically to setted size.
4.Cutting Size adjustable, various dimension can be combined at the same time to reduce the perious cutting wastage.
5.Security, cutting part set in the cabinet, worker's finger don't access to the blade.
6.It can cut a row of wood log or long wood block at one time.
Technical parameters of wood pallet cutter petrol chain saw wood cutting machine
|
Cutting length |
Max. 2m/ 4m/ 6m |
|
Cutting height |
10-120mm |
|
Cutting width |
30- 200mm |
|
Cutting sectional area |
120*120mm/100*200mm |
|
Feeding speed |
5-30m/min |
|
Cutting speed |
35-40pcs/min |
|
Blade diameter |
450mm |
|
Cutter axle rotation speed |
3500rpm |
|
Feeding method |
Servo drive |
|
Pressing method |
Cylinder, air pressure 0.5-0.7Mpa |
|
Cutting tolerance |
In +/-1mm |
|
System working dimension |
6.4*1*1.5m, 7.4*1*1.5m, 9.4*1*1.5m |
|
Deducting interface |
Contains |
|
Electrical components |
Schneider |
|
PLC Touching screen |
Siemens |
|
Total power |
8.25kw |
