1504BS Wood 6 Functions Double Trimmer Edge Banding Machine
Description
Product description
Wood 6 Funtions Double Trimmer Edge Banding Machine
Model: MF 1504BS
Technical specification (MF-1504BS)
|
Weight of the machine |
1650 Kg |
|
Working power |
3-HP_380V |
|
Total power |
9.67 Kw |
|
Thickness of roller band |
0.4-3.0mm |
|
Thickness of work piece |
10-50mm |
|
Min. width of work piece |
60mm |
|
Min. length of work piece |
120mm |
|
Feed speed |
12-18m/min |
|
Work piece interval |
3s-5s |
|
Warranty |
12 months |
|
Aerial dimension |
0.5-0.8Mpa |
|
Overall dimension(L*W*H) |
4550*850*1550 mm |
|
Certification |
ISO9002,Quality Believable Certificate |
Function of edge banding machine

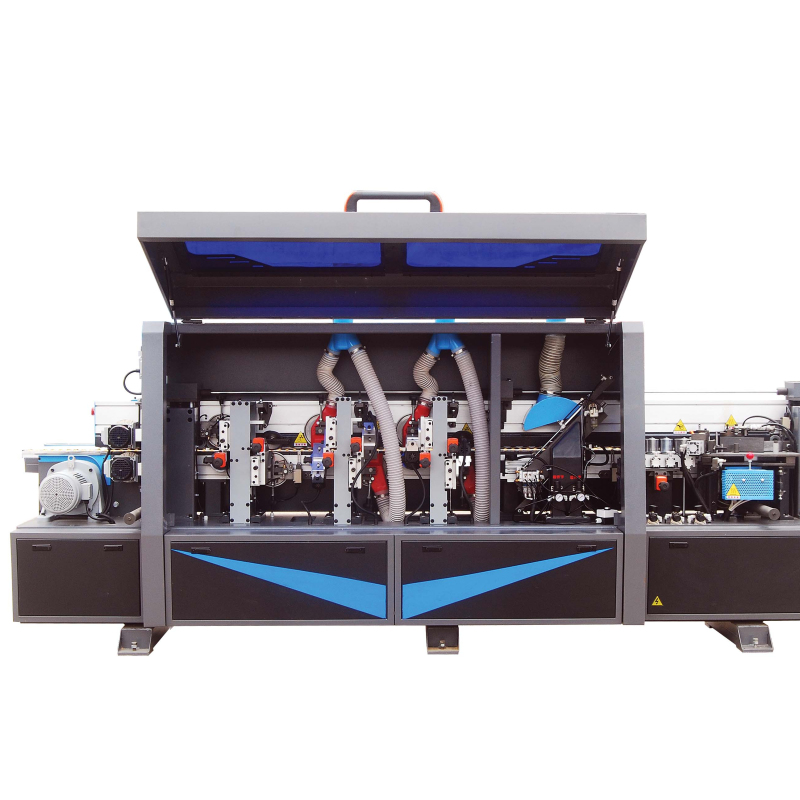

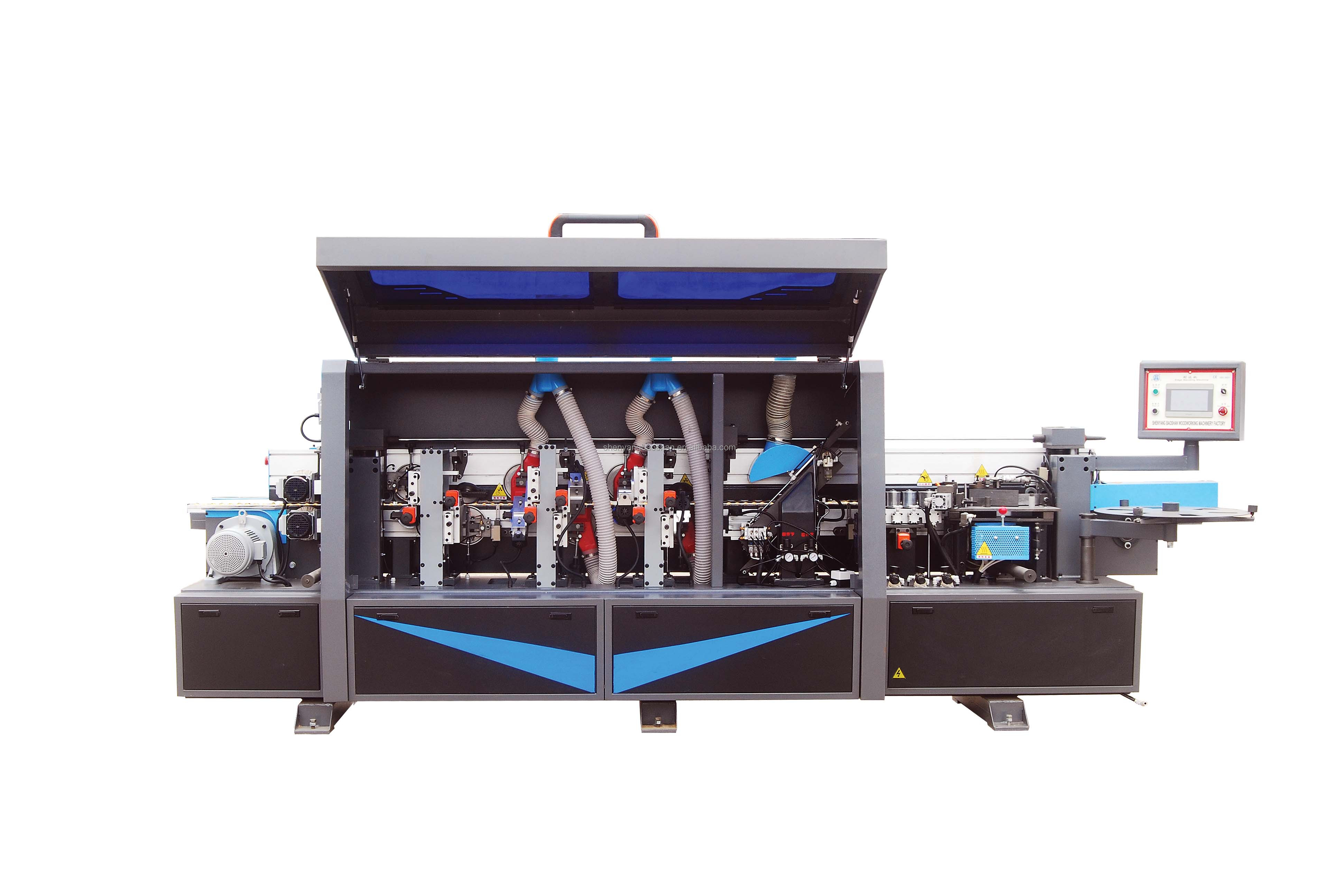

MF-1504BS is an automatic edge banding machine, which used to woodworking edge banding.
The main function as followed:
Gluing--end trimming--fine trimming--rough trimming--scraping --buffing

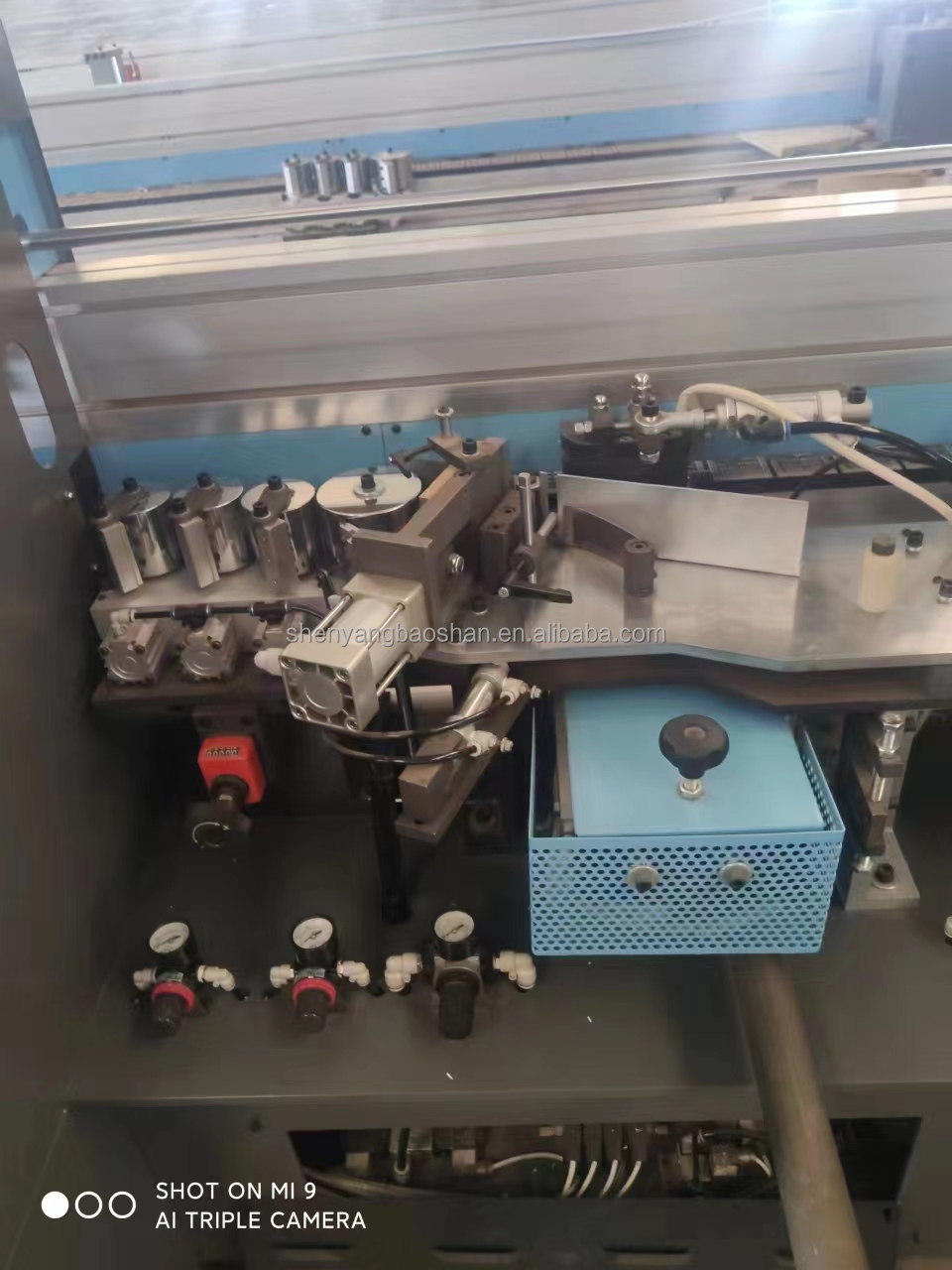

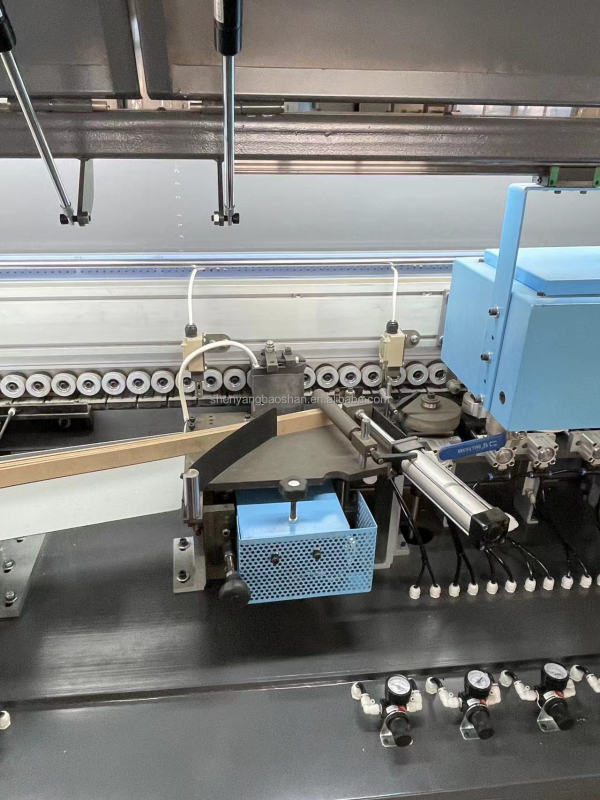

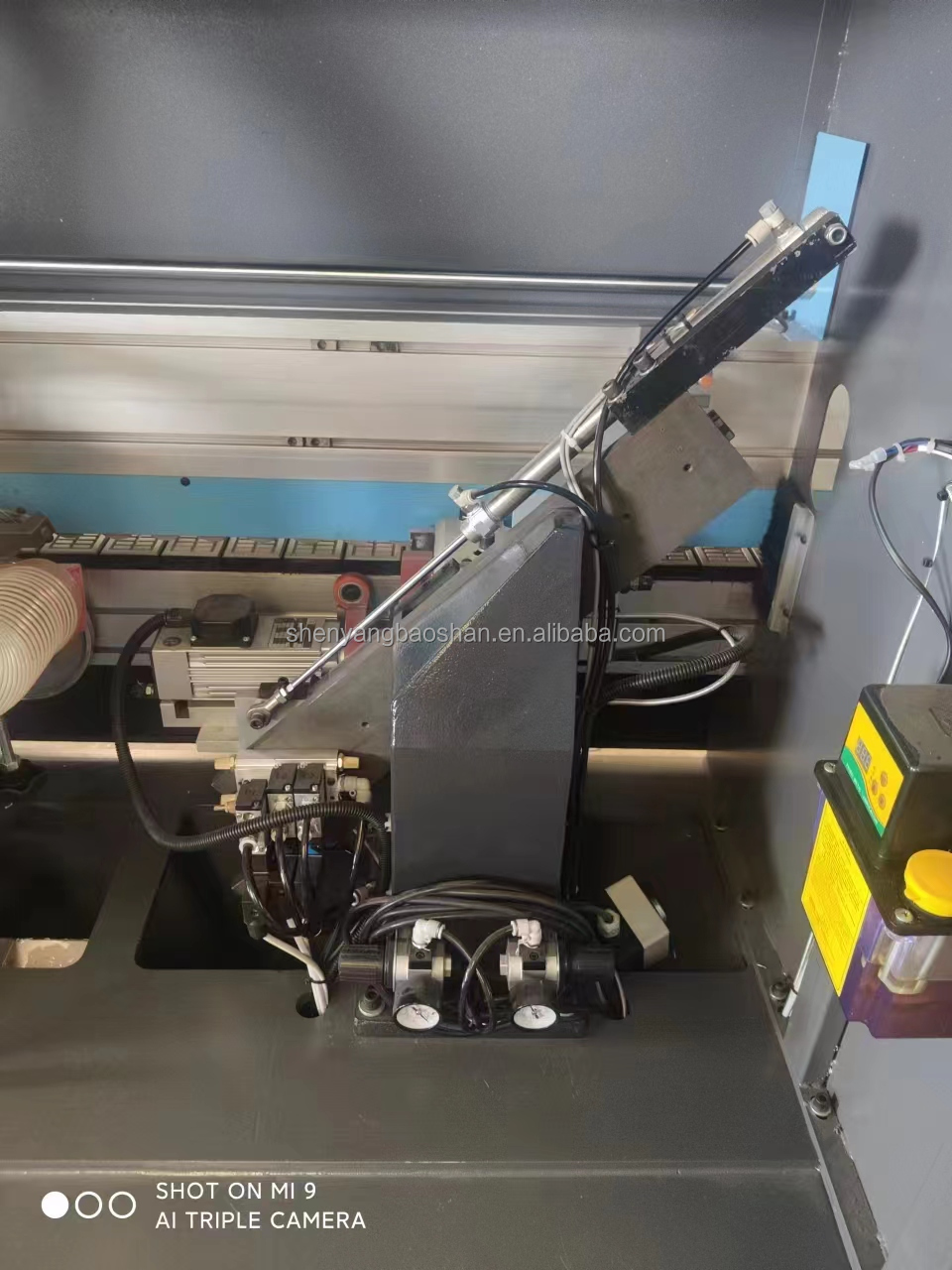

Glue End trimming

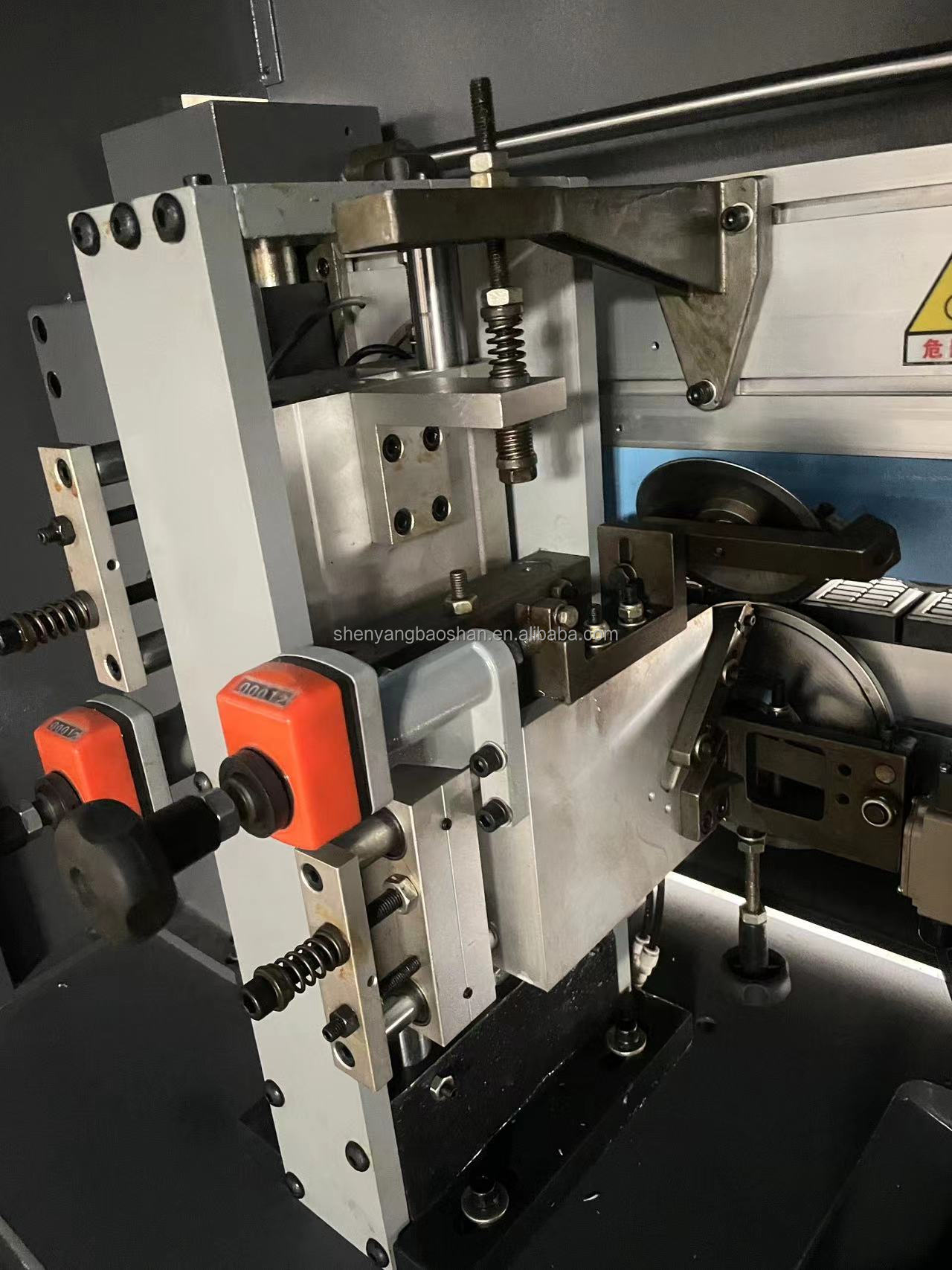

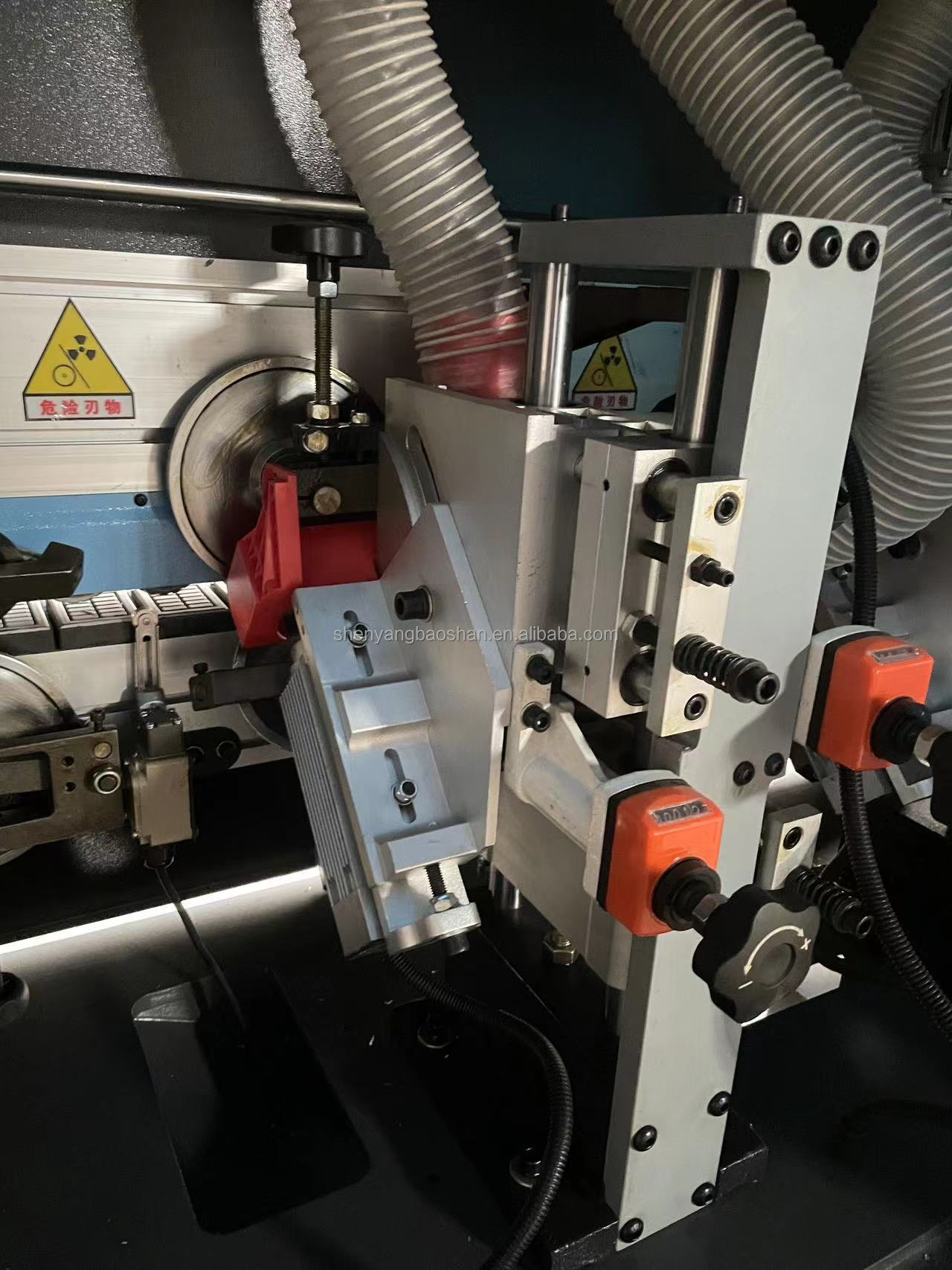

Rough trimming Fine trimming
Scraping Buffing
