Double Spindle CA-265 CNC Cabinet and Door Drilling Machine for Side Slotting and Drilling
Description
Product description
Double spindles CA-265 CNC Side Drilling Machine Cabinets Furniture Doors Side Slotting Drilling Machine
Machine Application :
Horizontal drilling hole CNC router is mainly used for wood panel hole drilling , This machine combines all the elements needed for a furniture manufacturer to design and machine custom cabinets,wardrobe, custom furniture and support products. It is specialized in making nested based production of cabinets, closet and customized furniture.
Application Industry:
The furniture industry: cabinets, doors, panel, office furniture, doors and windows and chairs
Wood products: speakers, game cabinets, computer tables, sewing machines, musical instruments
Decoration industry: Acrylic, PVC, MDF, artificial stone, glass, plastic, and copper and aluminum and other soft metal sheet cutting engrave .

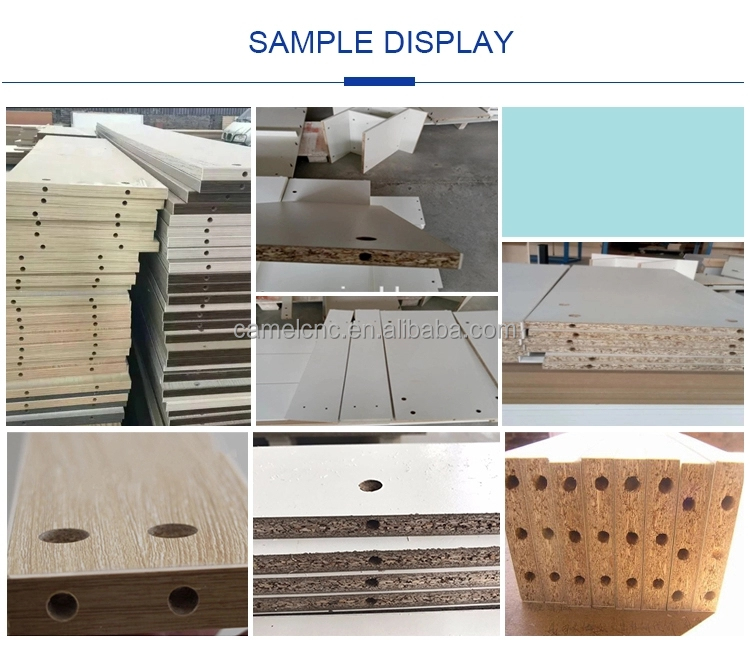

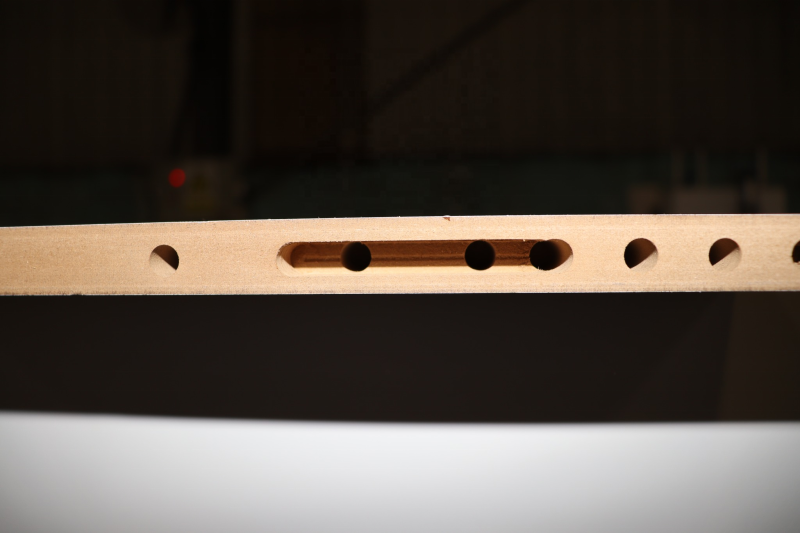

Finished Samples:
Machine Features:
1. The machine is a special design for side holes drilling of plate furniture;
2. The side holes can be achieved through scanning the barcode and Infrared sensor, which ensures the positioning precision;
3. It can drill multi kinds of hole quickly and accurately. No need repeatedly adjusting, greatly improving the drilling efficiency;
4. Control system adopts PLC touch screen. It is easy to learn and operate the control system and master the application in a short time.

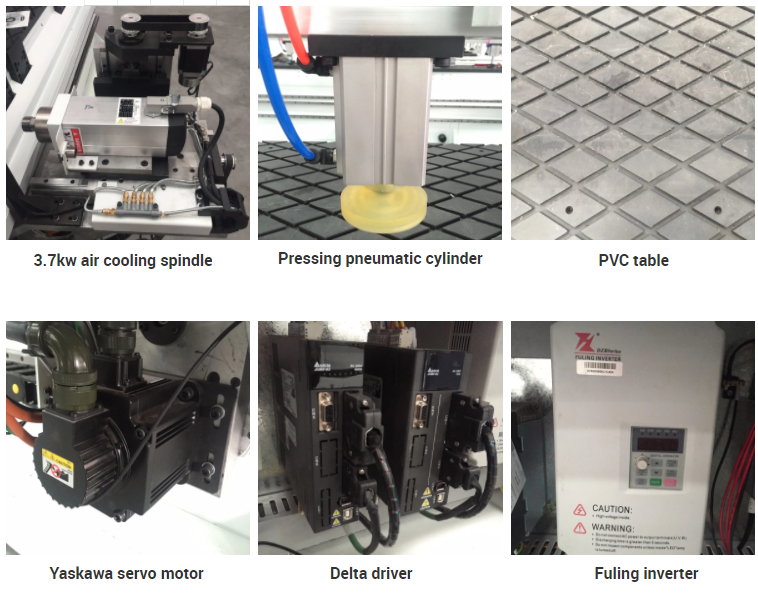

Machine details:
Technical Parameter:
|
NO. |
Description |
Parameter |
|
1 |
Maximum processing length |
2800mm |
|
2 |
Maximum thickness of plate |
50mm |
|
3 |
Spindle |
2.2kw air cooling spindle |
|
4 |
Maximum holes depth |
45mm |
|
5 |
Spindle speed |
0-18000RPM/MIN |
|
6 |
traveling speed |
150M/MIN |
|
7 |
Process speed |
105M/MIN |
|
8 |
Control system |
Customized BEST system |
|
9 |
Driver and motor |
exclusive custom double servo motor 750W/400W |
|
10 |
Inverter |
Best inverter |
|
11 |
Z movement |
Pneumatic cylinder |
|
12 |
Main Function |
Three-hole in one / wood pin hole / slot |
|
13 |
Overall Dimension |
3350*1770*1400mm |

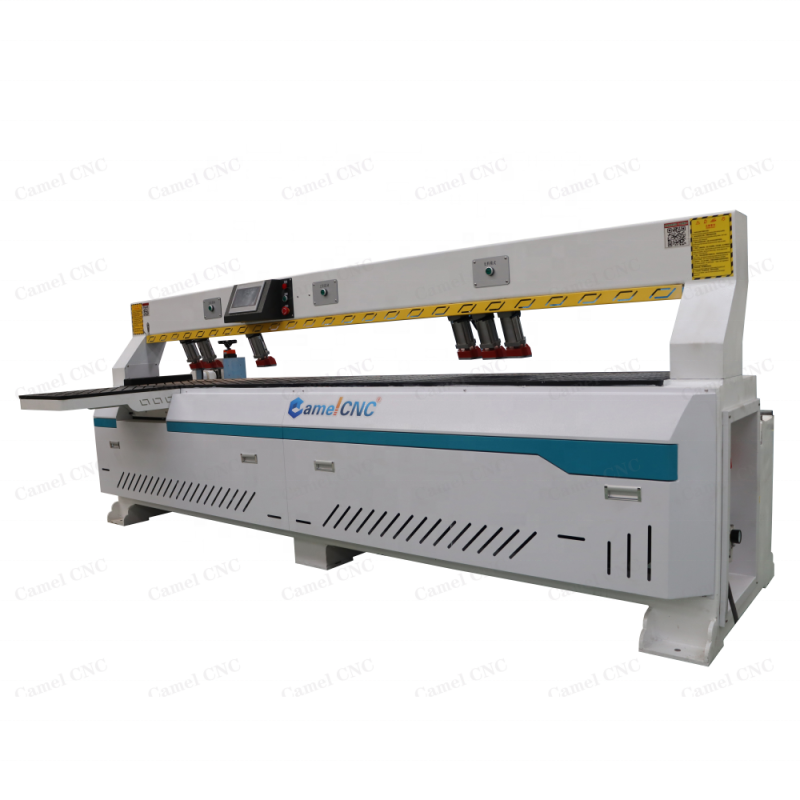

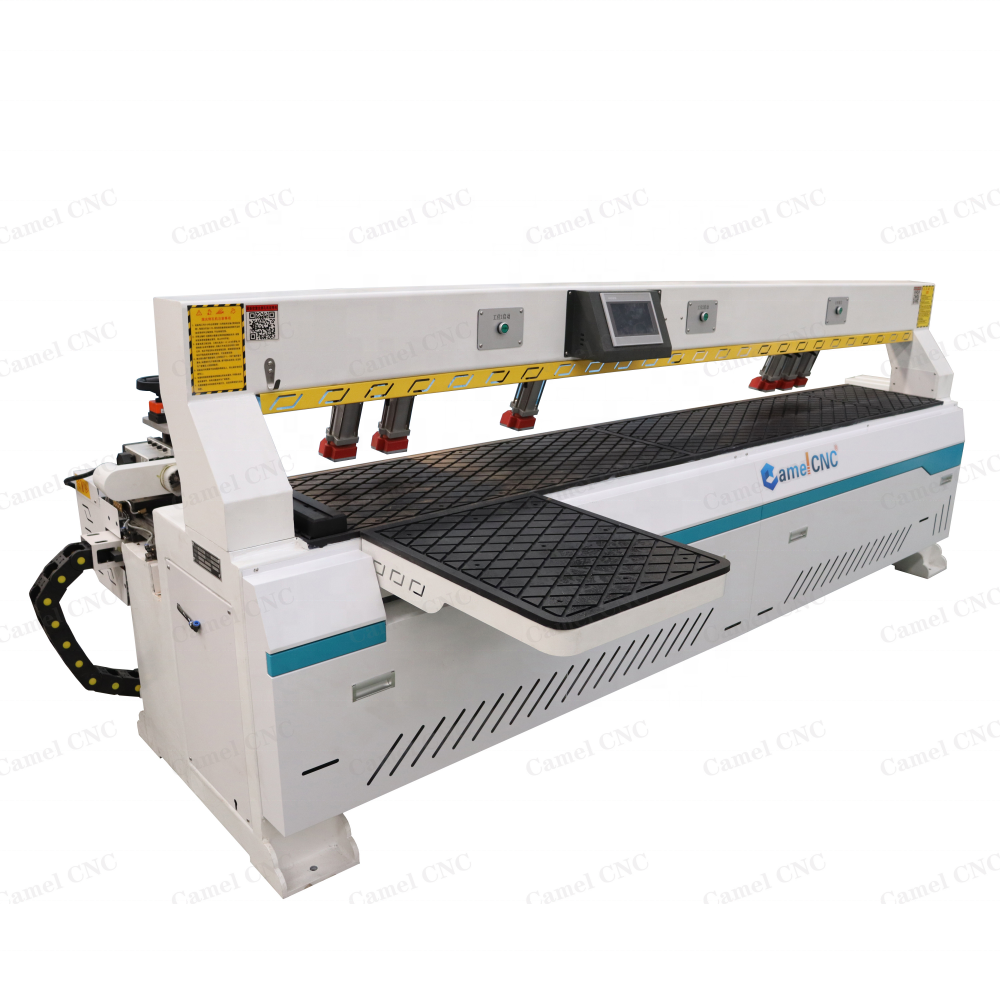

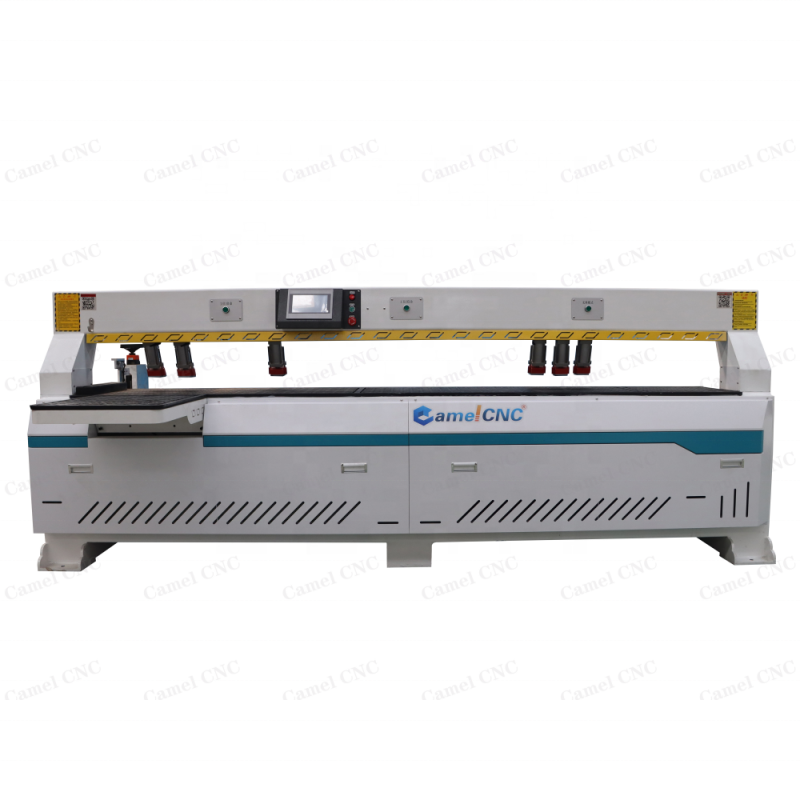

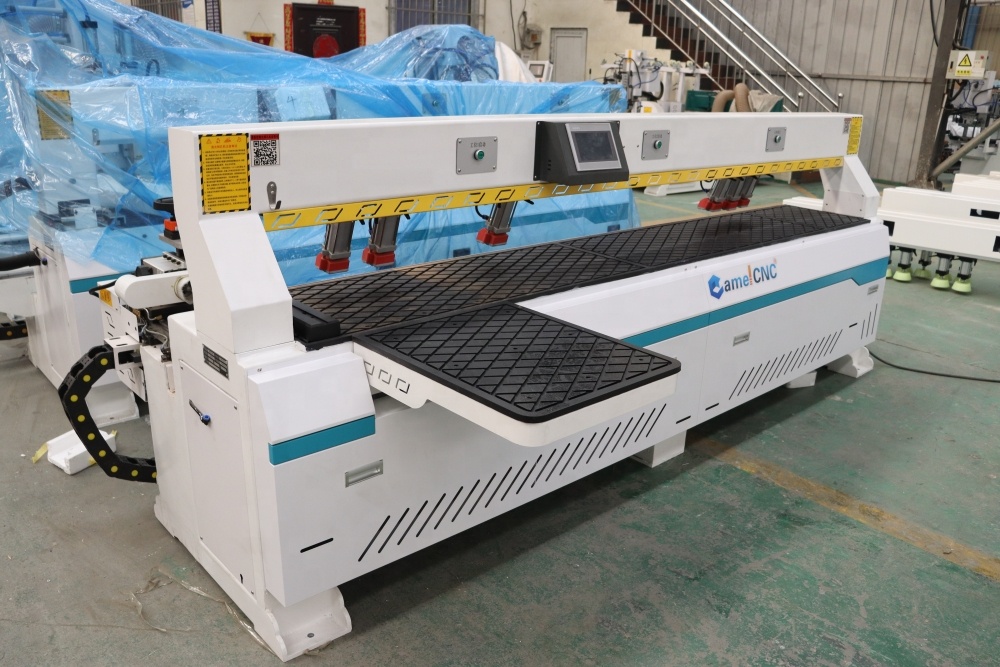

Machine Pictures:
