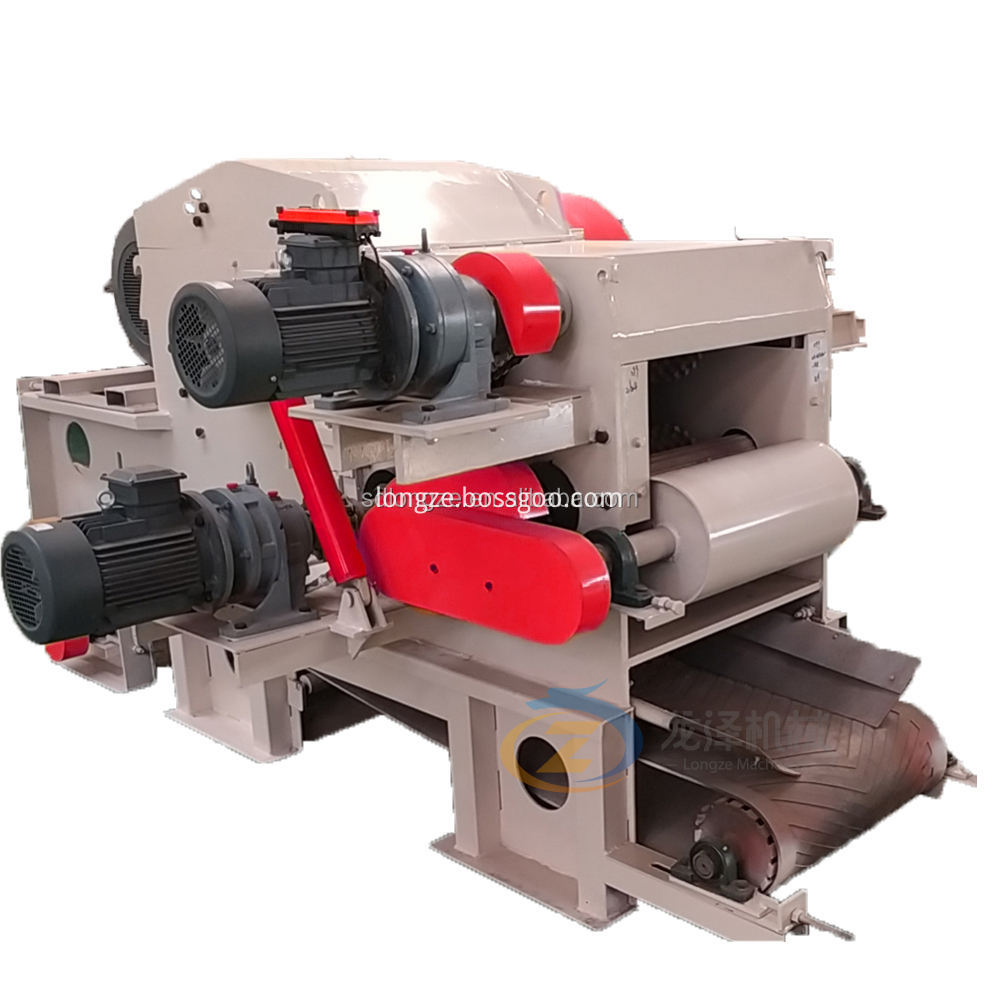

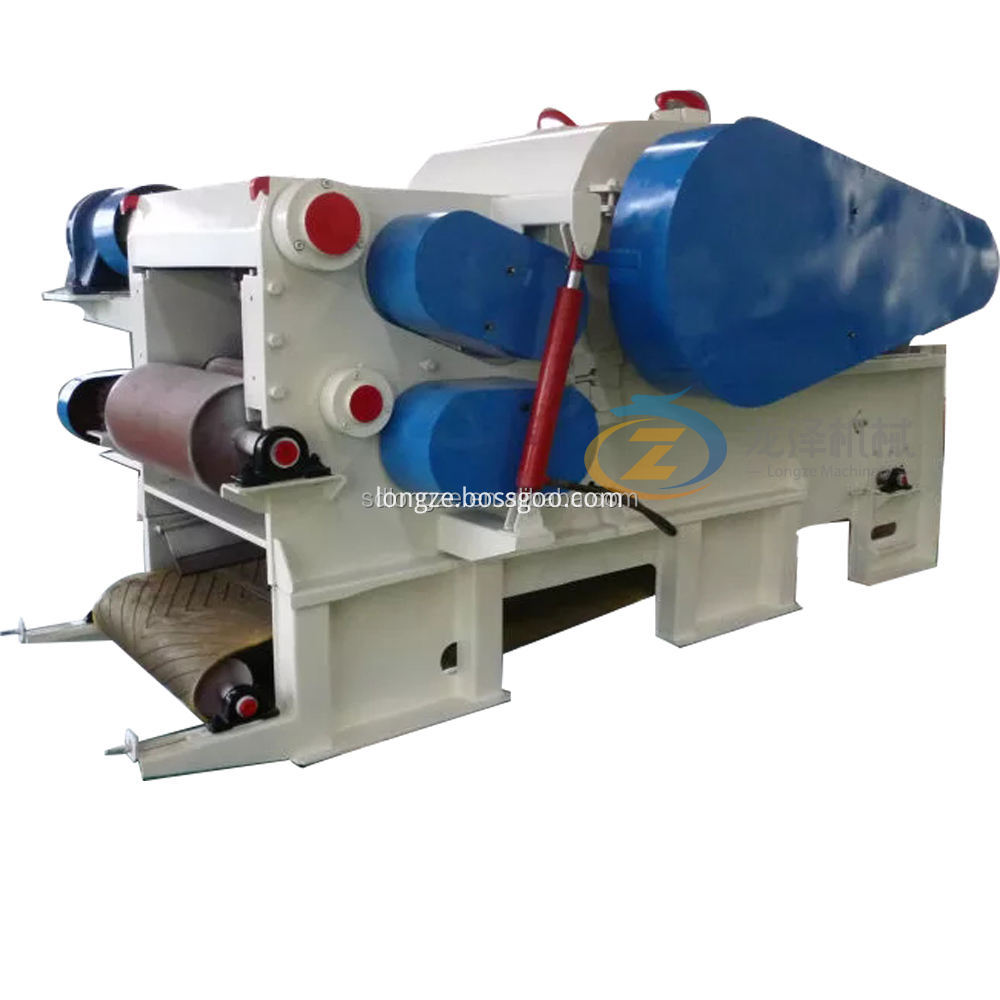

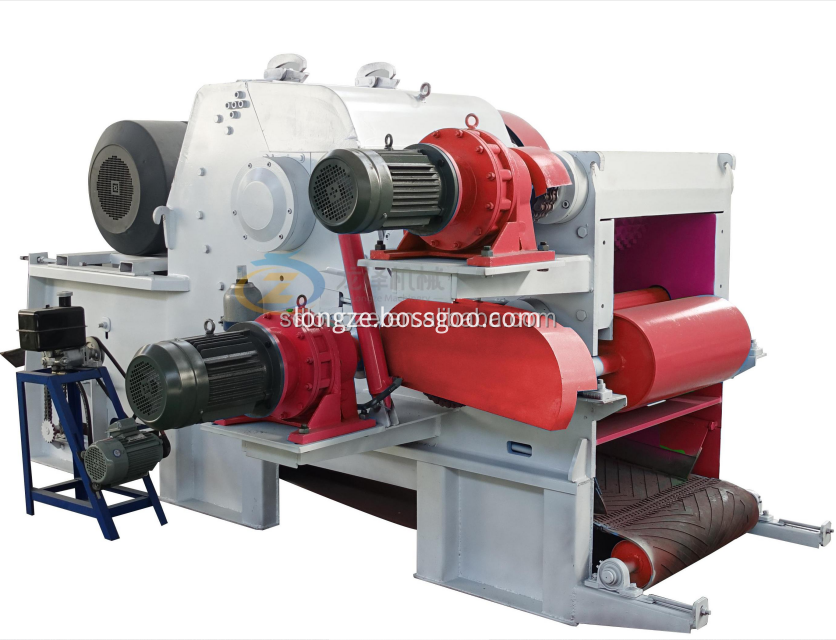

direct wood chipper machine

Contact Now

Description

Product description

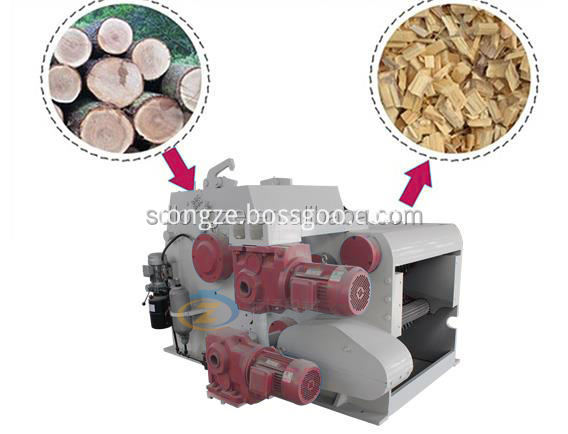

It is mainly used to crush big wood logs or wood timber,plywood,wood branches,furniture waste into small chips,the thickness of last chips is 3mm-5mm,length and width is about 15-30mm, By adjusting knives gap,outlet chips dimension will be adjusted.
It contains 4m long feeding belt conveyor, electric control cabinet, discharge belt conveyor and one extra set of blades. The speed of feeding conveyor can be adjusted.

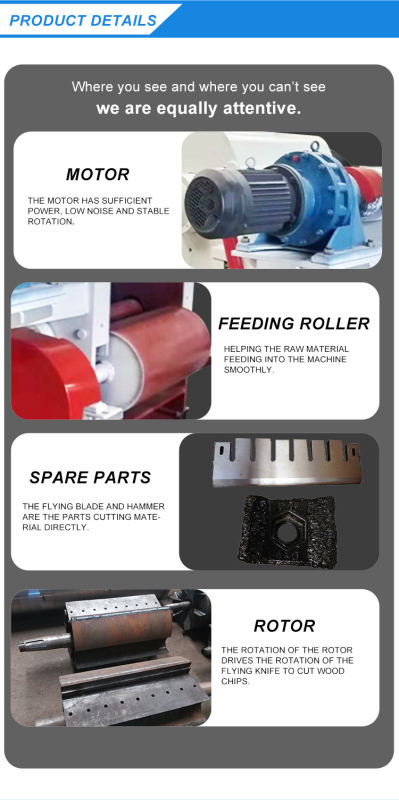

The knives of wood chipper machine can be sharpened by knives sharpener,the rotary blade must be

sharpened every day, it can
be used for 40-45 days,the fixed blade has 4 month service life.

Specification

Model	GX215	GX216	GX217	GX218	GX2110	GX2113
Input Size(mm)	180x400	240x540	240x680	310x680	330x1050	400x700
Max material diameter(mm)	160	220	220	300	190	380
Capacity(T/H)	6-8	8-12	8-15	10-15	11-15	20-35
Main Power(KW)	45	55	75	110	220	200
Weight(T)	2.9	4.07	5.5	7	12.5	13
Size(mm)	1540x1240x1350	1980x1950x1600	1980x2150x1850	2300x2150x1850	2850x2799x1497	3670x2448x2050
