Good quality disc wood chipper for sale
Description
Product description

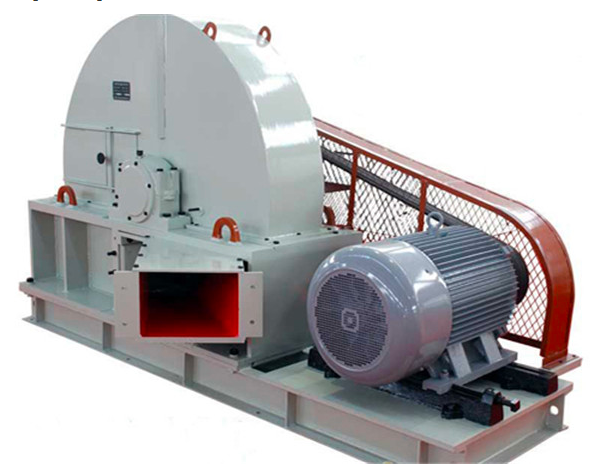

DISC WOOD CHIPPER
1. Characteristics
1) Reasonable structure,
2) Wide usage, High output
3) Qualified chips, Safe and reliable
4) Easy operation, Easy maintenance
2 .Application
1). Scope: small logs, wood cutting residues.
2). Purpose: Preparing raw material for density board plant and paper-making plant, etc.
3.Technical parameters
|
Model |
HX1710 |
HX1212 |
HX1216 |
HX1800 |
|
Rotation speed（rpm） |
635 |
635 |
620 |
420 |
|
Blade QTY（piece） |
6 |
6 |
6 |
6 |
|
Chip size（mm） |
20-35 |
20-35 |
20-35 |
20-35 |
|
Input size（mm） |
270x270 |
320x320 |
420x420 |
500x500 |
|
capacity（TPH） |
5-10 |
10-15 |
15-25 |
30-40 |
|
Main power（kw） |
55 |
75 |
110 |
160 |
|
Feed + discharge motor (kw) |
3+3 |
3+3 |
3+3 |
5.5+5.5 |
|
Disc diameter (mm) |
1150 |
1300 |
1600 |
1800 |
|
Weight (t) |
2.8 |
3.6 |
6.58 |
8.5 |
|
Feed conveyor width (mm) |
350 |
350 |
470 |
550 |
|
Feed conveyor length (mm) |
4000 |
4000 |
6000 |
6000 |
|
Discharge conveyor width (mm) |
600 |
600 |
900 |
1300 |
|
Discharge conveyor length (mm) |
10000 |
10000 |
10000 |
10000 |
|
Shipping |
1x20’GP |
1x20’GP |
1x40’HQ |
1x40’HQ |
Price include:The above price include 1) main machine; 2) 4m belt feeding conveyor; 3) 10m belt discharging conveyor; 4) control cabinet; 5) one extra set of blade; 6) all motors.
