HX1710 wood chipper shredder for sale
Contact Now
Description
Product description
Sepcification:
|
Model |
HX1710 |
|
Rotation speed（rpm） |
635 |
|
Blade QTY（piece） |
6 |
|
Chip size（mm） |
20-35 |
|
Input size（mm） |
270x270 |
|
capacity（TPH） |
5-10 |
|
Main power（kw） |
55 |
|
Feed + discharge motor (kw) |
3+3 |
|
Disc diameter (mm) |
1150 |
|
Weight (t) |
2.8 |
|
Feed conveyor width (mm) |
350 |
|
Feed conveyor length (mm) |
4000 |
|
Discharge conveyor width (mm) |
600 |
|
Discharge conveyor length (mm) |
10000 |
|
Shipping |
1x20’GP |

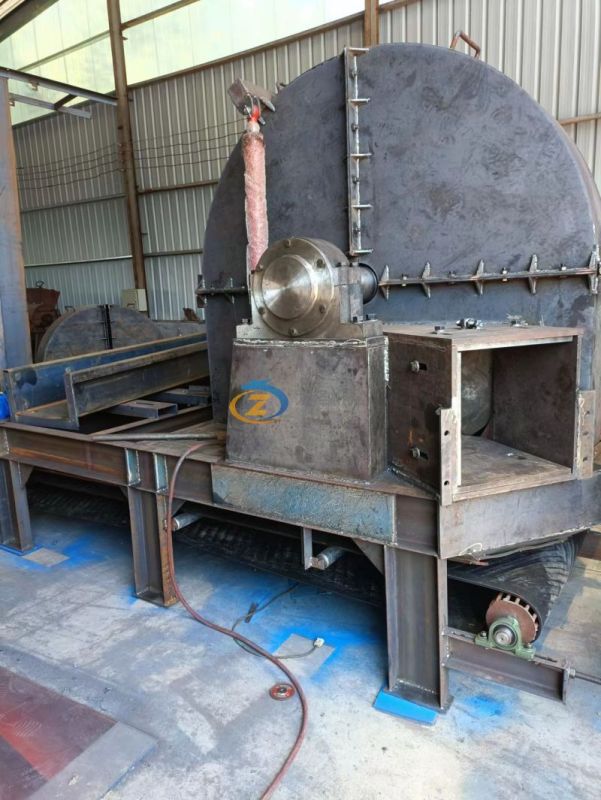

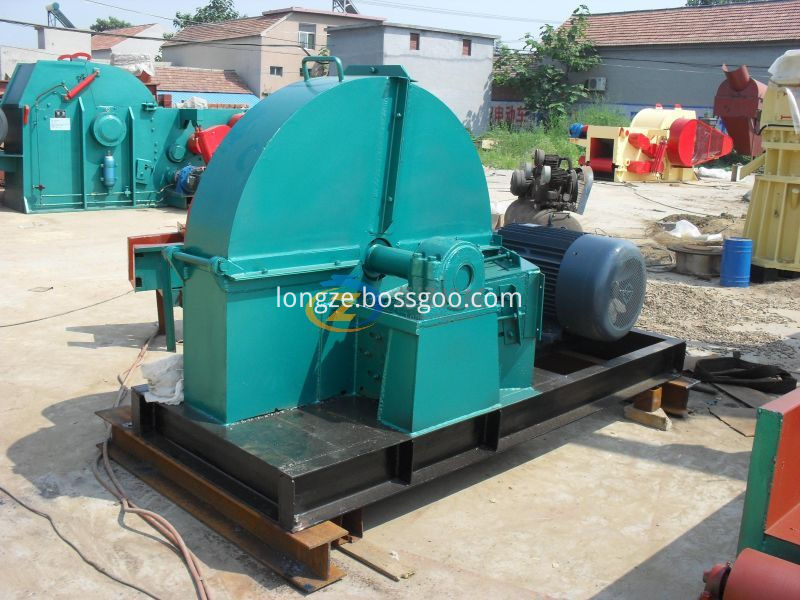

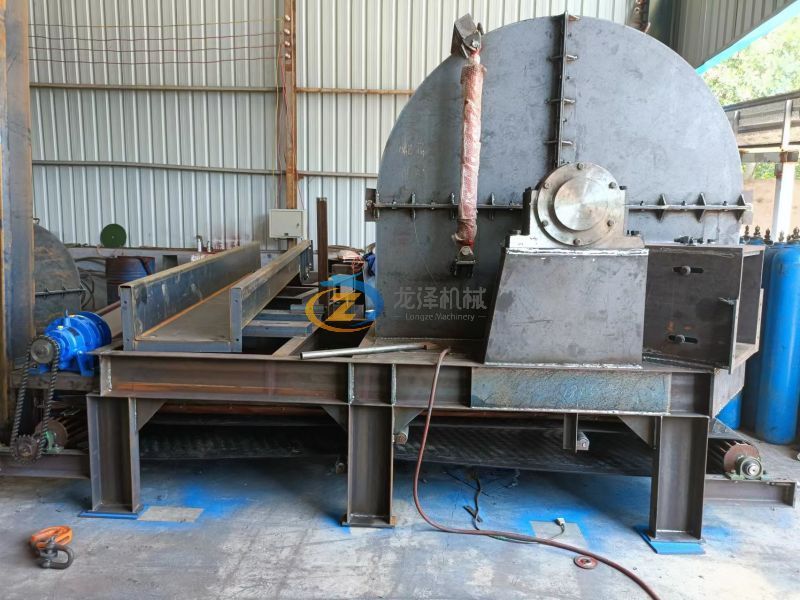

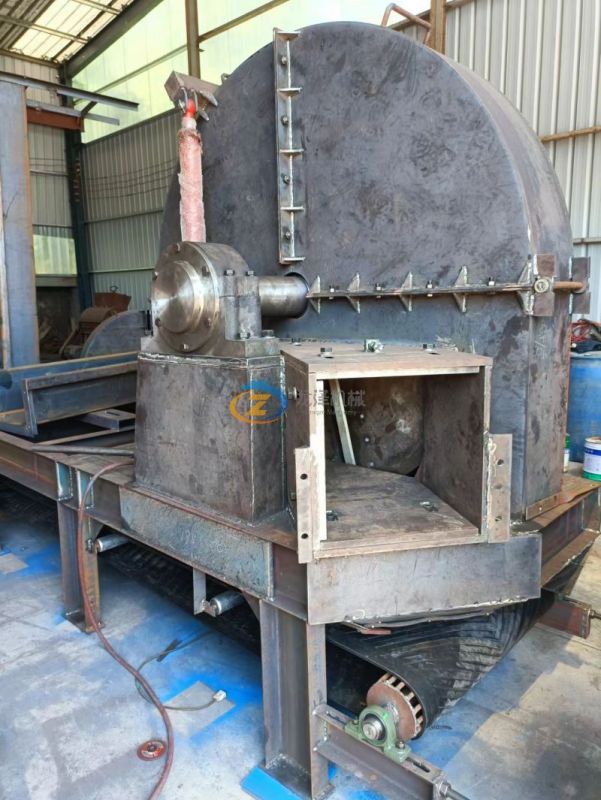

Disc chipper is a professional equipment for producing high-quality wood chips. It is mainly used to process and crush round logs, waste branches, trees, and waste boards and scraps generated during wood processing into wood chips of uniform specifications. The disc chipper is a more common crushing equipment. The disc wood slicer is mainly composed of important parts such as a cutter head, a blade, a bearing base, a bearing box, a bearing, a belt, a pulley, a motor or a diesel engine, a large shaft, and a casing. The disc chipper uses the cutting principle of the cutter head, starts the motor or diesel engine, and is driven by the belt to drive the cutter head on the main shaft and the blade installed on the cutter head to rotate repeatedly. Wood and bamboo are put into the feeding port and are cut by the cutter head and the blade. The bamboo chips flow out from the discharge port.
