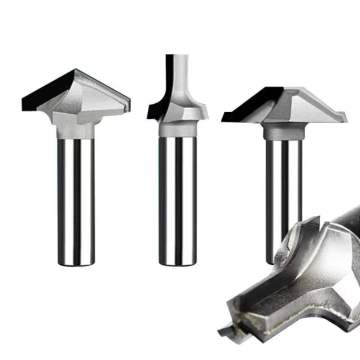

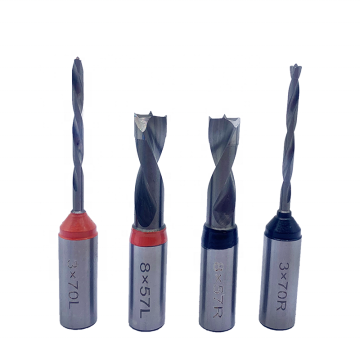

Spare Parts for Woodworking CNC Routers: Cutting, Carving, Drilling Tools & More
Contact Now
Description
Product description
Products Description
|

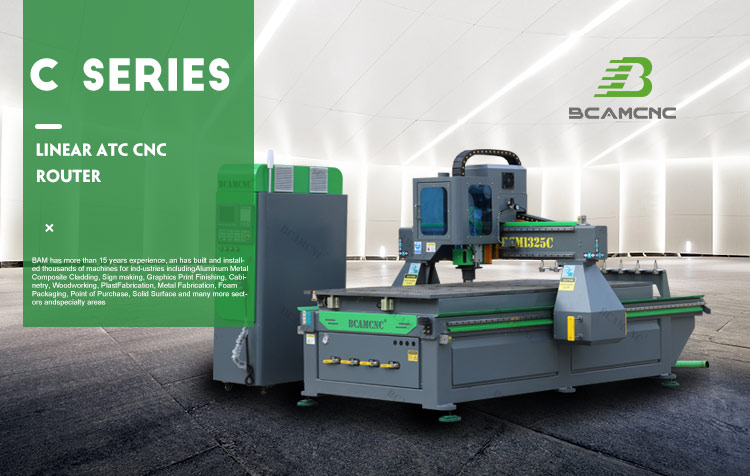

Standard specification
|
Working area: 1300*2500*200mm|4′*8′

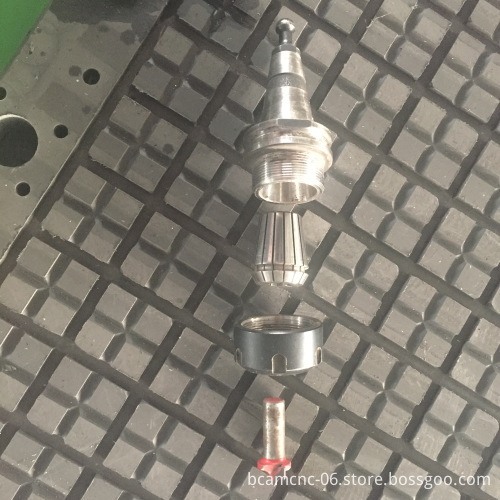

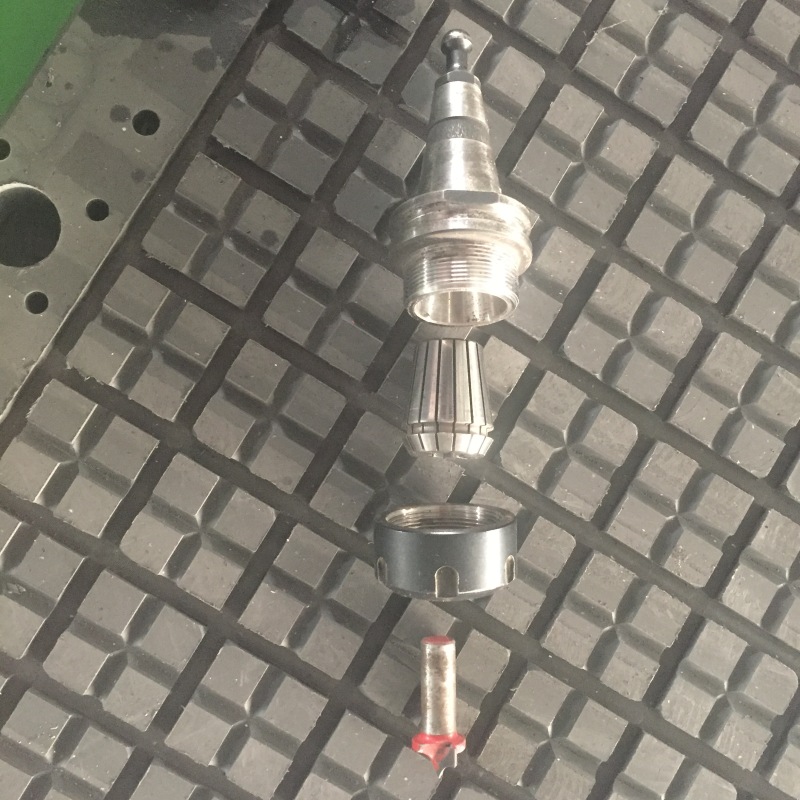

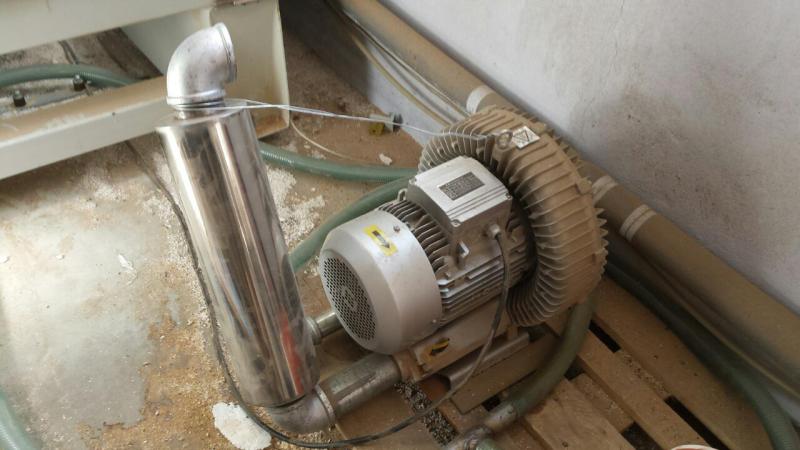

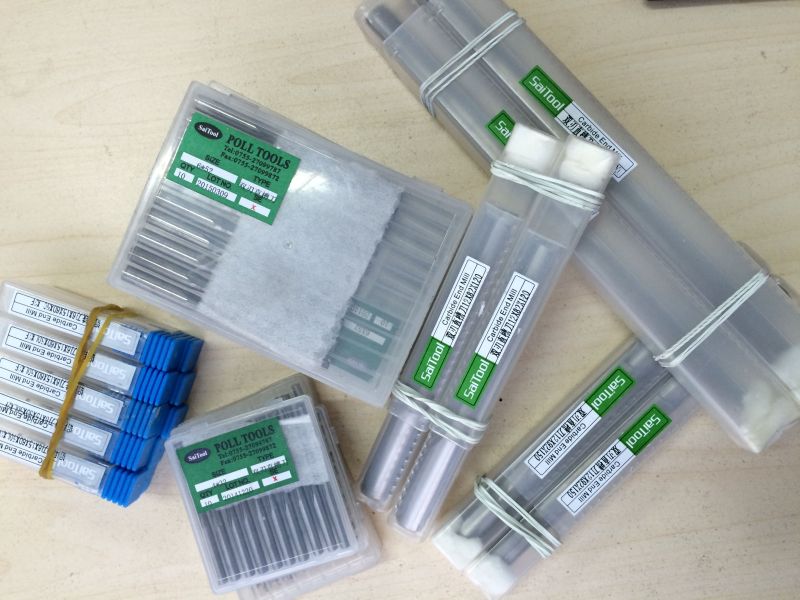

Vacuum table+T-solts (optional :T-solt table ) Italian HSD 9.5KW(12HP) Electrospindle with 8-position Automatic Tool Changer(ISO30)&Tool Cone Holder-for east bit changing Taiwan Delta 11kw inverter Taiwan Syntec controlsystem 60w-e Japan Yaskawa servo motor and drivers system 750w 8mm Heavy duty body pop up pins Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screw transmission Taiwan TBI rails Solid State limit switches Automatic oil-lubrication system Automatic tool sencor 3.0kw double dust collector +Dust collector pipe+Dust collector support Active safety system(our patent ) Airtech Pro (our patent) Standard box of tools and other consumable parts |
Details
|
|
|
Parameters
|
X,Y,Z Working Area
|
1300*2500*200mm|4*8ft
|
|
|
|
X,Y,Z Working Area
|
1300*2500*200mm|4*8ft
|
|
|
|
Optional Working Area
|
1300*1300*200mm|4*4ft
|
|
|
|
|
1300*2500*200mm|4*8ft
|
|
|
|
|
1500*3000*200mm|5*10ft
|
|
|
|
|
2000*3000*200mm|6*10ft
|
|
|
|
|
2000*4000*200mm|6*13ft
|
|
|
|
|
2000*5000*200mm|6*16ft
|
|
|
|
|
2000*6000*200mm|6*20ft
|
|
|
|
|
could be customed for X,Y and Z axis
|
|
|
|
Spindle Power
|
9kw (could up to 9.5kw)
|
|
|
|
Spindle Speed
|
24000r/min
|
|
|
|
X,Y,Z Traveling Positioning Accuracy
|
±0.03/2000mm
|
|
|
|
Max. Rapid Travel Rate
|
80m/min
|
|
|
|
Max. Working Speed
|
60m/min
|
|
|
|
Working Voltage
|
AC380v/50HZ/3 phase (optional )
|
|
|
|
Command Language
|
G Code
|
|
|
|
Interface
|
USB,NETWORK
|
|
|
|
Software Compatibility
|
ArtCAM ,Alpacam,Carbinets Version ,BCAMNESTTING, solidworks,etc.
|
|
|
|
Running Environment
|
Temperature: -20℃~45℃ Relative Humidity: 5%~75%
|
|
