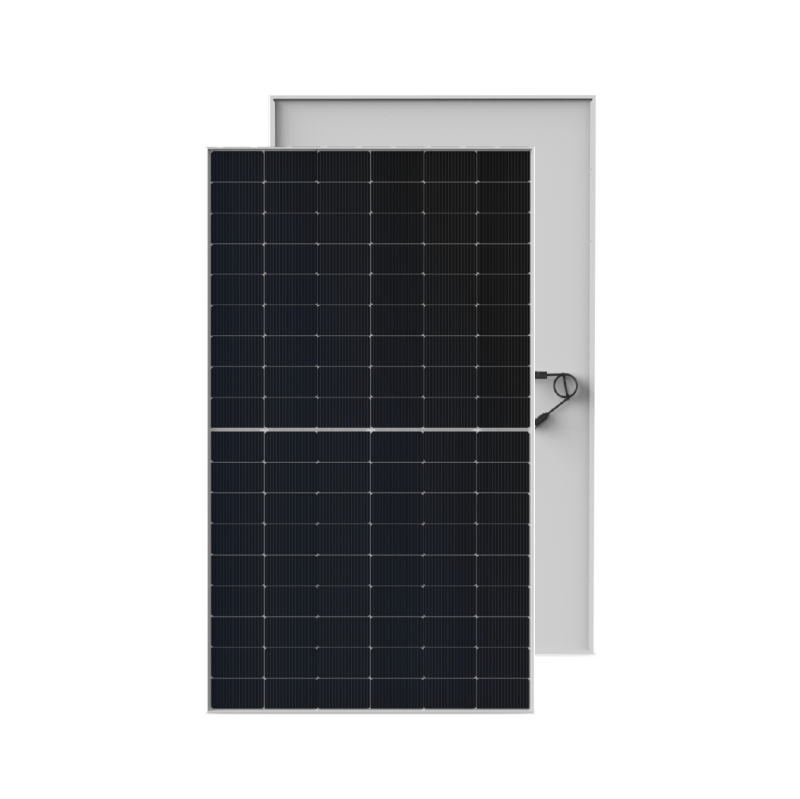

Double-Glass N Solar Module for High Efficiency
Contact Now
Description
OSDA N PRO,Buy OSDA N PRO,OSDA N PRO for Sale
2.0 double glass technology : the front glass is 2.0mm high-transparent tempered glass, and the rear glass is 2.0mm tempered glass, which constitutes a double glass structure and is the core structural feature of the product.
High-efficiency power range : the rated peak power covers 630 W to 720 W, and the component efficiency is up to 24.06 %, reflecting excellent power generation performance.
Entire environment adaptation : protection level IP68, can withstand 5400 Pa snow pressure and 2400 Pa wind pressure, operating temperature range of − 40 ~ + 85 °C, adapt to various climatic conditions.
In terms of mechanical properties, the module has a size of 2382113430 mm and a weight of 32.40 kg. It adopts an anodized aluminum oxide black border and is equipped with an IP68 grade junction box ( including three diodes ). The protection level reaches IP68 and can withstand 5400 Pa snow pressure and 2400 Pa wind pressure Ω2-17 Ω. The operating temperature range is-40 ~ + 85 °C, the maximum series fuse rated current is 28 A, and it is suitable for a variety of installation scenarios 2-24 . The product meets many international standards such as IEC61215 : 2021 and ISO9001 : 2015, and provides efficient and stable energy solutions for photovoltaic systems.
