YNX-UAV300-01——Industrial transportation solution for flagship heavy-duty UAV

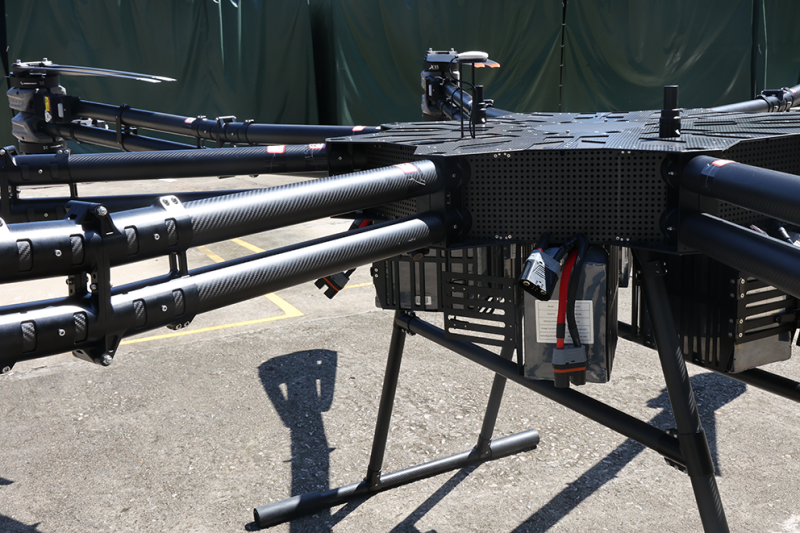

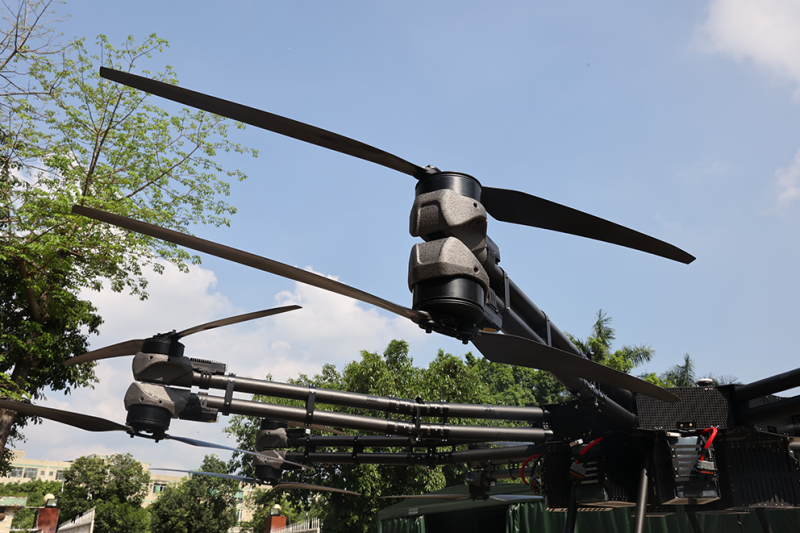

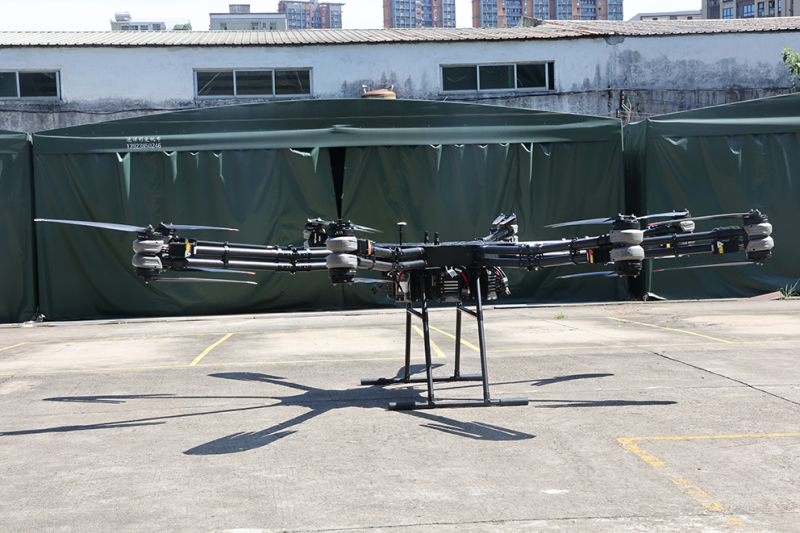

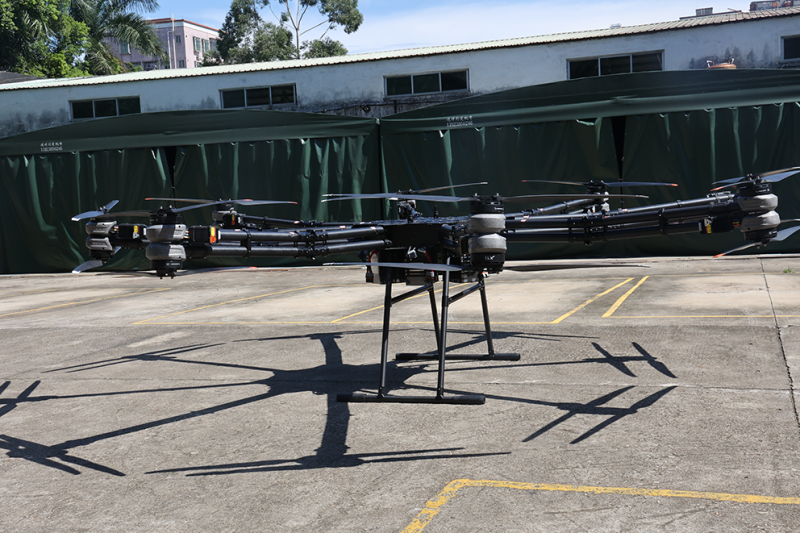

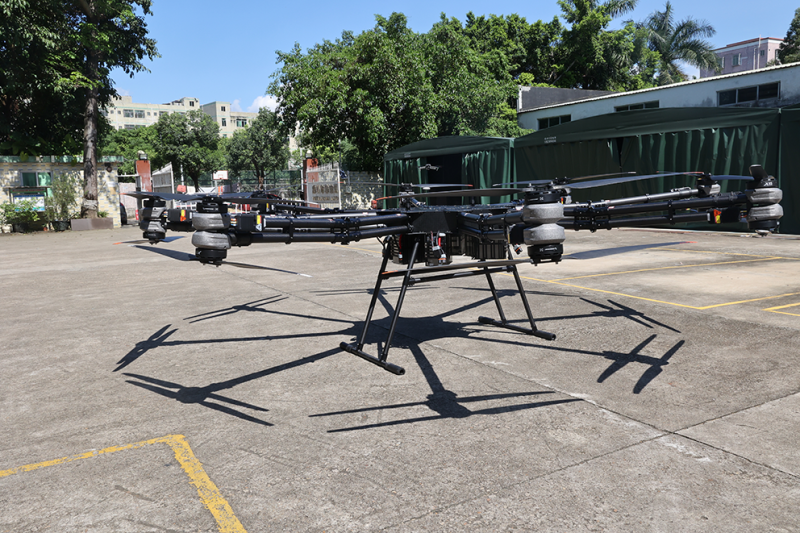

This 300Kg heavy-duty UAV is specially designed for industrial scenes. Its deployment size is 4600×4600mm with high-strength carbon fiber fuselage. It can carry 300kg rated load and its maximum takeoff weight is 550kg, which can easily handle heavy material transportation. Grade 8 wind resistance and IP65 waterproof design ensure all-weather operation from-10℃ to 50℃. It is equipped with six 18S 46000mAh high-voltage solid-state batteries, which can last for 15 minutes/10km under 300kg load, and the no-load state can reach 60 minutes. It supports the task planning of 3,000 destinations, and is equipped with automatic launch, one-button take-off and landing and low-power automatic return, which is an efficient choice for power inspection and logistics transportation.



It is a complete drone that includes all accessories such as batteries, charger, controller, power module, frame, and more.





300Kg Heavy Lift Drone Intelligent Features



Supports waypoint and route mission planning/editing.



Ground station app displays real-time flight data: video, image, voltage, GPS, altitude, speed, distance, and mission status.



Up to 3000 waypoint missions; features include auto drop, one-click takeoff/landing/return, low battery return, fail-safe return, and geofencing.



Safety protocols: return via original path, nearby landing, hover, or ascend-return; priorities customizable.



Auto-diagnostics with alerts and auto return on failure.



Real-time flight log storage and export.



Full flight data recording: ID, coordinates, speed, altitude, trajectory, attitude, commands, faults, GPS count, voltage—exportable and reviewable.



GPS-precision dropping, one-click drop, and real-time drop data (optional).



Control transfer across stations during standby/hover/flight with ≥6 PWM outputs; one-click return required.



App supports tuning, tutorials, manual access, user verification, offline maps, alerts, and video display.



Fault detection triggers voice alert, LED indicator, and auto return/landing; multiple safety strategies with editable priorities.



Drop system and third-party device data displayed in real time via app.



App includes ID verification, secure login, NFZ unlocking request, NFZ lookup, mission playback, multi-drone management, flight zone settings, heading/home point lock, and tap-to-fly.



Flight modes: heading lock, home lock, orbit mode.



Control authority can switch between stations during flight or hover.



Optional backend monitoring and dispatch platform.



FAQ：



1.How much weight can this drone carry?

The rated load is 300kg and the maximum takeoff weight is 550kg, which can meet the transportation requirements of heavy materials.



2.Is there a difference in battery life under different loads?

There is a difference, the battery life is 15 minutes/10km under 300kg load, and it can reach 60 minutes under no load (all in the state of 6 batteries).



3.How much wind environment can you work in?

The maximum wind resistance grade is 8, which is suitable for most complex meteorological conditions.

As a Large UAV Drone, it integrates robust load capacity and intelligent features, setting a new standard for industrial transportation solutions.
