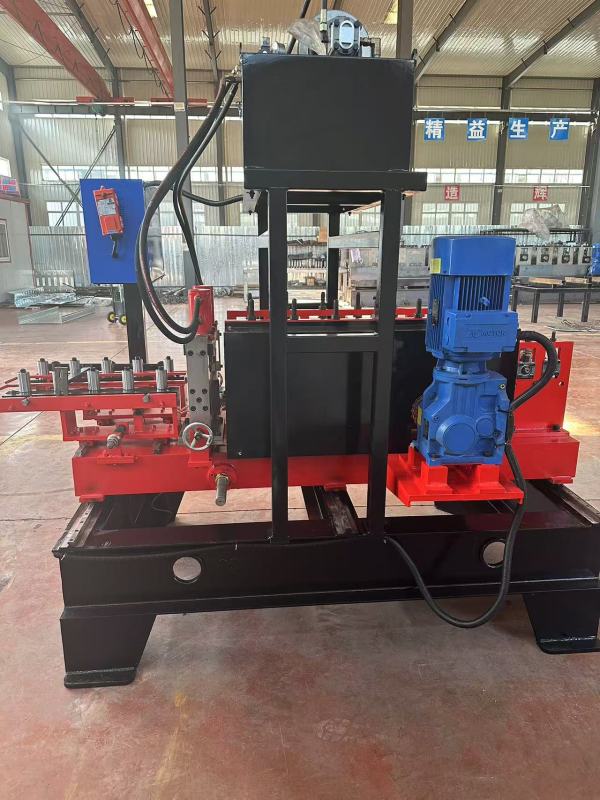

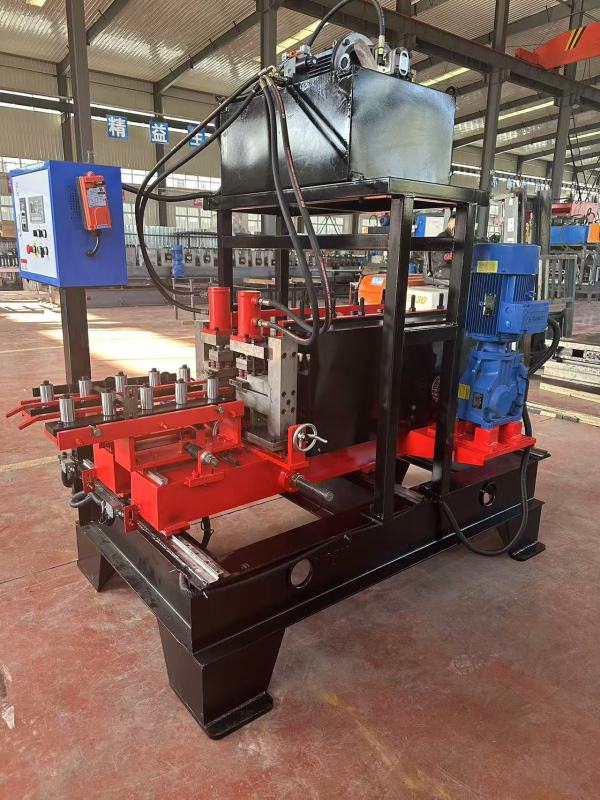

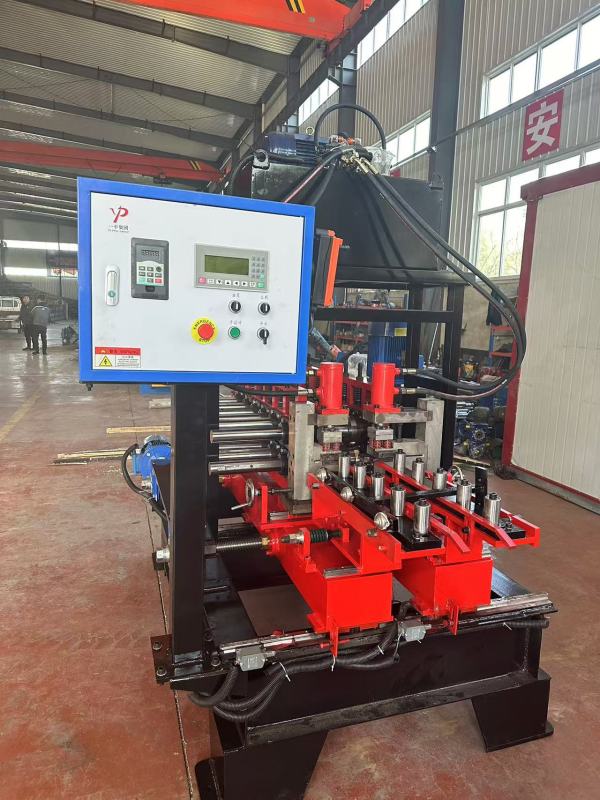

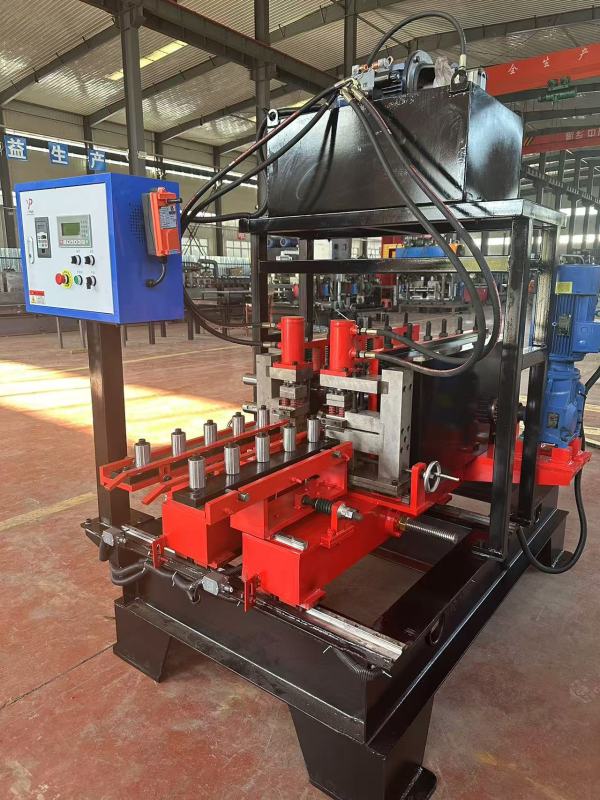

Yiping automatic bridge cover forming machine (with reinforcement)
Contact Now
Description
Product description
1. It is mainly composed of guide frame, punching part, forming part, transmission part, etc.
2. Material guide frame: that is, the guide device of the sheet material to ensure that the sheet material is straight and centered into the forming part.
3. Forming part: The forming part is mainly composed of frame, side plate, mold (roller) support part and rolling die.

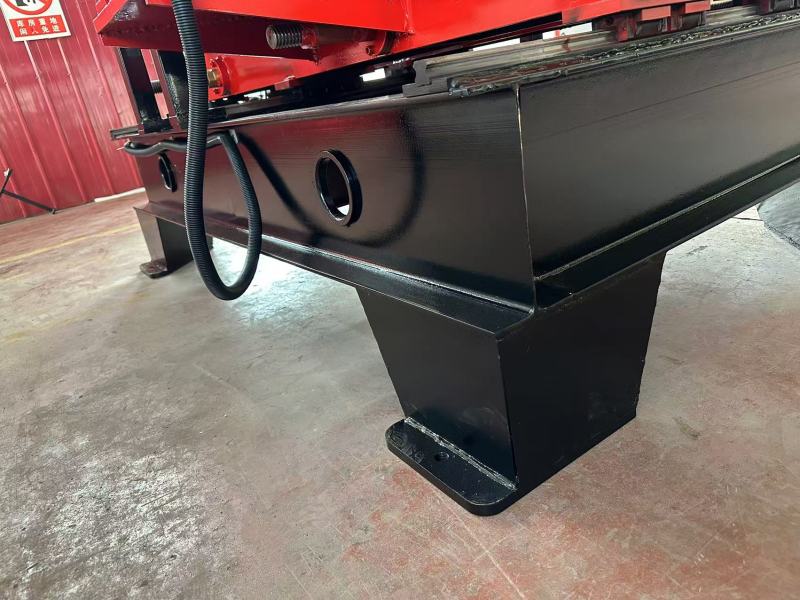

4. The frame is welded by section steel, the structure is firm, and then processed after aging treatment, its deformation is small and the internal stress is eliminated. Finishing table (gantry engraving and milling), flatness ± 0.2MM, to ensure the strength, rigidity, stability and accuracy of the equipment.
5. The side panels are all made of 45# steel finishing, with excellent material and smooth surface after processing. The main side plate is 45mm thick, grinding on six sides, and the hole type is processed by wire cutting.
6. The main components of the mold support part, the spindle is 45# steel, after quenching and tempering, fine turning, fine grinding, the outer diameter surface is processed by high strength and hard plating, the size of the matching part is good, the bending and deflection performance is good. Its shaft end working bearings are made of domestic and foreign manufacturers to ensure the stability of the work and its working life.
7. The rolling mold adopts foreign advanced COPRA software for CAD design. Its material is GCr15 steel, and the surface hardness reaches HRC58~60 after heat treatment, and the wear is extremely small. After strict process and process, processed by precision CNC machine tools, the dimensional accuracy reaches IT6~IT7 level, the surface roughness reaches more than 1.6μm, the dimensions are accurate after forming, and the forming working surface is beautiful. 8. The rolling mold is installed on the roller shaft, locked by a nut, stable and reliable. Forming roller forming. Straightening: Adopt a four-wheel straightening mechanism.
9. The whole machine is reasonably designed, and the forming roller is gradually formed by multi-way rolling, and the product size is accurate and the surface is beautiful after forming.

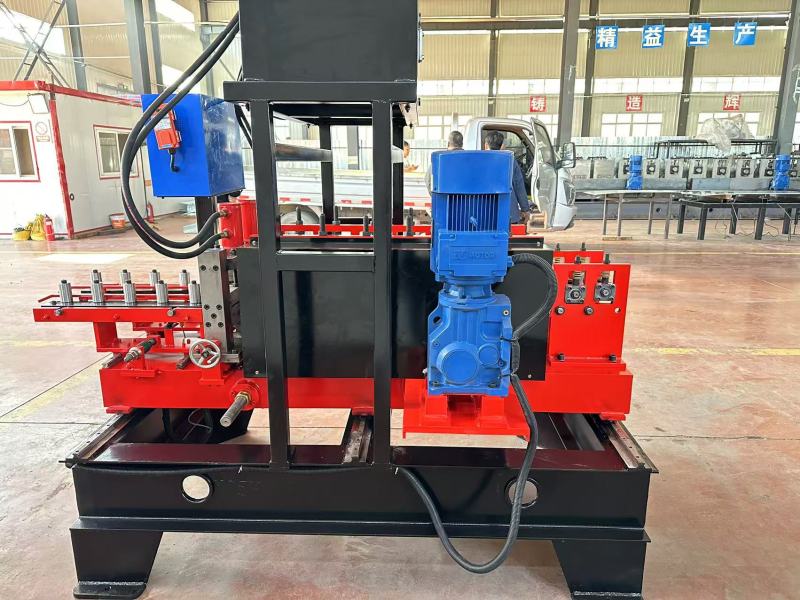

10. The active part adopts Shanghai Ruijin RV series reducer and coupling to drive each other, the rollers are geared together, and the reduction ratio is controlled by frequency conversion speed regulation of the wheel box and main motor 4.5KW.
11. The spindle material is 45# steel, which is turned and polished after heat treatment and quenching.
