Product ID: 68588743
Autonomous Mobile Robot for Material Handling
Contact Now
Description
Basic Info.
Model NO.
A11
Cab Location
Adjustable
Type
Electric Forklift
Power
AC Motor
Load Capacity
5T - 10T
Fuel
Electric
Load center
500mm
Lift height
3000~5000mm
Condition
New
Acceleration Time, Laden/Unladen
Hydraulic / Mechanical
Service Brake
Mechanica
Fork Size
40*120*1070/Can Be Customized
Attachment
Paper Roll Clamp, Bale Clamp, Crane. etc
Certification
CE & ISO&EPA
Turning Radius
2045/2135 .etc
Service Weight of The Forklift
3050/3860/4030kg
Battery Type
Lead-Acid Battery/Lithium Battery
Transport Package
as Requested
Specification
big
Trademark
Dfork/OEM/ODM
Origin
China
HS Code
8427109000
Production Capacity
500/Month
Packaging & Delivery
Package Size
154.00cm * 56.00cm * 75.00cm
Package Gross Weight
120.000kg
Product Description
Qingdao Torch Mechanical Equipment
Established in 2020, Qingdao Torch Mechanical Equipment Co.,Ltd. is a leading machinery manufacturer based in Qingdao, China, specializing in R&D, production, sales and service of high-performance material handling equipment like electric forklifts, diesel forklifts, electric stackers, pallet trucks, material handling robots, industrial AGVs, floor cleaning vehicles and other products.
We always consider after-sales service as equally important as product quality. Any machine purchased by our customers from us comes with a 12-month or 2,000-hour warranty. We can provide you with well-trained pre-sale and after-sale service personnel who can offer you detailed and extensive knowledge about your specific machine. With our technical suggestions, the service life of your machine can be greatly extended while maintaining high capacity.
Packing & Delivery

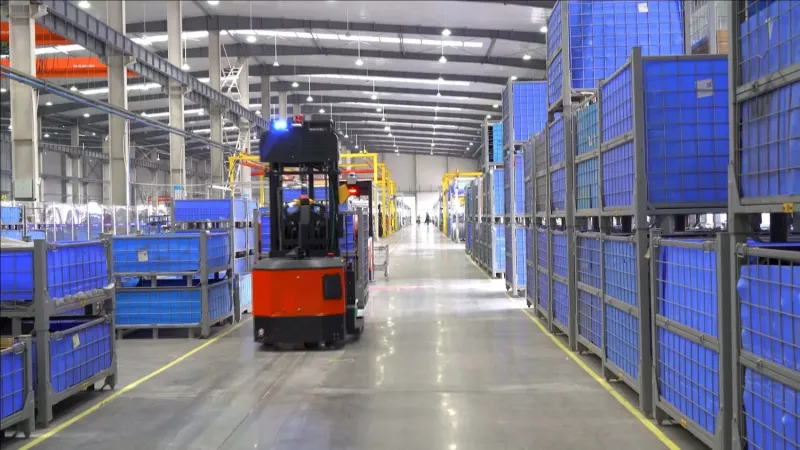

The era of automatic transport vehicles
Effective transportation is done by personnel, while ineffective transportation is handled by automatic transportation vehicles
Low usage threshold, no change in operation mode;
Visual navigation is ultra-stable;
The mobile phone Settings are super simple.
No wiff or 5G network required;
It can be transported over long distances across workshops and floors.
It can automatically connect to elevators and automatic doors.
The seats are more ergonomic and comfortable.
Specification
Power | Electric | ||
Mode of operation | Walking type | ||
load | Q | kg | 1500 |
Load center distance | 600 | ||
Bearing length | x | mm | 883/946 |
wheelbase | 1202/1261 | ||
Be self-possessed | kg | 163 | |
Axle load, before/after full load | 534/1127 | ||
Axle load, no load front/rear | kg | 122/39 | |
Tire type, drive wheel/carrier wheel | polyurethane | ||
Driving wheel (diameter × width) | mm | 210x70 | |
Bearing wheel (diameter × width) | 80x61 | ||
Balance wheel size | mm | — | |
Number of driving wheels, balance wheels/carrier wheels (x = driving wheels) | 1x — /4 | ||
Drive wheel base | b10 | mm | — |
Bearing wheel base | 410 535 | ||
Lifting height | h3 | mm | 115 |
Minimum/maximum height of the handle lever in the driving operating position | 750/1170 | ||
Fork drop height | h13 | mm | 80 |
Vehicle length (including tow hook) | 1638 |
The length of the vertical face of the fork | l2 | mm | 488 |
Full car width | 560 685 | ||
Fork size | s/e/l | mm | 50/150/1150 |
The fork is wide outside | 560 685 | ||
Ground clearance at center of wheelbase | m2 | mm | 30 |
Right-angle stacking channel width (pallets 1000 length × 1200 width) | 2280 | ||
Right-angle stacking channel width (pallets 800 width × 1200 length) | Ast | mm | 2150 |
Turning radius | 1475 | ||
Travel speed, full/empty | km/h | 4.5/5 | |
Lifting speed, full load/no load | 0.027/0.038 | ||
Descent speed, full load/no load | m/s | 0.059/0.039 | |
Maximum climb, full/no load | 5/16 | ||
Running brake | Electromagnetic field | ||
Drive motor rated power S2 60 minutes | 0.75 | ||
Hoisting motor rated power S3 15% | kW | 0.84 | |
Battery voltage/nominal capacity | 24/40 | ||
Battery weight | kg | 11.5x1 | |
Drive unit type | Direct current | ||
Steering type | machine | ||
Noise level S | 74 |
The above parameters are for reference only. The tire type and fork specification can be selected.If you have other requirements, such as custom forks, mast height and some other needs, please contact me. |
The industries of the clients we have served
We have a wide range of handling and storage equipment, such as forklifts, reach trucks, stackers, artificial intelligence handling vehicles, etc., for you to choose according to your actual working conditions
What benefits can our Forklift give you?
The electric forklift products we can sell in the United States and Europe have passed CE certification, and the core components comply with European and American standards. They can be used in your country. We can meet any of your demand models and tonnages, which can better meet your work requirements. Meanwhile, we guarantee that our products will be sold for 3,500 hours annually. If the parts are damaged, we will provide you with new ones. We can offer you everything you want.
FAQ
Q1: Why choose us?
As a manufacturer, we are not only committed to providing high-quality, high-performance and reasonably priced products, but also to offering timely delivery and comprehensive after-sales service.
As a manufacturer, we are not only committed to providing high-quality, high-performance and reasonably priced products, but also to offering timely delivery and comprehensive after-sales service.
Q2: What is the product range of our factory ?
We have electric forklifts, fuel forklifts, stackers, handling trucks, picking trucks, tractors, reach trucks and any handling equipment and warehouse storage equipment you want.
Q3: What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment.
Q4:What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
Q5:How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
Q6: Can we provide OEM service?
Customized products can be provided according to customer requirements. Both OEM and ODM are available.
We have electric forklifts, fuel forklifts, stackers, handling trucks, picking trucks, tractors, reach trucks and any handling equipment and warehouse storage equipment you want.
Q3: What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment.
Q4:What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
Q5:How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
Q6: Can we provide OEM service?
Customized products can be provided according to customer requirements. Both OEM and ODM are available.
