Overview

Basic Info.

• Model NO. ES16-RS RSi
• Cab Location Adjustable
• Type Stacker
• Power DC Motor
• Load Capacity 1T - 5T
• Fuel Electric
• Load center >500mm
• Lift height 3000~5000mm
• Condition New
• Spare Parts Available
• Fork Length 60X190X1150
• Fork Width 190mm
• Certification CE/ISO9001
• Fork Carriage Width 800
• Transport Package Standard Export Package
• Specification 1.6T
• Trademark Torch/OEM/ODM
• Origin China
• HS Code 8427109000
• Production Capacity 3800sets

Packaging & Delivery

• Package Size 2035.00cm * 850.00cm * 1150.00cm
• Package Gross Weight 1240.000kg

Product Description

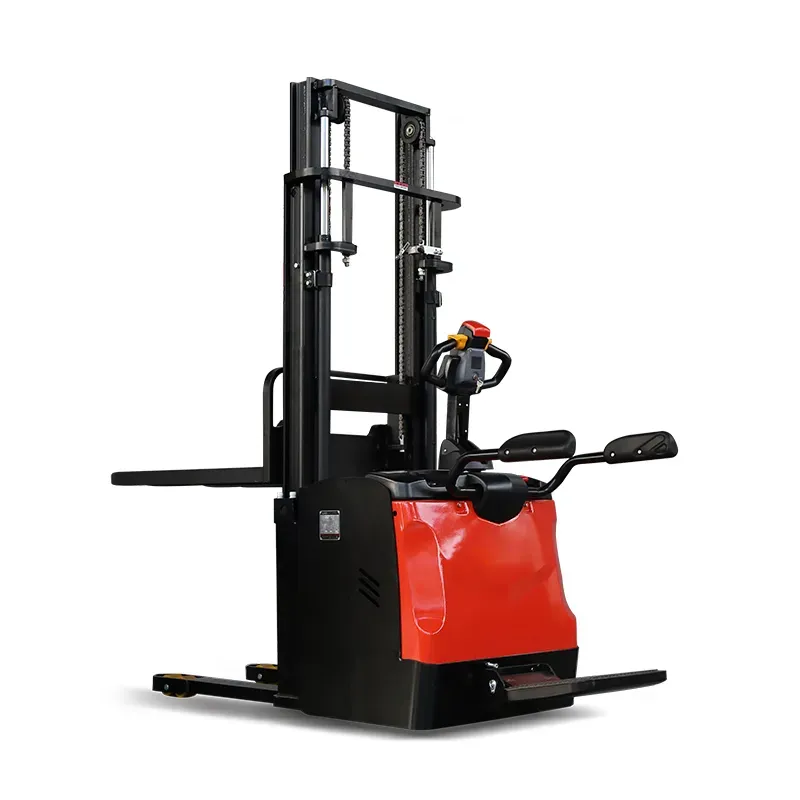

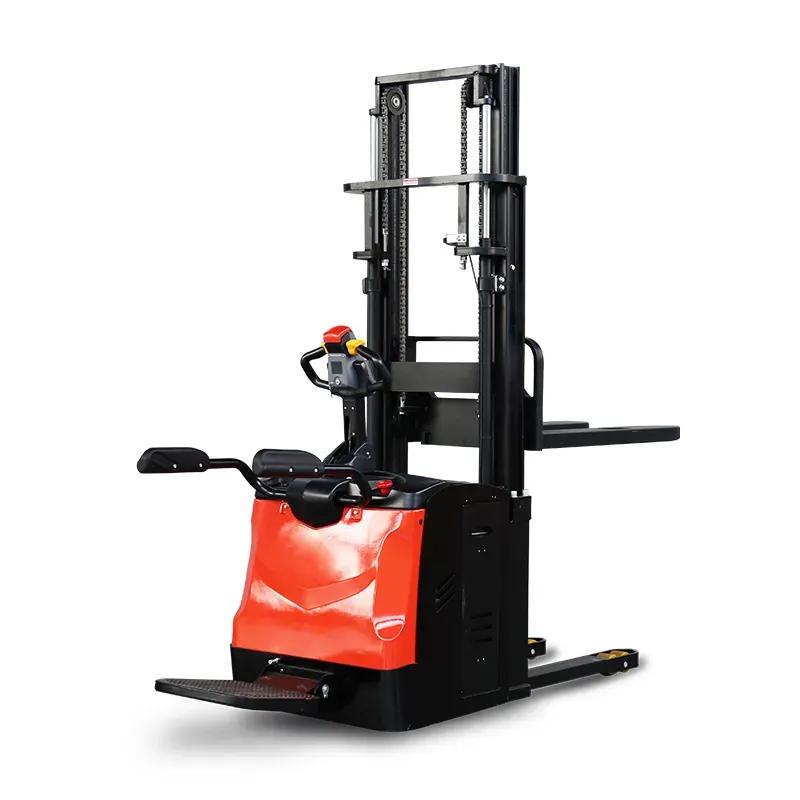

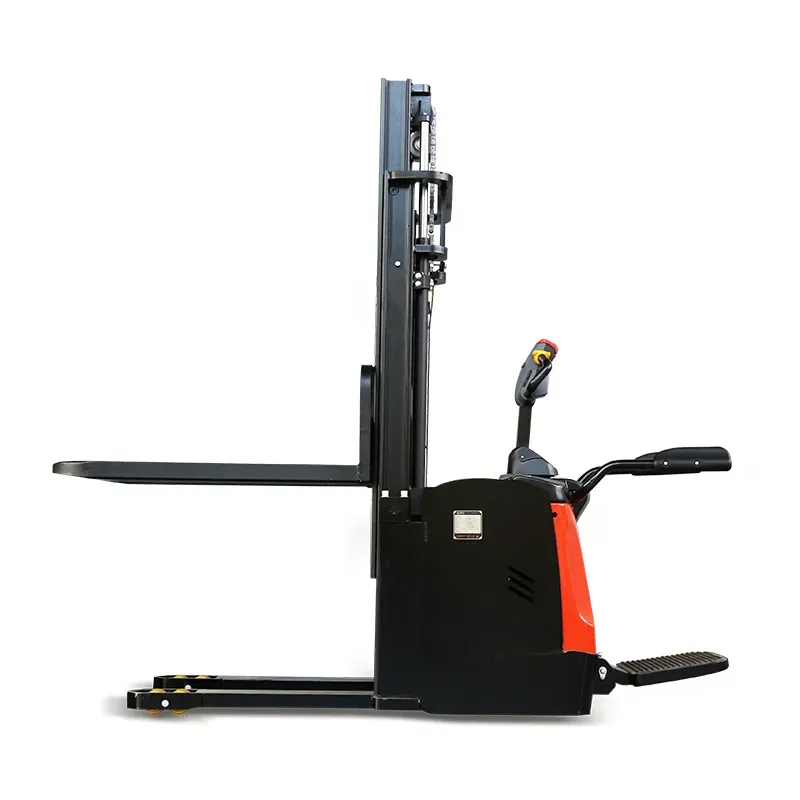

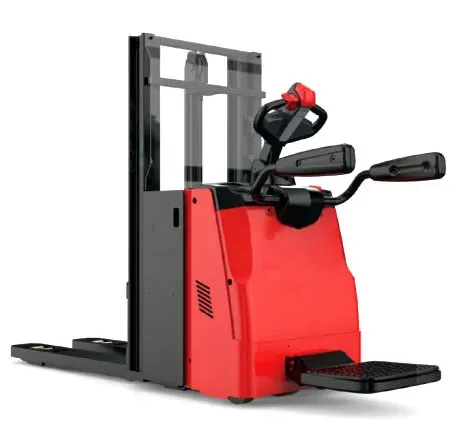

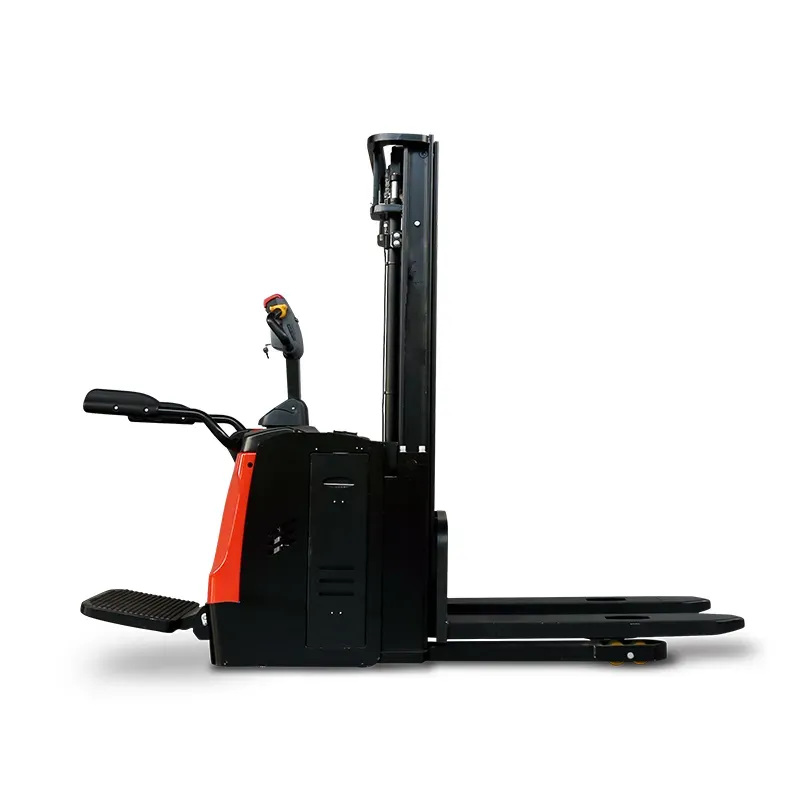

Electric Pallet Stacker 1.6T RIDE-ON STACKER

The ES16-RS/RSi series are classic electric ride-on stackers known for their high performance and stability, fully compliant with international safety standards. These stackers are engineered to meet the rigorous demands of various industrial environments.

Application

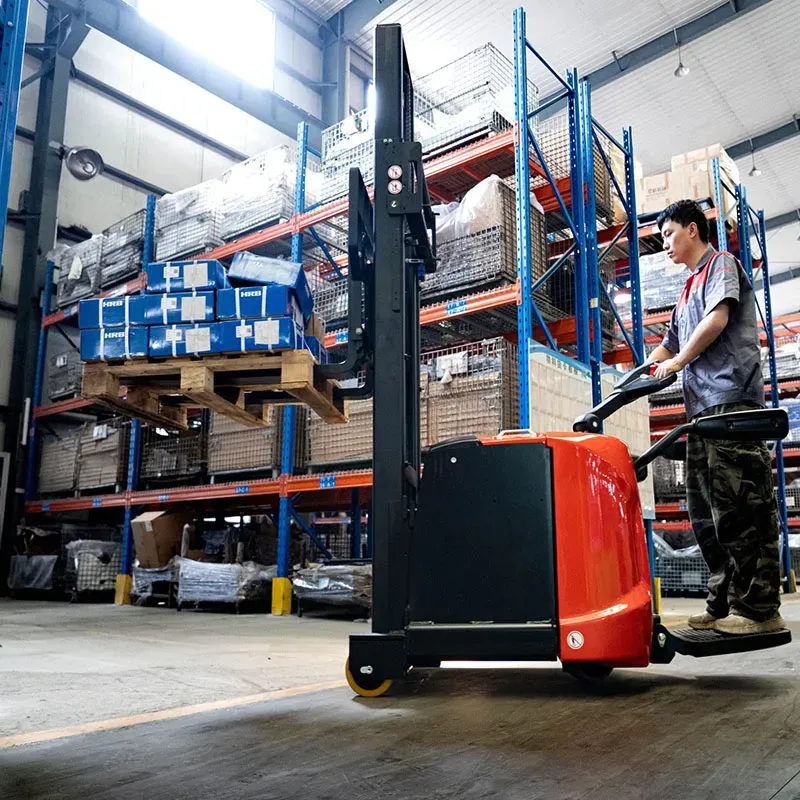

• Warehouse Efficiency: Ideal for use in small to medium-sized warehouses, enhancing operations in medium-height rack systems within narrow aisles.
• Autonomous Handling: Increasingly adopted in large factory settings where material storage areas or dedicated work zones require autonomous material handling solutions.

Key Highlights

• Safety Compliance: Meets global safety standards, ensuring secure operations.
• Enhanced Performance: Known for robust performance and stability, facilitating efficient stacking operations.
• Flexible Applications: Suitable for a range of industrial environments, from compact spaces to expansive manufacturing areas.

AC technology with ZAPI control system, is well adopted by industries. Standard power steering allows operators to run long working hours.

Proportional fast lowering option is available for high efficiency demands.

Side positioned drive system and strong caster, easy to manage stability.

Safety

• Safe hydraulic system design prevents mast from falling down abruptly when hydraulic pipeline cut off.
• Multiple lifting limit protection ensures safety.
• Automatic switch to lower speed when the fork reaches its setting height.
• Anti-rolling back brake keeps the truck from skidding down when truck is out of control or travelling on ramp.
• Auto-slow down feature on turning (EPS).

Operation

• With the new design of ergonomical tiller head, all buttons can be reached conveniently & comfortably.
• Ergonomical and durable protection arms guarantee easy operation with, innovative on/off design.
• Electric power steering, smooth & comfortable (EPS).
• Hour meter and battery indicator remind the operator of battery charging.

Maintenance

• Remove the back cover by only loosening two bolts; Easy access to all key components for inspection, maintenance and replacement.
• Easy access for battery maintenance.
• Control system allows easy trouble-shooting.
• Mast and chassis are assembled together, easy for maintenance.
• Low voltage cut off setting protects batteries.

Specification

• Brand Torch
• Model ES16-RS
• Drive Electric
• Drive mode Standing
• Load capacity Q (kg) 1600
• Load center distance c (mm) 600
• Service weight kg 1240
• Retracted mast height h1 (mm) 2020
• Lift height h3 (mm) 2912
• Lowered height h13(mm) 88
• Overall length l1 (mm) 2035
• Overall width b1/ b2 (mm) 850
• Distance between fork-arms b5 (mm) 570/685
• Aisle width for pallets 1000x1200 crossways Ast (mm) 2605/2965
• Aisle width for pallets 1000x1200 crossways Ast (mm) 2575/2935
• Turning radius Wa (mm) 1730/2090
• Travel speed, laden/unladen km/h 5.5/6.0
• Lifting speed, laden/unladen m/s 0.13/0.16
• Battery voltage/nominal capacity V/ Ah 24V/210Ah
