Product ID: 68588785

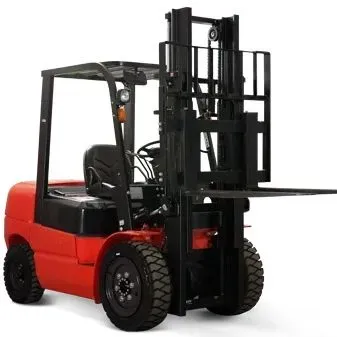

Heavy Duty 5Ton 7Ton 10Ton Chinese Diesel All Terrain Forklift
Contact Now
Description
Basic Info.
Model NO.
D9
Cab Location
Adjustable
Type
Electric Forklift
Power
AC Motor
Load Capacity
5T - 10T
Fuel
Electric
Load center
500mm
Lift height
3000~5000mm
Condition
New
Acceleration Time, Laden/Unladen
Hydraulic / Mechanical
Service Brake
Mechanica
Fork Size
40*120*1070/Can Be Customized
Attachment
Paper Roll Clamp, Bale Clamp, Crane. etc
Certification
CE & ISO&EPA
Turning Radius
2045/2135 .etc
Service Weight of The Forklift
3050/3860/4030kg
Battery Type
Lead-Acid Battery/Lithium Battery
Transport Package
as Requested
Specification
big
Trademark
Dfork/OEM/ODM
Origin
China
HS Code
8427109000
Production Capacity
500/Month
Product Description
Qingdao Torch Mechanical Equipment
Established in 2020, Qingdao Torch Mechanical Equipment Co.,Ltd. is a leading machinery manufacturer based in Qingdao, China, specializing in R&D, production, sales and service of high-performance material handling equipment like electric forklifts, diesel forklifts, electric stackers, pallet trucks, material handling robots, industrial AGVs, floor cleaning vehicles and other products.
We always consider after-sales service as equally important as product quality. Any machine purchased by our customers from us comes with a 12-month or 2,000-hour warranty. We can provide you with well-trained pre-sale and after-sale service personnel who can offer you detailed and extensive knowledge about your specific machine. With our technical suggestions, the service life of your machine can be greatly extended while maintaining high capacity.
Packing & Delivery
Dual drive motor: Equipped with an 80V 5.0*2kW dual drive system, it features fast acceleration and is convenient for long-distance transportation.
Long working hours: Can work continuously for 6-7 hours (forklift matching can be made according to your working conditions) ensuring high availability for multiple shifts.
The best choice for narrow passages: This compact forklift, with its small turning radius, can easily operate in narrow Spaces.
Lithium-ion battery: It adopts 80V/205Ah lithium-ion battery and 80V/35A integrated charger, which can achieve zero maintenance

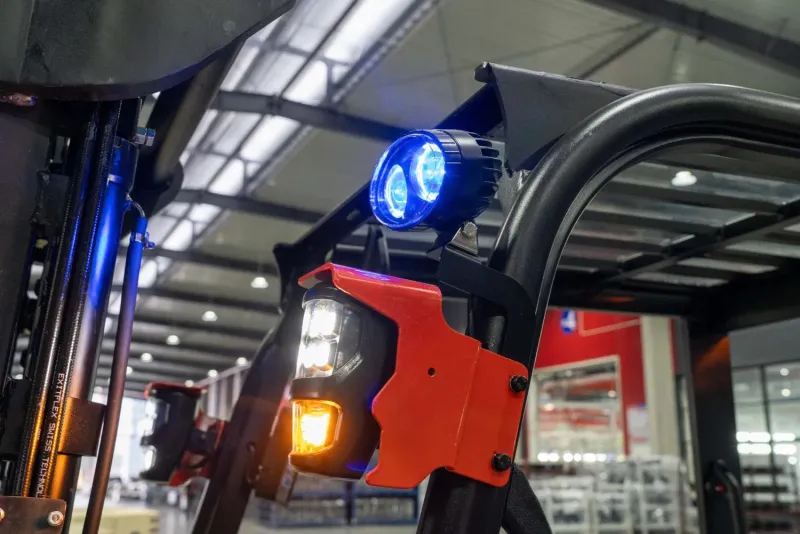

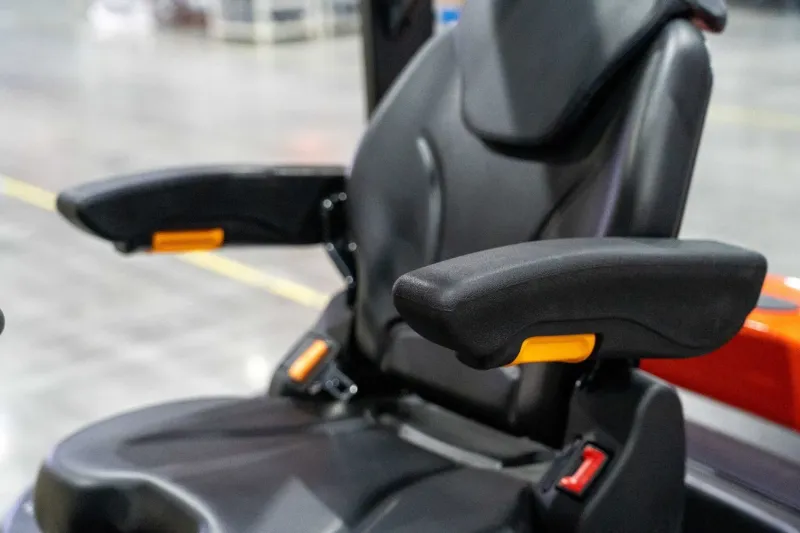

Enhanced visibility and safety: The improved derrick design provides the best visibility for the operators, enhancing safety during the operation process. The seats are more ergonomic and comfortable.
Specification
Name | Four-point forklift | ||
Drive | Electric | ||
Operator type | Seated | ||
Load capacity | Q | kg | 5000 |
Load center distance | c | mm | 500 |
Load distance centre of drive axle to fork | x | mm | 548 |
Wheelbase | y | mm | 2000 |
Service weight | kg | 7000 | |
Axle loading, laden front/rear | kg | 10840/1160 | |
Axle loading, unladen front/rear | kg | 3220/3780 | |
Tyre type | Solidrubber | ||
Tyre size, front | 28x12.5-15 | ||
Tyre size, rear | 23x10-12 | ||
Wheels, number front/rear (x=drive wheels) | mm | 2x/2 | |
Tread width, front | b10 | mm | 1262 |
Tread width, rear | b11 | mm | 1085 |
Tilt of mast/fork carriage forward/backward | α/β | . | 6/10 |
Retracted mast height | h1 | mm | 2230 |
Free lift | h2 | mm | 150 |
Lift height | h3 | mm | 3000 |
Height, mast extended | mm | 4175 | |
Height of overhead guard (cabin) | mm | 2250 | |
Seat height/standing height | mm | 1208 | |
Tow coupling height | mm | 555 | |
Overall length | mm | 3970 | |
Length to face of forks | mm | 2900 | |
Overall width | mm | 1550 | |
Fork dimensions | mm | 55X150X1070 | |
A,B Fork carriage class/type A, B | 3A | ||
Fork carriage width | mm | 1250 | |
Ground clearance, laden, below mast | mm | 130 | |
Ground clearance, center of wheelbase | mm | 150 | |
Aisle width for pallets 1000×1200 crossways | mm | 4440 | |
Aisle width for pallets 800×1200 lengthways | mm | 4640 | |
Turning radius | mm | 2675 | |
Travel speed, laden/unladen | km/h | 16/18 | |
Lifting speed, laden/unladen | m/s | 0.3/0.46 | |
Lowering speed, laden/unladen | m/s | 0.45/0.51 | |
Max. drawbar pull, laden/unladen | N | 26000 | |
Max. gradeability, laden/unladen | % | 15/20 |
Service brake | Hydraulic/Mechanical | ||
Parking brake | Mechanical | ||
Drive motor rating S2 60 min | kW | 18 | |
Lift motor rating at S3 15% | kW | 25.4 | |
Battery voltage/nominal capacity | V/Ah | 80/560 | |
Battery weight | kg | 396 | |
Type of drive control | AC | ||
Steering design | —— | ||
Sound pressure level at the driver's ear | dB(A) | 70 | |
The above parameters are for reference only. The tire type and fork specification can be selected.If you have other requirements, such as custom forks, mast height and some other needs, please contact me. | |||
We have a wide range of handling and storage equipment, such as forklifts, reach trucks, stackers, artificial intelligence handling vehicles, etc., for you to choose according to your actual working conditions
What benefits can our Forklift give you?
The electric forklift products we can sell in the United States and Europe have passed CE certification, and the core components comply with European and American standards. They can be used in your country. We can meet any of your demand models and tonnages, which can better meet your work requirements. Meanwhile, we guarantee that our products will be sold for 3,500 hours annually. If the parts are damaged, we will provide you with new ones. We can offer you everything you want.
FAQ
Q1: Why choose us?
As a manufacturer, we are not only committed to providing high-quality, high-performance and reasonably priced products, but also to offering timely delivery and comprehensive after-sales service.
As a manufacturer, we are not only committed to providing high-quality, high-performance and reasonably priced products, but also to offering timely delivery and comprehensive after-sales service.
Q2: What is the product range of our factory ?
We have electric forklifts, fuel forklifts, stackers, handling trucks, picking trucks, tractors, reach trucks and any handling equipment and warehouse storage equipment you want.
Q3: What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment.
Q4:What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
Q5:How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
Q6: Can we provide OEM service?
Customized products can be provided according to customer requirements. Both OEM and ODM are available.
We have electric forklifts, fuel forklifts, stackers, handling trucks, picking trucks, tractors, reach trucks and any handling equipment and warehouse storage equipment you want.
Q3: What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment.
Q4:What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
Q5:How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
Q6: Can we provide OEM service?
Customized products can be provided according to customer requirements. Both OEM and ODM are available.
