Overview

Basic Info.

• Model NO. ASRS
• Type Multi-Layer Warehouse
• Material Steel
• Height 5m-35m
• Load Capacity per Layer 0-10000kg
• Usage Tool Rack, Supermarket, Food, Industrial, Warehouse Storage
• Serviceability Common Use
• Shelf height 5m-35m
• Goods characteristics No Special Requirements
• Function Storage Type Stereoscopic Warehouse, Save Inventory Floor Space and Improve Space Utili
• operation Unmanned Operation
• Certification CE, SGS, ISO
• Finish Electrostatic Spraying
• Customized or Not Customized
• Design Free
• Structural Features Shelf
• Mobility Adjustable Shelves
• Closure Open Type
• Development New
• Applicability General
• Transport Package Standard Export Carton
• Specification According to pallet size and weight
• Trademark JiaGong
• Origin Hebei China
• HS Code 73089000
• Production Capacity 2000 Tons/Month

Packaging & Delivery

• Package Size 200.00cm * 60.00cm * 200.00cm
• Package Gross Weight 500.000kg

Product Description

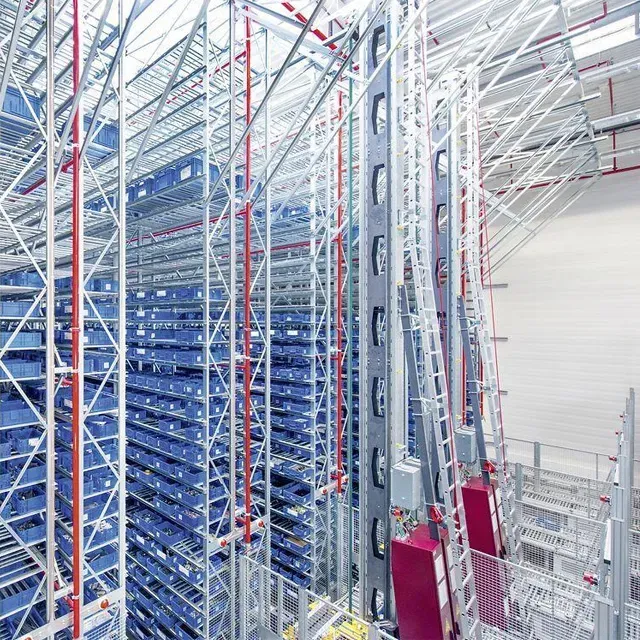

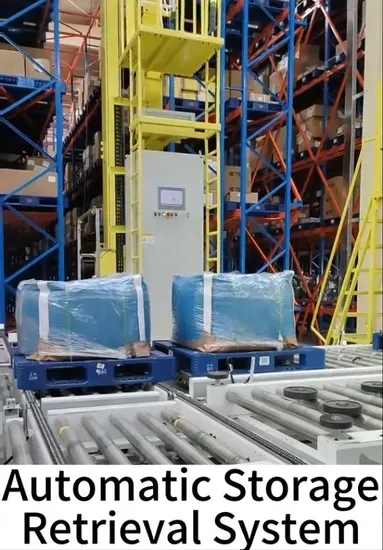

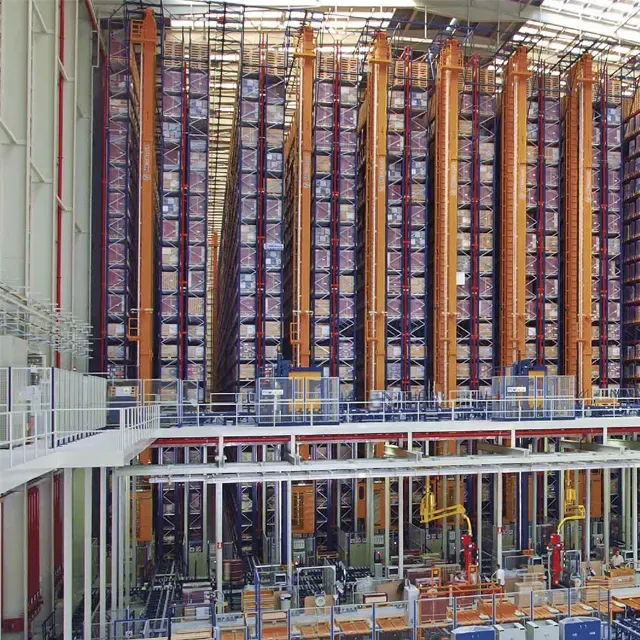

Automated Storage Retrieval Systems (ASRS)

The automatic three-dimensional storage system consists of high-rise three-dimensional shelves, automatic stacker, conveying system, automatic control system (WCS), warehouse management system (WMS) and related peripheral equipment.

Automatic storage system can make full use of storage space, and online control of equipment can be realized through storage management system (WMS). Based on the principle of first in first out, quickly and accurately handle the goods and reasonably manage the inventory data.

Advantages

• Save inventory floor space and improve space utilization
• Automatic cargo access, accurate, fast and safe
• Be precise in information management and save labor force
• Improve the contingency capacity of production
• Accelerate the turnover of warehousing funds
• Low transportation cost and high operating efficiency
• Improve the inventory management level of enterprises

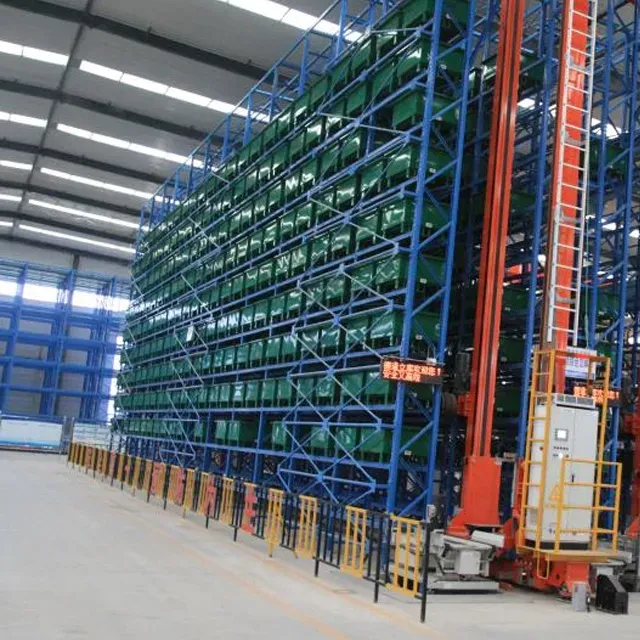

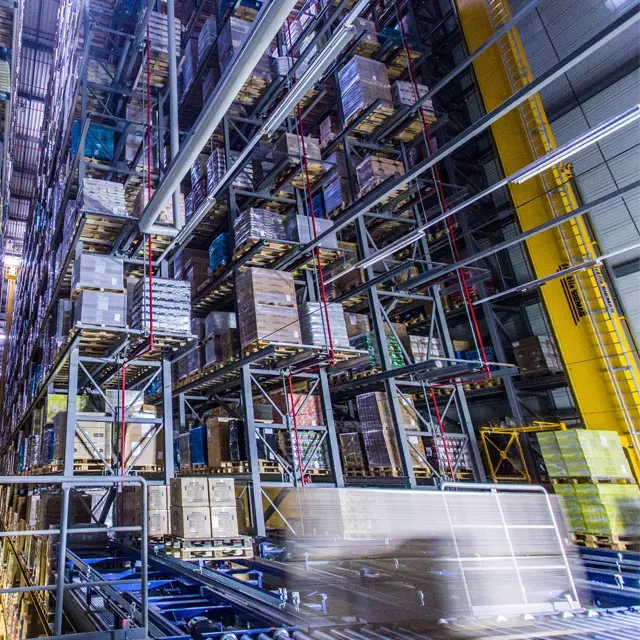

Racking

Structural feature: ASRS System are usually equipped with pallet racking and drive-in racking, both of which are composite structure. Steel panels and wooden panels are available for loading with good capacity.

Conveyors will do the loading and unloading job under the instruction from the central computer. ASRS System is mainly used in the food, tobacco, electronic, mechanical and armament industry.

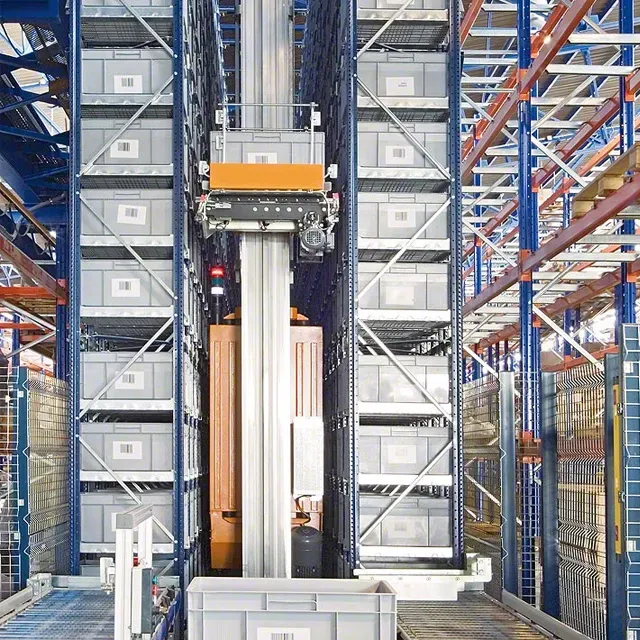

Stacker

Structural feature: Double upright structure, steady and reliable, vector frequency conversion drive and encoder position control, mechanical and electronic safety devices to ensure safe using of the system; All the way tracing technology by information transferring;

Electric components are imported from abroad; Touching screen interface for easy operation; Making manual, semiautomatic, automatic and linkage control come true; Used in many situations by combining with other logistics equipment.

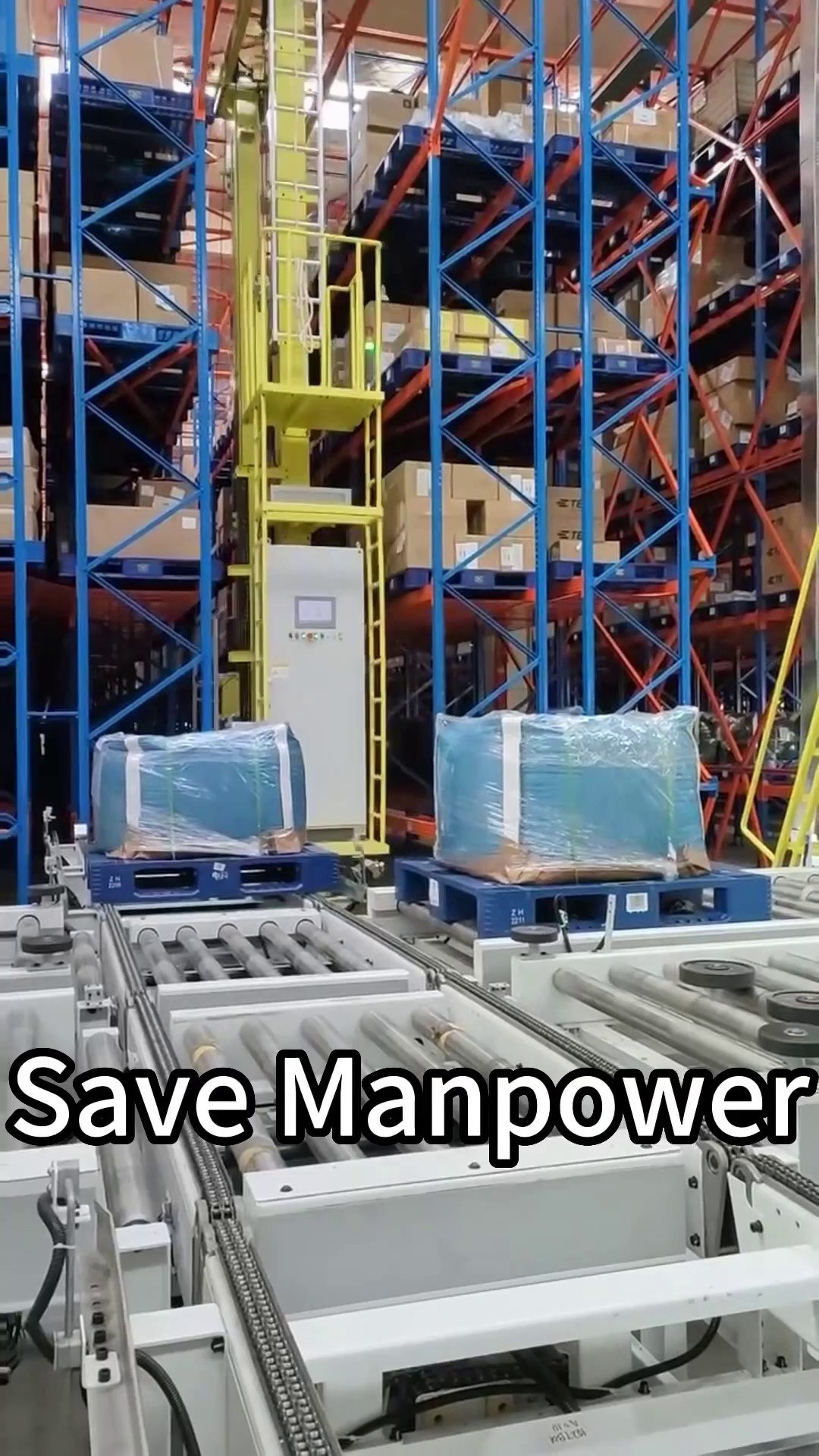

Conveying system

Structural feature: Conveying system is usually equipped in the front or back of warehouse for conveying goods here and there, bridging the procedures done by forklifts and stackers by using rolling conveyor or chain conveyor and combining with lifts, rotating devices and other equipments.

Controlling system

Structural feature: Communicating with WMS and ECS through OPC agreement, PROFIBUS bus network, set up by Siemens S7-300 controller can operate all conveyors offline, doing conveying of goods automatically. Please refer to the attached drawing for details of conveying system.

WMS System

Hardwares of WMS System:

• Star network structure
• Network sever
• RF server
• Computers for management and monitor
• RF base station and RF terminal for in/out warehouse of goods

Softwares of WMS System

• Operating system: WINDOW 2000X SEVER
• Data-base: MS SQL SEVER 2000X
• Warehouse management software: WMS
• Equipment controlling software: WCS
• Bar code management software: RFS

Material

• Q235 Cold-rolled Steel

Surface

• Electrostatic spraying

Size

• Customize according to your needs

Color

• Customize according to your needs

Feature

• Corrosion Protection

Payment Terms

• 40% deposit upon signing the contract, the balance will be cleared by T/T before delivery

Delivery Time

• 25-35 working days after received deposit

Beijing Dongfang Guokai Industrial Equipment Co., Ltd. was established in 2003 with a registered capital of 210 million yuan. It is a high-tech enterprise specializing in the planning, design, manufacturing, installation, and consulting services of fully automated three-dimensional warehouse systems, warehouse shelf systems, WMS/WCS software systems, and specialized logistics appliances.

The headquarters is located in Beijing, the capital city, and has established branches and factories in many places throughout the country.

The company has strong technical and R&D capabilities, and its products are widely used in third-party logistics, cold chain, food and beverage, medicine, complete vehicles and components, e-commerce, and other fields at home and abroad. It has successfully obtained the manufacturing qualification for Class B equipment in the "List of Equipment Manufacturers of the People's Liberation of China", and has been recognized as a "high-tech enterprise" by the government.

The company is committed to establishing a sound quality control system, and its independently developed and produced products have passed the certification of IS09001:2015 international quality system, ISO14001:2015 international environmental management system, etc.

Currently, the main products include a series of high-end shelf products such as fully automated three-dimensional warehouse systems, shuttle car shelves, crossbeam shelves, drive-in shelves, electric mobile shelves, attic shelves, steel structure platforms, shelf shelves, fluent shelves, cantilever shelves, and various logistics special appliances.

Main Products

Packaging & Shipping

FAQ

Q1: Are you manufacture or trading company? We have two factories in Tianjin and Nanning, China. Welcome to visit anytime. Our factory has SGS certification, ISO 9001/45001/14001 and many patent certifications, since 2003, we have been providing overall warehouse solutions.

Q2: What information is required for pallet rack quotation request? 1. Rack drawings or detailed dimensions (length, width, height) 2. How many layers are there on the rack 3. Load bearing of each rack layer (100kg-8000kg) 4. Number of racks

Q3: Could you produce according to customers' design? Of course, we have rich experience in the overall warehouse solution, and we build hundreds of projects every year.

Q4: What's your trading terms? Deposit 30% upon signing the contract, the balance will be cleared by T/T / L/C / Western Union before delivery.

Q5: What is your delivery time? 5-35 working days after received deposit, according to the order quantity and drawing size.

Q6: What is the manner of packing? Generaly, shelves are flat packed by air bubble film in standard export cartons. Other packing like wooden box are available to clients' requirement.

Q7: How could I install the racks? We provide detailed instal instruction for every type of shelf. If needed, we can also ask engineers to teach you for free.

Q8: May I know the status of my order? Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.

Q9: After-sale service? Global After-sales Service: Senior Engineer On-site Service / Video Tech Support / 24H After-sales Response Warranty: 5 Years Warranty Lifetime After-sales *Just leave us an inquiry in the message box below. We will offer you best price with best quality and service.
