Tzbot 1500kg Laser SLAM Fork Lift AGV
Description
Overview
Basic Info.
| Model NO. | TZAGV-AFKLR1500 |
| Drive Mode | Motor |
| Navigation Method | Laser Slam |
| Load Capacity | 1500kg |
| Lifting Height | Max 115mm |
| Fork Dimensions | 50/150/1150mm |
| Fork Outer Width | 540/600/685mm |
| Turning Radius | 1175mm |
| Walking Speed | 1.3m/S |
| Condition | New |
| Certification | CE |
| After-Sales Service | Online Technical Support |
| Warranty | 1 Year |
| Transport Package | Wooden Box |
| Specification | L1615*W892*H2000 (customizable) |
| Trademark | TZBOT |
| Origin | China |
| HS Code | 8428904000 |
| Production Capacity | 1000 pieces/Years |
Packaging & Delivery
| Package Size | 200.00cm * 150.00cm * 300.00cm |
| Package Gross Weight | 300.000kg |
Product Description

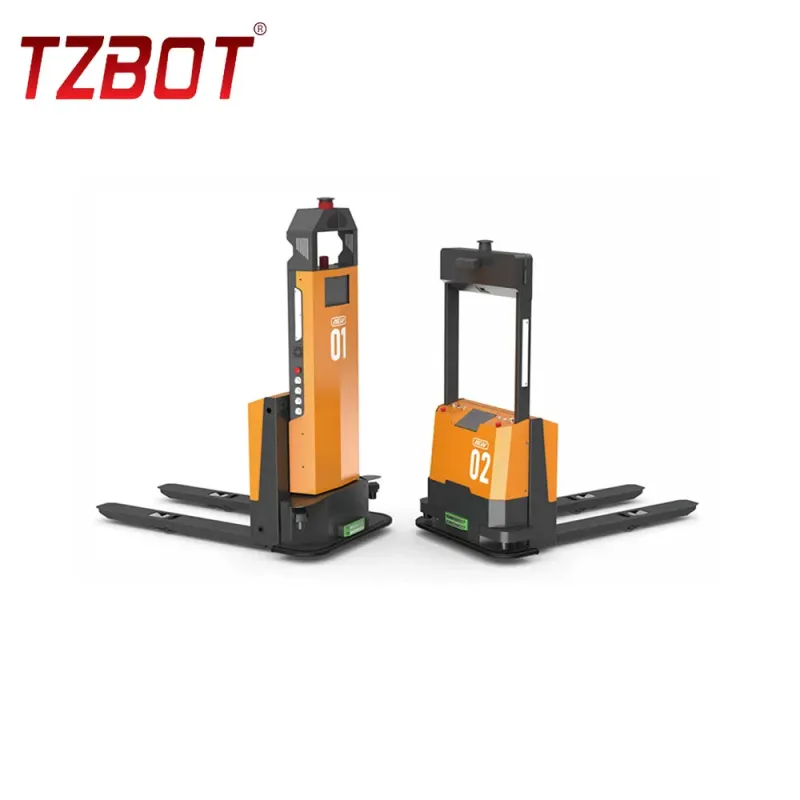

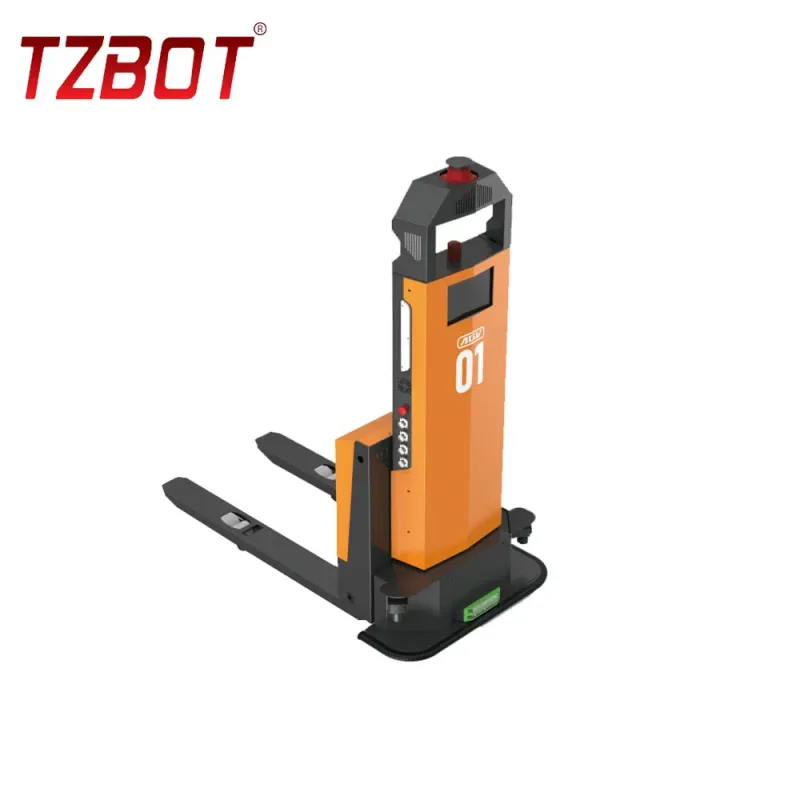

TZAGV-AFKLR1500 Forklift AGV
The laser forklift AGV is composed of a vehicle body, a controller, a driving wheel, a laser navigation sensor, and an obstacle avoidance sensor. The SLAM forklift AGV can directly fork the pallet or product and leave by itself, freely arrange its walking route according to the environment, and place the pallet or product in the designated location planned in advance. Laser Forklift AGVs are mostly used in industries such as papermaking and warehouses.
Name
| Specification | Model |
| Dimensions | L1615mm*W892mm* H2000mm (customizable) |
| Operation type | Manual / Auto |
| Navigation method | Laser SLAM |
| Load | 1500KG |
| Load center distance | 600mm |
| Weight (including battery) | 240KG |
| Standard maximum lifting height | 115mm |
| The height of the fork surface after the fork is lowered | 80mm |
| Fork size | 50/150/1150mm |
| Fork outer width | 540/600/685mm |
| Turning radius | 1175mm |
| HMI | LCD |
| Walking speed | 1.3m/s |

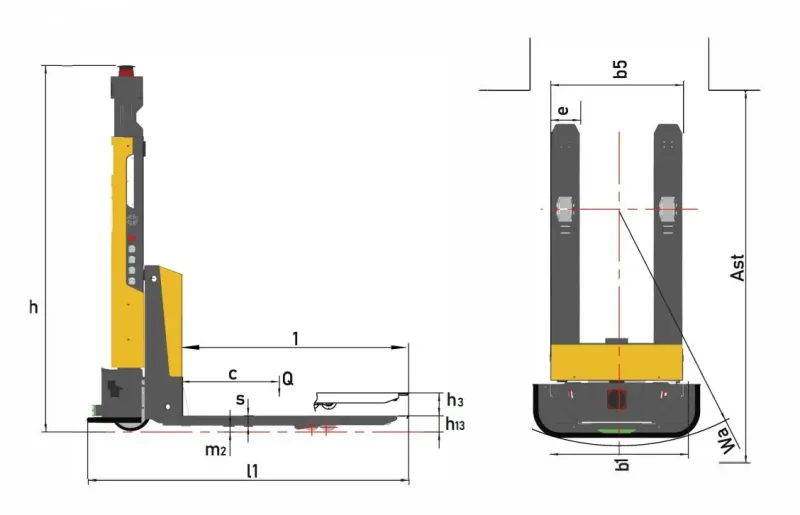

Product Structure
Product Description
- A new generation of visualization LCD touch screen, simple and clear operation
- Laser obstacle avoidance sensor, high resolution, high precision scanning, low power consumption, distance detection
- Automatic charging function, efficient and quick
- 1500kg load, equipped with high-power lithium batteries, long battery life, and extended service life.
- Equipped with obstacle avoidance sensors, emergency stop buttons, warning lights, turn signal lights, etc. for comprehensive safety assurance.
Product Application
Our Service
Company Profile
Zhejiang Tongzhu Technology Co., Ltd founded 2015, in ZHEJIANG designs, manufactures and sells agv, driving wheel assembly, DC/AC motors, encoder, reducer, controller, caster wheel, gear, Pu wheel, motor in wheel units and all over the world.
TZBOT continues to bring excellent products, technological innovation and ease of customizing to the automated equipment.
The factory, is 1000 sq. feet, and employs 50 people. The company is certified to ISO9001:2015.
The core to TZBOT's growth is the constant dedication to the pursuit of full customer satisfaction. They have a strong presence in domestic and international markets, as well as, great production flexibility. TZBOT has come to be recognized as one of the biggest suppliers of electric drive.
Continued investment in the most modern machinery has further increased and developed the quality and flexibility of each product.
Today, TZBOT can quickly design and produce engines and special parts request from customers.
TZBOT's product are used in a myriad of application, including but not limited to: Forklifts, AGV, Aerial Platforms, Airport Machines, Agricultural Machines, Hydraulic Applications, Floor Scrubbers, Sweepers, Wind Energy, Marine, and in the field of Medical Devices.
All prototypes are tested for extended periods of time to verify the quality and the duration will work perfectly before sending production parts to customers. Due diligence is paramount to the satisfaction of our customers
