Veterinary Digital Ultrasonic Diagnostic Imaging System Portable Laptop B/W handheld ultrasound

Product Description

Main feature Quick Outlook

• 1. 12.1 LED Display, 2 activated probe connectors
• 2. Build-in recharge lithium battery
• 3. Display modes: B B/B4BB+MM
• 6. Animal-specific software measurement: Cattle, Sheep, Pig, Horse, Camel, Cat, Dog

Standard Configuration

• Standard Configuration:
• Option Configuration:
• One host machine + 2 probe connectors
• Other probes
• One convex array probe: Center Frequency=3.5MHZ
• Printer(thermal printer or laser printer both okay)
• One power adapter

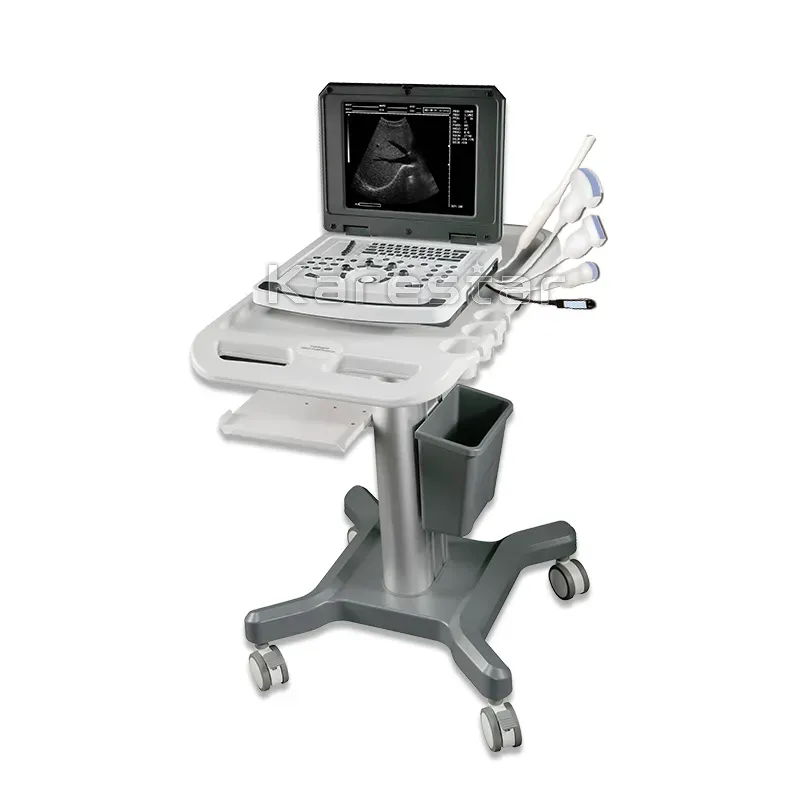

• Trolley
• Li-ion battery
• Aluminum suitcase
• One probe holder

Scanning Image Quality

Specification

• Product Name: K-H108 Full-digital BW Laptop Ultrasound Scanner
• Display: 12.1 inch LED screen
• Probe Interface: 2 probe connectors, with automatic identification function
• Battery Capacity: 4500mAh, Rechargeable lithium battery
• Display mode: B B/B4BB+MM
• Image Flip: Up/ Down, Left/ Right, Blake/ White lmage Processing lmage Smoothing/ Sharpening, Tissue Harmonic, Histogram, DRGamma Correction, Pseudo-Color Measurement Freehand, Ellips, Distance for Perimeter, Area Volume, Heart, G.AEDD, BPD, FW, FLAC, HC, CRL, AD, GS, LMP
• Measurement: General measurement Depth, Distance, Trace Length, Ratio (D), Area: Ellipse, Trace, M mode: Distance, time, slope, Heart Rate, Animal-specific software measurement: Cattle, Sheep, Pig, Horse, Camel, Cat, Dog
• Character Display: Date, Clock, Name, PID, Age, Sex, Hospital Name, Doctor
• Puncture guide: 3.5MHz convex array probe can display puncture guide in B mode
• Notation: Full-screen Character Editor, Body Mark, Position Indication
• Image Storage: 64 Frames
• Scanning Model: Electronic Linear Array, Electronic Convex Array, trans-vaginal
• Interface: VGA and PAL video outputs
• Scanning Angle: Adjustable
• Grey scale: level 256
• display depth: 160mm
• Power Consumption MAX: 100VA
• Cine Loop: 2400 Frames

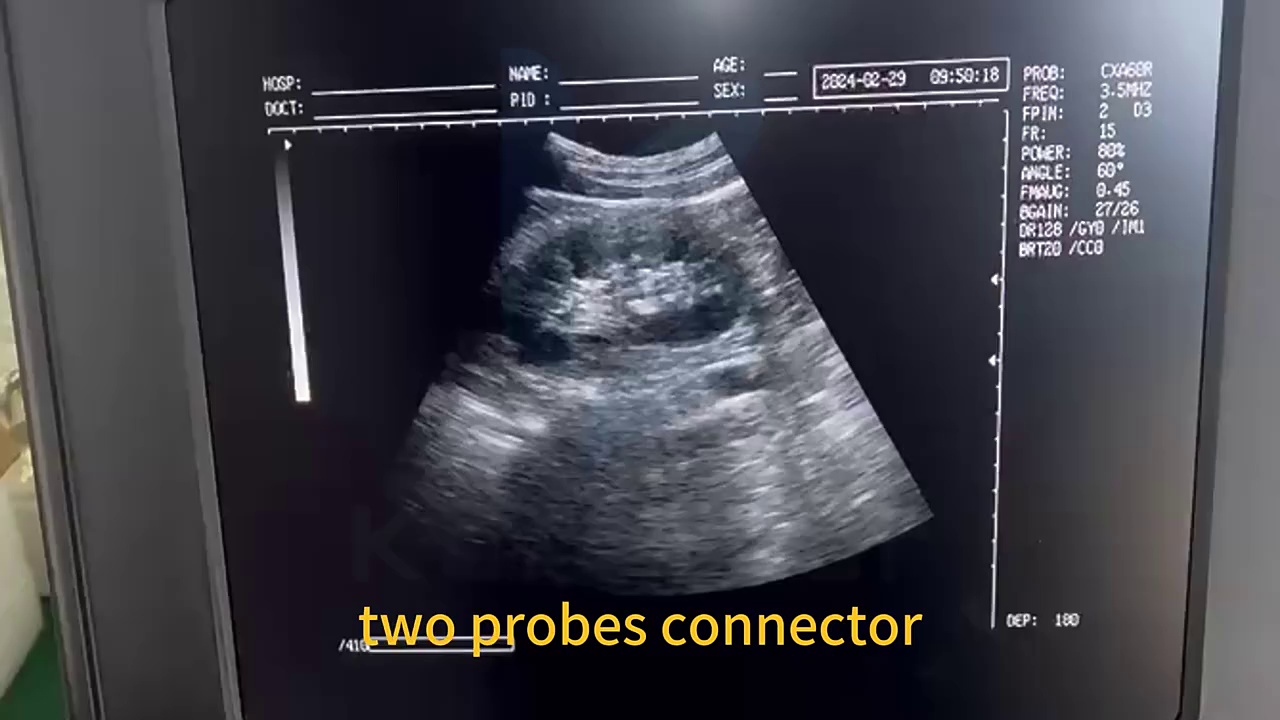

Scanning Video

Ultrasound Workshop

Recommend Products

Other Information

FAQ

• Q1: Are you trading company or manufacturer?
• A: We are factory which has over 7 years' manufacturing experience.
• Q2: Why we find some prices are very high compared with some other suppliers, and from the picture or it's model number, all looks the same?
• A: As China is still a developing country, there are only a few products with patent rights, but the copy products spread very fast on the market. Of course, the prices of those copy products is cheaper due to low material, craft and quality control. Anyway, price, quality and service is tightly related.
• Q3: What's the MOQ?
• A: The MOQ is 1 Set, and samples can be sent for your evaluation.
• Q4: How can get the shipping cost?
• A: Please tell us your destination or delivery address, we will check the best Sea Freight or Air Freight for you based on your requirements.
• Q5: How long is your delivery time?
• A: Usually 3-30 days after order confirmed. Based on the item and quantity.
• Q6: Can you do OEM/Private logo/label?
• A: Yes, we can do OEM/private logo/label for you. We also have complete facilities and R&D team ready for your service.
• Q7: What is your terms of payment?
• A: We accept T/T, L/C, Western union, Paypal and more. Please suggest your preferred payment method.
• Q8: Do you test all your goods before delivery?
• A: Yes, we have 100% test before delivery.
• Q9: How to deal with the faulty?
• A: First, our products are produced under in strict quality control system, but if any faulty, we will send new spare partrs for free within warranty year. Secondly, our after-sales department will periodically follow up customers.
