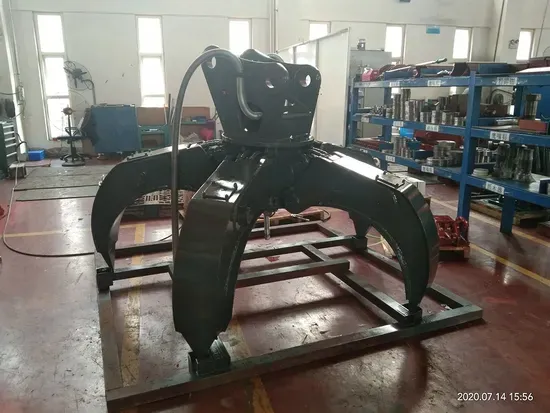

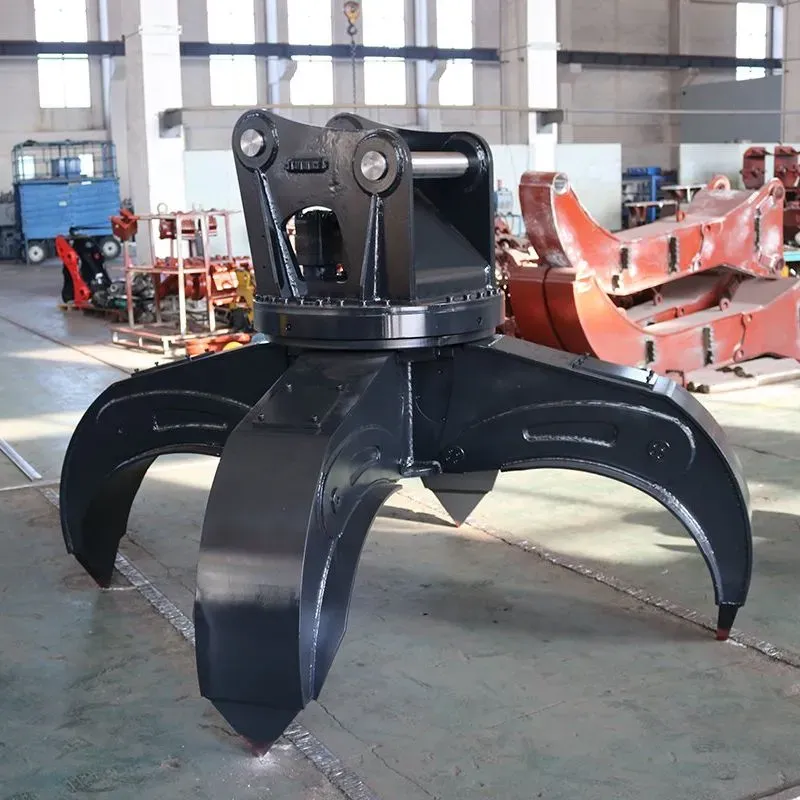

Heavy-Duty Orange Peel Grapple for Excavators
Contact Now
Description
Overview
Basic Info
| Model NO. | GR08 |
| Dead Weight | 1750kg |
| Max Load | 2000kg |
| Flow Demand | 180L/Min |
| Suitable Excavator | 18-25ton |
| Transport Package | Export Wooden Box Packaging |
| Trademark | Juxiang |
| Origin | China |
| HS Code | 8430699000 |
| Production Capacity | 600 |
Packaging & Delivery
| Package Size | 10.00cm * 10.00cm * 10.00cm |
| Package Gross Weight | 10.000kg |
Product Description
Detailed Photos
Product Parameters
| Model | Unit | GR04 | GR06 | GR08 | GR10 | GR14 |
|---|---|---|---|---|---|---|
| Dead Weight | kg | 550 | 1668 | 1750 | 1981 | 2500 |
| Max Opening | mm | 2575 | 2142 | 2280 | 2500 | 2610 |
| Open Height | mm | 900 | 2136 | 2200 | 2391 | 2630 |
| Closed Diameter | mm | 600 | 1250 | 2300 | 1612 | 1720 |
| Closed Height | mm | 1150 | 2500 | 2600 | 2675 | 2800 |
| Bucket Capacity | m³ | 0.3 | 0.6 | 0.8 | 1.0 | 1.3 |
| Max Load | kg | 800 | 1600 | 2000 | 2600 | 3200 |
| Suitable Excavator | ton | 8-11 | 12-17 | 18-25 | 26-35 | 36-50 |
| Flow Demand | L/min | 50 | 90 | 180 | 220 | 280 |
Product Features
- Crafted with top-tier imported HARDOX400 sheet material, this product is not only remarkably lightweight but also showcases exceptional wear resistance, ensuring durability and efficiency.
- This product stands out among its peers, boasting the most formidable grabbing force and the broadest grabbing distance, making it a powerhouse in its category.
- Designed with a built-in cylinder and high-pressure hose, the oil circuit is fully sealed, providing comprehensive protection for the hose and significantly extending the product's lifespan.
- The cylinder features an anti-fouling ring, effectively safeguarding against tiny impurities in the hydraulic oil that could harm the seals, thereby enhancing the product's reliability.
