Overview

Basic Info.

Model NO. Metalx
Certification CE, ISO
Application Steel Structure Walkway
Shape I Shape
Manufacturing Method Hand Made
Material Carbon Steel
Function Support
Mesh Opening 30*100mm
Length 500mm
Width 300mm
Size Customized Size
Certificate CE/ISO
Design Professional Customized CAD Drawing
Color Customized Color
Keyword Fence
Keyword 1 Metal Fence
Keyword 2 Fencing
Keyword 3 Grating
Keyword 4 Steel Grating
Keyword 5 Grating Panel
Keyword 6 Metal Grating
Transport Package Metal Pallet
Specification All kinds of
Trademark /
Origin China
HS Code 73089000
Production Capacity 8000 Sets Per Month

Packaging & Delivery

Package Size 200.00cm * 200.00cm * 5.00cm
Package Gross Weight 20.000kg

Product Description

Hot-DIP Galvanized Serrated Folding Campfire Grill Heavy Duty Steel Grate Plate

Common Specification of Steel Grating

Material Standard

ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel, etc

Bearing Bar (Width x Thickness)

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc

Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.

Twisted Cross Bar Pitch

38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc

Surface Treatment

Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.

Grating Style

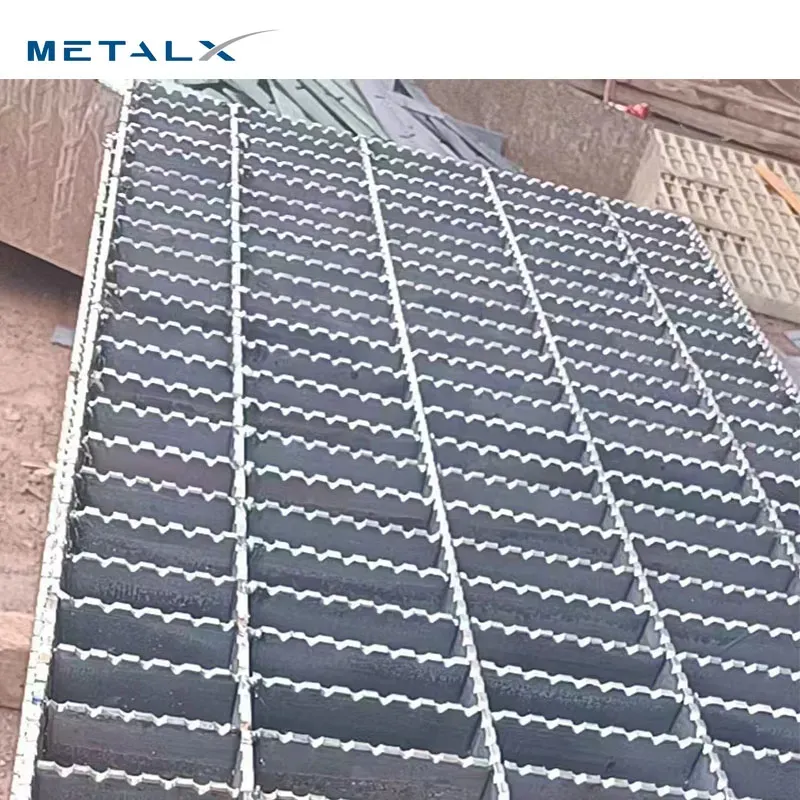

Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar

Packing

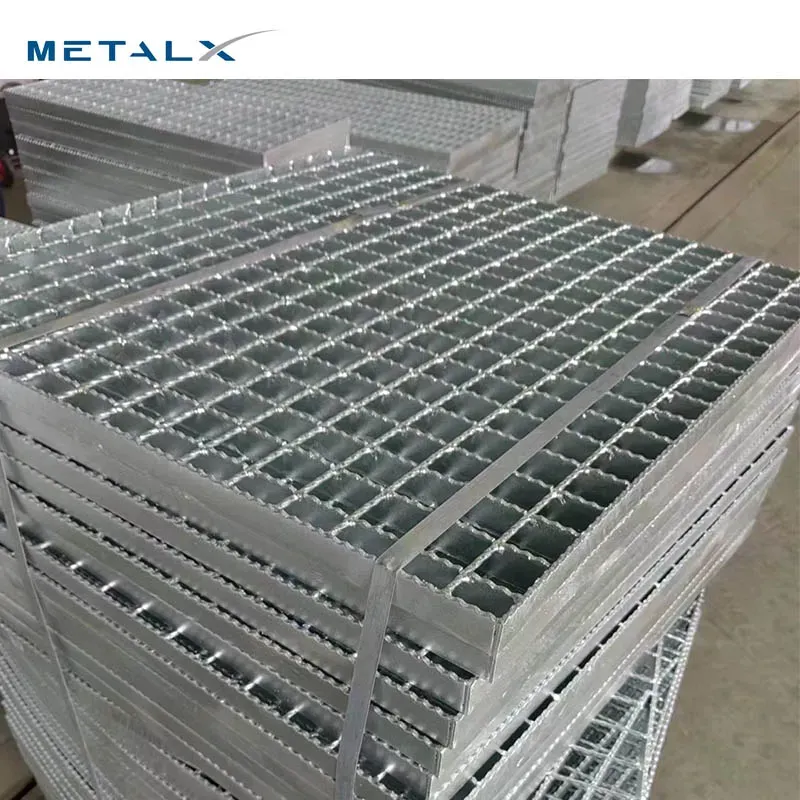

(1) Bandage and Paperboard: Generally applies to neat steel plate;
(2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
(3) Steel Pallet: Traditional export packing.

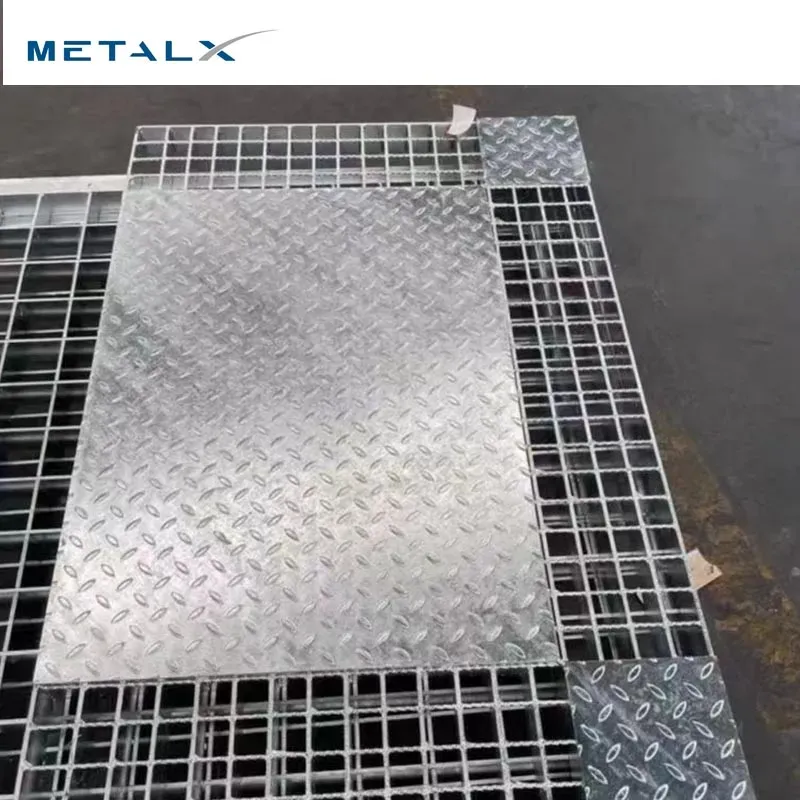

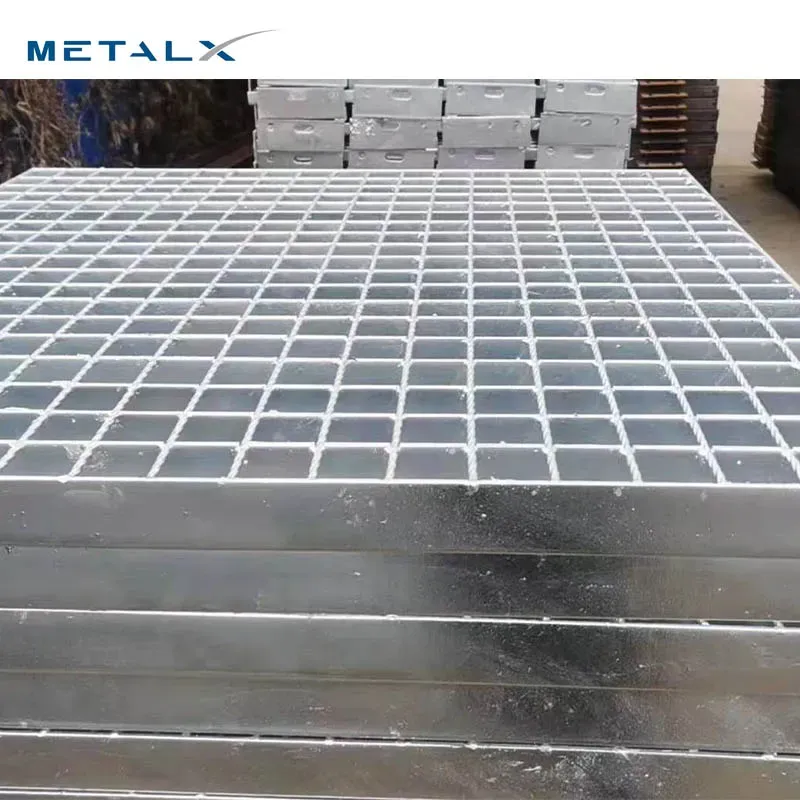

Detailed Photos

1.High quality carbon steel materials are used for hot galvanizing, cold galvanizing, painting and other treatments, with high strength and toughness and long service life.
2.It supports customization according to drawings or requirements, and step steel grating, special-shaped steel grating, plug-in steel grating can be made.

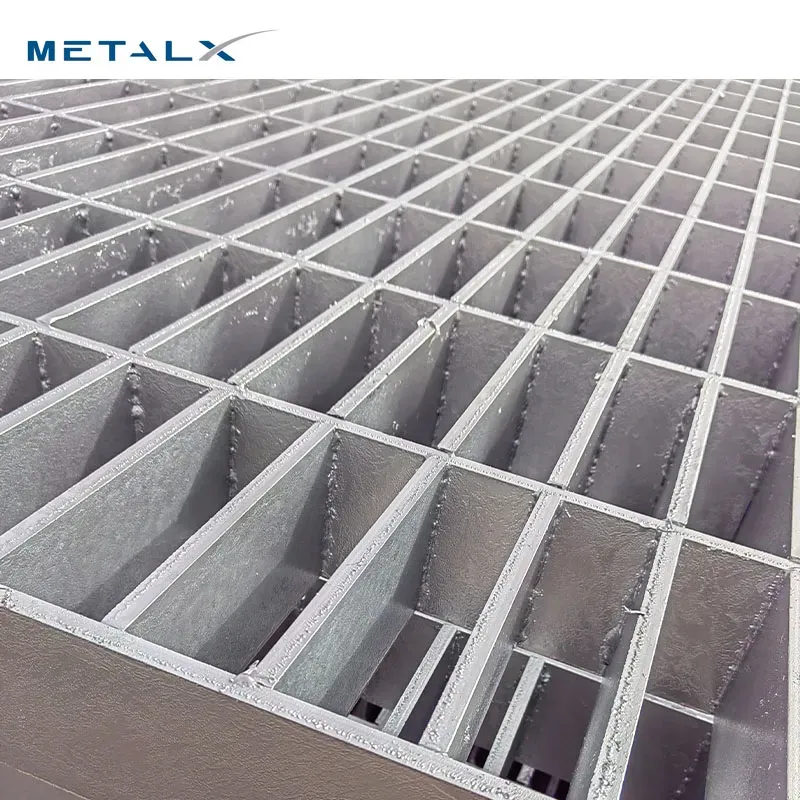

3.High voltage resistance pressure welding machine shall be used, with solid welding, neat welding junctions and free cutting.

Hot-DIP Galvanized Serrated Folding Campfire Grill Heavy Duty Steel Grate Plate
