Overview

Basic Info.

Model NO. CLX5282
Motor Power 630kw
Application Mine
Materials Limestone, Shale, Fine Sandstone, Slag, Coke etc
Outlet Size 150-270mm
Condition New
Warranty 1 Year
After-sales Service Engineer Guide, Field Installation
Capacity (T/H) 2000-3000
Power 630kw
Size 8838*8141*9155 mm
Weight 391.4 T
OEM & ODM Accept
Transport Package Customized Packing
Specification Based on The Model
Trademark Chuangli-China
Origin Guangdong, China
HS Code 847429000
Production Capacity 1000 Sets/Year

Packaging & Delivery

Package Size 883.80cm * 814.10cm * 915.50cm
Package Gross Weight 392.000kg

Product Description

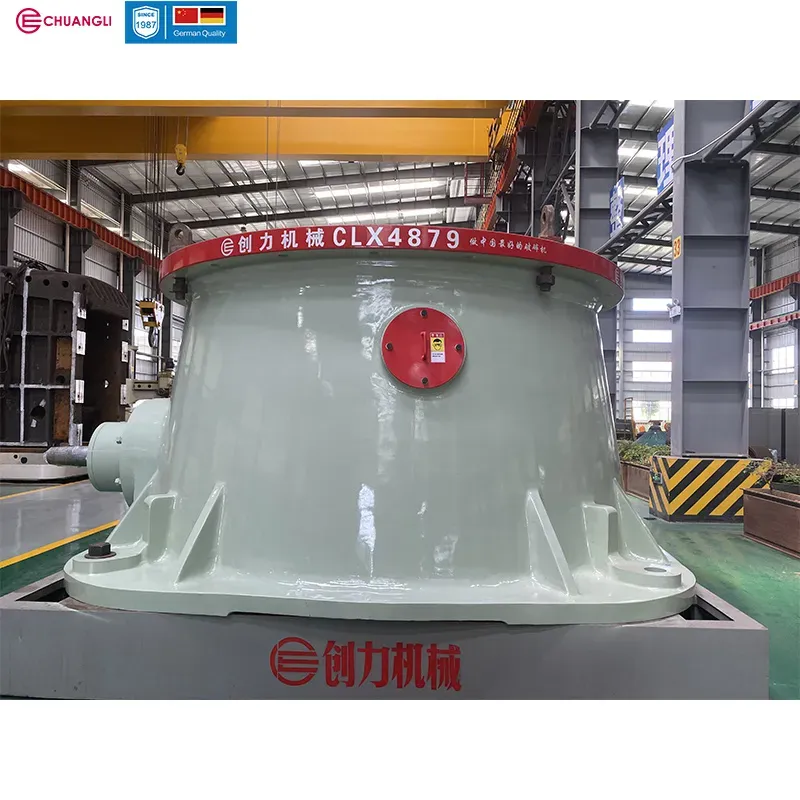

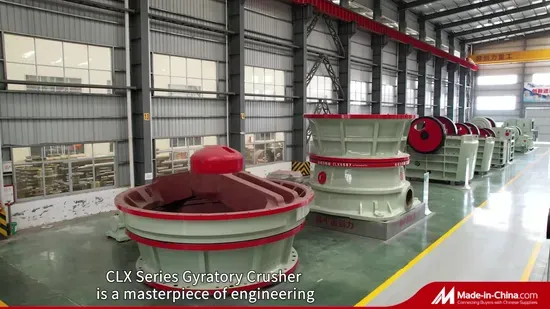

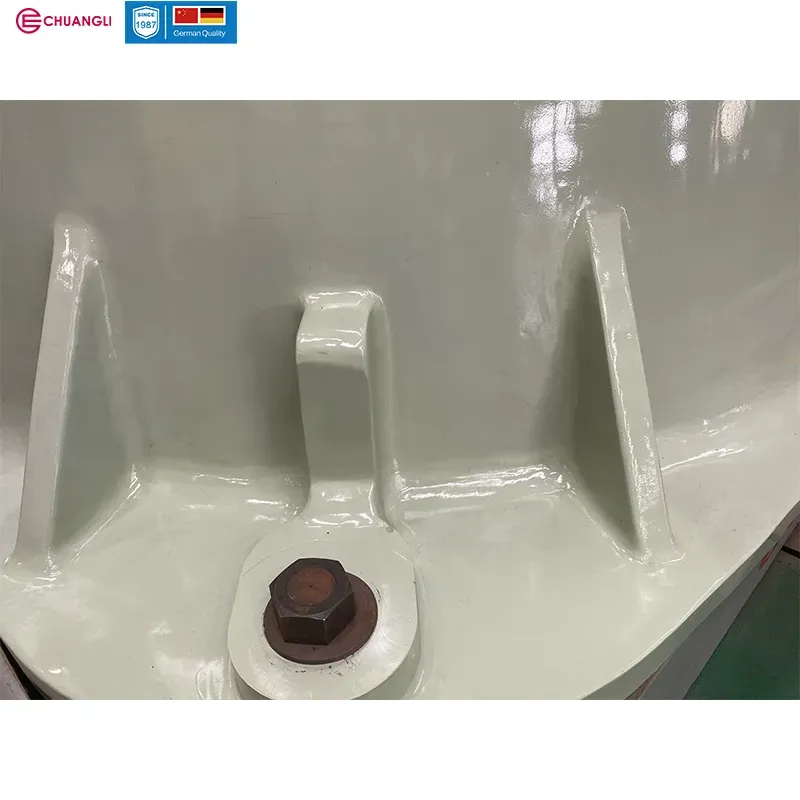

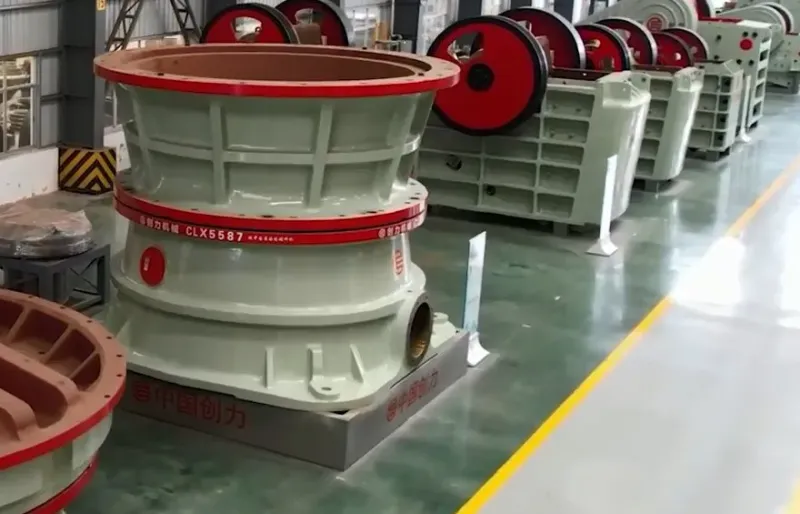

CLX Series Gyratory Crusher

CHUANGLI is one of the most famous brands in China since started in 1987, is a high-tech manufacturing company committing to R&D, production and marketing of high efficiency for Crushers, Sand Making Machines, Vibrating Screens, Feeding Machines. Our crusher plants with different capacities are ideal for suitable solutions for every project.

Our Gyratory Crusher CLX Series solutions help enhance the efficiency of your operation, so you can cut operating costs. With many different grades of Gyratory Crusher Liners available, you can choose the solution that works best for your process. As an Original Equipment Manufacturer (OEM), we have the knowledge and resources to ensure that the CLX series you choose are best suited your equipment and application. Our Gyratory Crusher CLX series are designed to increase your productivity by minimizing downtime and enabling greater throughput. There are a number of factors that set our service apart.

Gyratory Crushing Machine Mine Industry Equipment Stone Crusher

Features of CLX series gyratory crusher

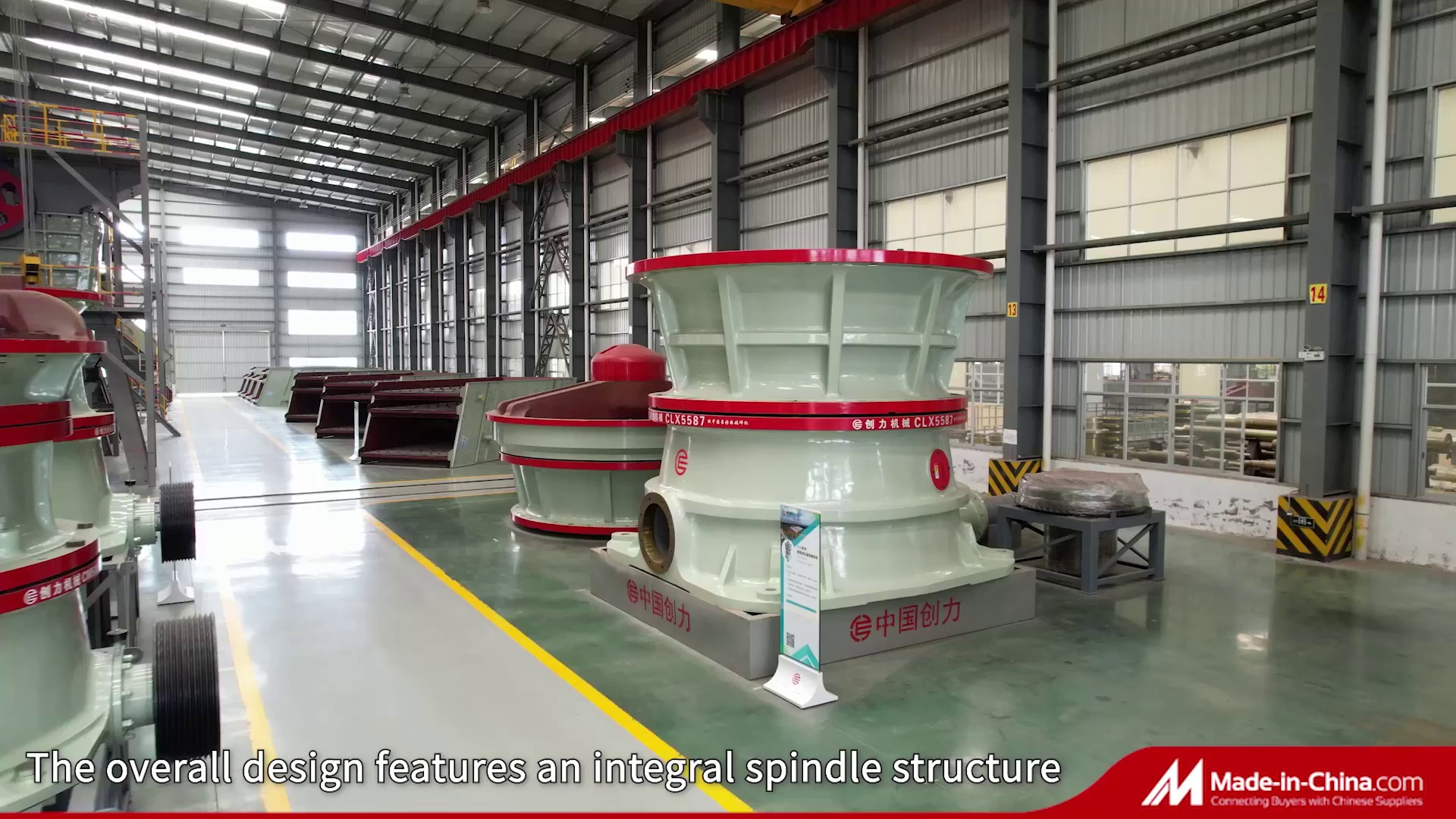

Integral spindle design, high strength, safe and reliable

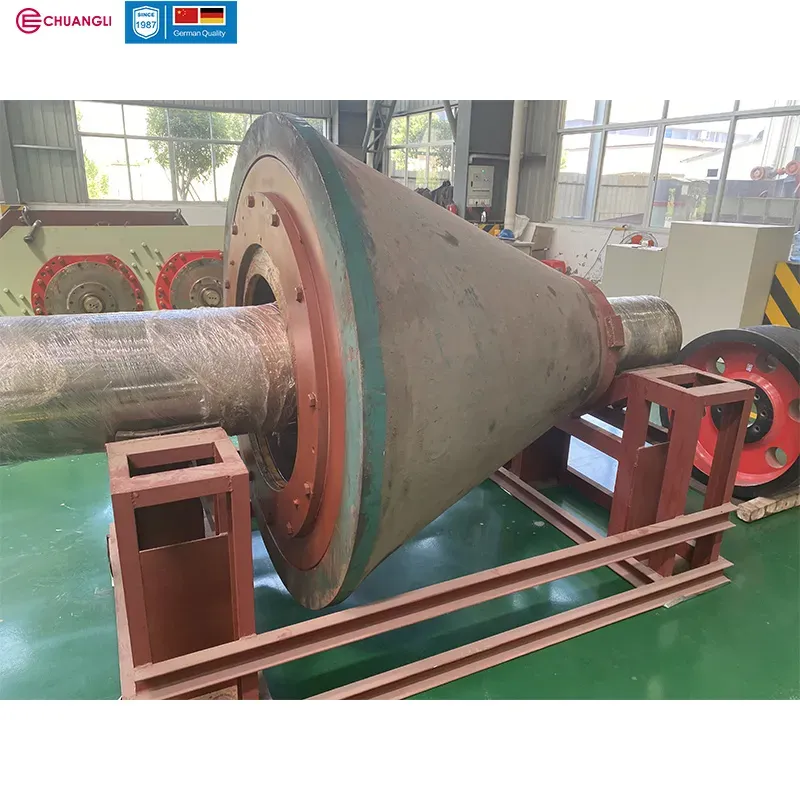

The spindle is made of ultra-high strength alloy steel, which has passed standard tempering and tempering heat treatment.
Unique design, lower crushing cost and longer service life.
The transmission gear is designed with heavy spiral umbrella arc gear, which is more stable.

Product Parameters

Type	Mine Port Width (mm)	Maximum Feed (mm)	Tight Side Discharge Gate (mm)	Opening Side Discharge Gate (mm)	Bottom Diameter of Moving Cone (mm)	Capacity (t/h)	Moto Power (kw)
CLX4879	1200	1000	140-200	170-230	2000	1500-2500	500
CLX5282	1300	1100	140-220	180-260	2080	2000-3000	630

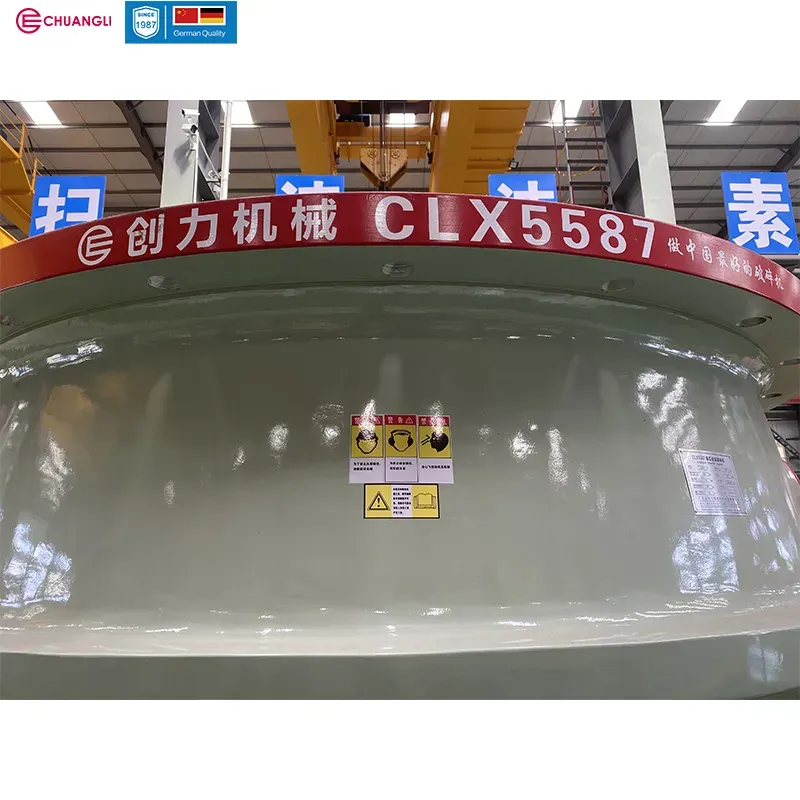

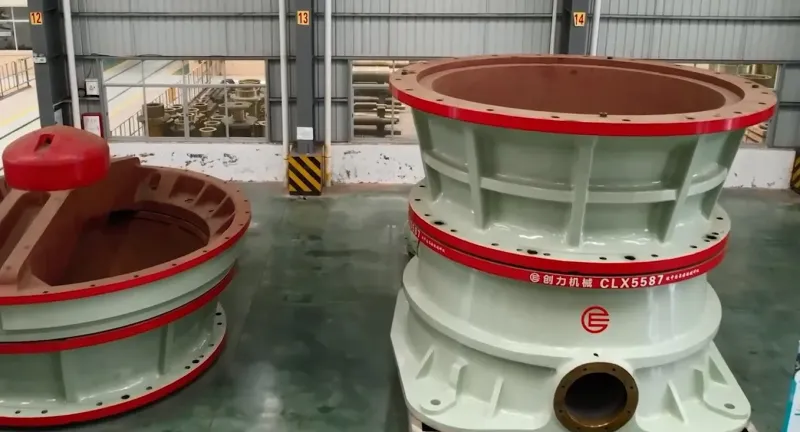

CLX5587	1400	1200	140-220	180-260	2200	2500-3500	710
CLX6395	1600	1300	140-230	190-270	2410	3500-4500	800
