Basic Info.

• Model NO. HL1101
• Material Wood Fiber
• Type MDF / Semi-hardboards
• Finish Matt, Shining, Textured, Woodgrain, Magic, Emboss
• Formaldehyde Emission Standards E1
• Usage Indoor
• Production Process Semi-Dry Process
• Size 1220X2440mm, 1220X1220mm
• Thickness 15mm-25mm
• Certification FSC, CARB, CE, ISO
• Face & Back Melamine, Plain, Veneer
• Density 720-750kgs/M3
• Moisture 5-12%
• Slot Shape Rectangle, Ellipse, Trapezoid
• Grooves Perfect with Precisely
• MDF Sample Free Sample
• Application Supermarket, Garage Cabinet, Shopfitting etc
• Transport Package Pallet Packing or Loose Packing
• Specification Core: MDF/HDF/Melamined board
• Trademark HUNGLIN
• Origin Shandong, China
• HS Code 4411142900
• Production Capacity 8500m3/Month

Product Description

Product Name

Melamine Grooved MDF Slot/Slatwall MDF for Display Furniture

Size

1220x2440mm (4'x8'), 1220x1220mm( 4'x4') or customized.

Thickness

15~25mm(+/-0.2mm)

Face/Back

Plain or Melamine paper/Acrylic/Fireproof sheet faced (one side or both side faced).

Surface Color

Wood grain color, solid color, customized colors and designs.

Surface Treatment

Matte / Embossed / Textured / Wood Embossing / Glossy / Mosaic / Piwen / Magic, etc.

Groove Distance

75mm / 100mm / 150mm / 200mm / 300mm, or at your request.

Groove Type

Rectangle, Ellipse, Trapezoid or as requested.

Groove No.

7~21 grooves or with one or two half grooves on the side at your request.

Groove Direction

1220mm direction or 2440mm direction.

Inserts

Aluminium Alloy T-bar (0.5~1mm thickness) or PVC T-bar.

Board Weight

32-40kg per sheet.

Payment Terms

T/T or L/C at sight.

Delivery Time

Within 15 days after receiving deposit or original L/C at sight.

Port Of Shipment

Qingdao port or Lianyungang port, China

Other Services

OEM, ODM ,as well as Building Materials Sourcing Service are available.

PRODUCT FEATURES

1. Easy assembling, easy operation, bearing and tightly.
2. Compatible with standard slatwall accessories.
3. Strong and Durable.
4. Water and moisture resistant, easy to clean.
5. Smooth Satin finish gives high-end aesthetic appeal.
6. High scratch resistant.
7. Low formaldehyde emission.

STEPS TO CHOOSE YOUR IDEAL SLATWALL

1. Slatwall Dimensions

Thickness:15mm, 16mm, 18mm, 21mm, 25mm, etc.

4ft*8ft slatwall panels

1220mm*2440mm slatwall panels are what you need if you are looking to cover a large area and would like less joins.

4ft*4ft slatwall panels

1220mm*1220mm slat wall panels are perfect if you need to cover a small area or are looking for a DIY installation.

2. Slatwall Space Between

Standard Grooves

3. Slatwall Orientations

1220*2440mm Slatwall panels are available in 2 different orientations. You have them 2440mm high by 1220mm wide. This orientation is known as "Portrait" and will mean you have 23 slots each one spaced 100mm apart. The other orientation we can do is 1220mm high by 2440mm wide. This is known as "Landscape" and will give you 12 slots along the width each one 2440mm long.

4. Slatwall Groove Shapes

5. Slatwall Edge Finish

Half groove(1/2 groove at the top and bottom to allow the panels to be joint) on single or both sides is available.

6. More than 300 different surface colors and designs are available.

Product Application

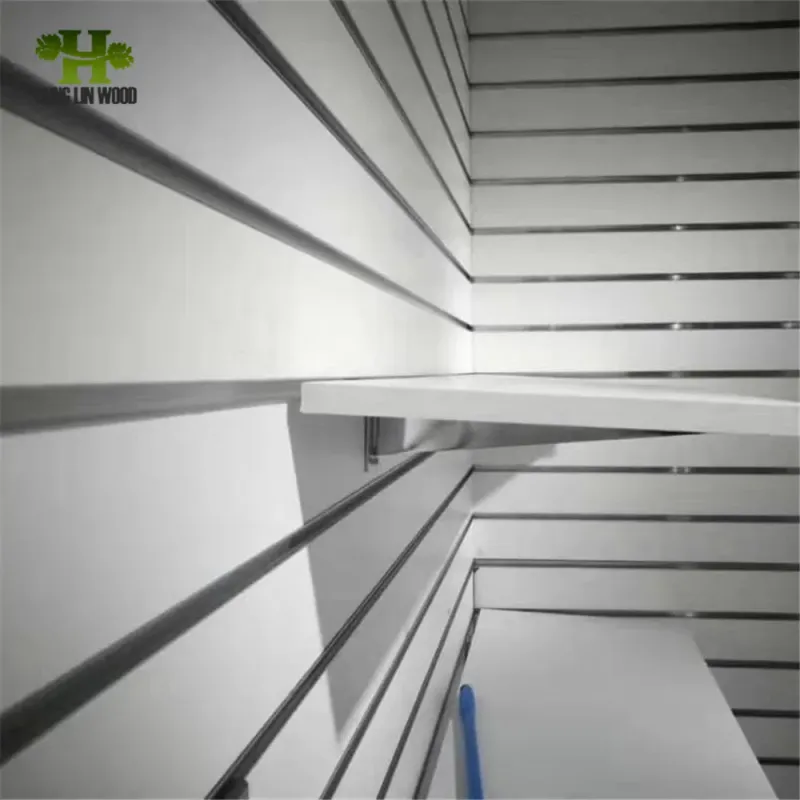

MDF slatwall panels are widely used in supermarkets, shops, showrooms as shelves to hang and display small commodities.

Package & Loading

Standard export grade package, Suitable to seaworthy transportation.

Loading quantity

20' Container (Pallet Packing): 8 Pallets / 22 CBM

20' Container (Loose packing): 26 CBM

40' container (pallet packing): 16 Pallets / 43 CBM
