Overview

Basic Info.

• Model NO. CQD16L
• Cab Location Adjustable
• Type Reach Forklift
• Power AC Motor
• Load Capacity 1T - 5T
• Fuel Electric
• Load center >500mm
• Lift height 2700-12000mm
• Condition New
• Spare Parts Available
• Fork Length 40/100/1070
• Fork Width 100mm
• Certification CE/ISO9001
• Fork Carriage Width 872
• Transport Package Standard Export Package
• Specification 1.6T
• Trademark Torch/OEM/ODM
• Origin China
• HS Code 8427109000
• Production Capacity 4000sets

Packaging & Delivery

• Package Size 1330.00cm * 1090.00cm * 2153.00cm
• Package Gross Weight 2855.000kg

Product Description

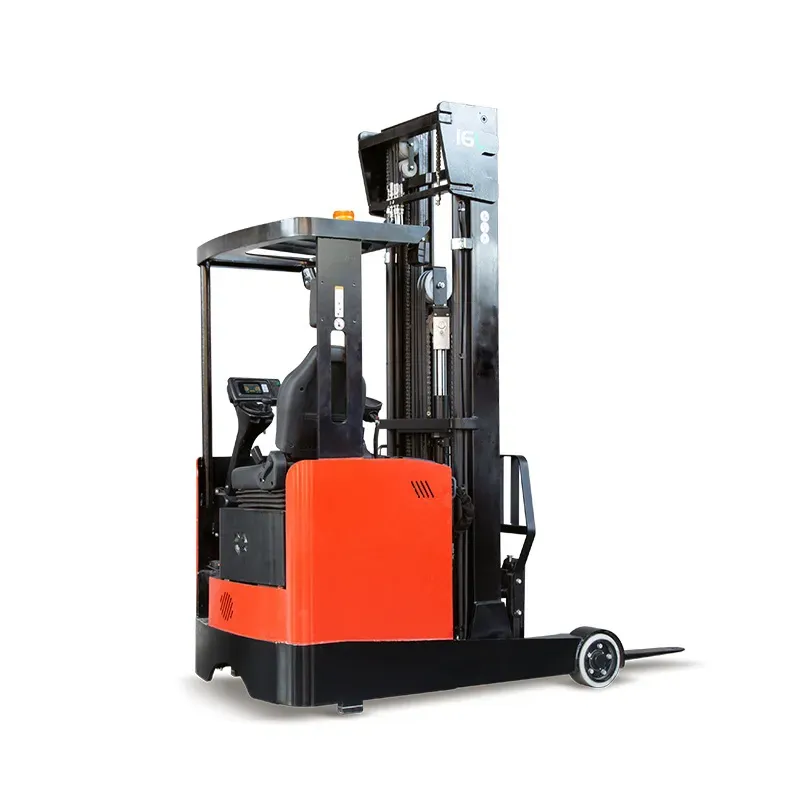

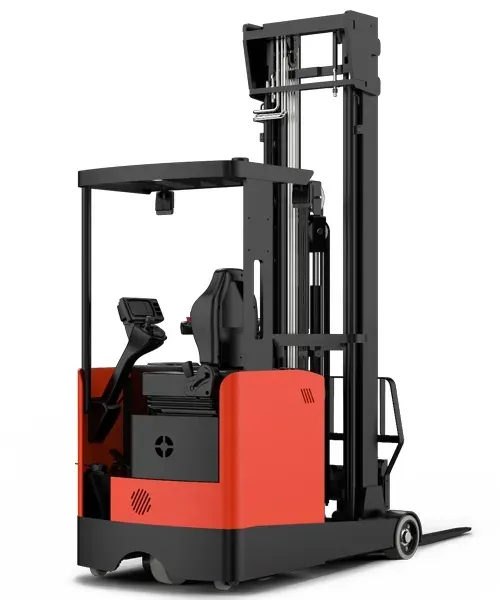

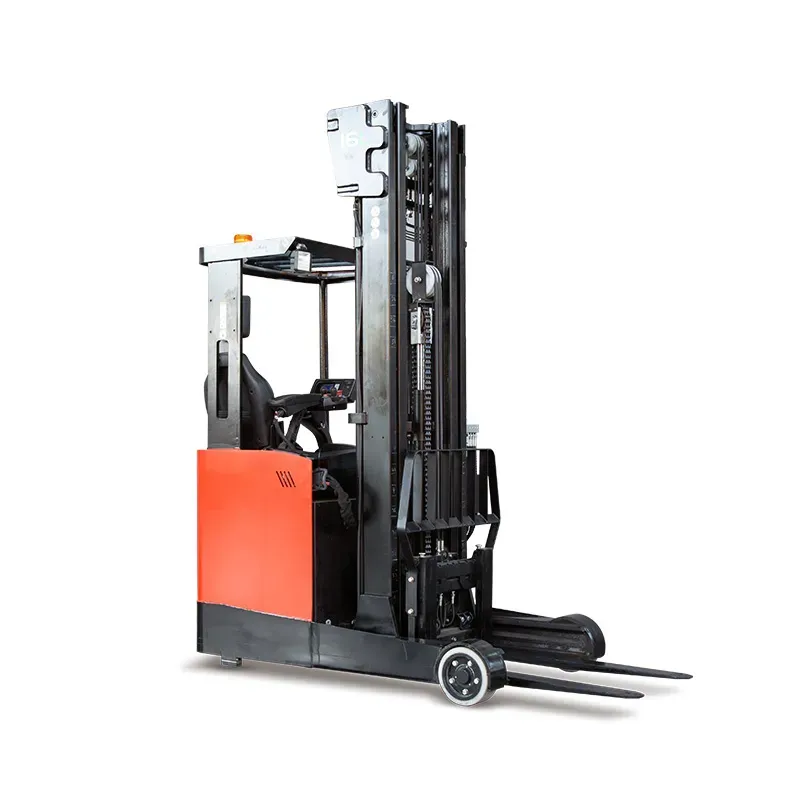

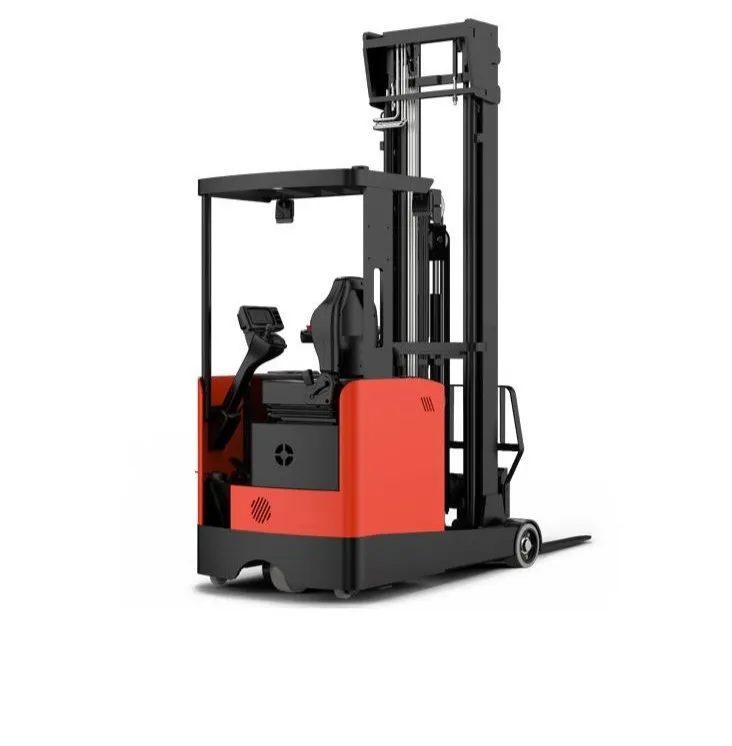

CQD16L Electric Reach Truck 1.6T

CQD16L is fully designed around all the advantages of Torch Li-Ion technology. Built on reliable engineering tradition and Torch expertise, the CQD series offers precise stacking, quiet operation and high stability. The compact design and upgrade functionality reinforce operation visibility and workplace safety.

ALL PRICES INDICATED IS FOR YOUR REFERENCE ONLY, PLEASE CONTACT SUPPLIER FOR THE ACTUAL PRICE.

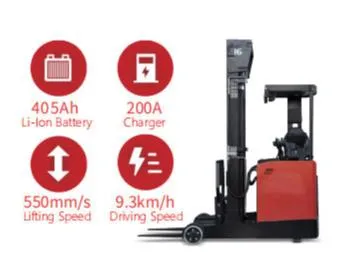

Key Highlights:

• CQD16L is powered by maintenance-free 48V/405Ah Li-Ion batteries that provide opportunity charging. They can be charged up to 7% in 10 Minutes. Productivity can be boosted during short breaks. They also communicate via Can-Bus with the truck to ensure efficient usage of the truck at all time.

Features:

• Optimal visibility
• High stability Enjoyable lifting operation
• Easy and precise operation

Lithium-ion technology Enjoyable lifting operations High stability Maintenace free 48V/405Ah Li-Ion battery. Along with the opportunity charging capability, li-Ion batteries have much faster charging times than lead-acid batteries. BMS, based on CANBUS system, allows battery cells communicate among each other to deliver powerful perfor mance at all times.

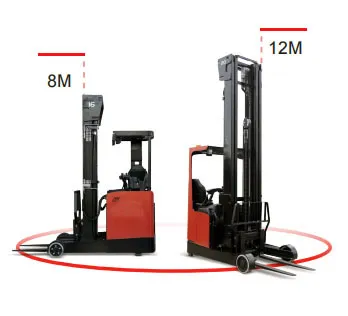

CQD16L offers powerful performance and quiet operations through the upgraded hydraulic pumps and powerful lifting motors. (11.75 kw for CQD16L and 20 kw for CQD20L.) The upgraded technology greatly boosts stacking efficiency by 50%, reduces operational noise by10 dB adn the energy consumption by 30%. The low center of gravity and the newly I-beam mast design enhance the truck stability. The maximum lifting height of CQD16L is 8000 mm while the one of CQD20L is 12000 mm

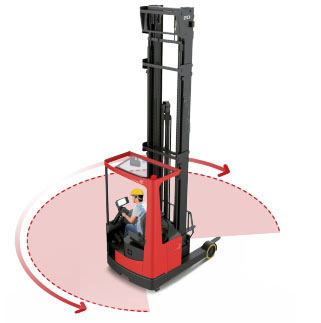

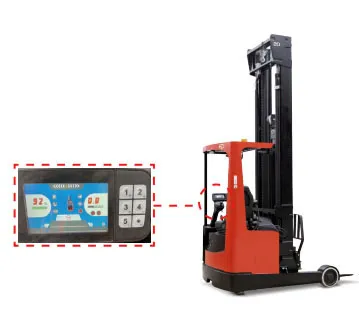

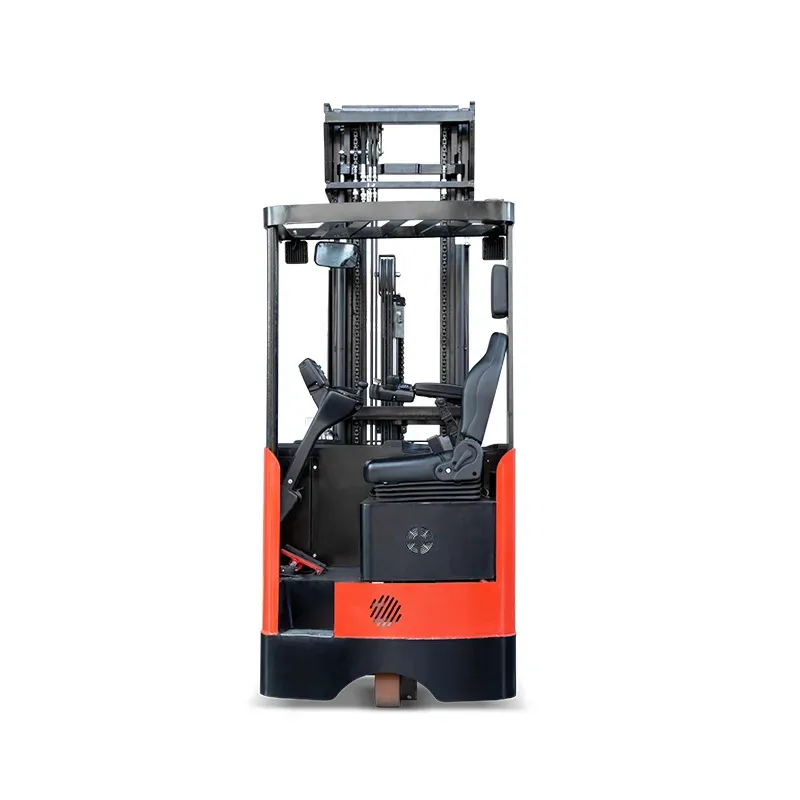

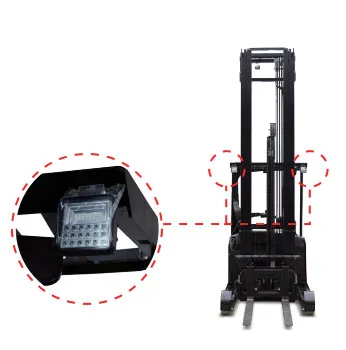

Optimal visibility Full-color Display 6000K Led Light A much more compact li-ion battery comes with better visibility for CQD16L/20L. Along with the offset layout of the oil tubes, CQD16L/20L stacking visibility and operation flexibility are greatly improved. CQD16L are designed with a color display to help operators easily monitor battery charge level, driving speed, and check error codes. CQD16L and CQD20L are equipped with 6000K led lights to cope with the dark environment for optimal visibility.

Specification

• 1.1 Brand Torch
• 1.2 Model CQD16L
• 1.3 Drive Electric
• 1.4 Drive mode Seated
• 1.5 Load capacity Q (kg) 1600
• 1.6 Load center distance c (mm) 600
• 2.1 Service weight kg 2840
• 4.2 Height, mast lowered h1 (mm) 2780
• 4.4 Lift height h3 (mm) 6500
• 4.5 Height, mast extended h4 (mm) 7535
• 4.7 Height of overhead guard (cabin) h6 (mm) 2153
• 4.19 Overall length l1 (mm) 2434
• 4.21 Overall width b1/ b2 (mm) 1080/1090
• 4.22 Fork dimensions s/ e/ l (mm) 40/100/1070
• 4.24 Fork carriage width b3 (mm) 872
• 4.35 Turning radius Wa (mm) 1720
• 4.37 Length across wheel arms l7(mm) 1870
• 5.1 Travel speed. laden/unladen km/ h 9/9.3
• 5.2 Lifting speed, laden/unladen m/ s 0.35/0.55
• 6.4 Battery voltage/nominal capacity V/ Ah 48/280

We also supply: We also supply: We also supply: ORDER PICKER TOW TRACTOR FORKLIFT Application

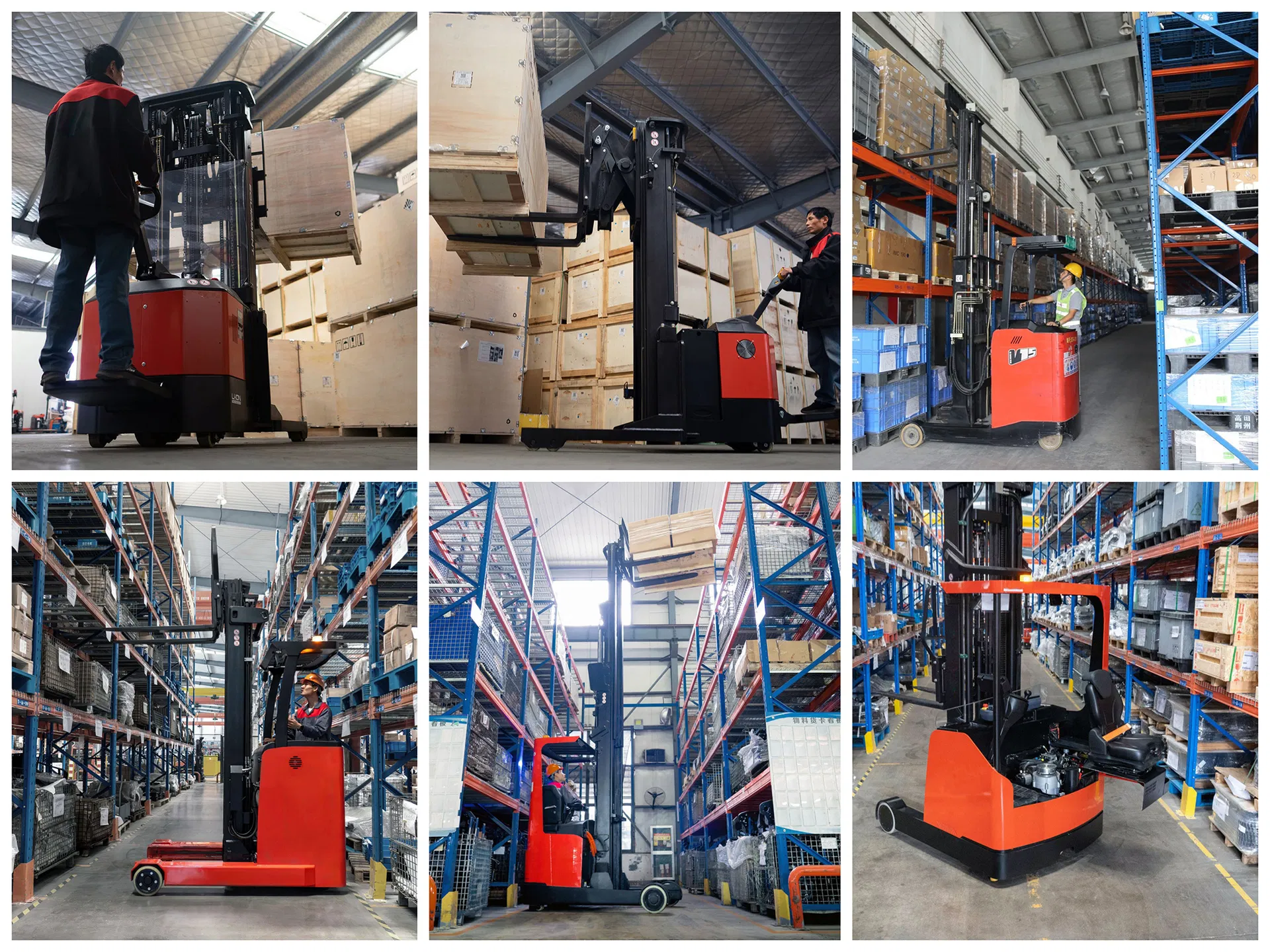

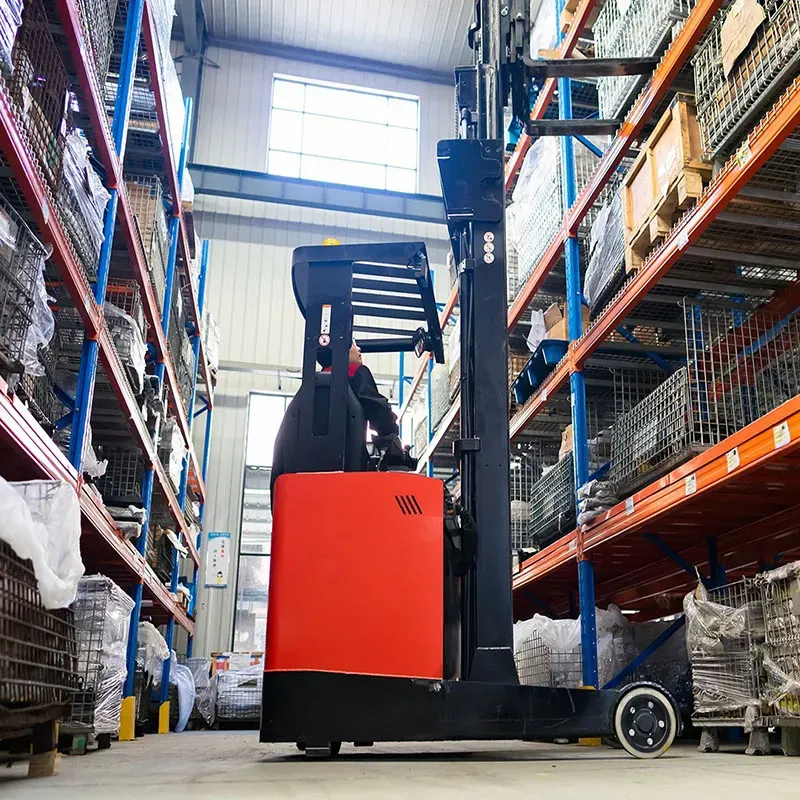

With the compact structure, CQD16L is the perfect tool for transportation and high lifting operation in medium to large warehouses, regardless of wide or narrow-aisle racking settings. CQD16L tremendously help when material handling involves numerous movements at height storage and in confine buildings for industries such as logistics, textile and home appliance manufacturing.

Company Profile

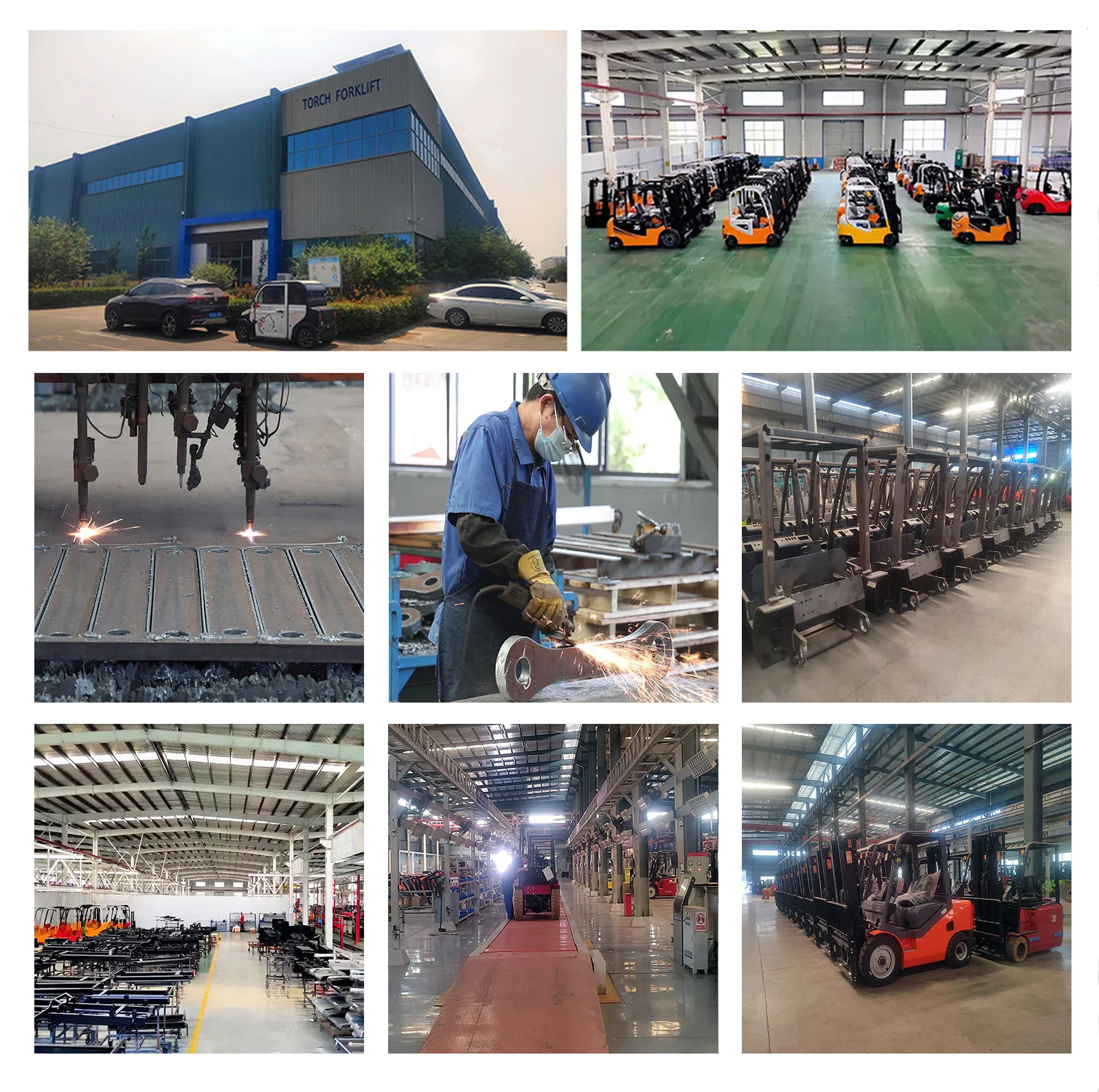

Qingdao Torch Mechanical Equipment Co.,Ltd. Established in 2020, Qingdao Torch Mechanical Equipment Co.,Ltd. is a leading machinery manufacturer based in Qingdao, China, specializing in R&D, production, sales and service of high-performance material handling equipment like electric forklifts, diesel forklifts, electric stackers, pallet trucks, material handling robots, industrial AGVs, floor cleaning vehicles and other products. Our equipment has been exported to more than 100 countries, such as the United States, Mexico, Canada, Russia and so on. With high-quality products and fast service response, we have won the good reputation from the leading enterprises in various industries nationally and internationally.

Our Customers

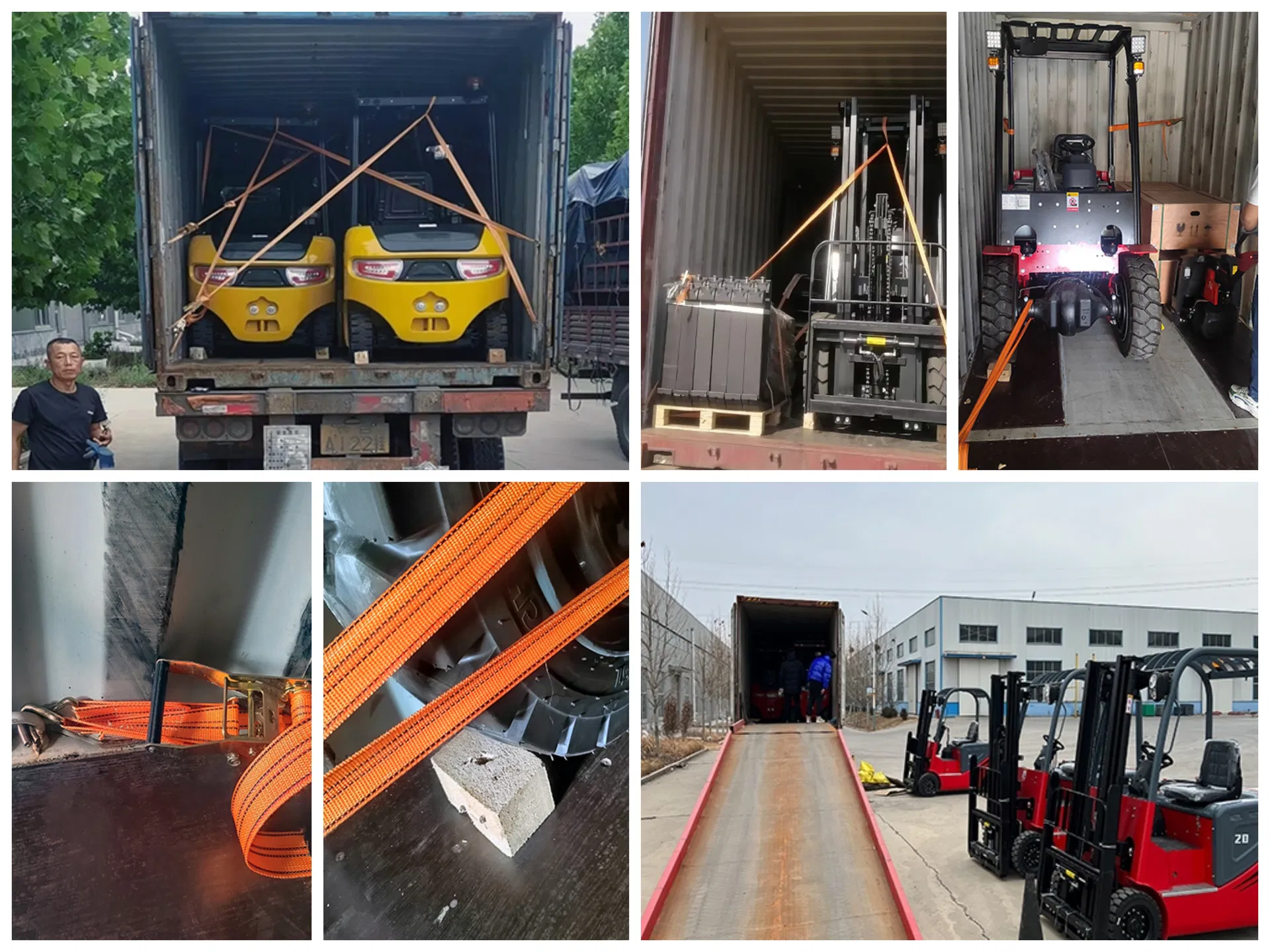

Packing & Delivery

FAQ

Q: Why choose Qingdao Torch Mechanical Equipment Co.,Ltd?

A: Because we are a professional manufacturer who has more than many years OEM experience, most parts of products produced by ourselves.

Q: What about the quality of the products?

A: Five inspection steps in the whole production process.

• 1th, Material inspection before accept by warehouse
• 2th, 100% inspection in production process
• 3th, 100% inspection when assembling finished.
• 4th, inspect products before shipment
• 5th, inspection by buyer (if need)

100% inspected before shipment

Q: What's the leadtime?

A: Nomally 30 days.

Q: What about the guarantee?

A: 12 monthes.

If the problem coursed by factory side, we will supply free spare parts or products untill the problem solved. If the problem coursed by customer, We will supply technic support and supply spare parts with reasonable price.

Q: Why your price is a little bit better than other factory or trading company?

A: We would like to follow a win-win strategy so that we can have good business relationship, which is better and important for both of us.

So we do not sell light weight products or sticker high capacity (like 2 ton sticker 3 ton). We ensure that every product from Torch is good quality with reasonable price.

Q. Which payment terms will you receive?

A: T/T, L/C

Q: How to contact us?

A: Workday (8:00 - 17:00), feed-back in 24 hours
