C-shaped steel
Description
Applications of Galvanized C-Shaped Steel: Galvanized C-shaped steel is widely used in steel structure buildings for purlins, wall beams, and can also be combined to form lightweight roof trusses, brackets, and other structural components. Additionally, it is used in mechanical and light industrial manufacturing for columns, beams, and arms.

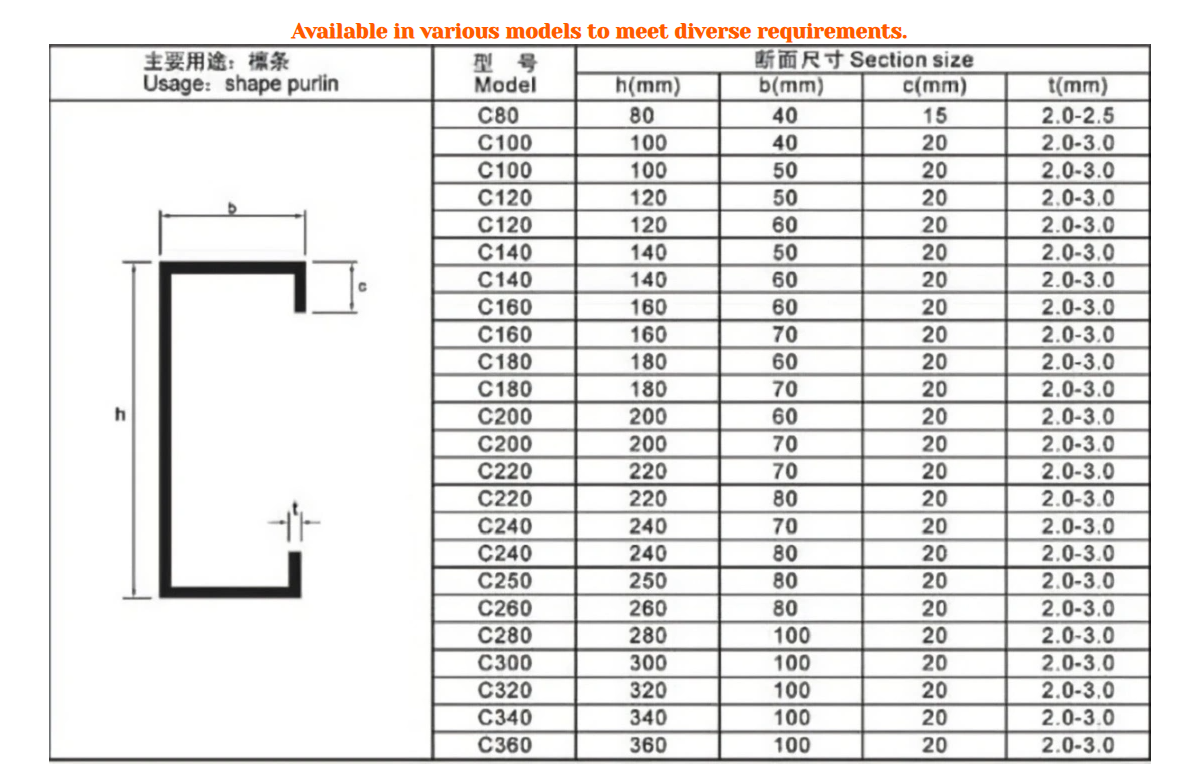

Galvanized C-shaped steel purlins are available in various specifications according to height, including 100, 120, 140, 160, 180, 200, 220, 250, up to 300 mm, with lengths determined by the project design. However, considering transportation and installation conditions, the full length generally does not exceed 12 meters.
Manufacturing Process: Galvanized C-shaped steel is automatically processed by a C-steel forming machine. The C-steel forming machine can automatically complete the forming process according to the given dimensions. The process steps include:
- Material feeding
- Leveling
- Punching
- Forming
- Shaping
- Straightening
- Length measurement
- Cutting to length
This process ensures high precision and quality of the final product, making it ideal for various construction and manufacturing applications.
C-Section Steel
C-section steel is a cold-formed thin-walled steel profile, widely used as purlins in steel structure buildings.
Function and Applications
Primary Role: Supports roof and wall loads, transferring them to the primary steel frame.
Optimal Use: Ideal for low-slope roof systems due to its structural efficiency.
Applications:Industrial plants, warehouses, civil buildings, steel residential structures, logistics centers, airport terminals, and other projects requiring roof/wall purlins.
Advantages and Features
Simple Cross-Section: Facilitates flexible fabrication, cutting, and drilling.
Cost-Effective: Low material and processing costs.Installation Flexibility: Adaptable to complex structural layouts.
Corrosion Resistance:Material Grades: Q195, Q235, Q355 hot-dip galvanized steel.
Zinc Coating: Up to 275 g/m² for enhanced durability in harsh environments.
Recommended Material Brands
Pangang 攀钢
Shanghai Baosteel 上海宝钢
Huangshi Baosteel 黄石宝钢
Qingshan Baosteel 青山宝钢
Ma Steel 马钢
Shanxi Jianlong 山西建龙
Yurunde 宇润德
...
