Product ID: 68622245

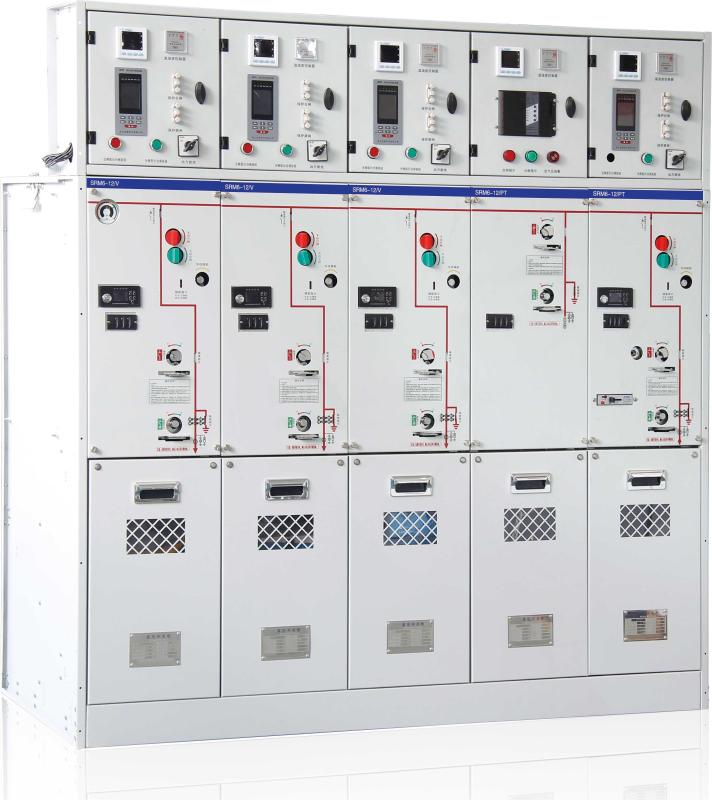

SRM6-12 Gas insulated switchgear

Contact Now

Description

SRM6-12 gas insulated metal enclosed switchgear is a three-phase AC 50Hz, SF6 gas fully insulated and fully sealed metal enclosed switchgear. Adopting modular design, main switches such as vacuum circuit breakers, load switches, load switch fuse combination devices, and isolation switches are used as functional units and placed in sealed gas boxes to form various inflatable compartment units. The busbars can be expanded in the left and right directions through busbar couplings, and plug-in cables are used for incoming and outgoing lines. Not affected by the environment, high safety, maintenance free, and strong reliability.

The product is widely used in industrial and civil ring network distribution systems and power supply terminals, especially suitable for small secondary distribution stations, industrial and mining enterprise switch stations, urban residential areas, airports, railways and other places.

Surrounding air temperature: -40 ℃~+40 ℃, daily temperature difference: not exceeding 35 ℃;

The altitude shall not exceed 4000m (please specify when the equipment operates at an altitude exceeding 1000m)! ）；

The surrounding air is not contaminated by corrosive gases and/or flammable or explosive gases, and the installation site has no severe impact. The pollution level does not exceed Level III as specified in GB/T5582

Seismic intensity: Level 8;

The amplitude of electromagnetic interference induced in the secondary system shall not exceed 1.6kV;

Special usage conditions: If different from the above usage conditions, the user needs to negotiate with the manufacturer to reach a consensus.
