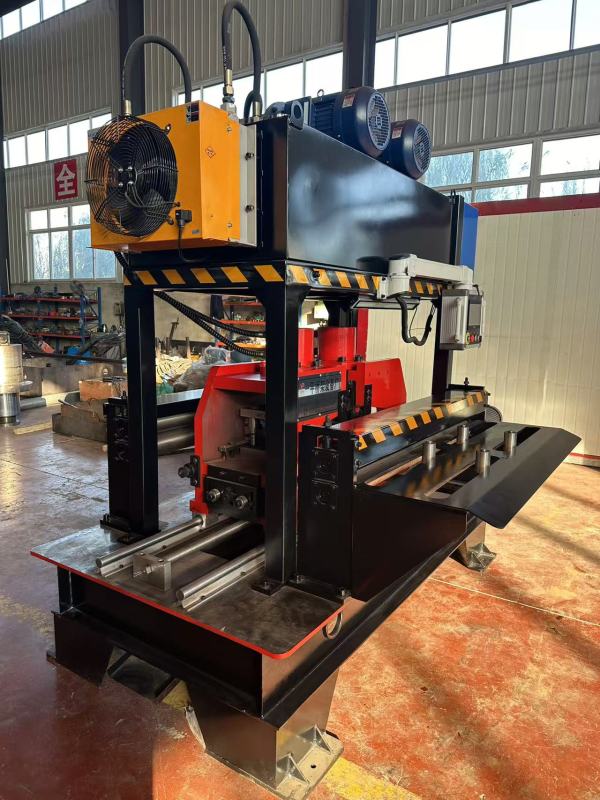

Yi Ping Cable Tray Punching Machine
Contact Now
Description
1. The main machine base is fabricated from welded national standard 300/150-H type steel, with a 16mm thick steel plate on top. It is then machined using a gantry milling machine, ensuring flatness of the base while eliminating internal stress. The interior is coated with anti-rust paint to prevent rust and cracking in a humid environment.
2. The open-and-close die frame is precision machined from 45# steel plate through multiple processing steps, ensuring surface flatness and accuracy. It is assembled according to mold assembly procedures.
3. The punch and lower die plate of the stamping die are made from national standard Gr 12mov material, forged to high density, then vacuum heat treated, followed by wire cutting, and finally assembled. The die can switch freely between single and double row without the need to remove the mold externally.
2. The open-and-close die frame is precision machined from 45# steel plate through multiple processing steps, ensuring surface flatness and accuracy. It is assembled according to mold assembly procedures.
3. The punch and lower die plate of the stamping die are made from national standard Gr 12mov material, forged to high density, then vacuum heat treated, followed by wire cutting, and finally assembled. The die can switch freely between single and double row without the need to remove the mold externally.
4. The positioning guide sleeve is made from bearing steel, forged and turned on a lathe, vacuum heat-treated, and precision ground. It has high concentricity and strong wear resistance. Both sides are adjusted synchronously using supporting blocks, with high accuracy and minimal play. Mold measurement positioning strips ensure that mold dimensions remain unchanged with each replacement, and the replacement can be completed within five minutes.
5. The conveyor shaft uses 45# round steel, roughly machined on a lathe and precision ground on an external cylindrical grinder to ensure concentricity and accurate positioning.
6. The hydraulic pump station system is developed and designed using Taiwanese technology, featuring dual 7.5KW independent motors, plus dual-power air cooling. Oil pipes are externally fitted with anti-wear sleeves to prevent damage from fatigue wear, ensuring the stability and longevity of the hydraulic system, with an attractive appearance and zero floor space footprint.
5. The conveyor shaft uses 45# round steel, roughly machined on a lathe and precision ground on an external cylindrical grinder to ensure concentricity and accurate positioning.
6. The hydraulic pump station system is developed and designed using Taiwanese technology, featuring dual 7.5KW independent motors, plus dual-power air cooling. Oil pipes are externally fitted with anti-wear sleeves to prevent damage from fatigue wear, ensuring the stability and longevity of the hydraulic system, with an attractive appearance and zero floor space footprint.
7. The hydraulic cylinder uses a specially designed high-pressure thick-walled cylinder. It has good sealing, high load-bearing capacity, low noise, and long service life.
8. The motor is a Taiwan joint venture Shanghai Ruijin brand reducer. There is a dedicated distribution box for the punching machine, specially customized for Yiping Machinery. The positioning guide sleeve is made of bearing steel, forged, lathed, vacuum heat-treated, and precision ground. It has high concentricity, strong wear resistance, and synchronization on both sides for adjustment, ensuring high precision with minimal deviation. The mold measuring and positioning strips ensure that the mold dimensions remain unchanged during each replacement, which can be completed within five minutes.
8. The motor is a Taiwan joint venture Shanghai Ruijin brand reducer. There is a dedicated distribution box for the punching machine, specially customized for Yiping Machinery. The positioning guide sleeve is made of bearing steel, forged, lathed, vacuum heat-treated, and precision ground. It has high concentricity, strong wear resistance, and synchronization on both sides for adjustment, ensuring high precision with minimal deviation. The mold measuring and positioning strips ensure that the mold dimensions remain unchanged during each replacement, which can be completed within five minutes.
