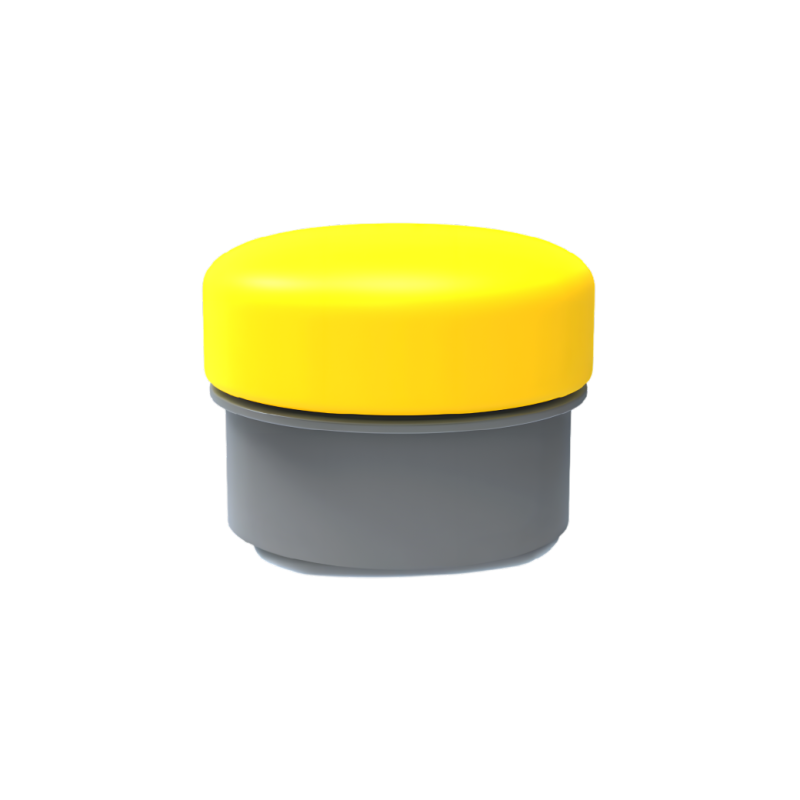

CHASING Fixed-Distance Sonar
Contact Now
Description
The fixed-distance sonar is specially designed for CHASING underwater drones. It enables the underwater drone to lock the distance from the target for fixed-distance inspection and automatic collision avoidance, making various underwater inspections more accurate and efficient.
The fixed-distance sonar can automatically calculate the distance between the front, left, right and bottom of the underwater drone and obstacles. After setting the distance to obstacles on the App, the underwater drone can perform automatic fixed-distance inspection and automatic collision avoidance.
Efficient Automatic Inspection
In the fixed-distance mode, the underwater drone can automatically inspect around fishing nets or any columnar facilities from top to bottom, thereby reducing the difficulty of underwater inspections and making various inspections more accurate and efficient.
Apply：Underwater collision prevention and underwater fixed range
Blind spot：Less than 20 centimetres
Measurement accuracy：‡25 millimetres
Maximum diving depth：150 metres
Fixed-distance sonar size：Upper cover: 81.3×30mm, shell: 79.3 × 55.9mm
Fixed-distance sonar weight：286+5 grams
Resolution：1 millimetre
Launch angle：13° soil 2°, between axis 1 and axis 2 26°
Power supply：10.8 VDC-26.4 VDC (the measurement range will vary depending on the voltage)
Storage temperature：-20°C- 60°C (non-frozen environment)
Probe installation：Fixed installation
Protection level：IP68

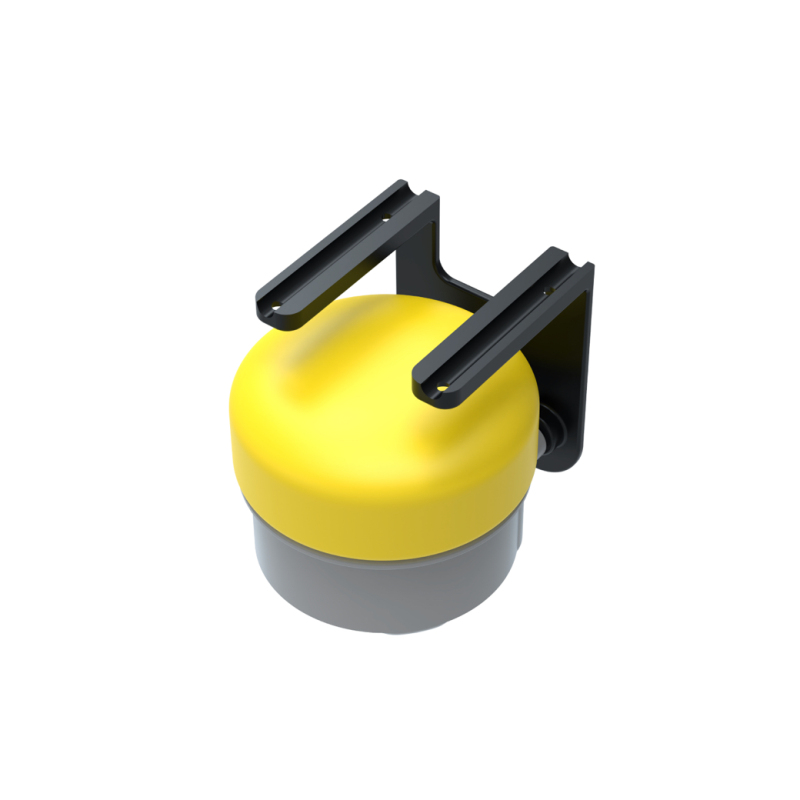

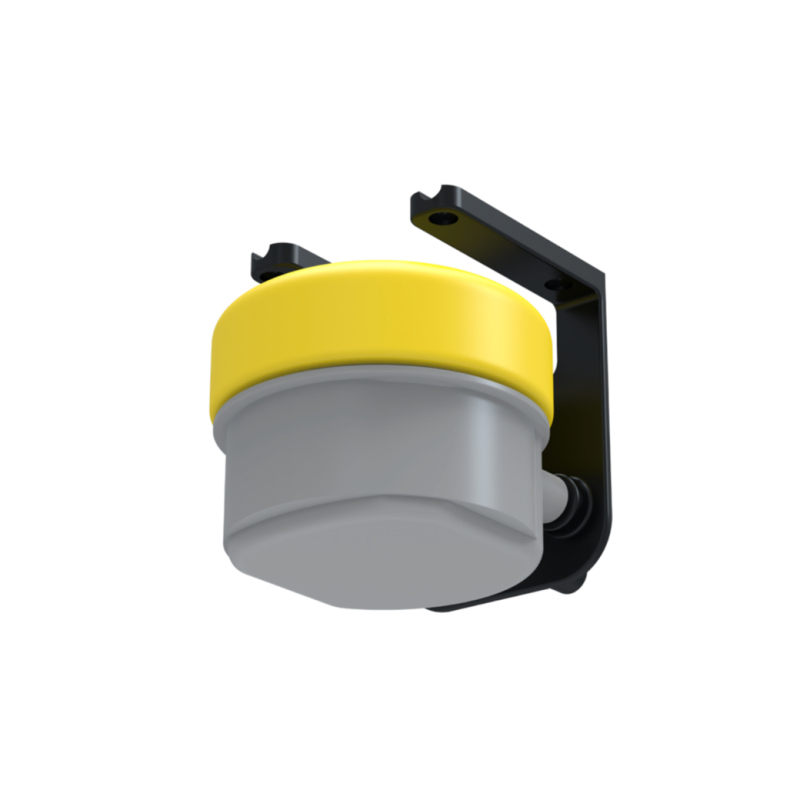

Sonar mounting base (default)：64 × 64.8x79 millimetres
Sonar mounting holder (optional)：64 × 64.8 × 153 millimetres
The weight of the sonar installation base (default)：54 grams
The weight of the sonar mounting base (optional)：108 gramsMaximum diving depth
150 metresMaximum diving depth
Maximum diving depth
150 metres
150 metres
