Oil&fumes <0.1mg/m3
purification efficiency 97%
Very low emission way
Direct to Air Emissions
EN
Language
All categories
Video
Product ID: 62759652
commercial cooker with ESP collector for removing grease
Contact Now
Description

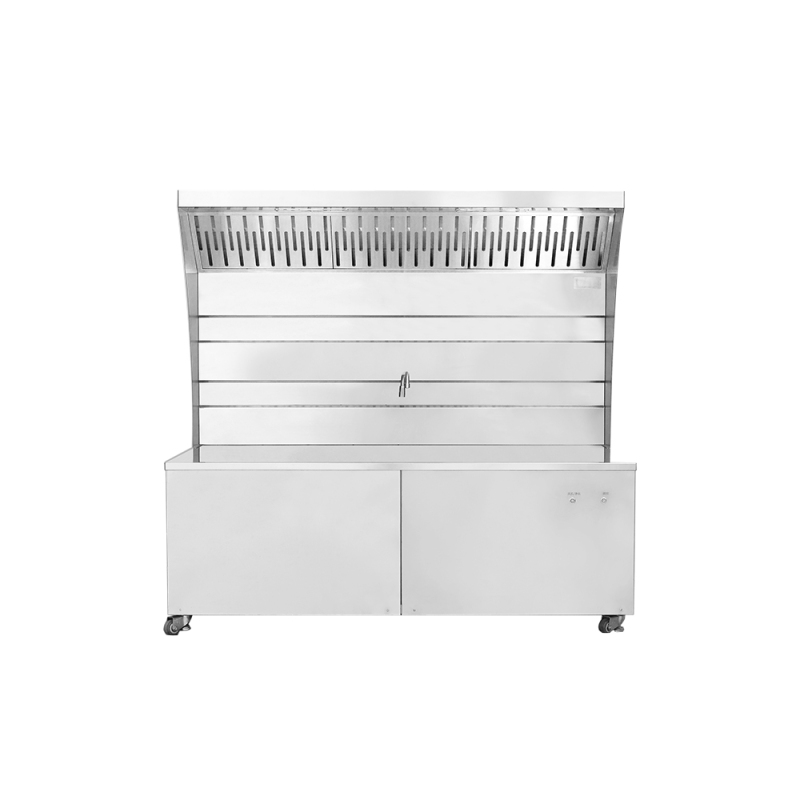

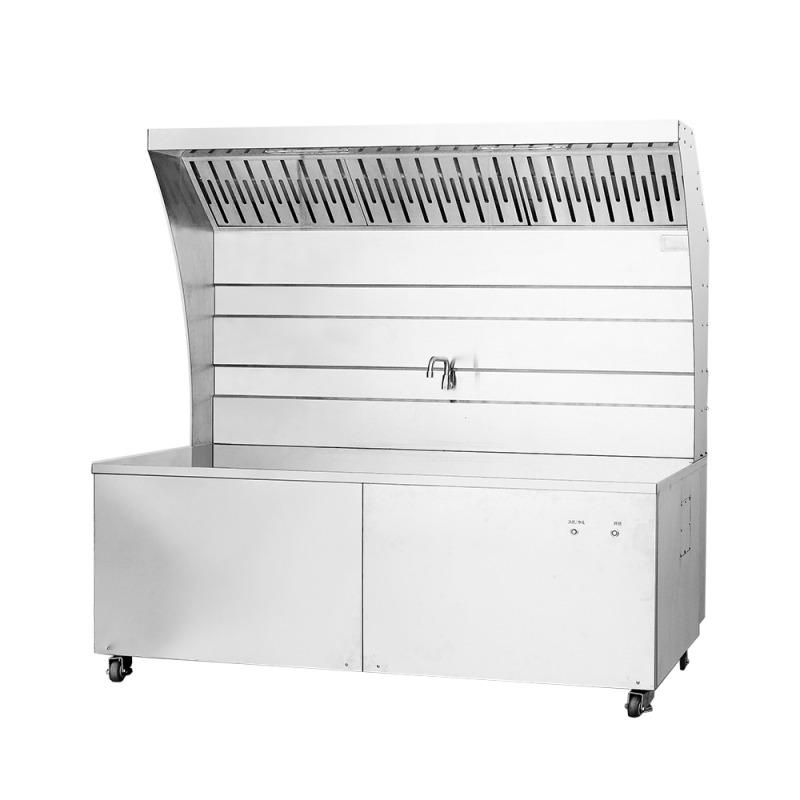

Commercial Cooker with ESP collector for removing grease & fume
Mobile Stove with Electrostatic Precipitator, "all-in one Cooking Counter", the fumes will be purified after absorbing into ESP Electrostatic purification module, Meet the environmental protection lampblack emission standard, Especially suitable for roadside restaurants, roadside vendors, food street vendors, food stalls.
Reach Environmental emission standard
stove
|
Item NO. |
KHPH-18 |
KHMH-181 |
KHMH-182 |
|
Product name |
Platform stove |
Single-fire stove |
double-fire stove |
|
Power supply |
220VAC 50/60HZ, 1.5KW (motor power 1.1kW,Fan full pressure 550PA) |
||
|
Adsorption area |
32sqm |
||
|
Product size （mm） |
1800x830x1770(other size can be order),NW250kgs |
||
|
Operating platform size(mm) |
1800x750x530 |
||
|
Electric field size （mm） |
380×600×480X2PCS |
||
|
volume （m3/h） |
4100（7000CFM） |
||
|
Air speed （m/s） |
4.5 |
4.5 |
4.5 |
|
Purifier rate |
90% |
90% |
90% |
|
Resistance (Pa) |
≤180 |
≤180 |
≤180 |
|
Operating temperature (℃) |
<70 |
<70 |
<70 |
|
Electric field materia |
Stainless steel ionizer + tungsten wire electrode, aviation aluminum dust collection unit, spacing 7mm |
||
|
Filter |
Pre-filter*2pcs, ESP*2pcs, S-type honeycomb pre-filter*2pcs, ctivated carbon filter*2pcs |
||
|
Security configuration |
Open the door and power off, radiator |
||
|

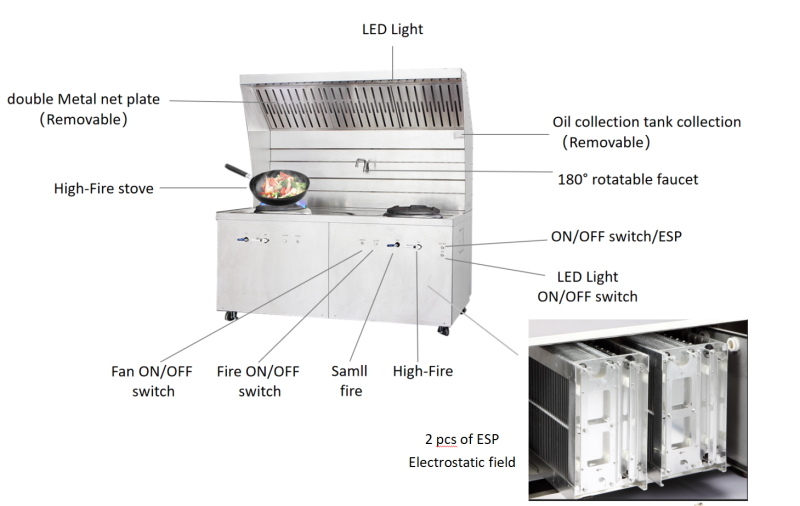

Parts have
|
Water inlet and drain interface, oil collecting tank, LED light switch, fan switch |
Natural gas, water inlet and drainage interface, oil collection tank, LED light switch, fan, ignition, firepower adjustment switch |
|
