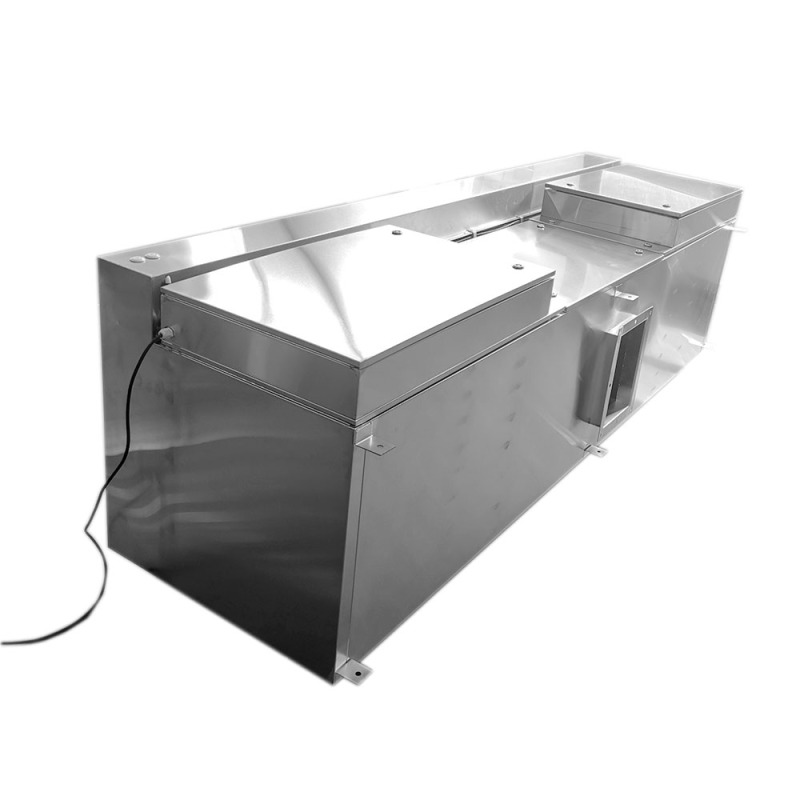

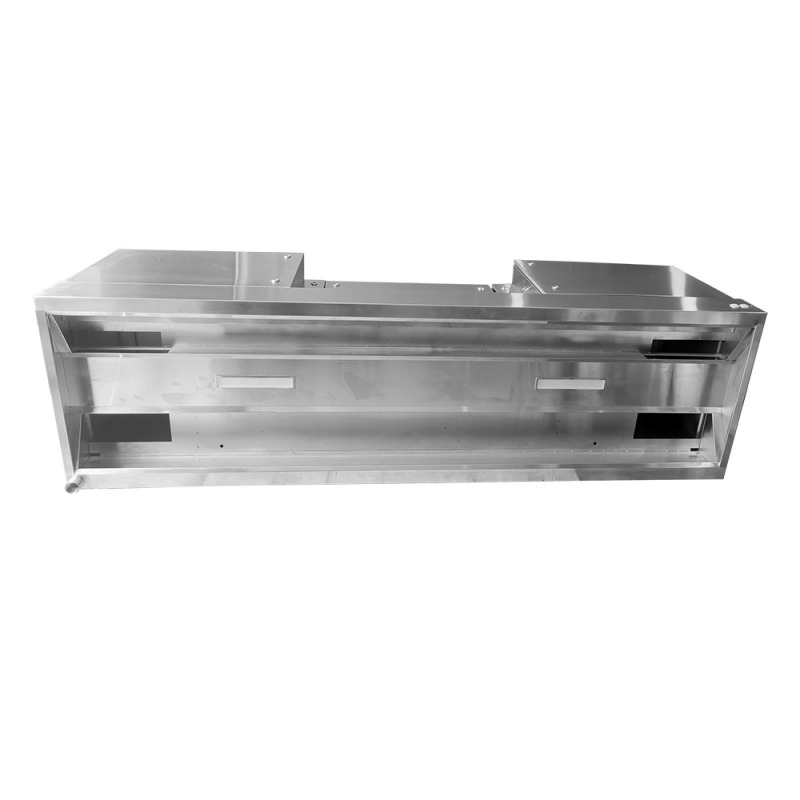

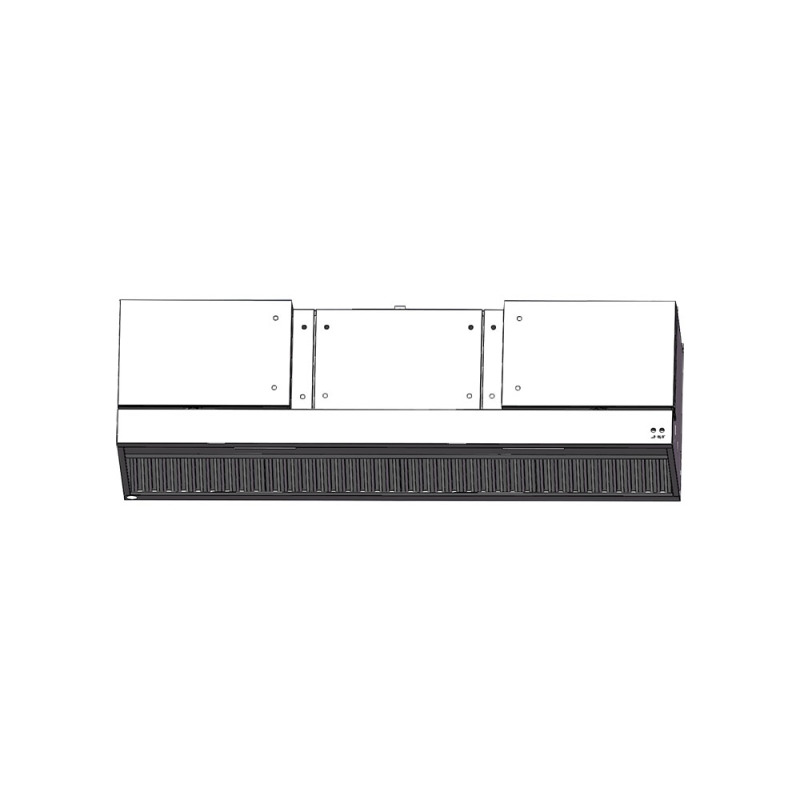

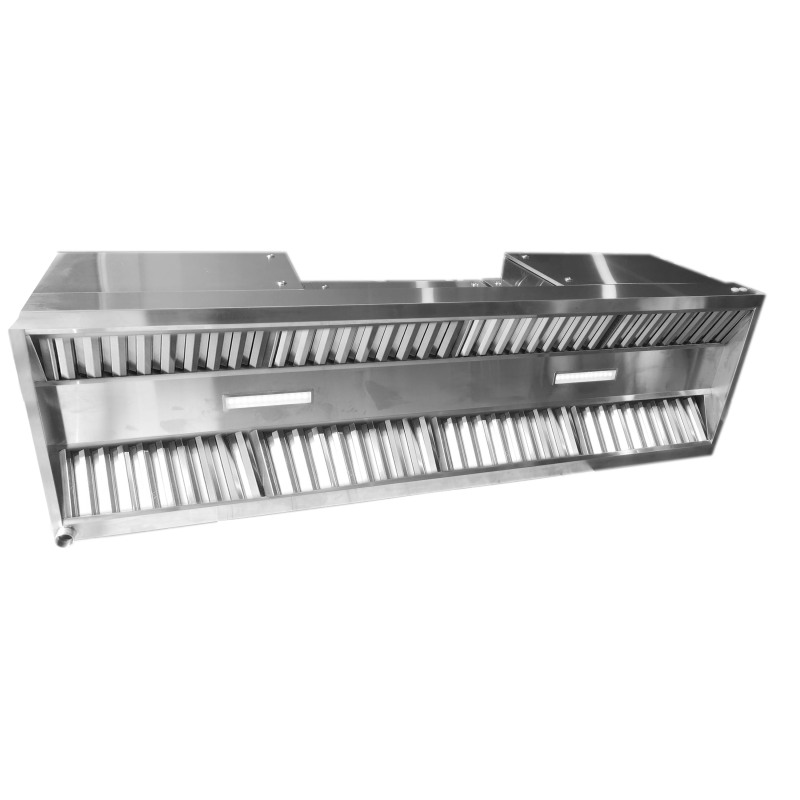

Commercial Kitchen Hood Range with ESP Fume Purifier
Description
LIVEWELL Ceiling type smoke hood purification all-in-one Kitchen Exhaust Hood System is special designed for Commercial restaurants& kitchens, It can absord all the smoke and oil by our unique creative “absorded-smoke airflow technology” fastly, All the gas will be purfiered by the inside static electric field(ESP) modules, The Air will be Fresh after it come out.
Features:
- High effection of absorded smoke and oil(no escaped)
- Flexible module combination
- Modules: Pre-filter, ESP, S-type honeycomb pre-filter, activated carbon filter
- Smart operation, one-key start
- PDP ozone deodorization function (optional)
- AUTO Cleaning function(optional)
- Meet the emission standards of small restaurants, economical

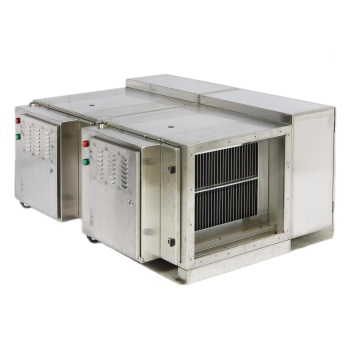

Electrostatic Smoke Precipitator/Kitchen Exhaust
Specification:
|
Item NO. |
KHDD-18 |
KHDD-20 |
KHDD-24 |
|
Power supply |
220VAC 50/60HZ, 0.4kW (motor power 1.1kW,Fan full pressure 550PA) |
||
|
Adsorption area |
32sqm |
||
|
Electric field size(ESP) （mm） |
380×600×480X2PCS |
||
|
Product size （mm） |
1800x1000x770 |
2000x1000x770 |
1800x800x770 |
|
volume （ m3/h） |
4100（7000CFM） |
4500（7650CFM） |
5000（8500CFM） |
|
Air speed （m/s） |
4.5 |
4.5 |
4.5 |
|
Purifier rate |
90% |
90% |
90% |
|
Resistance (Pa) |
≤180 |
≤180 |
≤180 |
|
Operating temperature (℃) |
<70 |
<70 |
<70 |
|
Electric field materia |
Stainless steel ionizer + tungsten wire electrode, aviation aluminum dust collection unit, spacing 7mm |
||
|
Filter |
Pre-filter*2pcs, ESP*2pcs, S-type honeycomb pre-filter*2pcs, ctivated carbon filter*2pcs |
||
|
Security configuration |
Open the door and power off, radiator |
||
|
Parts have
|
oil collecting tank, LED light switch, fan switch |
oil collection tank, LED light switch, ignition, Fan switch |
|
-
Wooden Package for OEM customers
-
