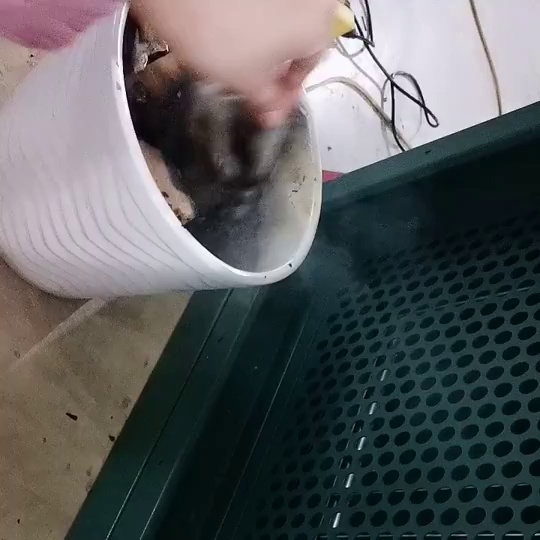

Video

Product ID: 62759876

95% Fume Removal Cooking Oil Fume ESP purifier

Contact Now

Description

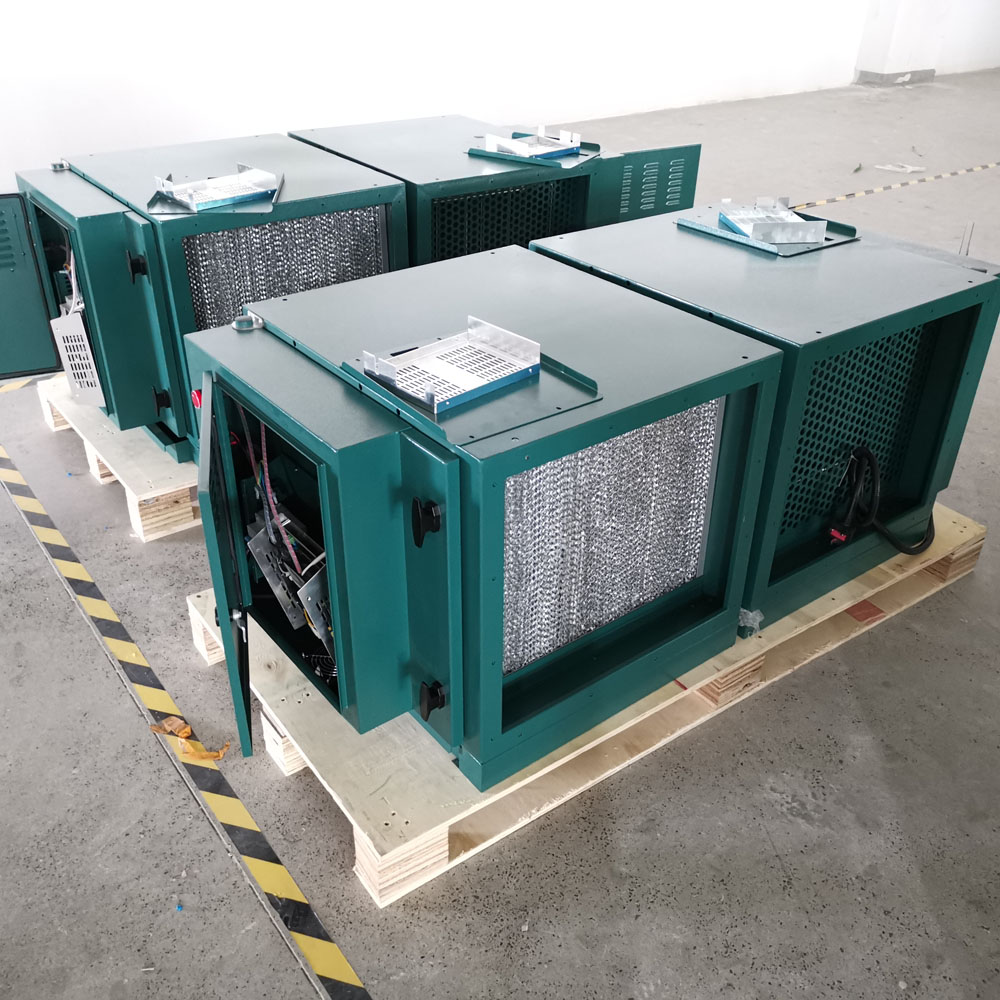

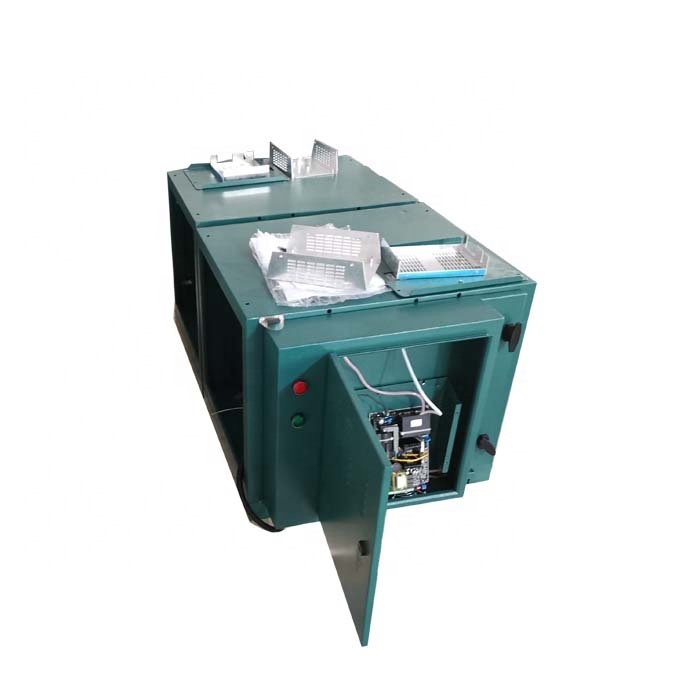

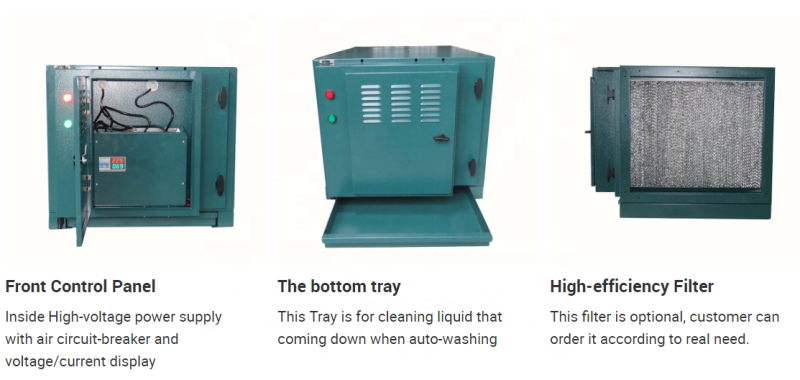

KH-4000 Fume Purifier

Electrostatic Precipitator （ESP filter）for Commercial Kitchen(Kitchen Exhaust)

Ideal for the removal of grease and smoke from cooking applications（Electrostatic Smoke Precipitator）.

Its three-stage ESP electrostatic technology and unique patented dual high pressure package design enhance overall purification performance and service life. This product can be matched with PDP deodorizer, automatic cleaning machine according to the actual needs of customers. It is one of the best quality and ideal fume purification solutions for most commercial catering restaurants.

Item NO.	KHH-4000	KHH-8000	KHS-8000
Product size （mm）	675×725×590	675×1325×590	1450×880×640
Electric field size （mm）	380×600×480X1PCS	380×600×480X2PCS	380×600×480X2PCS
Flange size （mm）	580×525	1110×525	1110×525
volume （m3/h）	4000	8000	8000
Air speed （m/s）	4	4	4
Purifier rate	95%	95%	95%
Power supply	220VAC 50/60HZ	220VAC 50/60HZ	220VAC 50/60HZ
Rated power （W）	200	200	200
actual power （W）	77	154	154
Resistance (Pa)	≤180	≤180	≤180
Operating temperature (℃)
Equipment weight (KG)	65	120	180
Electric field materia	Stainless steel ionizer + tungsten wire electrode, aviation aluminum dust collection unit, spacing 7mm
Filter	S-type honeycomb pre-filter, activated carbon post-filter (optional)

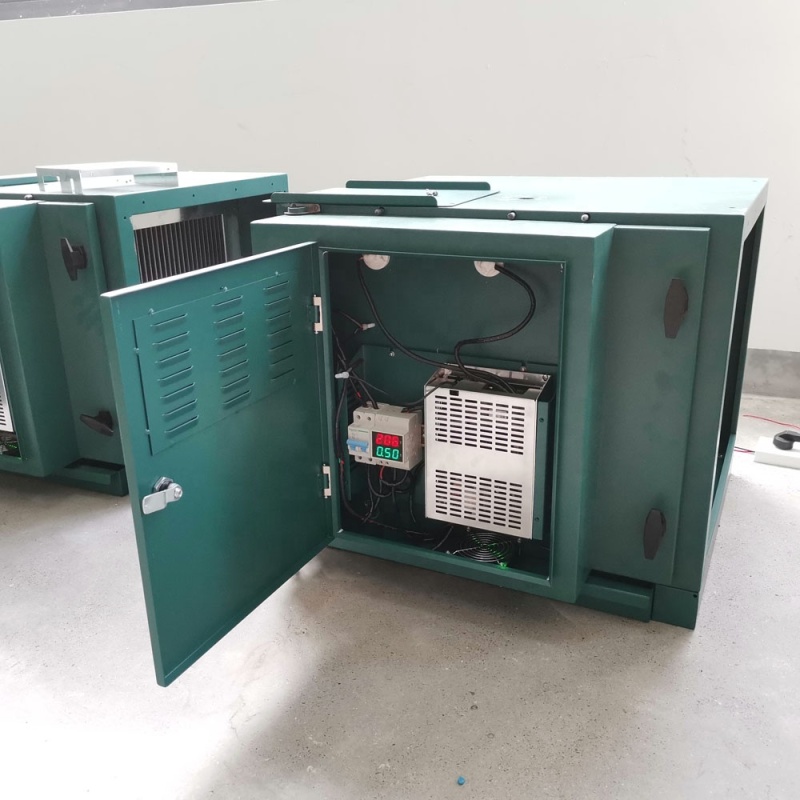

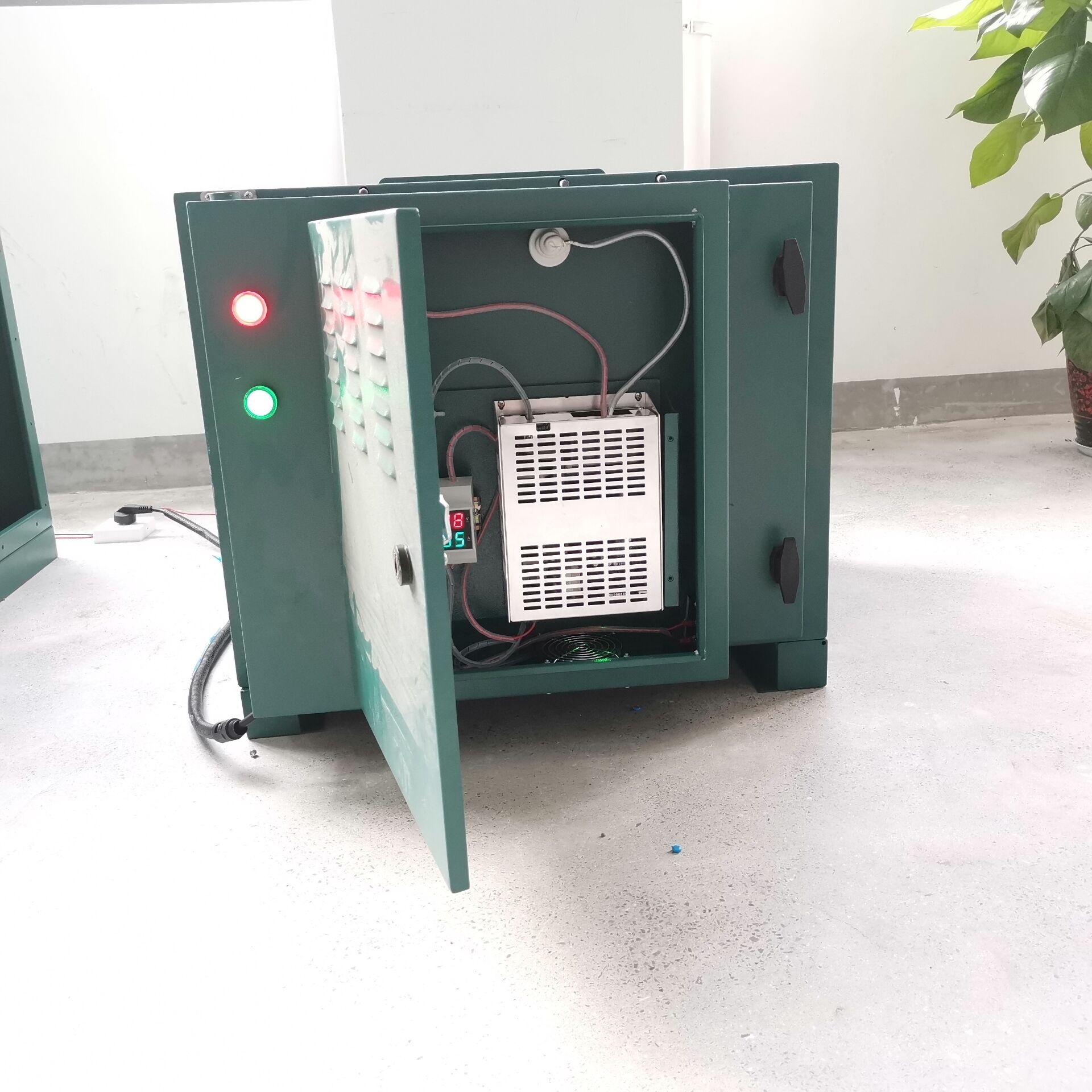

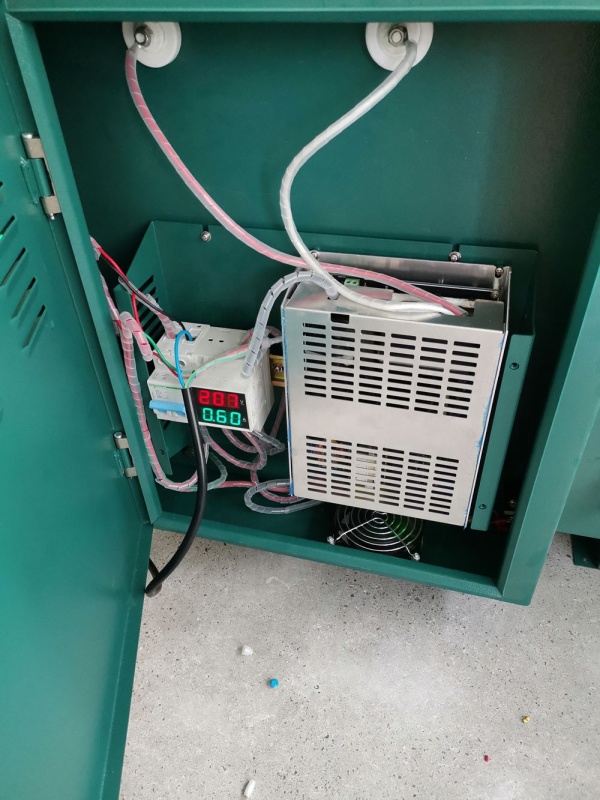

Security configuration	Open the door and power off, radiator

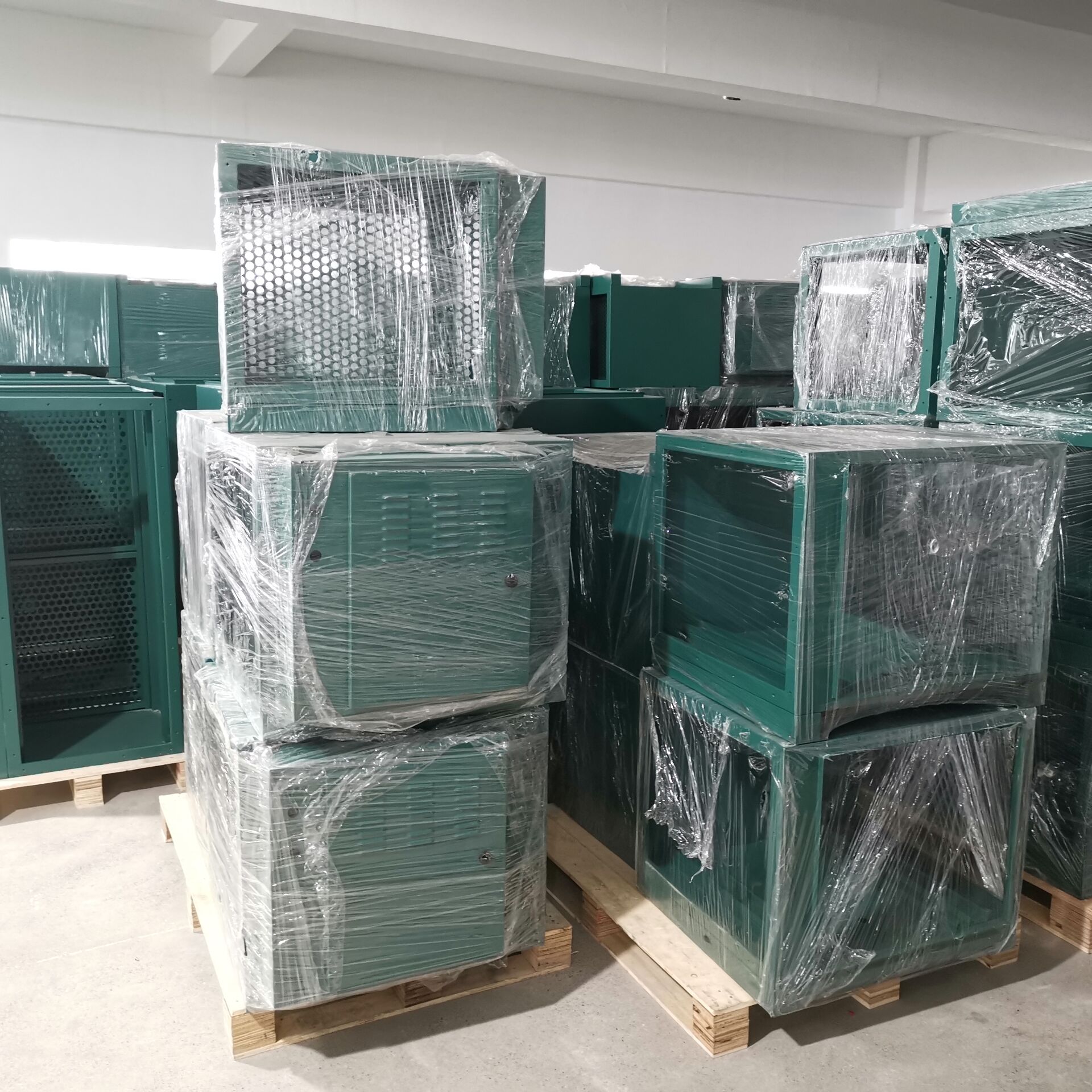

Production and Packing
