Electrostatic Precipitator for purifying cooking fume
Description
产品描述

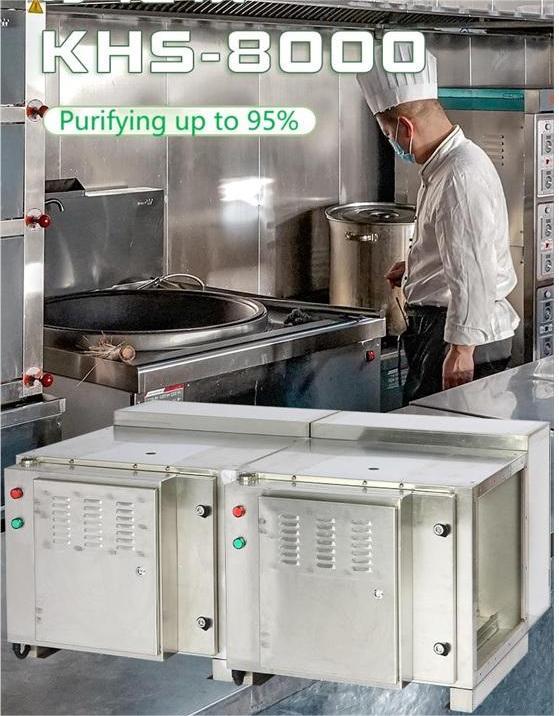

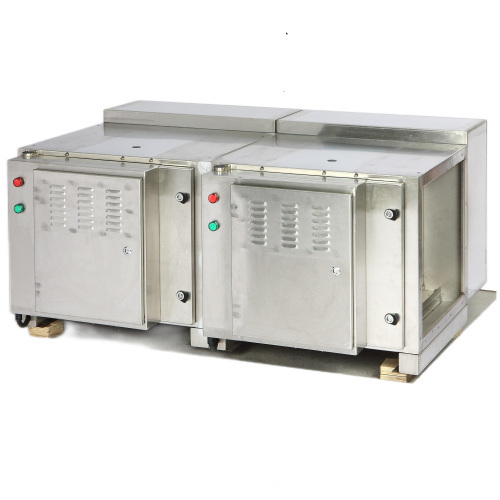

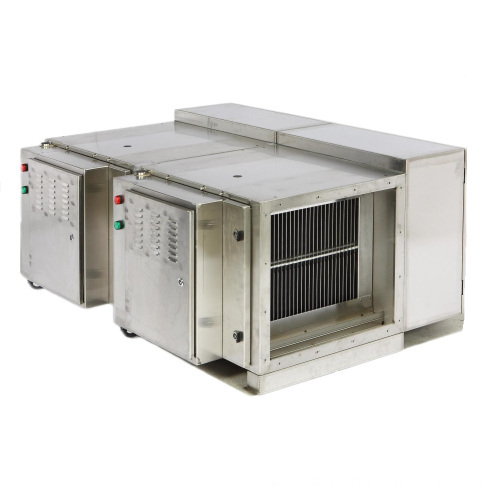

LIVEWELL Electrostatic Precipitator(Electrostatic Smoke Precipitator) for effectively purifying cooking oil fume
ESP Filter -It has been specifically designed for kitchen extract systems and have integral
ESP Remove fine grease particles, cooking fumes and smoke and odor efficiently, economically and safely . Grease created from the cooking process is highly flammable. This pollutants build up inside your commercial kitchen exhaust duct increasing the risk of fire. Our very efficient Electrostatic precipitator will filter this grease and other contaminant hence reducing the risk of fire in the duct.
|
Item NO. |
KHH-4000 |
KHH-8000 |
KHS-8000 |
|
Product size （mm） |
675×725×590 |
675×1325×590 |
1450×880×640 |
|
Electric field size （mm） |
380×600×480X1PCS |
380×600×480X2PCS |
380×600×480X2PCS |
|
Flange size （mm） |
580×525 |
1110×525 |
1110×525 |
|
volume （m3/h） |
4000 |
8000 |
8000 |
|
Air speed （m/s） |
4 |
4 |
4 |
|
Purifier rate |
95% |
95% |
95% |
|
Power supply |
220VAC 50/60HZ |
220VAC 50/60HZ |
220VAC 50/60HZ |
|
Rated power （W） |
200 |
200 |
200 |
|
actual power （W） |
77 |
154 |
154 |
|
Resistance (Pa) |
≤180 |
≤180 |
≤180 |
|
Operating temperature (℃) |
|||
|
Equipment weight (KG) |
65 |
120 |
180 |
|
Electric field materia |
Stainless steel ionizer + tungsten wire electrode, aviation aluminum dust collection unit, spacing 7mm |
||
|
Filter |
S-type honeycomb pre-filter, activated carbon post-filter (optional) |
||
|
Security configuration |
Open the door and power off, radiator |
||
