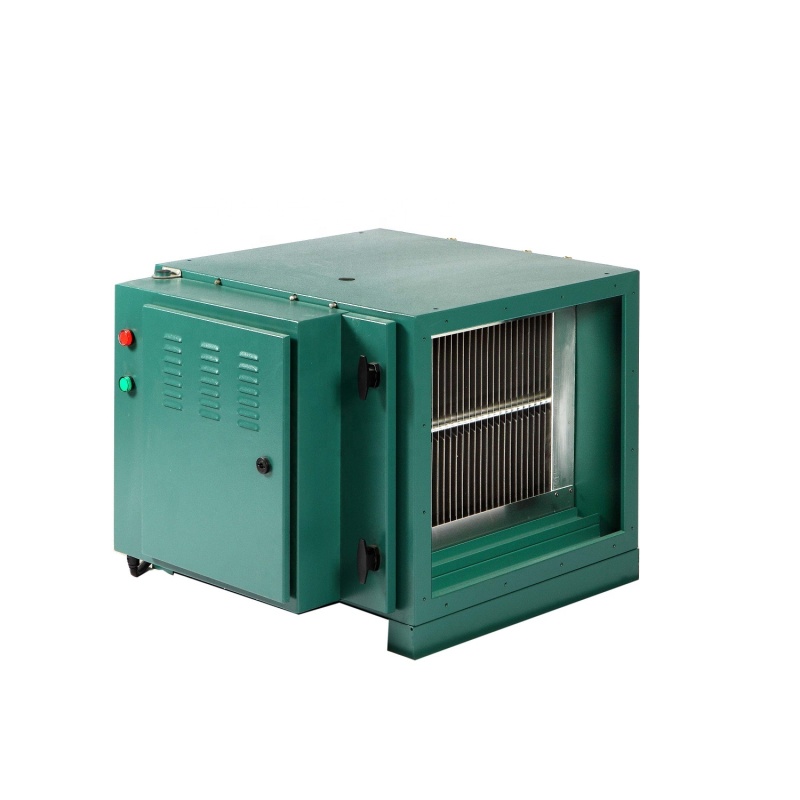

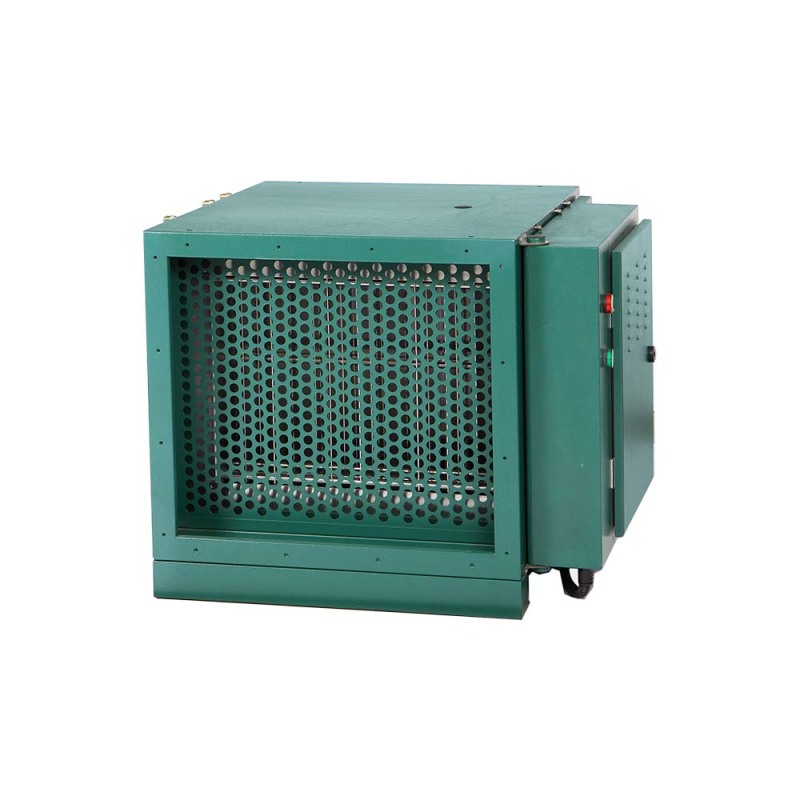

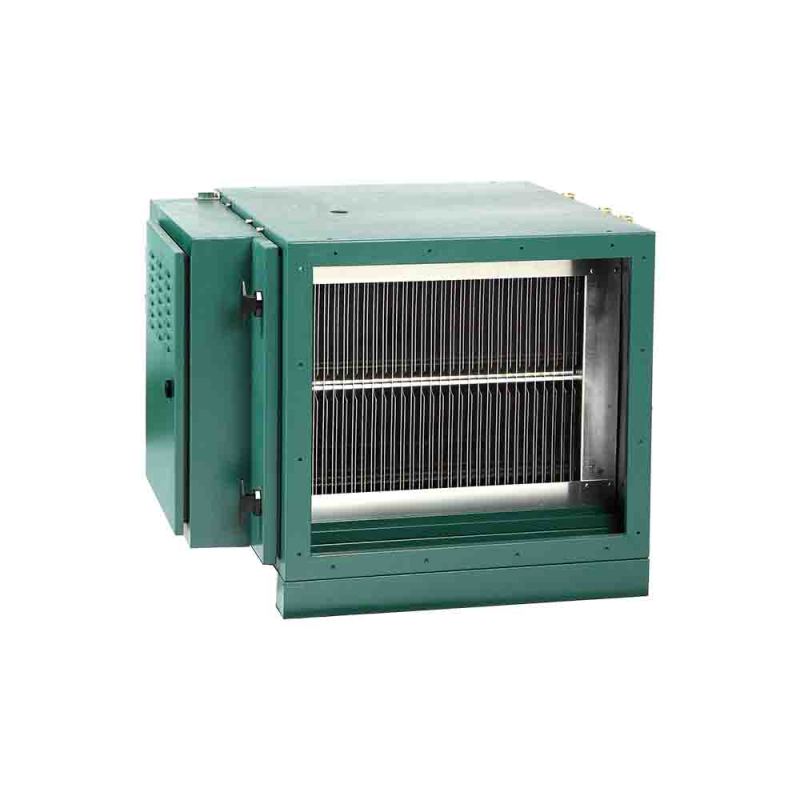

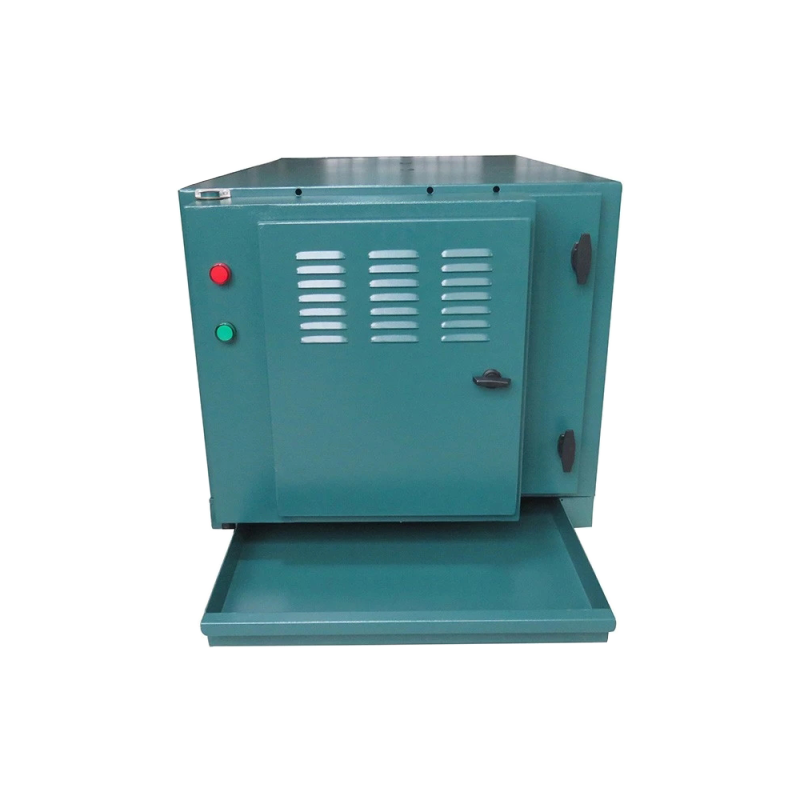

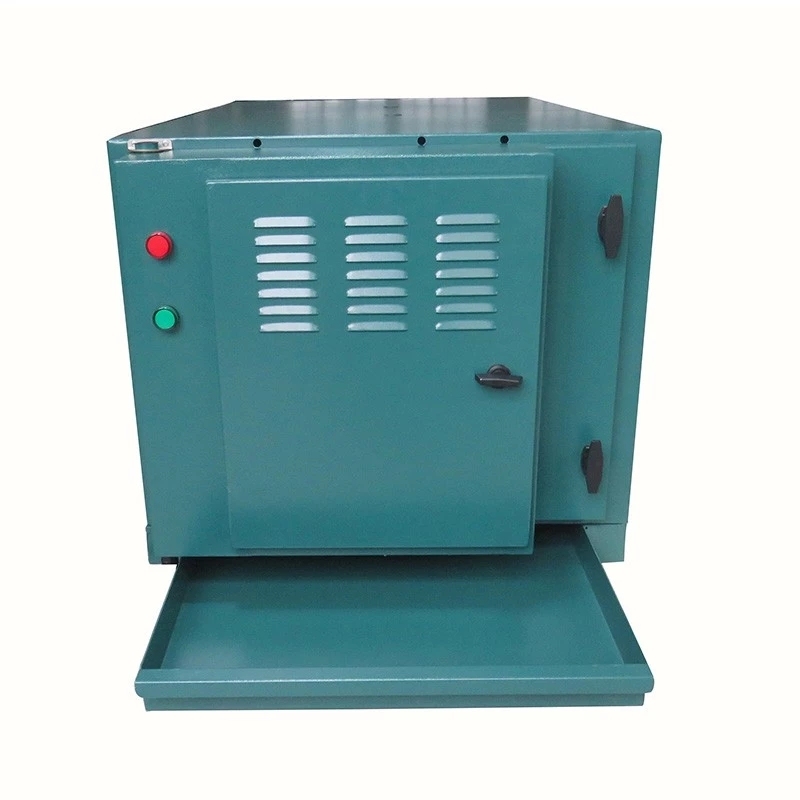

COMMERCIAL KITCHEN ESP Purifier KH-4000

Electrostatic Precipitator for Commercial Exhaust

Hot Sale Industrial Electrostatic Precipitator Factory Dust Collector1

Item NO.	KHH-4000	KHH-8000	KHS-8000
Product size （mm）	675×725×590	675×1325×590	1450×880×640
Electric field size （mm）	380×600×480X1PCS	380×600×480X2PCS	380×600×480X2PCS
Flange size （mm）	580×525	1110×525	1110×525
volume （m3/h）	4000	8000	8000
Air speed （m/s）	4	4	4
Purifier rate	95%	95%	95%
Power supply	220VAC 50/60HZ	220VAC 50/60HZ	220VAC 50/60HZ
Rated power （W）	200	200	200
actual power （W）	77	154	154
Resistance (Pa)	≤180	≤180	≤180
Operating temperature (℃)
Equipment weight (KG)	65	120	180
Electric field materia	Stainless steel ionizer + tungsten wire electrode, aviation aluminum dust collection unit, spacing 7mm
Filter	S-type honeycomb pre-filter, activated carbon post-filter (optional)
Security configuration	Open the door and power off, radiator
