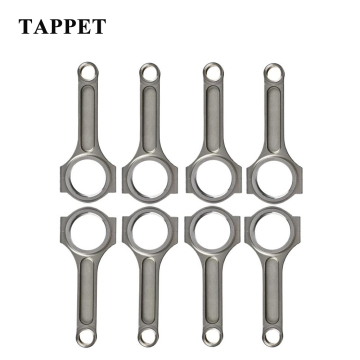

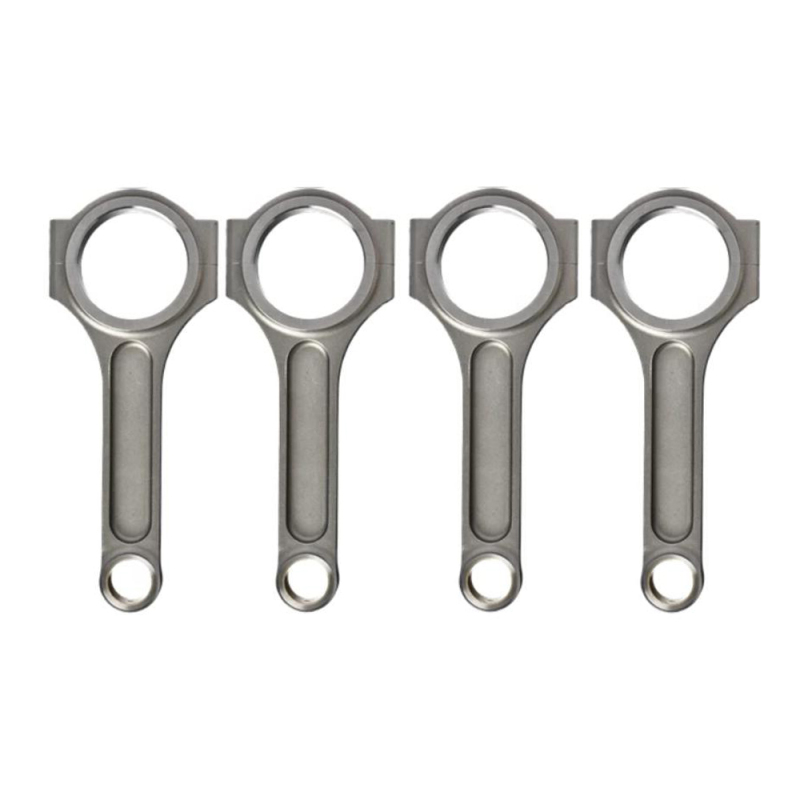

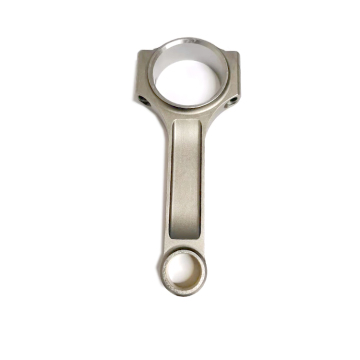

I beam Connecting Rods for Honda Prelude Si H23 H23A
Contact Now
Description
Honda H23 Rods Main Sizes
| Brand: TAPPET |
 |
| Center to Center Length: 141.50mm/5.571" | |
| Big End Bore Diameter: 51.01mm/2.008" | |
| Big End Width: 23.75mm/0.935" | |
| Small End Bore Diameter: 22.01mm /0.867" | |
| Small End Width: 23.75mm/0.935" | |
| Beam Style: I-beam |
Connecting Rod Honda H23/F22 More Details
| Connecting Rod Bolt Diameter | 3/8 " |
| Approximate Connecting Rod Weight | ~ |
| Advertised Horsepower Rating | 800hp |
| Package | 4 pieces per set |
| Material | Forged 4340 steel |
| Connecting Rod Finish | Shot-peened, Polished |
| Pin | Bronze wrist pin bushings |
| Wrist Pin Style | Floating |
| Cap Retention Style | Cap screw |
| Weight Matched Set | Yes Balanced +/- 1g |
| Magnafluxed | Yes |
| Private Label | Yes, available |
| Custom design |
Yes, accept |
