Connecting Rod Honda Acura K Series K24 TSX

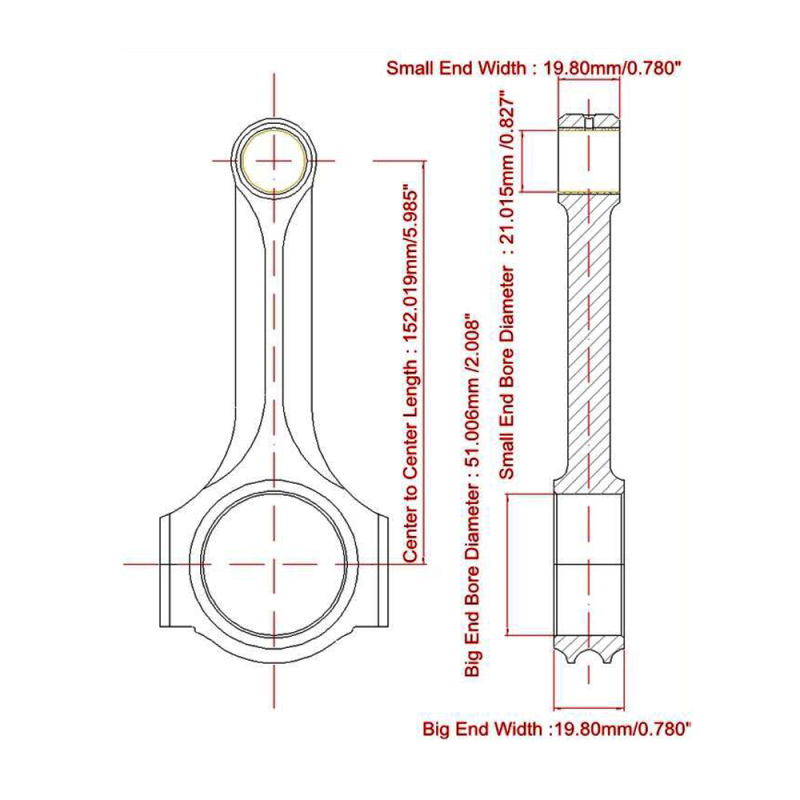

Center to Center Length: 151.99mm/5.984"
Big End Bore Diameter: 51.006mm/2.008"
Big End Width: 19.8mm/0.780"
Small End Bore Diameter: 22.015mm /0.867"
Small End Width: 19.8mm/0.780"
Beam Style: I-beam
Connecting Rod Bolt Diameter: 3/8"
Approximate Connecting Rod Weight: ~g/piece
Advertised Horsepower Rating: 800hp

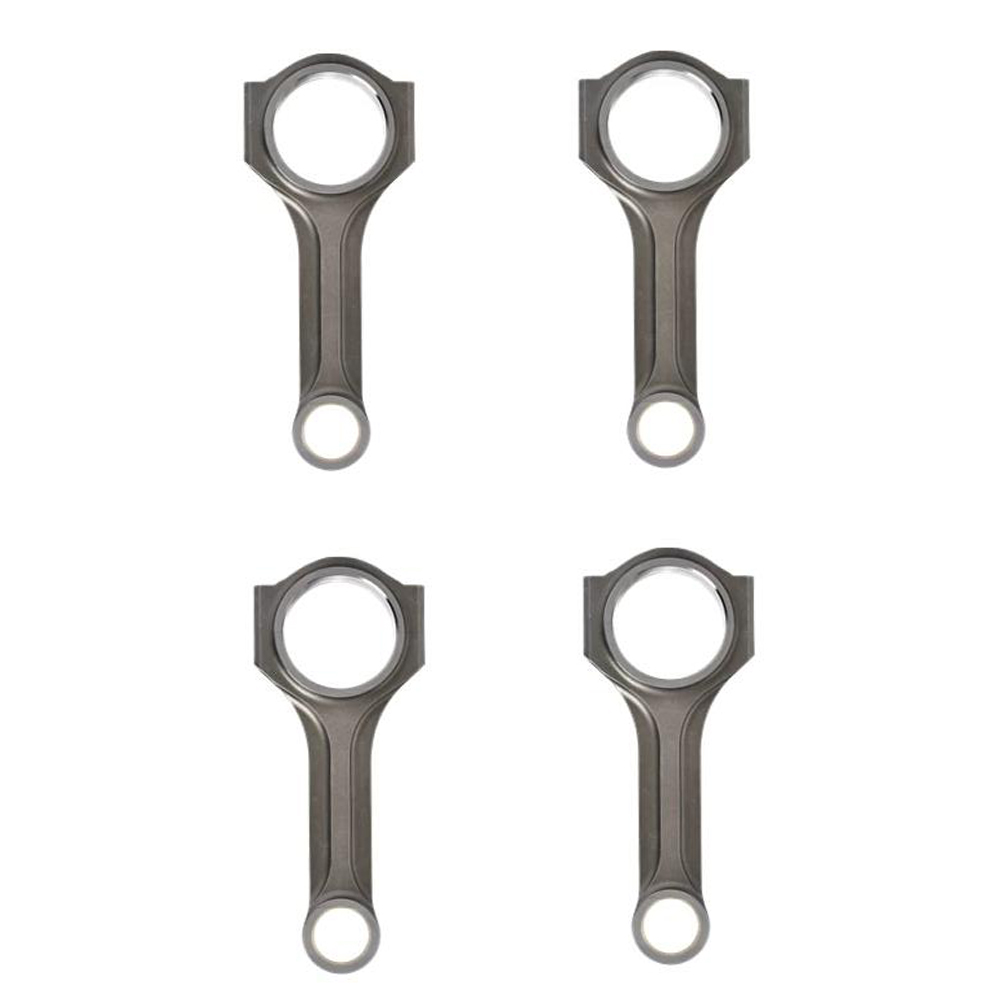

Quantity: Sold as 4 pieces per set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g

Our Honda K24 connecting rods suit for following applications:
 K24A    2002-2008 Honda Accord 24TL and Type-S
2008-2013 Honda Accord Type-S
2003-2013 Honda Odyssey Absolute
 K24A(Eco)    2003-2005 Honda Element
2003-2013 Honda Odyssey
2003-2005 Honda Stepwgn Spada 24T
2004-2013 Honda Elysion
2006-2009 Honda Edix 24S
2005-2016 Honda CR-V
 K24A1    2002-2006 Honda CR-V
 K24A2    2004-2005 Acura TSX
2006-2008 Acura TSX
 K24A3    2003-2007 Honda Accord
2003-2007 Honda Accord Euro
 K24A4    2003-2005 Honda Accord (USDM)
2003-2008 Honda Odyssey
2003-2006 Honda Element
 K24A8    2006-2007 Honda Accord
2007-2011 Honda Element
2008-2014 Honda Odyssey
