Product ID: 62934096
Connecting Rod For Honda Acura K24 K24A
Contact Now
Description

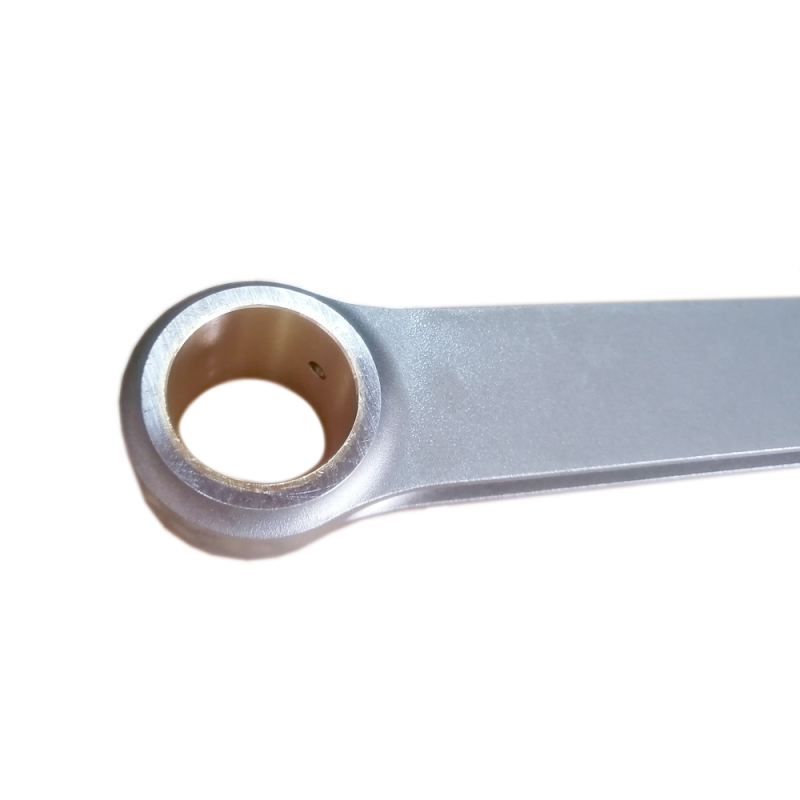

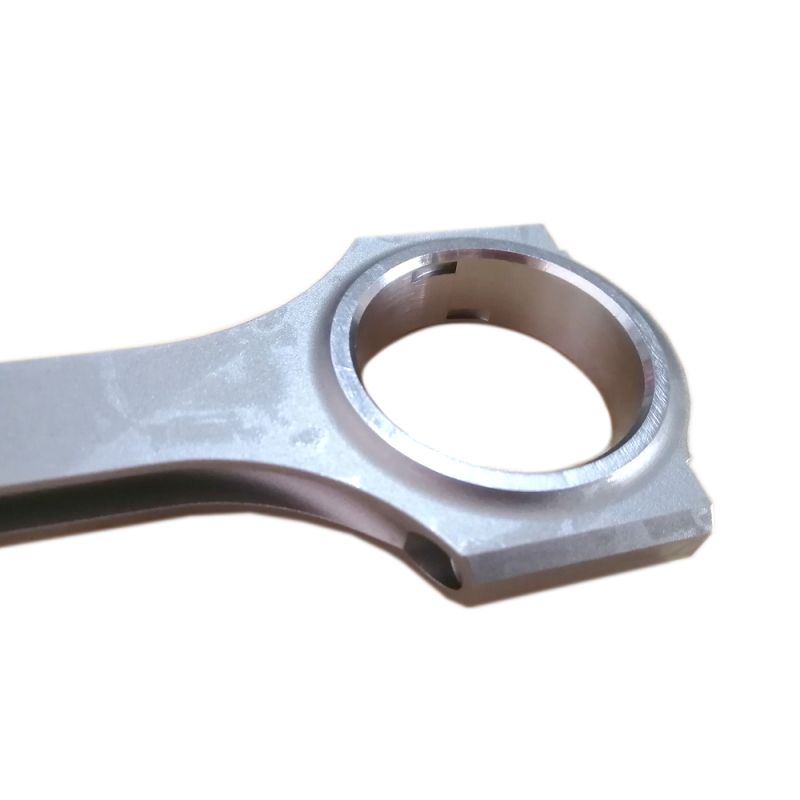

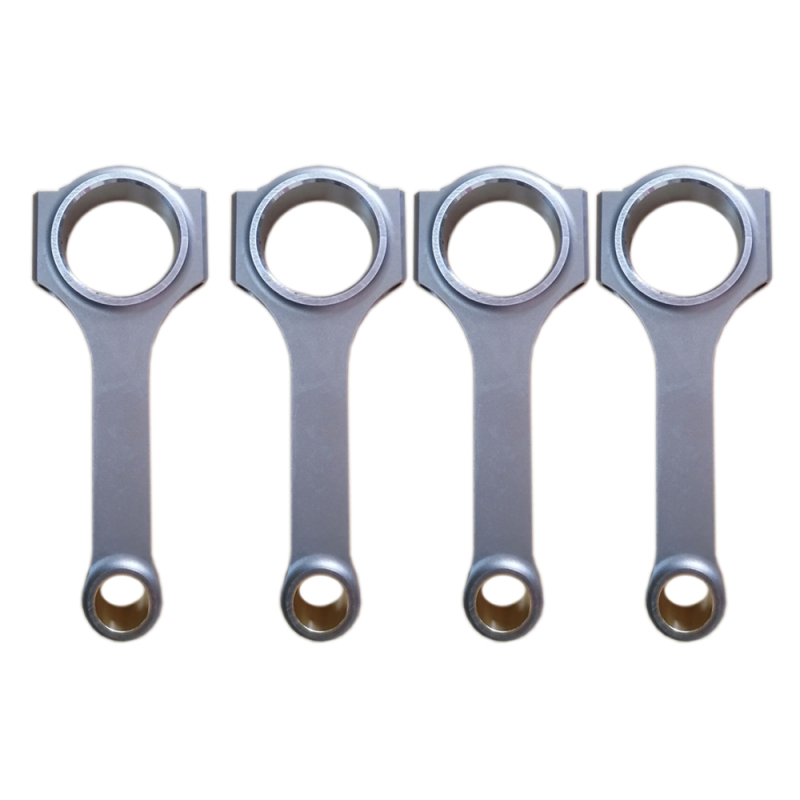

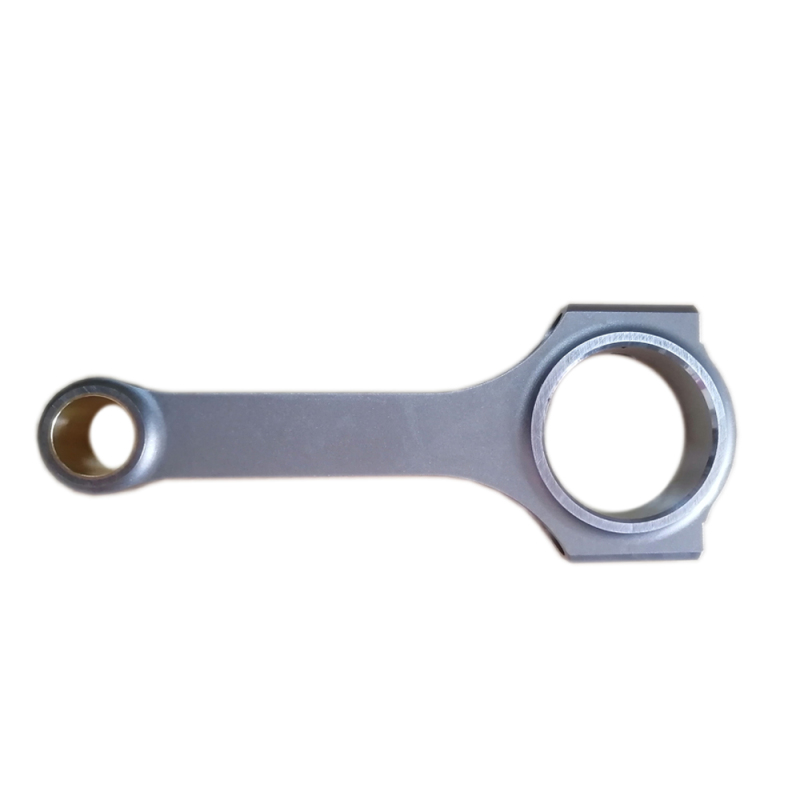

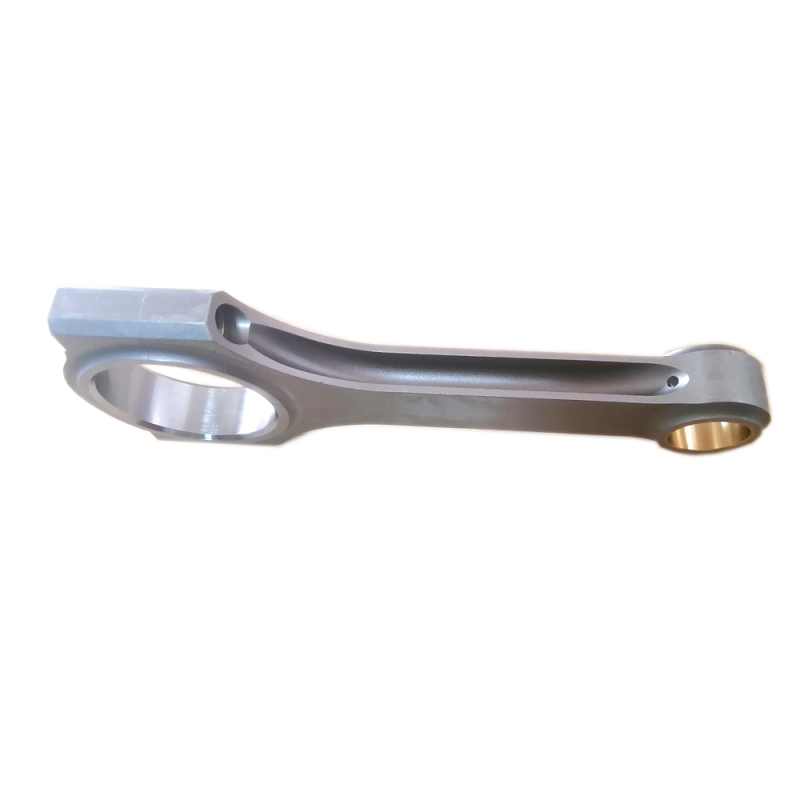

Forged 4340 Steel Connecting Rod For Honda Acura K24 K24A Connecting Rod
Honda K24 Connecting Rods Main Sizes
Center to Center Length: 151.99mm/5.984"
Big End Bore Diameter: 51.006mm/2.008"
Big End Width: 19.8mm/0.780"
Small End Bore Diameter: 22.86mm /0.9"
Small End Width: 19.8mm/0.780"
Beam Style: H-beam
Performance Connecting Rod for Honda K24 More Details
Material：Forged 4340 Steel
Copper bush Material：QAL10-3-1.5
Connecting Rod Bolt Diameter: 3/8"-1.600''L
Quantity :4pcs/set
Approximate Connecting Rod Weight: 495g/piece
Advertised Horsepower Rating: 550hp
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept
Technical Requirements:
1. Multi stage heat treatment: Quenching with subsequent tempering to HRC33-38 hardness.
2. Shot peening for improved fatigue life.
3. The forging defect which will affect the performance is not allowed.
4. Torque: 75NM, 4 pieces/set.
Application
For Honda/Acura K24 K24A1 K24A2 K24A4 K24A8 2.4L
for Honda CRV 2.4L 02-06 , K24A1
for Acura TSX 2.4L 04-08, K24A2
for Honda ACCORD 2.4L 03-14, K24A4
for Honda Element 2.4L 03-06, K24A4
for Honda Odyssey 2.4L 03-08, K24A4
for Honda Element 2.4L 07-11, K24A8
for Honda Odyssey 2.4L 08-14, K24A8
for Honda Accord (USDM) 2.4L 06-07, K24A8
