Forged Connecting Rods for Honda Acura Civic K20
Description

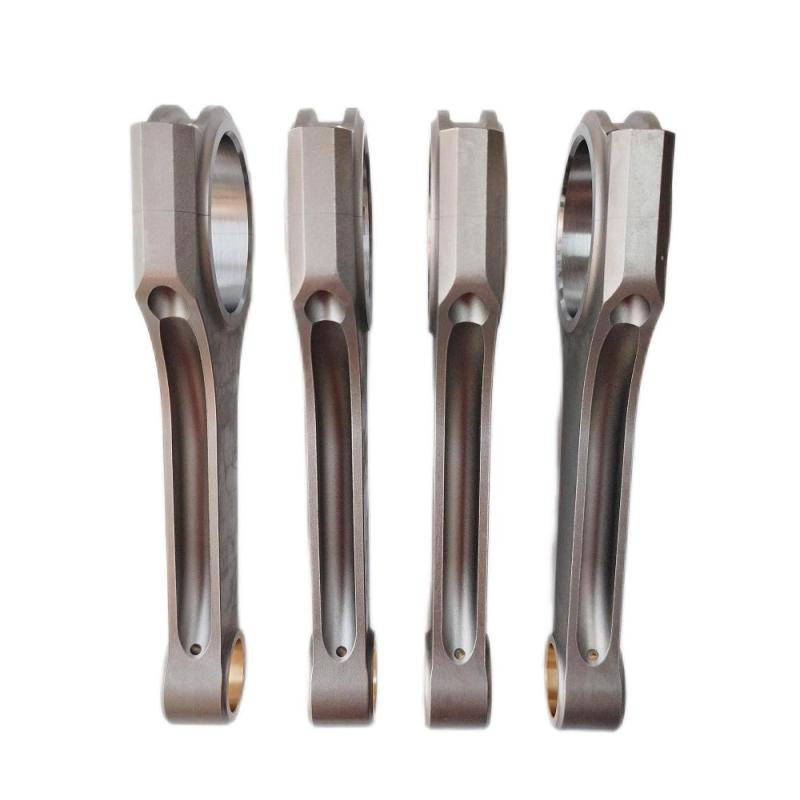

4x Forged Connecting Rods for Honda Acura Civic K20 K20A2 K20Z1 K20Z3

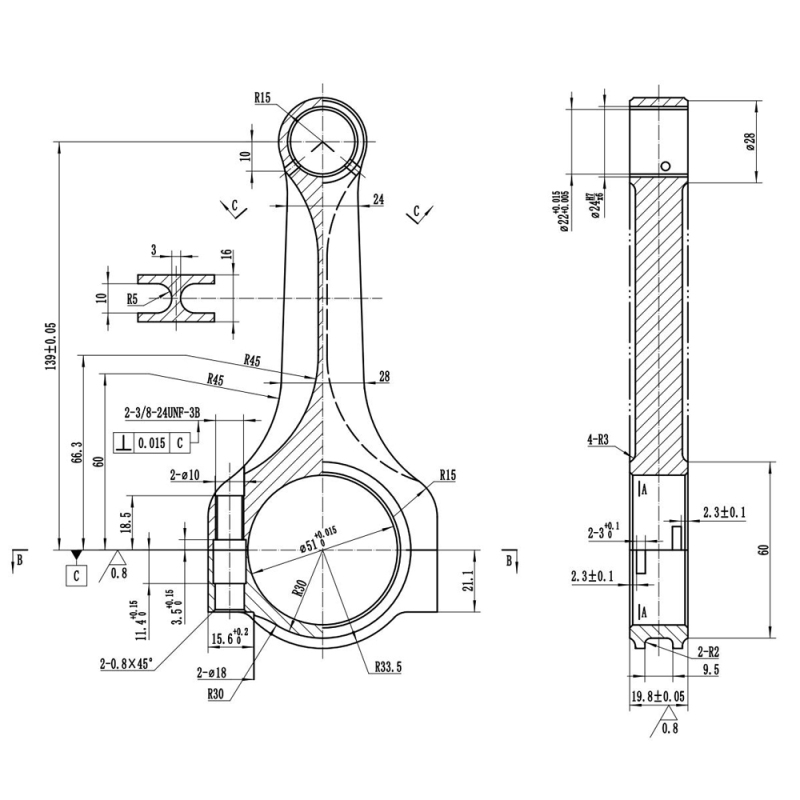

Key Dimensions:
Center to center length:139mm/5.472"
Big end diameter:51mm/2.008"
Big end width:19.8mm/0.78"
Small end diameter:22mm/0.866"
Small end width:19.8mm/0.78"
Beam Style: H-beam
Rods Bolts: 3/8''-1.600L''
Approximate Weight: 490g
Quantity: Sold as 4 pieces/set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

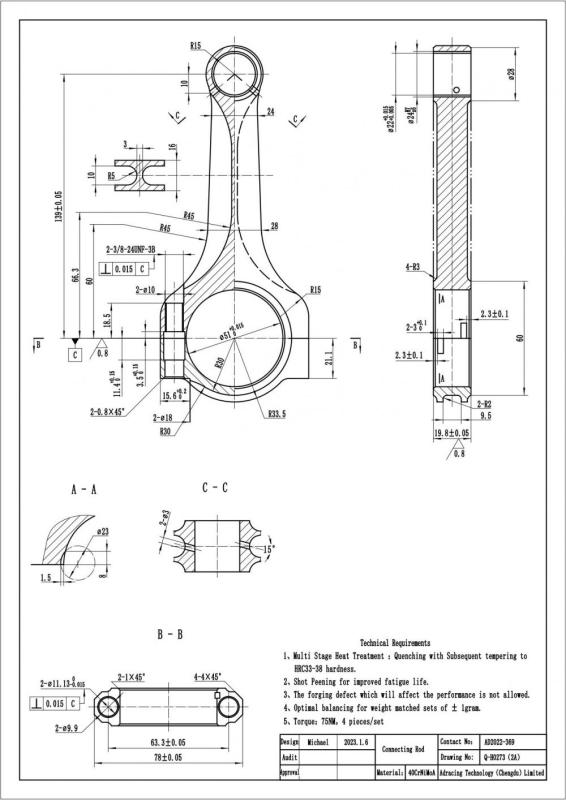

Technical Requirements:
1. Multi stage heat treatment: Quenching with subsequent tempering to HRC33-38 hardness.
2. Shot peening for improved fatigue life.
3. The forging defect which will affect the performance is not allowed.
4. Optimal balancing for weight matched sets of +/- 1gram.
5. Torque: 75NM.
Application
For Honda K20 K20A2 K20Z1 K20Z3
For Honda Civic 2.0L 06-11,K20Z3
For Acura RSX 2.0L 05-06,K20Z1
For Acura RSX 2.0L 02-04,K20A2
Note: Not For K20A3
