H-beam Connecting Rods Honda Civic B16 B16A B16A2

Contact Now

Description

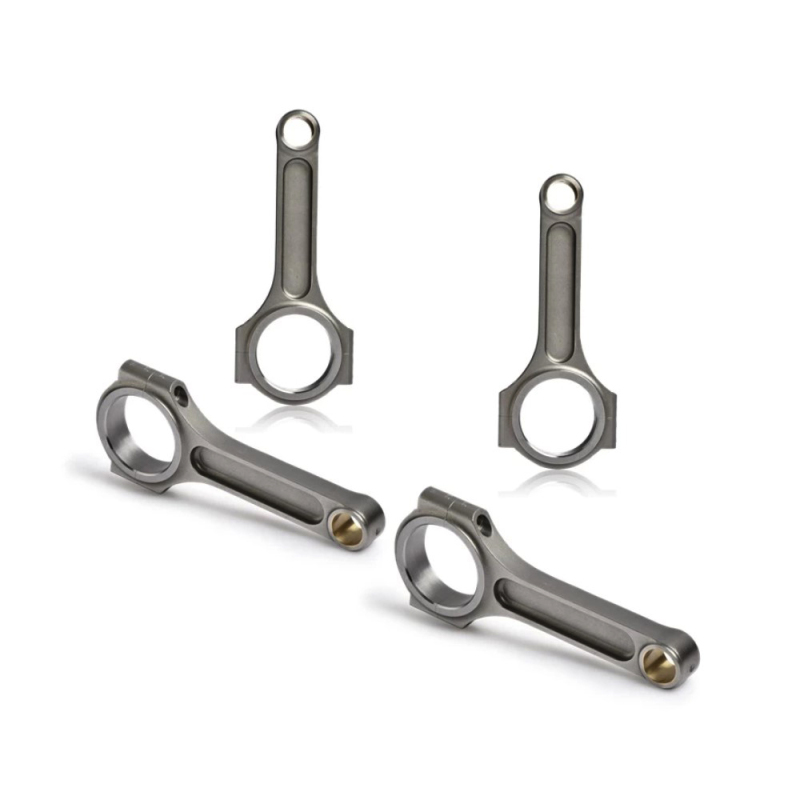

Forged H-beam Connecting Rods Honda Civic Si B16 B16A B16A2

Advantages:

Competitive Price

Quality Assurance
Various design
MOQ：100pieces
Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
If the goods are not in stock , the delivery time is 90-95 days .
Payment Terms: T/T , Paypal , Western Union
Keywords:
Honda B16A Connecting Rods
Honda B16 Connecting Rod Torque Specs
B16A Connecting Rods Length
Speed and Performance Acura & Honda Rods
Honda/Acura - Forged H-beam Connecting Rods

Engine: Honda Civic Si B16 B16A B16A2
Part Type: Connecting Rods
Center to Center Length: 134.366mm/5.290"
Big End Bore Diameter: 48mm /1.890"
Big End Width: 23.75mm/0.935"
Small End Bore Diameter: 21mm/0.827"
Small End Width: 21mm/0.827"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8 "
Approximate Connecting Rod Weight: 455g/piece
Advertised Horsepower Rating: 750hp
Quantity: Sold as 4pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

Honda B16A connecting rods length 5.290" and Main Dimensions

Honda/Acura - Forged H-beam Connecting Rods

H Beam Honda B16 rods are machined from forging 4340 steel, connecting rods length: 5.290", and then heat treated to provide improved strength. To make the rods even stronger, they are shot peened to which also increases fatigue life. All Hurricane Honda B16 engine connecting rods are fitted with highly durable premium bronze bushings for use with floating pin type pistons. Each rod set for the Honda B16 series engines, you can use ARP bolt.

Honda B16 connecting rods are finished in China at our factory in Sichuan. Critical rod dimensions are are held to very precise tolerances, such as rod length:+/-0.05, big end bore:+/-0.013, small end bore:+/-0.005, which are an excellent upgrade component for high performance and racing B16 engines.

Honda b16 connecting rod torque specs, use ARP2000 3/8" bolt, torque:75N.M, more bolt choices are avilable for you.

Applications:

B16A (First Generation) 1989-1993 Honda Integra XSi
1989-1991 Honda CRX SiR (EF8)
1989-1991 Honda Civic SiR (EF9)
B16A (Second Generation) 1992–1993 Honda Integra "XSi" (DA6, DA8)
1992–1994 Honda Civic SiR/SiRII (EG6)
1992–1993 Honda Civic Ferio SiR (EG9)
1992–1995 Honda CR-X del Sol SiR (EG2)
1996–1998 Honda Civic SiR/SiRII (EK4)
1996–2000 Honda Civic Ferio SiR (EK4)
B16B (Type R) 1997–2000 Civic Type R
B16A1 CRX'1.6 DOHC VTEC (EE8) - European market (EDM)
Civic'1.6 DOHC VTEC (EE9) - European market (EDM)
B16A2 1992-2000 Honda Civic EDM VTi (EG6/EG9 & EK4)
1992-1997 Honda Civic del Sol EDM VTi (EG)
1996-1997 Honda Civic del Sol VTEC USDM (EG2)
1996-1998 Honda Civic AUDM & NZDM Vti-R (EK4)
1999-2000 Honda Civic AUDM Vti-R (EM1)
1999-2000 Honda Civic USDM Si (EM1)
1999-2000 Honda Civic SiR Philippines (EK4 sedan)
1999-2000 Honda Civic CDM SiR (EM1)

If you did not find the B16 con rods with sizes you need, please contact us for assistance. New custom models are constantly in development so we may have rods available that have not been added to this site yet. Procedure as follows:
1. Basic on your needs, full rough quotation will be provided;
2. If you agree with quotation, we will make drawing and confirm with you;
3. After drawing confirm well, invoice with deposit will be provided;
4. As soon as you pay, we will start this order;

5. After produce wellpay final payment we will ship for you;
