ISUZU TURBODIESEL CONNECTING ROD Performance Racing Car
Description

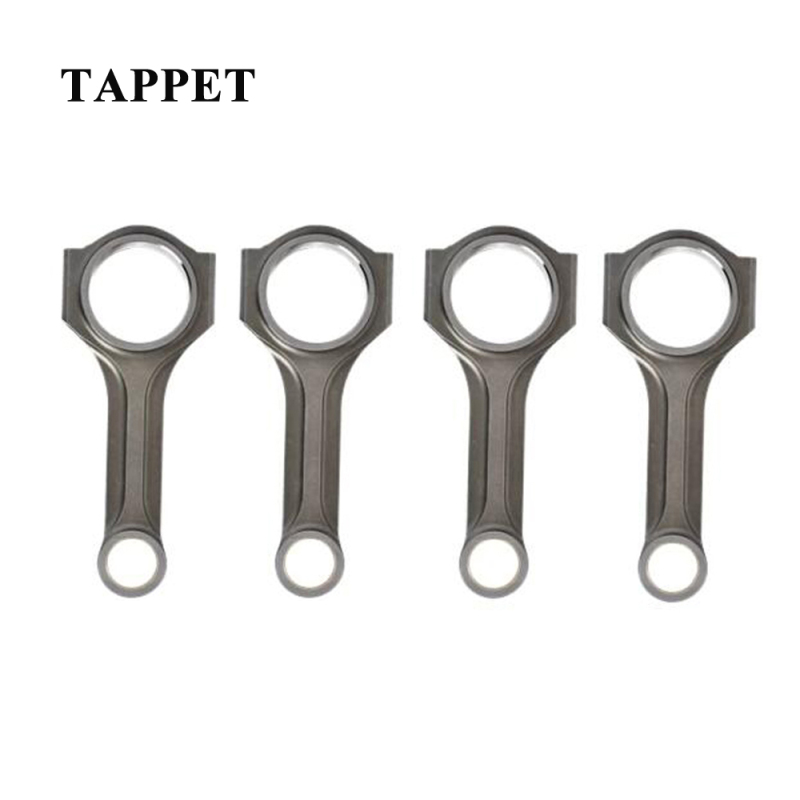

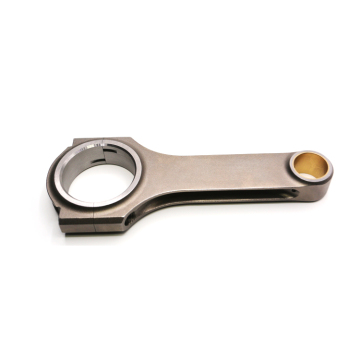

ISUZU 4JJ1 3.0L TURBODIESEL Connecting Rods Main Sizes
| Brand: TAPPET |
|
| Center to Center Length: 158mm/6.221" | |
| Big End Bore Diameter: 56.00mm/2.205" | |
| Big End Width: 33.00mm/1.299" | |
| Small End Bore Diameter:34.00mm /1.339" | |
| Small End Width: 33.00mm/1.299" | |
| Beam Style: X-beam |
ISUZU 4JJ1 Connecting Rod More Details
| Connecting Rod Bolt Diameter | 7/16" |
| Approximate Connecting Rod Weight | 1116g/piece |
| Advertised Horsepower Rating | 1000hp |
| Quantity | Sold as 4 pieces /set |
| Material | Forged 4340 Steel |
| Connecting Rod Finish | Shot-peened, Polished |
| Pin | Bronze wrist pin bushings |
| Wrist Pin Style | Floating |
| Cap Retention Style | Cap screw |
| Weight Matched Set | Yes ,Balanced +/- 1g |
| Magnafluxed | Yes |
| Private Label | Yes ,available |
| Custom design | Yes, accept |
4JJ1 Engine Performance Rods Features
Basis on custom needs, The Hurricane rod are designed for being material (forged 4340 steel ) efficient and structurally sound. Compared with H-beam, the cross section of X-beam provides an more strength, while the streamlined leading edge grants performance advantages not found in any other connecting rod.
ISUZU 4JJ1 3.0L TURBODIESEL rods are machined with Fully CNC machine. Advantages:
1.Forged 4340 steel
2.copper bush:QAL10-3-1.5
3.3*45 shoulder
4.PE width with tapper
5. X-beam
